2SC5047: DescriptionPower Bipolar Transistor, 25A I(C), 800V V(BR)CEO, 1-Element, NPN, Silicon, TO-247, Plastic/Epoxy, 3 Pin, TO-3PBL, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size88KB，3 Pages; ManufacturerSANYO; Websitehttp://www.semic.sanyo.co.jp/english/index-e.html

Download Datasheet Parametric View All

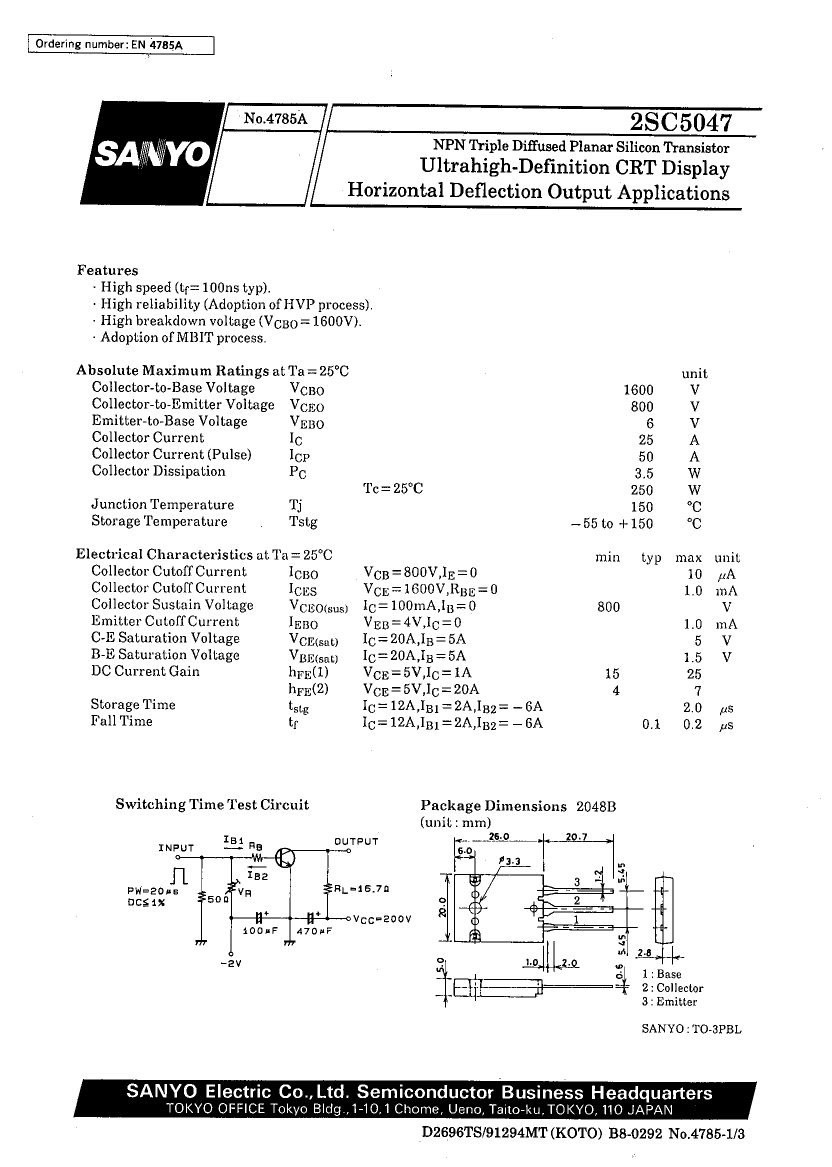

2SC5047 Overview

Power Bipolar Transistor, 25A I(C), 800V V(BR)CEO, 1-Element, NPN, Silicon, TO-247, Plastic/Epoxy, 3 Pin, TO-3PBL, 3 PIN

Parameter Name	Attribute value
Objectid	1481081236
Parts packaging code	TO-247
package instruction	FLANGE MOUNT, R-PSFM-T3
Contacts	2
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	HIGH RELIABILITY
Maximum collector current (IC)	25 A
Collector-emitter maximum voltage	800 V
Configuration	SINGLE

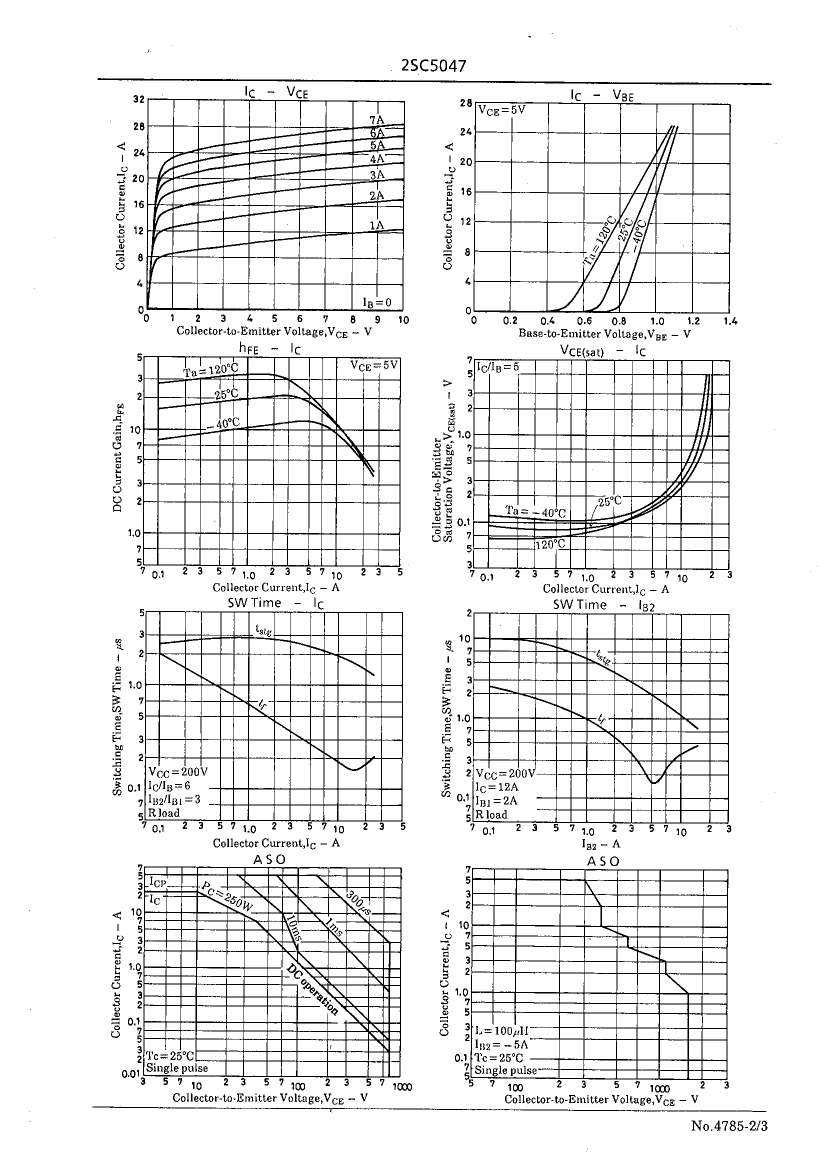

Minimum DC current gain (hFE)	4
JEDEC-95 code	TO-247
JESD-30 code	R-PSFM-T3
Number of components	1
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Polarity/channel type	NPN

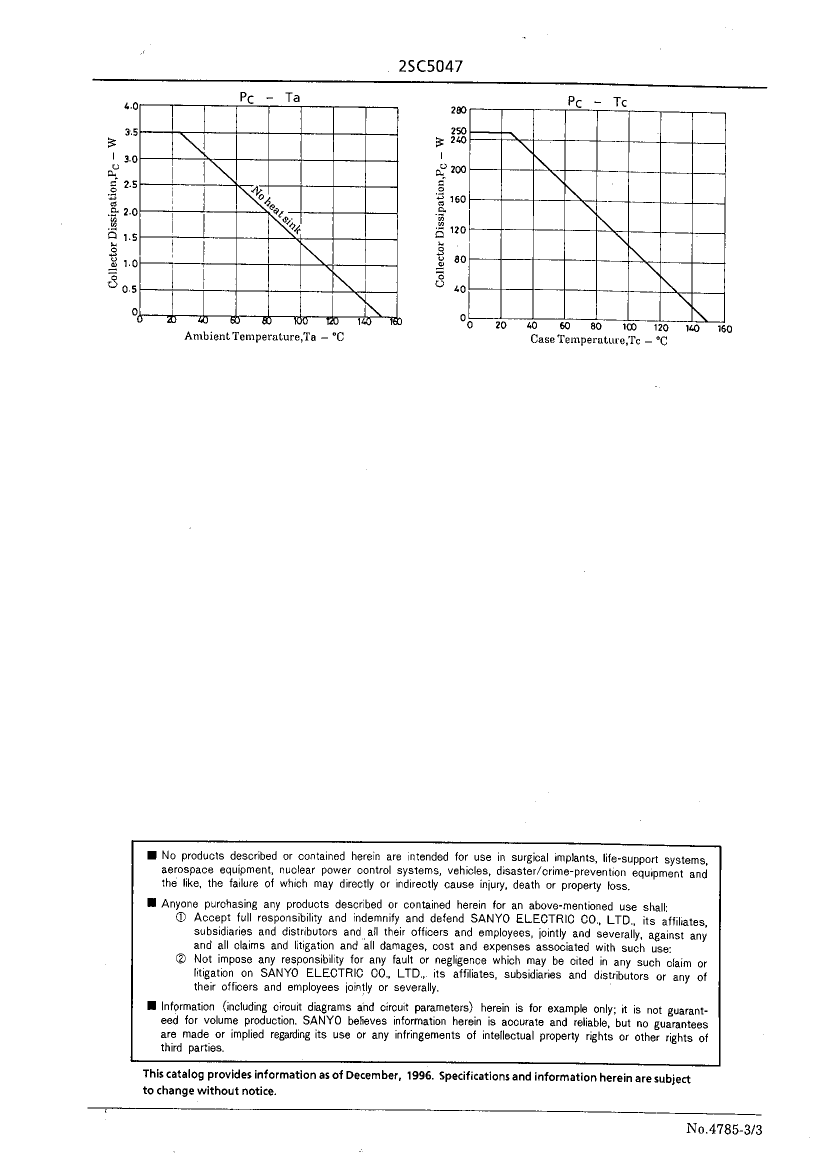

Maximum power consumption environment	250 W
Maximum power dissipation(Abs)	250 W
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
transistor applications	AMPLIFIER
Transistor component materials	SILICON
VCEsat-Max	5 V
