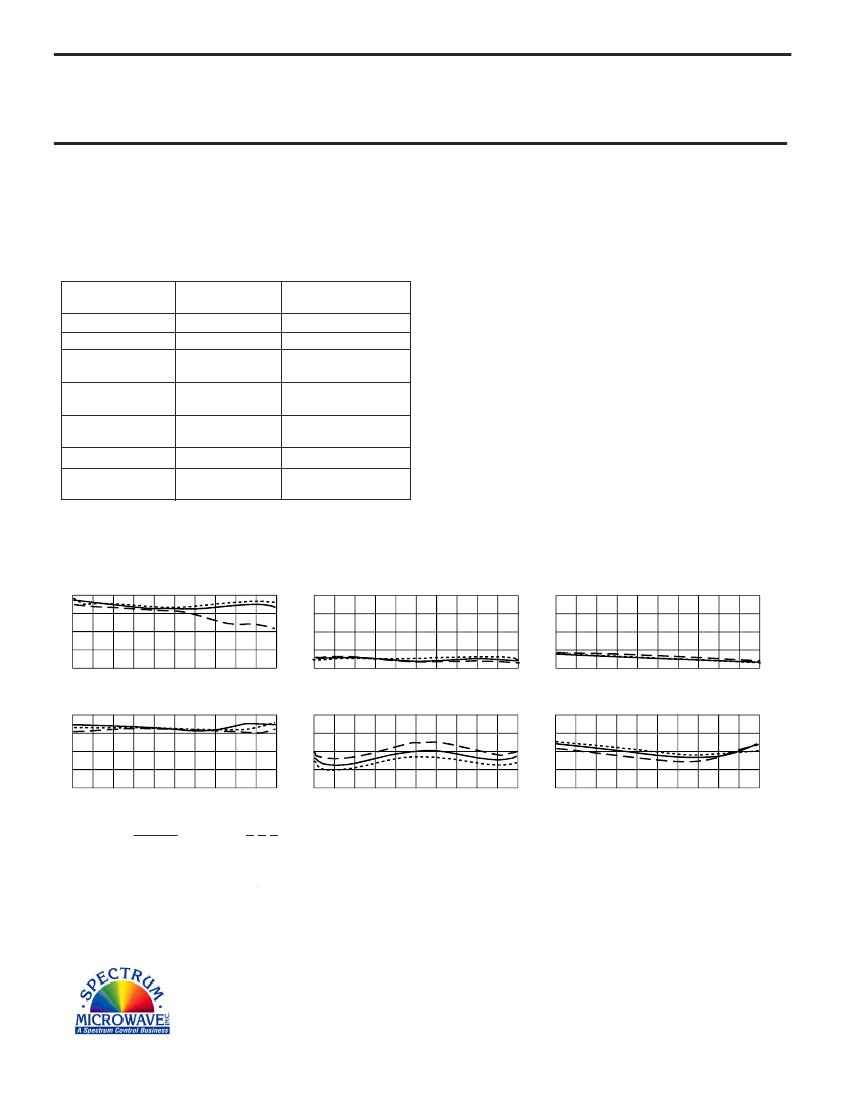

RF AMPLIFIER
MODEL
BXMP1035
Features
!
!
!
!
Higher Output Power: 24.5 dBm Typical
High Gain: 38 dB Typical
Operating Temp. - 55 ºC to +85 ºC
Environmental Screening Available
Available as:
BXMP1035, SMA Connectorized Housing (H-95)
Typical Intermodulation Performance at 25 º C
Second Order Harmonic Intercept Point ....... +55 dBm (Typ.)
Second Order Two Tone Intercept Point ........ +50 dBm (Typ.)
Third Order Two Tone Intercept Point ............ +40 dBm (Typ.)
Specifications
CHARACTERISTIC
Frequency
Gain (dB)
Power @ 1 dB
Comp. (dBm)
Reverse
Isolation (dB)
In
Out
Noise Figure (dB)
Power
Vdc
mA
VSWR
TYPICAL
Ta= 25 ºC
500 - 3000 MHz
38
+24.5
-55
1.8:1
1.8:1
1.6
+15
220
MIN/MAX
Ta = -55 ºC to +85 ºC
500 - 3000 MHz
37 Min.
+23.5 Min.
-50 Max.
2.0:1 Max.
2.0:1 Max.
2.1 Max.
+15
250 Max.
Maximum Ratings
Ambient Operating Temperature ................ -55ºC to +100 ºC
Storage Temperature .................................-62ºC to +125 ºC
Case Temperature .................................................. +95 ºC
DC Voltage .......................................................... +17 Volts
Continuous RF Input Power .................................. +10 dBm
Short Term RF Input Power ...... 50 Milliwatts (1 Minute Max.)
Maximum Peak Power .................... 0.5 Watt (3
µsec
Max.)
Note: Care should always be taken to effectively ground the case of each unit.
Typical Performance Data
Gain (dB)
40
39
38
37
36
Start 500 MHz
Stop 3000 MHz
Reverse Isolation (dB)
- 20
- 30
- 40
- 50
- 60
Start 500 MHz
Stop 3000 MHz
Noise Figure (dB)
5
4
3
2
1
Start 500 MHz
Stop 3000 MHz
+25
+24
+23
+22
+21
1 dB Comp. (dBm)
Input VSWR
2.0
1.5
1.0
2.0
1.5
1.0
Start 500 MHz
Stop 3000 MHz
Start 500 MHz
Output VSWR
Start 500 MHz
Stop 3000 MHz
Stop 3000 MHz
Legend
+25 ºC
+85ºC - - - - - -55 ºC
Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532
Rev.
11/16/07
www.SpectrumMicrowave.com
Spectrum Microwave · 2707 Black Lake Place · Philadelphia, Pennsylvania 19154 · PH (215) 464-4000 · Fax (215) 464-4001
