ML6201 Series Positive Voltage Regulator
Application
Features
Battery Powered Equipment
Palmtops
Portable Cameras and Video Recorders
Reference Voltage Sources
CMOS Low Power Consumption :
Typical 3.3uAat V
out=5.0V
Output V
oltage Range : 1.1V to 6.0V in 0.1V increments
HighlyAccurate:
Output V
oltage + 3% for 1.1V to 1.9V
Output V
oltage + 2% for 2.0V to 6.0V
Maximum Output Current: 250mA
(within the maximum power dissipation, V
out=5.0V)
Small Input-Output V
oltage Differential:
0.16V at 100mAand 0.4V at 200mA
Input stability: Typ. 0.2%/V
PackageAvailable:
SOT- 23-5 (250mW), SOT- 89 (500mW) &
TO - 92 (300mW)
General Description
The ML6201 is a group of positive voltage output,
three-pin regulator which provides high output
current even when the input/output voltage
differential is small.
The ML6201 consists of a high-precision voltage
reference, an error correction circuit, and a current
limited output driver.
Block Diagram
Absolute Maximum Ratings
Parameter
Input Voltage
Output Current
Output Voltage
SOT-23-5
Continuous
TO-92
Operating Ambient Temperature
Storage Temperature
Total Power
Dissipation
SOT-89
Symbol
V
IN
I
OUT
V
OUT
P
d
T
opr
T
stg
P1/6
Ratings
10
500
V
SS
-0.3 ~V
IN
+0.3
250
500
300
-40 ~ +70
-40 ~ +70
Units
V
mA
V
mW
o
o
C
C
Rev. A, June 2005
ML6201

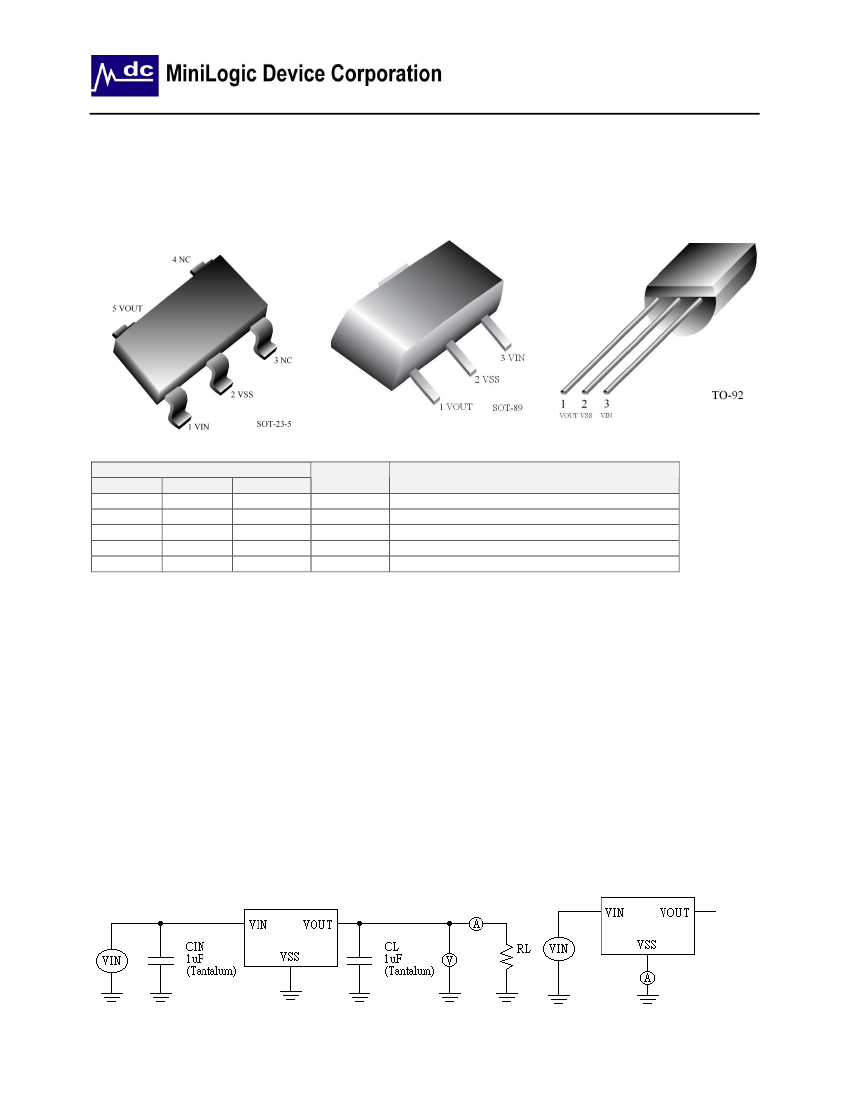

Pin Configuration
SOT-23-5
SOT-89
TO-92
Package Pin Number
SOT-23-5
SOT-89
TO-92
5
1
1
2
2
2
1
3
3
3
4
Pin Name
VOUT
VSS
VIN
(NC)
(NC)
Function
Output
Ground
Power Input
No Connection
No Connection
Standard Circuit
Note on Use
1. Oscillation may occur as a result of the impedance present between the power supply and the IC’s input. Please use a
capacitor (CIN) of at least 1uF, when the impedance is 10 ohm or more.
With a large output current, Voltage output can be stabilised by increasing capacitor (CIN) size. If CIN is small and
capacitor (CL) size is increased, oscillation may occur. In such cases, Voltage output can be stabilised by either increasing
the size of CIN or decreasing the size of CL.
2. Please ensure that output current (IOUT) is less than Pd / (VIN-VOUT) and does not exceed the stipulated Continuous Total
Power Dissipation value (Pd).
Test Circuit
Test Circuit 1
Test Circuit 2
P2/6
Rev. A, June 2005
ML6201
Electrical Characteristic
ML6201P502 V
OUT
(T)=5.0V(Note 1)
Parameter
Output Voltage
Maximum Output Current
Load Stability
Input –Output
Voltage Differential (Note 3)
Supply Current
Input Stability
Input Voltage
Symbol
VOUT(E)
(Note 2)
IOUT max
∆
VOUT
Vdif1
Vdif2
ISS
∆
VOUT
∆
VIN * VOUT
VIN
Conditions
IOUT=40mA
VIN=6.0V
VIN=6.0V, VOUT(E)
≥
4.5V
VIN=6.0V, 1mA
≤
IOUT
≤
100mA
IOUT=100mA
IOUT=200mA
VIN=6.0V
IOUT=40mA
6.0V
≤
VIN
≤
10.0V
Min
4.900
250
40
120
380
3.3
0.2
80
400
750
4.5
0.3
10
Typ
5.000
Max
5.100
Units
V
mA
mV
mV
mV
uA
%V
V
Circuit
1
1
1
1
1
2
1
-
ML6201P402 V
OUT
(T)=4.0V(Note 1)
Parameter
Output Voltage
Maximum Output Current
Load Stability
Input –Output
Voltage Differential (Note 3)
Supply Current
Input Stability
Input Voltage
Symbol
VOUT(E)
(Note 2)
IOUT max
∆
VOUT
Vdif1
Vdif2
ISS
∆
VOUT
∆
VIN * VOUT
VIN
Conditions
IOUT=40mA
VIN=5.0V
VIN=5.0V, VOUT(E)
≥
3.6V
VIN=5.0V, 1mA
≤
IOUT
≤
100mA
IOUT=90mA
IOUT=180mA
VIN=5.0V
IOUT=40mA
5.0V
≤
VIN
≤
10.0V
Min
3.920
200
45
170
400
3.0
0.2
90
400
750
4.5
0.3
10
Typ
4.000
Max
4.080
Units
V
mA
mV
mV
mV
uA
%V
V
Circuit
1
1
1
1
1
2
1
-
ML6201P302 V
OUT
(T)=3.0V(Note 1)
Parameter
Output Voltage
Maximum Output Current
Load Stability
Input –Output
Voltage Differential (Note 3)
Supply Current
Input Stability
Input Voltage
Symbol
VOUT(E)
(Note 2)
IOUT max
∆
VOUT
Vdif1
Vdif2
ISS
∆
VOUT
∆
VIN * VOUT
VIN
Conditions
IOUT=40mA
VIN=4.0V
VIN=4.0V, VOUT(E)
≥
2.7V
VIN=4.0V, 1mA
≤
IOUT
≤
80mA
IOUT=80mA
IOUT=150mA
VIN=4.0V
IOUT=40mA
4.0V
≤
VIN
≤
10.0V
Min
2.940
150
45
180
400
2.8
0.2
90
450
850
4.5
0.3
10
Typ
3.000
Max
3.060
Units
V
mA
mV
mV
mV
uA
%V
V
Circuit
1
1
1
1
1
2
1
-
ML6201P202 V
OUT
(T)=2.0V(Note 1)
Parameter
Output Voltage
Maximum Output Current
Load Stability
Input –Output
Voltage Differential (Note 3)
Supply Current
Input Stability
Input Voltage
Symbol
VOUT(E)
(Note 2)
IOUT max
∆
VOUT
Vdif1
Vdif2
ISS
∆
VOUT
∆
VIN * VOUT
VIN
Conditions
IOUT=40mA
VIN=3.0V
VIN=3.0V, VOUT(E)
≥
1.8V
VIN=3.0V, 1mA
≤
IOUT
≤
60mA
IOUT=60mA
IOUT=100mA
VIN=3.0V
IOUT=40mA
3.0V
≤
VIN
≤
10.0V
Min
1.960
100
45
180
400
2.5
0.2
90
450
850
4.5
0.3
10
Typ
2.000
Max
2.040
Units
V
mA
mV
mV
mV
uA
%V
V
Circuit
1
1
1
1
1
2
1
-
Note : 1. VOUT(T) = Specified Output Voltage.
2. VOUT(E) = Effective Output Voltage (i.e. the output voltage when (VOUT(T)+1.0V) is provided at the VIN pin
while maintaining a certain IOUT value).
3. Vdif = VIN1(Note 4) – VOUT(E)
4. VIN1 = The input voltage at the time 98% of VOUT (E) is output (input voltage has been gradually reduced).
P3/6
Rev. A, June 2005
ML6201
Electrical Characteristics by Output Voltage
Part Number
ML6201P113
ML6201P123
ML6201P133
ML6201P143
ML6201P153
ML6201P163
ML6201P173
ML6201P183
ML6201P193
ML6201P202
ML6201P212
ML6201P222
ML6201P232
ML6201P242
ML6201P252
ML6201P262
ML6201P272
ML6201P282
ML6201P292
ML6201P302
ML6201P312
ML6201P322
ML6201P332
ML6201P342
ML6201P352
ML6201P362
ML6201P372
ML6201P382
ML6201P392
ML6201P402
ML6201P412
ML6201P422
ML6201P432
ML6201P442
ML6201P452
ML6201P462
ML6201P472
ML6201P482
ML6201P492
ML6201P502
ML6201P512
ML6201P522
ML6201P532
ML6201P542
ML6201P552
ML6201P562
ML6201P572
ML6201P582
ML6201P592
ML6201P602
Output voltage
V
OUT
(V)
MIN.
1.067
1.164
1.261
1.358
1.455
1.552
1.649
1.746
1.843
1.960
2.058
2.156
2.254
2.352
2.450
2.548
2.646
2.744
2.842
2.940
3.038
3.136
3.234
3.332
I
OUT
=40mA
3.430
V
IN
=V
OUT
(T)+1V 3.528
3.626
3.724
3.822
3.920
4.018
4.116
4.214
4.312
4.410
4.508
4.606
4.704
4.802
4.900
4.998
5.096
5.194
5.292
5.390
5.488
5.586
5.684
5.782
5.880
Conditions
TYP.
1.100
1.200
1.300
1.400
1.500
1.600
1.700
1.800
1.900
2.000
2.100
2.200
2.300
2.400
2.500
2.600
2.700
2.800
2.900
3.000
3.100
3.200
3.300
3.400
3.500
3.600
3.700
3.800
3.900
4.000
4.100
4.200
4.300
4.400
4.500
4.600
4.700
4.800
4.900
5.000
5.100
5.200
5.300
5.400
5.500
5.600
5.700
5.800
5.900
6.000
Max Output Current
I
OUT max
(mA)
Load Stability
∆
V
OUT
(mV)
Conditions
TYP. MAX.
I-O Voltage Differential
V
dif1
(mV)
Conditions
IOUT=20mA
TYP. MAX.
250
450
MAX.
Conditions
MIN.
1.133
1.236
1.339
1.442
VIN=VOUT(T)+1V
80
1.545
1mA<IOUT<40mA
1.648
1.751
1.854
1.957
2.040
2.142
2.244
2.346
V
IN
=V
OUT
(T)+1V
2.448
100
1mA<I
OUT
<60mA
2.550
2.652
2.754
2.856
2.958
3.060
3.162
3.264
3.366
V
IN
= V
OUT
(T)+1V
3.468
V
IN
=V
OUT
(T)+1V 150
1mA<I
OUT
<80mA
3.570
V
OUT
(E)>
3.672
V
OUT
(T)*0.9
3.774
3.876
3.978
4.080
4.182
4.284
4.386
V
IN
=V
OUT
(T)+1V
4.488
200
1mA<I
OUT
<100mA
4.590
4.692
4.794
4.896
4.998
5.100
5.202
5.304
5.406
5.508
V
IN
=V
OUT
+1V
250
5.610
1mA<I
OUT
<100mA
5.712
5.814
5.916
6.018
6.120
45
90
IOUT=30mA
250
450
IOUT=40mA
250
450
45
90
I
OUT
=60mA
180
450
45
90
I
OUT
=80mA
180
450
45
90
I
OUT
=90mA
170
400
40
80
I
OUT
=100mA
120
400
P4/6
Rev. A, June 2005
ML6201
Part Number
ML6201P113
ML6201P123
ML6201P133
ML6201P143
ML6201P153
ML6201P163
ML6201P173
ML6201P183
ML6201P193
ML6201P202
ML6201P212
ML6201P222
ML6201P232
ML6201P242
ML6201P252
ML6201P262
ML6201P272
ML6201P282
ML6201P292
ML6201P302
ML6201P312
ML6201P322
ML6201P332
ML6201P342
ML6201P352
ML6201P362
ML6201P372
ML6201P382
ML6201P392
ML6201P402
ML6201P412
ML6201P422
ML6201P432
ML6201P442
ML6201P452
ML6201P462
ML6201P472
ML6201P482
ML6201P492
ML6201P502
ML6201P512
ML6201P522
ML6201P532
ML6201P542
ML6201P552
ML6201P562
ML6201P572
ML6201P582
ML6201P592
ML6201P602
I-O Voltage Differential
V
dif2
(mV)
Conditions
IOUT=40mA
TYP. MAX.
450
850
Supply Current
I
SS
(uA)
Conditions
TYP. MAX.
Input Stability
Input Voltage
∆
V
OUT
/(∆ V
IN
*V
OUT
) (%V)
∆
V
IN
(V)
Conditions
TYP. MAX.
MAX.
IOUT=60mA
450
850
2.0
4.5
0.2
0.4
IOUT=80mA
450
850
I
OUT
=100mA
400
850
2.5
4.5
I
OUT
=150mA
400
850
V
IN
=V
OUT
(T)+1V
2.8
4.5
I
OUT
=40mA
V
OUT
(T)+1V<V
IN
<10V
10
0.2
0.3
I
OUT
=180mA
400
750
3.0
4.5
I
OUT
=200mA
380
750
3.3
4.5
P5/6
Rev. A, June 2005
