TX0144A Overview

7.0x5.0 vcxo 24.576 mhz

TX0144A Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerTAI-SAW TECHNOLOGY CO., LTD.
Reach Compliance Codecompliant

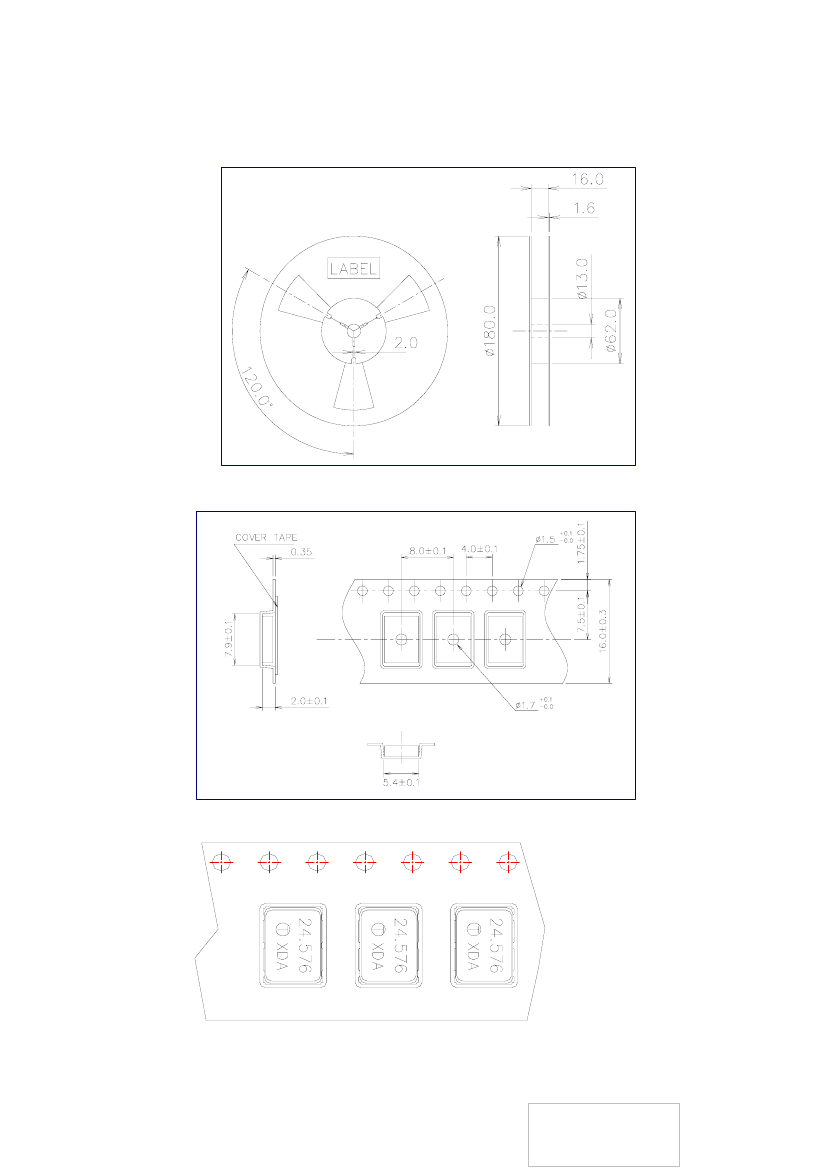

Other featuresTRI-STATE; ENABLE/DISABLE FUNCTION; TAPE AND REEL
Maximum control voltage3.15 V
Minimum control voltage0.15 V
maximum descent time6 ns
Frequency Adjustment - MechanicalNO
Frequency offset/pull rate100 ppm
frequency stability50%
linearity10%
Manufacturer's serial numberTX0144A
Installation featuresSURFACE MOUNT
Nominal operating frequency24.576 MHz
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Oscillator typeCMOS
Output load15 pF
physical size7.2mm x 5.2mm x 1.8mm
longest rise time6 ns
Maximum supply voltage3.465 V
Minimum supply voltage3.135 V
Nominal supply voltage3.3 V
surface mountYES
maximum symmetry55/45 %
TAI-SAW TECHNOLOGY CO., LTD.
No. 3, Industrial 2nd Rd., Ping-Chen Industrial District,
Taoyuan, 324, Taiwan, R.O.C.
TEL: 886-3-4690038
FAX: 886-3-4697532
E-mail: tstsales@mail.taisaw.com
Web: www.taisaw.com
Approval Sheet For Product Specification
Issued Date: 2005 Jan. 10 (REV NO.: 2.0)
Product Name: 7.0x5.0 VCXO 24.576 MHz
TST Parts No.: TX0144A
Customer Parts No.:
Company:
Division:
Approved by :
Date:
Checked by:
Approval by:
Date:
Robert Chang
TF Yang
2005/01/10
TAI-SAW TECHNOLOGY CO., LTD.
TST DCC
Release document
FR-71S03-01
