Dual Operational Amplifier and
Voltage Reference
8-Lead Plastic
DIP-8
Package Code: P
Description
The RS103 is a monolithic IC that includes one independent op-amp and another
op-amp for which the non inverting input is wired to a 2.5V fixed Voltage
Reference. This device is offering space and cost saving in many applications like
power supply management or data acquisition systems.
•
8-Lead Plastic
SOP-8
Package Code: S
Operational Amplifier
•
Low input offset voltage: 0.5mV typ.
•
Low supply current: 350mA/op. (@ VCC = 5V)
•
Medium bandwidth (unity gain): 0.9MHz
•
Large output voltage swing: 0V to (VCC - 1.5V)
•
Input common mode voltage range includes ground
•
Wide power supply range: 3 to 32V ±1.5 to ±16V
Operational Amplifier
•
Fixed output voltage reference 2.5V
•
0.5% and 1% voltage precision
•
Sink current capability: 1 to 100mA
•
Typical output impedance: 0.2Ω

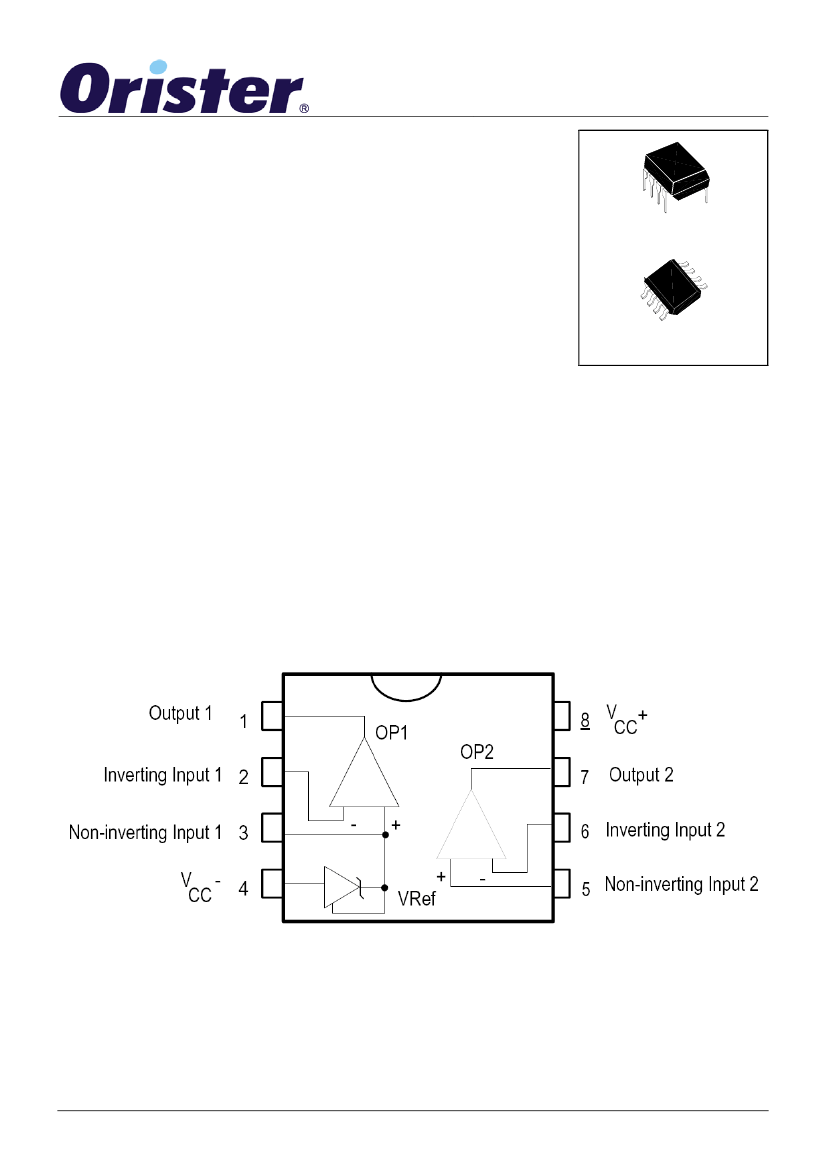

Pin Configurations
DS-RS103-01
Nov, 2007
www.Orister.com
Page No. : 2/2
Absolute Maximum Ratings
Symbol
V
CC
V
ID
V
I
T
J
T
OPER
R
thja
Power Supply Voltage
Input Differential Voltage Range
Input Voltage Range
Maximum Junction Temperature
Operating Free-air Temperature Range
Thermal Resistance Junction to Ambient (SO package)
Parameter
Range
36
36
-0.3 to +36
150
-55 to +125
175
Units
V
V
V
o
C
°C
°C/W
Electrical Characteristics
Symbol
I
CC
Parameter
Power Supply Current
Test Conditions
V
CC
=30V, Ta=T
high
to T
low
V
CC
=5V, Ta=T
high
to T
low
RS103
Min
-
-
Typ
1
0.6
Max
2
1.2
Unit
mA
mA
Operator 2
(independent op-amp)
V
CC
= +5V, V
CC
= Ground, V
o
= 1.4V, T
amb
= 25°C (unless otherwise specified)
Symbol
V
IO
DV
IO
I
IO
I
IB
A
VD
SVR
CMR
V
ICR
V
OH
V
OL
I
Source
I
Sink
I
SC
SR
GBP
THD
Parameter
Input Offset Voltage
Input Offset Voltage Drift
Input Offset Current
Input Bias Current
Large Signal Voltage Gain
Supply Voltage Rejection Ratio
Common-Mode Rejection Ratio
Input Common Mode Voltage
Range
Output Voltage (High Limit)
Output Voltage (Low Limit)
Output Source Current
Output Sink Current
Output Short Circuit to Ground
Slew Rate at Unity Gain
Gain Bandwidth Product
Total Harmonic Distortion
Test Conditions
Tamb = 25°C
Tmin.
≤
Tamb
≤
Tmax.
---
Tmin.
≤
Tamb
≤
Tmax.
Tmin.
≤
Tamb
≤
Tmax
VCC = 15V, RL = 2k, Vo = 1.4V to
11.4V. Tmin.
≤
Tamb
≤
Tmax.
VCC = 5V to 30V
Tmin.
≤
Tamb
≤
Tmax.
VCC = +30V - see note 1)
Tmin.
≤
Tamb
≤
Tmax.
V
CC
=30V, R
L
=2KΩ
V
CC
=30V, R
L
=10KΩ
R
L
=10KΩ
VCC = +15V, Vo = 2V, Vid = +1V
VCC = +15V, Vo = 2V, Vid = -1V
V
CC
=15V
Vi = 0.5 to 3V, VCC = 15V
RL = 2k, CL = 100pF, unity gain
VCC = 30V,RL = 2k, CL = 100pF
= 100kHz, Vin = 10mV
f = 1kHz
AV = 20dB,RL = 2k, VCC = 30V
CL = 100pF, Vo = 2Vpp
RS103
Min
-
-
-
-
25
65
65
-
26
27
-
20
10
-
0.2
0.5
-
Typ
2
7
-
35
100
100
85
-
27
28
5
40
20
40
0.4
0.9
0.02
Max
7
-
30
200
-
-
-
V
CC
-2V
-
-
20
-
-
60
-
-
-
Unit
mV
uV/
o
C
nA
nA
V/mV
dB
dB
V
V
mV
mA
mA
mA
V/us
MHz
%
1. The input common-mode voltage of either input signal voltage should not be allowed to go negative by more than 0.3V. The
upper end of the common-mode voltage range is VCC + - 1.5V. But either of both inputs can go to +36V without damage.
DS-RS103-01
Nov, 2007
www.Orister.com
Page No. : 3/3
Operator 1
(op-amp with non-inverting input connected to the internal Vref)
VCC+ = +5V, VCC- = Ground, Tamb = 25°C (unless otherwise specified)
Symbol
V
IO
DV
IO
I
IB
A
VD
SVR
V
OH
V
OL
I
Source
I
Sink
I
SC
SR
GBP
THD
Parameter
Input Offset Voltage
Input Offset Voltage Drift
Input Bias Current
Large Signal Voltage Gain
Supply Voltage Rejection Ratio
Output Voltage (High Limit)
Output Voltage (Low Limit)
Output Source Current
Output Sink Current
Output Short Circuit to Ground
Slew Rate at Unity Gain
Gain Bandwidth Product
Total Harmonic Distortion
Test Conditions
Tamb = 25°C
Tmin.
≤
Tamb
≤
Tmax.
---
Tmin.
≤
Tamb
≤
Tmax
Vicm = 0V
VCC = 15V, RL = 2k
Vicm = 0V
VCC+ = 5V to 30V
V
CC
=30V, R
L
=10KΩ
R
L
=10KΩ
VCC = +15V, Vo = 2V, Vid = +1V
VCC = +15V, Vo = 2V, Vid = -1V
V
CC
=15V
Vi = 0.5 to 2V, VCC = 15V
RL = 2k, CL = 100pF, unity gain
VCC = 30V,RL = 2k, CL = 100pF
= 100kHz, Vin = 10mV
f = 1kHz
AV = 20dB,RL = 2k, VCC = 30V
CL = 100pF, Vo = 2Vpp
RS103
Min
-
-
-
-
65
27
-
20
10
-
0.2
0.5
-
Typ
2
7
20
100
100
28
5
40
20
40
0.4
0.9
0.02
Max
7
-
-
-
-
-
20
-
-
60
-
-
-
Unit
mV
uV/
o
C
nA
V/mV
dB
V
mV
mA
mA
mA
V/us
MHz
%
Voltage Reference
Symbol
I
K
Cathode Current
Parameter
Value
1 to 100
Units
mA
Symbol
V
REF
ΔV
REF
I
min
|ZKA|
Parameter
Reference Input Voltage
Reference Input Voltage Deviation Over
Temperature Range
Minimum Cathode Current for Regulation
Dynamic Impedance - note 1)
Test Conditions
Tamb = 25°C
Tmin.
≤
Tamb
≤
Tmax.
VKA = Vref; Ik = 10mA
Tmin.
≤
Tamb
≤
Tmax.
VKA = VREF
VKA = VREF,
ΔIK
= 1 to
100mA, f < 1kHz
RS103
Min
2.48
-
-
-
Typ
2.5
7
0.5
0.2
Max
2.52
30
1
0.5
Unit
V
mV
mA
Ω
1. The dynamic impedance is defined as [ZKA| =
ΔVKA/ΔIK
DS-RS103-01
Nov, 2007
www.Orister.com
Page No. : 4/4

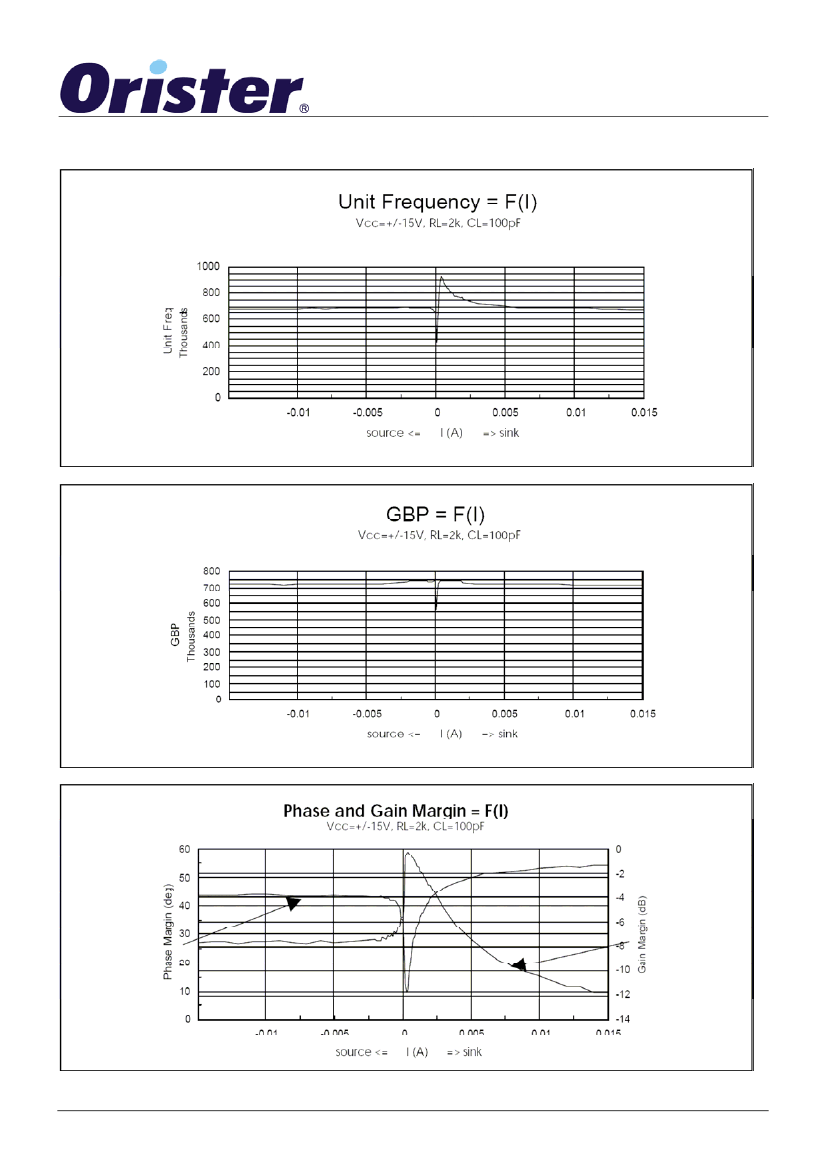

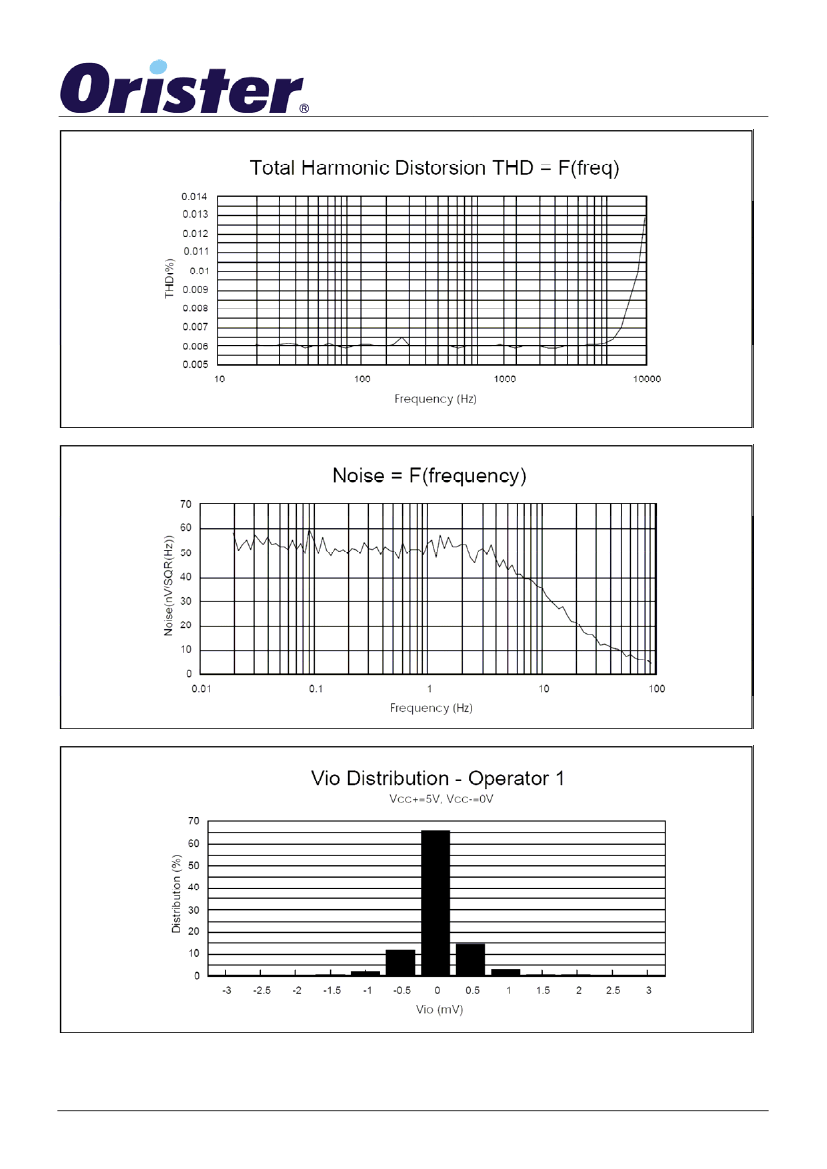

Operational Amplifiers
