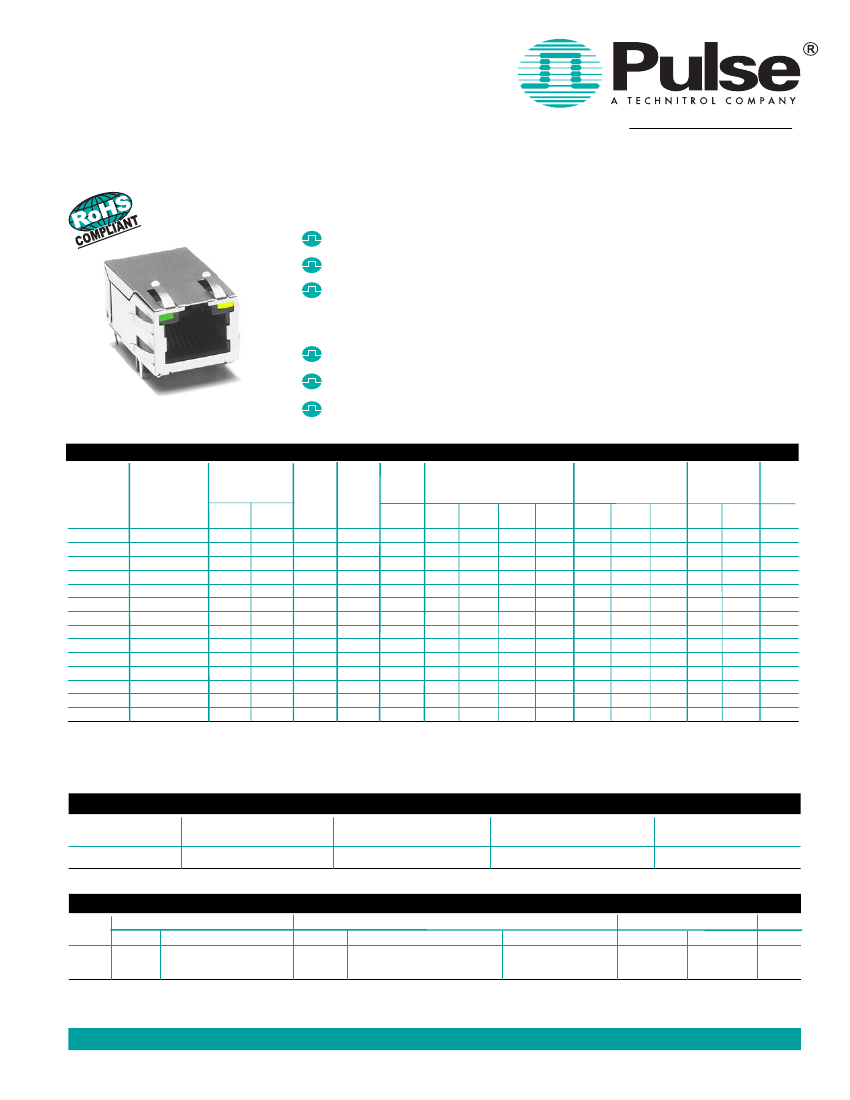

Description:

TM

www.pulseeng.com

10/100 Base-TX RJ45 1x1 Tab-UP with LEDs 8-pin (J1 series) and 6-pin (JP series) integrated magnetics connector, designed

to support applications, such as ADSL modems, LAN-on-Motherboard, and Hub and Switches.

Features and Benefits:

RoHS-5 peak wave solder temperature rating 235°C

RoHS-6 peak wave solder temperature rating 260°C

Suitable for CAT 5 & 6 Fast Ethernet Cable or better UTP

Electrical Performance Summary:

Meets IEEE 802.3 specification

350µH minimum OCL with 8mA bias current

High performance for maximum EMI suppression

Electrical Specifications @ 25°C — Operating Temperature 0°C to +70°C

RoHS-5

2

Compliant

Part No.

RoHS-6

3

Compliant

Part No.

Turns

Ratios

TX

RX

EMI

LEDs

1

L/R

Fingers

Insertion

Loss

(dB TYP)

1-65

MHz

1-10

MHz

Return Loss

(dB TYP)

100Ω

±

15Ω

10-30

MHz

30-60

MHz

60-80

MHz

1-30

MHz

Crosstalk

(dB TYP)

30-60

MHz

60-100

MHz

Common Mode

Rejection

(dB TYP)

1-50

MHz

50-150

MHz

Hipot

(Vrms)

@60Hz

1 MIN

J1006F01P

J1006F01PNL

1CT:1

J1006F21

J1006F21NL

1CT:1

J1011F01P

J1011F01PNL

1CT:1

J1011F21P

J1011F21PNL

1CT:1

J1012F01C

J1012F01CNL

1CT:1

J1012F21C

J1012F21CNL

1CT:1

J1012F21K

J1012F21KNL

1CT:1

J1012F21R

J1012F21RNL

1CT:1

J1026F01

J1026F01NL

1CT:1

J1026F01P

J1026F01PNL

1CT:1

J1026F21C

J1026F21CNL

1CT:1

JP006821U

JP006821UNL

1CT:1

JP011821U

JP011821UNL

1CT:1

JP026821U

JP026821UNL

1CT:1

NOTES:

1.

LEDs Left/Right: G = green, Y = yellow, G_O =

green/orange bi-color LED, R = LEDs with resistors.

No

YES

No

YES

No

YES

No

YES

G/Y

NONE

G/Y

Y/G

G/G

RG/RY

NONE

G/Y

Y/G

G_O/Y

-1.0

-20

-16

-12

-10

-40

-35

-30

-20

1500

2. RoHS-5 -

Product does not contain 5 out of the 6 banned substances specified in the RoHS directive. Product

contains lead in applications considered as solders.

3. RoHS-6 -

Product does not contain 5 out of the 6 banned substances specified in the RoHS directive. Some

internal connections may contain lead in high temperature solder (solder alloys containing more than 85% lead).

RJ45 Durability Testing Rating

Part Number

JP/J1 Series

Mating Force

(MAX)

5 lbs./2.268 kgs.

Unmating Force

(MAX)

5 lbs./2.268 kgs.

Durability

750 Insertions

Plug to Jack

Retention

(MIN)

20 lbs./9.072 kgs.

RJ45 Material Specification

Part

Number Material

JP/J1

Series

Brass

Shield

Finish

10-20m inches Nickel over

10-20m inches Brass

Material

Phosphor

Bronze

Contact

Plating Area

Housing

Solder Area

3

Material

Specification

UL 94 V-0

MSL

Rating

1

2

Nickel underplating and

120µ inches Sn90/Pb10

selective gold plating 15µ inches over 50µ inches nickel Thermoplastic

Notes: 1.

Connector dimensions comply with FCC dimension requirements.

2. MSL

= Moisture Sensitivity Level rating from 1 to 5 (highest rating = 1, lowest rating = 5).

3. NL

parts are tin matte finish over nickel.

USA 858 674 8100

•

UK 44 1483 401 700

•

France 33 3 84 35 04 04

•

Singapore 65 6287 8998

•

Shanghai

86 21 54643211 / 2

•

China 86 769 85538070

•

Taiwan 886 3 4641811

www.pulseeng.com

1

J402.D (6/06)

P

ULSE

J

ACK

1x1 Tab-UP RJ45

TM

www.pulseeng.com

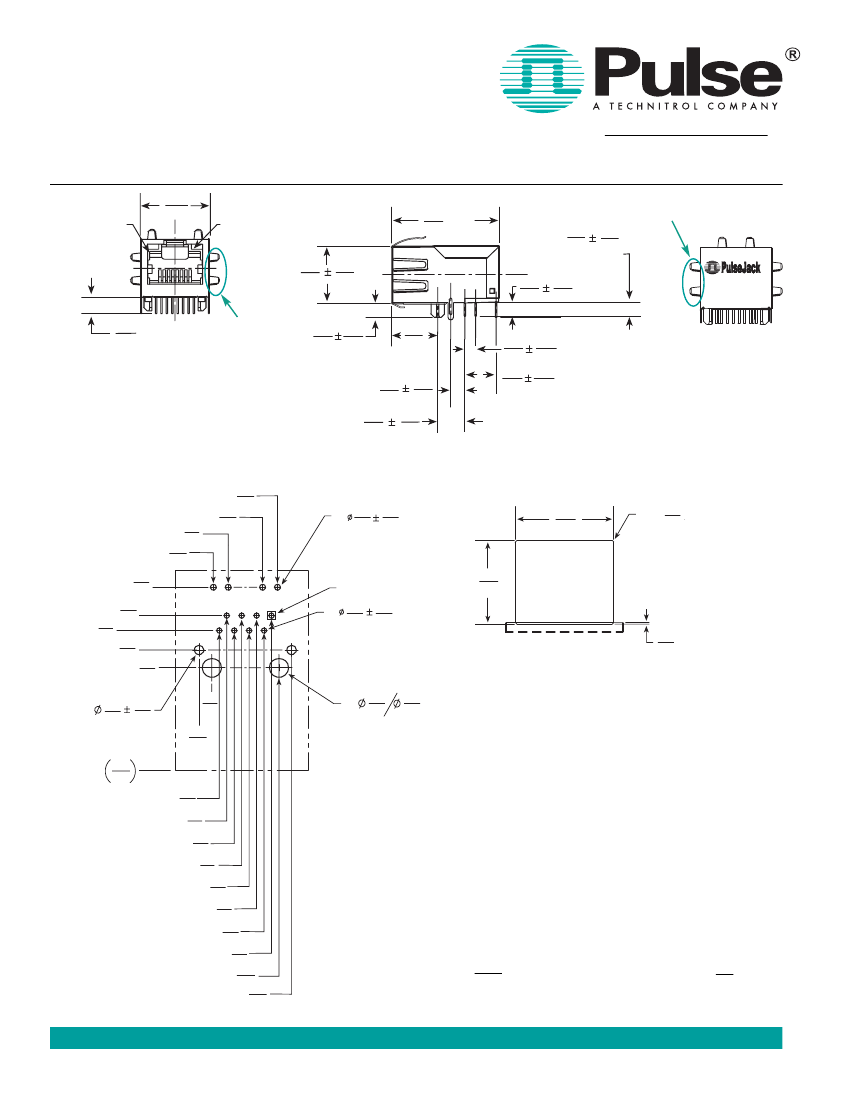

J1 Series Mechanicals

.640

16,26

LEFT LED

RIGHT LED

FRONT

1.00 MAX

25,4

BACK

EMI Fingers

.532 .003

13,51 0,08

SIGNAL LEADS

.125

3,18

.020

0,51

Patent Pending

TM

.130

3,30

.425

10,80

.020

LED

0,51

LEADS

J10XXXXXX

Date Code

Country of Origin

.150

SHIELD PIN

3,81

EMI Fingers

FRONT VIEW

HOUSING POST

.135

.020

3,43

0,51

.100

2,54

.002

0,05

BACK VIEW

.130

3,30

.250

6,35

.002

0,05

.290 .002

7,37 0,05

.003

0,08

SIDE VIEW

.390

9,91

.290

7,37

.060

1,52

.040

1,02

.290

7,37

.100

2,54

.130

3,30

.250

6,35

.064

1,63

.003

0,08

.050

1,27

4X .040 .003

1,02 0,08

.670

17,02

4X R .010 MAX

0,25

BACK

12 11

7

8 6

PIN #1

8X .035

0,89

2

.003

0,08

.560

14,22

RECOMMENDED

PANEL CUTOUT

10 9

5 3

4

.000

0,00

.010 (TOP OF PCB

0,25 TO BOTTOM

OF OPENING)

FACE VIEW

2X

.125

3,18

.129

3,28

2X

.135

3,43

.675

17,15

FRONT

.000

0,00

.050

1,27

.100

2,54

.150

3,81

.200

5,08

.250

6,35

.300

7,62

.350

8,89

.400

10,16

.485

12,32

SUGGESTED PCB LAYOUT

Dimensions:

Inches

mm

Unless otherwise specified, all tolerances are ± .010

0,25

USA 858 674 8100

•

UK 44 1483 401 700

•

France 33 3 84 35 04 04

•

Singapore 65 6287 8998

•

Shanghai

86 21 54643211 / 2

•

China 86 769 85538070

•

Taiwan 886 3 4641811

www.pulseeng.com

2

J402.D (6/06)

P

ULSE

J

ACK

1x1 Tab-UP RJ45

J1006

TD+ 1

TM

www.pulseeng.com

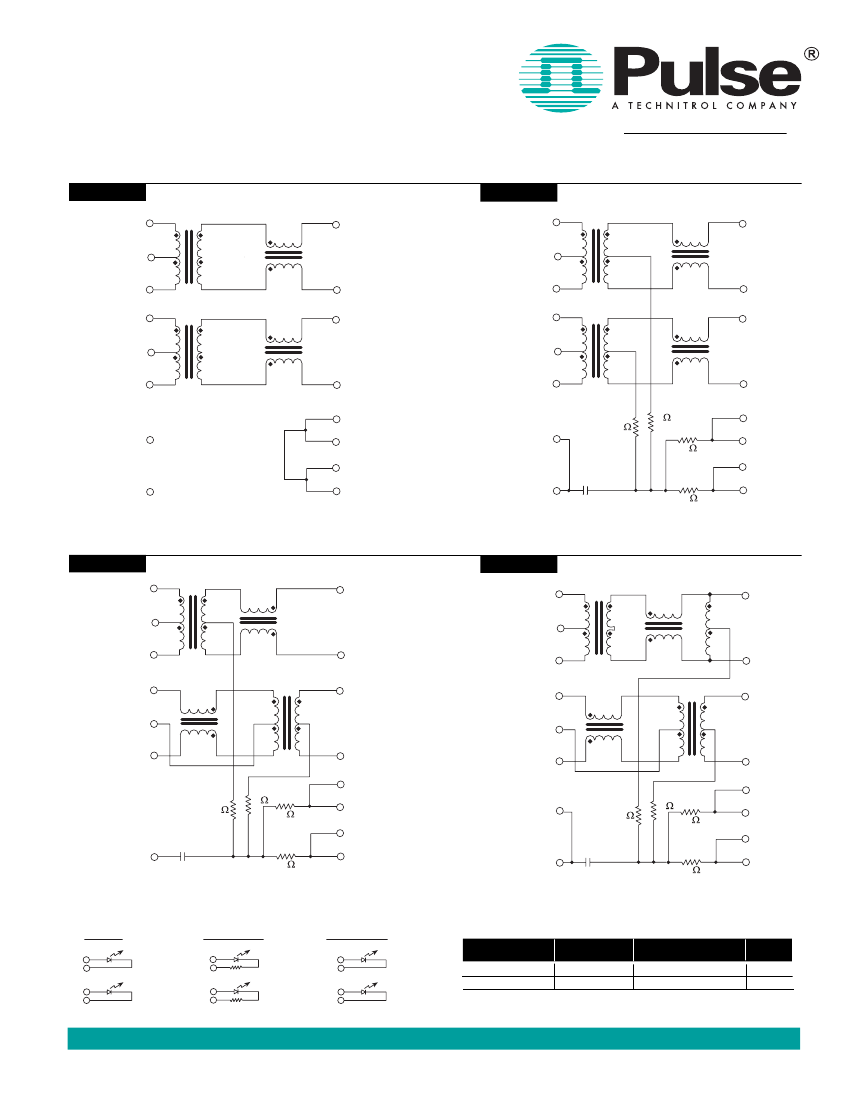

J1 Series Electrical Schematics

J1011

1 TX+

TD+ 1

1 TX+

CT

3

CT

3

TD- 2

PCB SIDE TO PHY

1CT : 1

TRANSMIT

2 TX-

TD- 2

1CT : 1

TRANSMIT

2 TX-

RD+ 7

3 RX+

CABLE SIDE

RD+ 7

3 RX+

CT 6

RD- 8

1CT : 1

TRANSMIT

6 RX-

RD- 8

1CT : 1

TRANSMIT

75

6 RX-

4

5

7

N/C

4

5

7

4

75

0.001

µF

N/C

5

NOTE: Connect CHS GND to PCB ground.

8

CHS GROUND

5

C1

75

8

NOTE: Connect CHS GND to PCB ground.

J1012

TD+ 1

1 TX+

J1026

TD+ 1

1 TX+

CT

2

CT

3

TD- 3

1CT : 1

TRANSMIT

2 TX-

TD- 2

1CT : 1

TRANSMIT

2 TX-

PCB SIDE TO PHY

RD+ 4

CABLE SIDE

3 RX+

RD+ 7

CT 5

CT

6

RD- 6

1CT : 1

RECEIVE

6 RX-

RD- 8

1CT : 1

RECEIVE

6 RX-

4

75

5

7

C1

75

4

5

7

0.001

µF

CHS GROUND

8

75

8

CHS GROUND

5

C1

75

8

NOTE: Connect CHS GND to PCB ground.

LED

=

P

9

10

12

11

Right LED

Left LED

LED

=

L or R

10

9

12

11

Right LED

Left LED

LED

=

C or

K

10

9

12

11

Right LED

Left LED

Standard LED

Yellow

Green

Wavelength

585 nm

565 nm

Forward* V(MAX)

2.5 V

(TYP)

2.1 V

2.2 V

* With a forward current of 20 mA

USA 858 674 8100

•

UK 44 1483 401 700

•

France 33 3 84 35 04 04

•

Singapore 65 6287 8998

•

Shanghai

86 21 54643211 / 2

•

China 86 769 85538070

•

Taiwan 886 3 4641811

www.pulseeng.com

3

J402.D (6/06)

CABLE SIDE

3 RX+

CABLE SIDE

P

ULSE

J

ACK

1x1 Tab-UP RJ45

TM

www.pulseeng.com

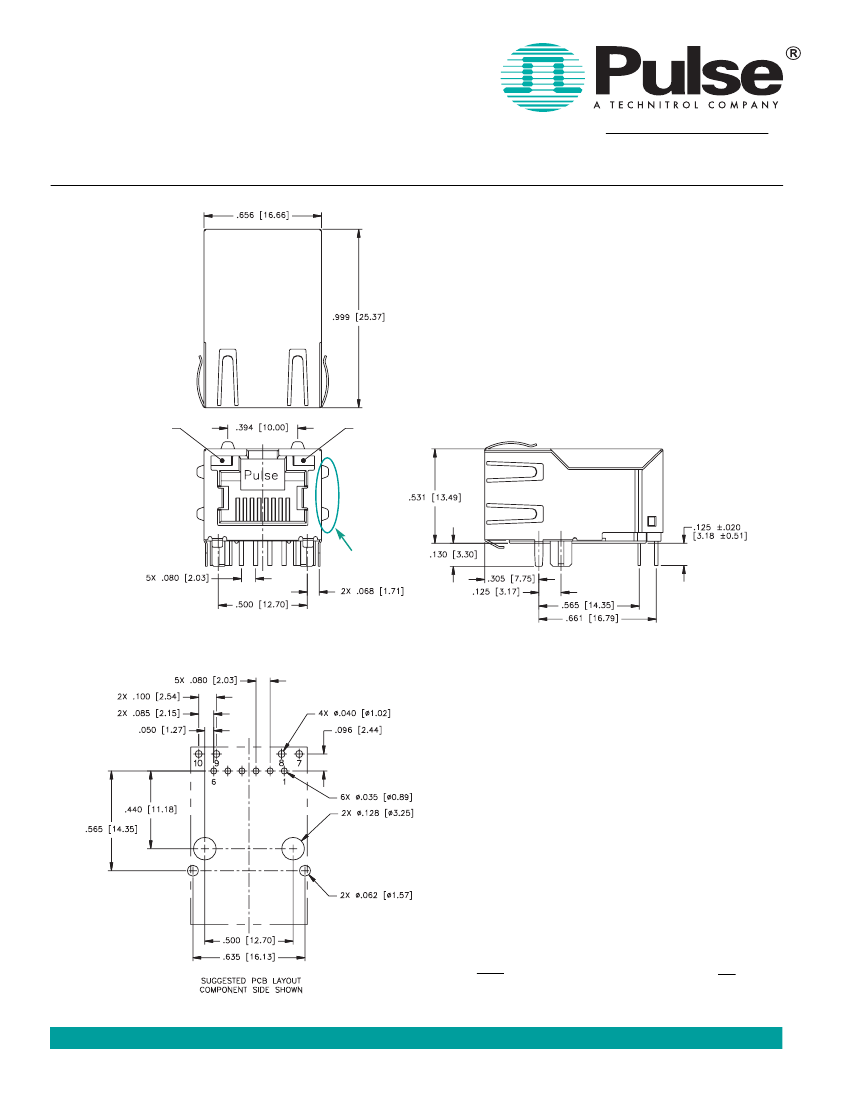

JP Series Mechanicals

LEFT LED

RIGHT LED

EMI Fingers

Dimensions:

Inches

mm

Unless otherwise specified, all tolerances are ± .010

0,25

USA 858 674 8100

•

UK 44 1483 401 700

•

France 33 3 84 35 04 04

•

Singapore 65 6287 8998

•

Shanghai

86 21 54643211 / 2

•

China 86 769 85538070

•

Taiwan 886 3 4641811

www.pulseeng.com

4

J402.D (6/06)

P

ULSE

J

ACK

1x1 Tab-UP RJ45

JP006

TD+ 2

TM

www.pulseeng.com

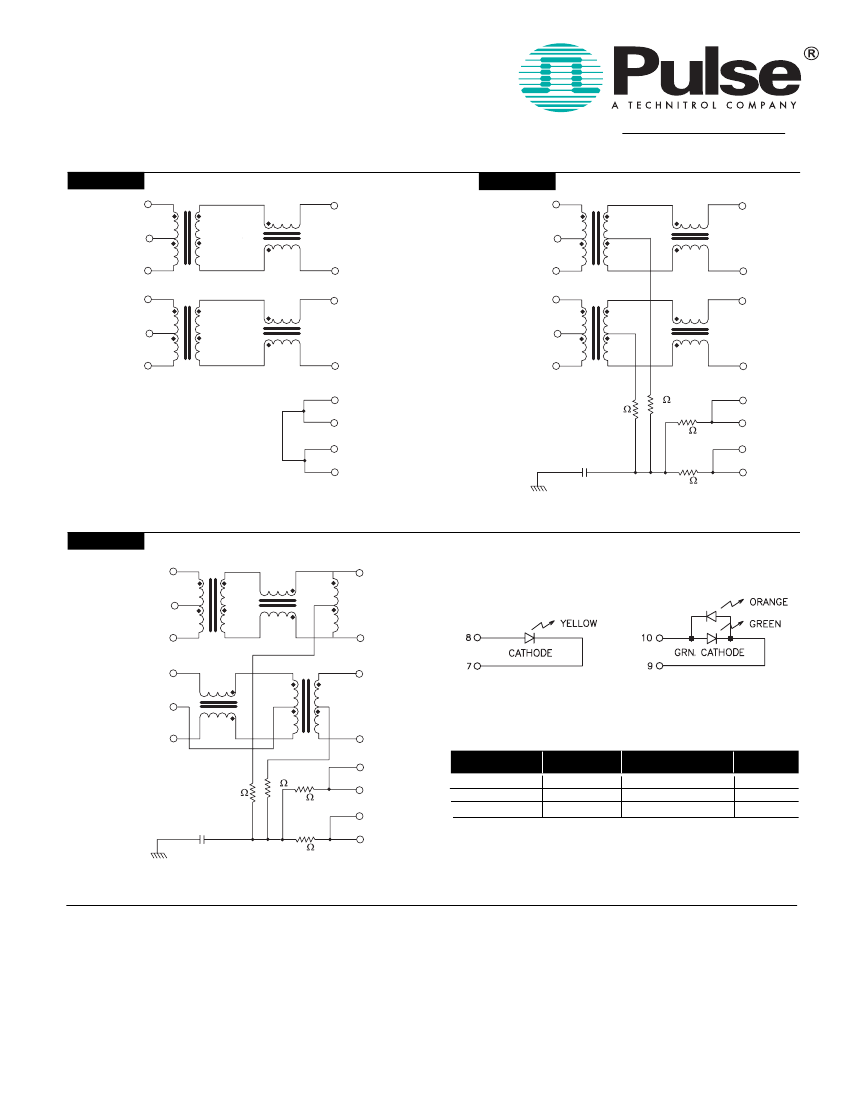

JP Series Electrical Schematics

JP011

1 TX+

TD+ 2

1 TX+

CT 1

CT

1

TD- 3

PCB SIDE TO PHY

RD+ 4

3 RX+

CT 6

RD- 5

1CT : 1

TRANSMIT

6 RX-

RD- 5

1CT : 1

TRANSMIT

75

6 RX-

4

5

7

8

0.001

µF

SHIELD

4

5

7

8

75

NOTE: Connect CHS GND to PCB ground.

JP026

TD+ 2

1 TX+

CT

1

TD- 3

1CT : 1

TRANSMIT

2 TX-

PCB SIDE TO PHY

RD+ 4

CT 6

RD- 5

1CT : 1

RECEIVE

6 RX-

CABLE SIDE

3 RX+

4

75

5

7

8

Standard LED

Yellow

Green

Orange

Wavelength

585 nm

565 nm

610 nm

Forward* V (MAX)

2.5 V

(TYP)

2.1 - 2.2 V

* With a forward current of 20 mA

0.001

µF

SHIELD

75

NOTE: Connect CHS GND to PCB ground.

For More Information:

Pulse Worldwide

Headquarters

12220 World Trade Drive

San Diego, CA 92128

U.S.A.

www.pulseeng.com

TEL: 858 674 8100

FAX: 858 674 8262

Pulse

Northern Europe

3 Huxley Road

Surrey Research Park

Guildford, Surrey GU2 5RE

United Kingdom

TEL: 44 1483 401700

FAX: 44 1483 401701

Pulse

Southern Europe

Zone Industrielle

F-39270

Orgelet

France

TEL: 33 3 84 35 04 04

FAX: 33 3 84 25 46 41

Pulse

Pulse North China

China Headquarters

Room 1503

No. 1

Industrial District

Changan, Dongguan

China

TEL: 86 769 85538070

FAX: 86 769 85538870

XinYin Building

No. 888 YiShan Road

Shanghai 200233

China

TEL: 86 21 54643211/2

FAX: 86 21 54643210

Pulse South Asia

150 Kampong Ampat

#07-01/02

KA Centre

Singapore 368324

TEL: 65 6287 8998

FAX: 65 6280 0080

Pulse North Asia

No. 26

Kao Ching Road

Yang Mei Chen

Taoyuan Hsien

Taiwan, R. O. C.

TEL: 886 3 4641811

FAX: 886 3 4641911

Performance warranty of products offered on this data sheet is limited to the parameters specified. Data is subject to change without notice. Other brand and product

names mentioned herein may be trademarks or registered trademarks of their respective owners.

www.pulseeng.com

J402.D (6/06)

CABLE SIDE

3 RX+

PCB SIDE TO PHY

1CT : 1

TRANSMIT

2 TX-

TD- 3

1CT : 1

TRANSMIT

2 TX-

CABLE SIDE
