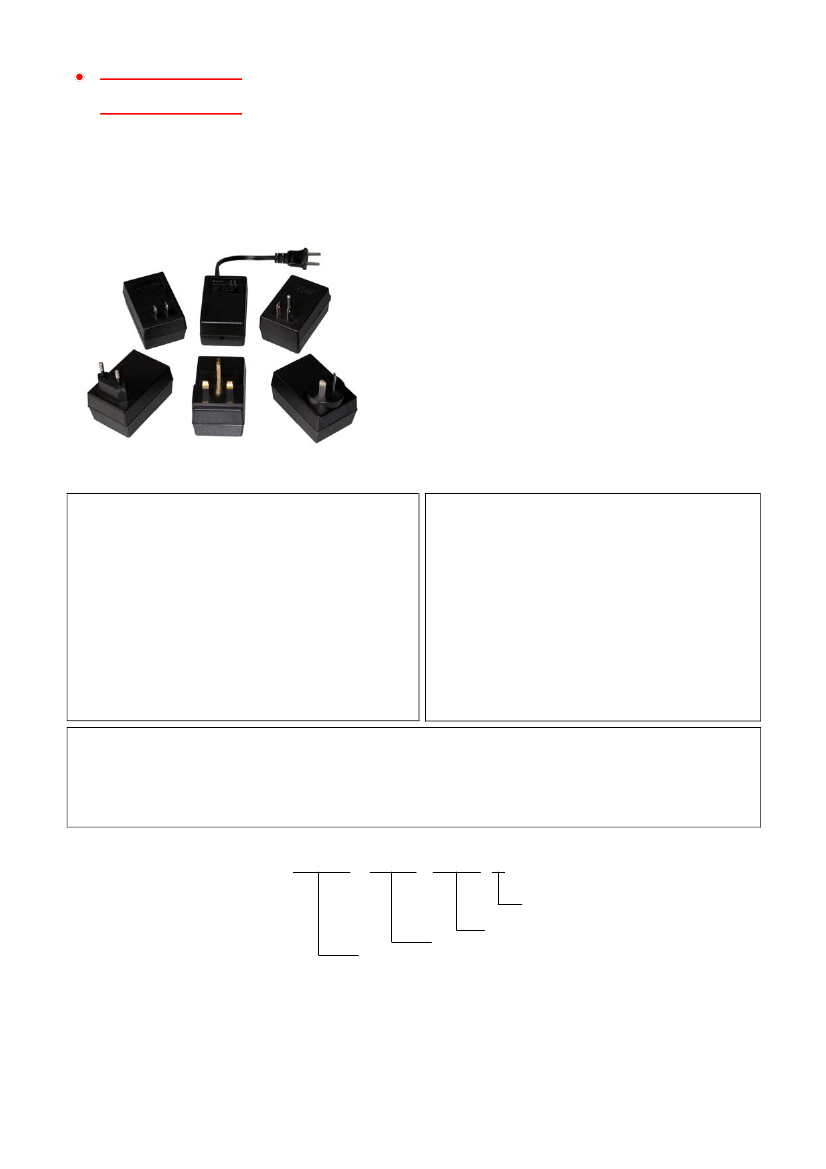

AC TO DC EXTERNAL UN-REGULATED WALLMOUNT ADAPTOR

DIVERSE AC PLUGS SINGLE OUTPUT 8.4-9.6 WATTS

LINEAR POWER ADAPTORS HEA-41 SERIES

FEATURES:

COST EFFECTIVE UN-REGULATED

ADAPTORS

WORLDWIDE DIVERSE AC PLUGS

MEET USA OR EUROPEAN STANDARD

LOW NOISE MEET EMI REQUIREMENT

CE MARKING COMPLIANCE

SPECIFICATION

INPUT SPECIFICATION

Input Voltage:

Nominal 100/110/120Vac or

220/230/240 Vac. Custom Vac available.

Input Range:

Typical ±8.0%.

Input Connector:

Wallmount format AC plugs

WM1,2 (USA/Japan)/ WM3(Euro-stecker)/

WM5 (UK)/WM6 (Australia).

Input Frequency:

100 ~120Vac / 60Hz typical.

220 ~ 240Vac / 50Hz typical.

Input Current:

120mA max. @120Vac/60Hz.

60mA max. @230Vac/50Hz.

Dielectric Withstand:

Meet IEC 950.

EMI:

Inherent low conducted and radiated noise level,

meet EN55022 & FCC class B.

OUTPUT SPECIFICATION

Output Voltage:

See Ratings Chart.

Output Current:

See Ratings Chart.

Output Wattage:

Max.9.6 VA @115Vac/60Hz input.

Max.8.4 VA @230Vac/50Hz input.

Output Connector:

Optional.

Noise & Ripple:

Typ.20% peak to peak.

Overload Protection:

None, only by thermal protection.

Thermal Protection:

Thermal fuse installed inside the

input transformer.

Operating Temperature:

0 ~ +40°C.

Storage Temperature:

-20°C to +85°C.

Cooling:

Free air convection.

Construction:

Impact resistant plastic enclosure case.

Wallmount format in EI-41 case.

GENERAL SPECIFICATION

Circuit Topology:

Line frequency lamination

steel transformer circuit.

Safety Standard:

UL1950 & CSN C22.2 NO. 950 or

IEC 950 Class I & II.

MODEL NO. DESCRIPTION:

HEA-41

—

X X X Y Y Y - N

AC PLUG: [1] WM1, [2] WM2, [3] WM3,

[5] WM5, [6] WM6.

OUTPUT CURRENT

OUTPUT VOLTAGE

SERIES NAME IN EI-41 X’FORMER SIZE

-45-
