SL74HC257
Quad 2-Input Data Selector/Multiplexer
with 3-State Outputs
High-Performance Silicon-Gate CMOS
The SL74HC257 is identical in pinout to the LS/ALS257. The device
inputs are compatible with standard CMOS outputs; with pullup
resistors, they are compatible with LS/ALSTTL outputs.
This device selects a (4-bit) nibble from either the A or B inputs as
determined by the Select input. The nibble is presented at the outputs
in noninverted from when the Output Enable pin is at a low level. A
high level on the Output Enable pin switches the outputs into the high-
impedance state.
•
Outputs Directly Interface to CMOS, NMOS, and TTL
•
Operating Voltage Range: 2.0 to 6.0 V
•
Low Input Current: 1.0
µA
•
High Noise Immunity Characteristic of CMOS Devices
ORDERING INFORMATION
SL74HC257N Plastic
SL74HC257D SOIC
T
A
= -55° to 125° C for all packages

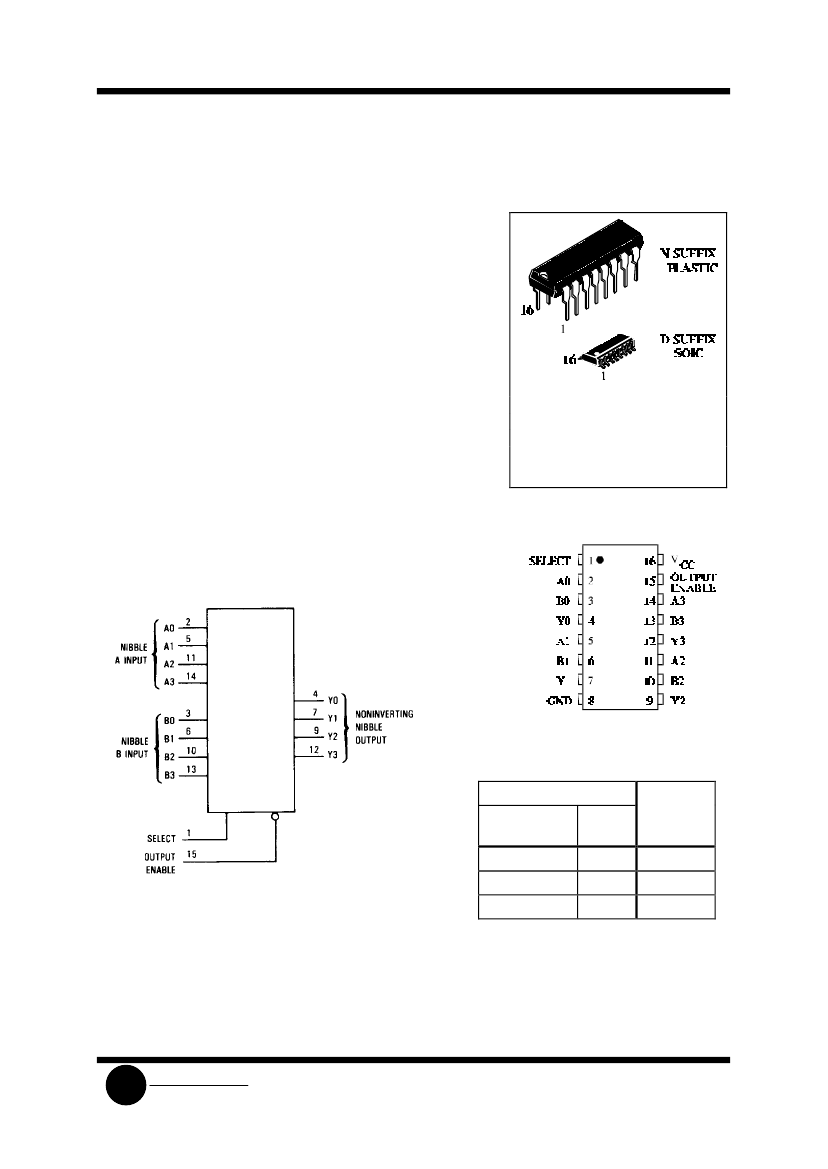

PIN ASSIGNMENT
LOGIC DIAGRAM
FUNCTION TABLE
Inputs
Output
Enable
H
L
PIN 16 =V
CC
PIN 8 = GND
L
Select
X
L
H
Outputs
Y0-Y3
Z
A0-A3
B0-B3
X=don’t care
Z = high-impedance state
A0-A3,B0-B3=the levels of the respective
Nibble Inputs
SLS
System Logic
Semiconductor
SL74HC257
MAXIMUM RATINGS
*
Symbol
V
CC
V
IN
V
OUT
I
IN
I
OUT
I
CC
P
D
Tstg
T
L
*
Parameter
DC Supply Voltage (Referenced to GND)
DC Input Voltage (Referenced to GND)
DC Output Voltage (Referenced to GND)
DC Input Current, per Pin
DC Output Current, per Pin
DC Supply Current, V
CC
and GND Pins
Power Dissipation in Still Air, Plastic DIP+
SOIC Package+
Storage Temperature
Lead Temperature, 1 mm from Case for 10 Seconds
(Plastic DIP or SOIC Package)
Value
-0.5 to +7.0
-1.5 to V
CC
+1.5
-0.5 to V
CC
+0.5
±20
±35
±75
750
500
-65 to +150
260
Unit
V
V
V
mA
mA
mA
mW
°C
°C
Maximum Ratings are those values beyond which damage to the device may occur.
Functional operation should be restricted to the Recommended Operating Conditions.
+Derating - Plastic DIP: - 10 mW/°C from 65° to 125°C
SOIC Package: : - 7 mW/°C from 65° to 125°C
RECOMMENDED OPERATING CONDITIONS
Symbol
V
CC
V
IN
, V
OUT
T
A
t
r
, t
f
Parameter
DC Supply Voltage (Referenced to GND)
DC Input Voltage, Output Voltage (Referenced to GND)
Operating Temperature, All Package Types
Input Rise and Fall Time (Figure 1)
V
CC
=2.0 V
V
CC
=4.5 V
V
CC
=6.0 V
Min
2.0
0
-55
0
0
0
Max
6.0
V
CC
+125
1000
500
400
Unit
V
V
°C
ns
This device contains protection circuitry to guard against damage due to high static voltages or electric
fields. However, precautions must be taken to avoid applications of any voltage higher than maximum rated
voltages to this high-impedance circuit. For proper operation, V
IN
and V
OUT
should be constrained to the range
GND≤(V
IN
or V
OUT
)≤V
CC
.
Unused inputs must always be tied to an appropriate logic voltage level (e.g., either GND or V ).
CC
Unused outputs must be left open.
SLS
System Logic
Semiconductor
SL74HC257
DC ELECTRICAL CHARACTERISTICS
(Voltages Referenced to GND)
V
CC
Symbol
Parameter
Test Conditions
V
Guaranteed Limit
25
°C
to
-55°C
1.5
3.15
4.2
0.3
0.9
1.2
1.9
4.4
5.9
3.98
5.48
0.1
0.1
0.1
0.26
0.26
±0.1
±0.5
≤85
°C
1.5
3.15
4.2
0.3
0.9
1.2
1.9
4.4
5.9
3.84
5.34
0.1
0.1
0.1
0.33
0.33
±1.0
±5.0
≤125
°C
1.5
3.15
4.2
0.3
0.9
1.2
1.9
4.4
5.9
3.7
5.2
0.1
0.1
0.1
0.4
0.4
±1.0
±10
µA
µA
V
Unit
V
IH
Minimum High-Level
Input Voltage
Maximum Low -Level
Input Voltage
Minimum High-Level
Output Voltage
V
OUT
=0.1 V or V
CC
-0.1 V
I
OUT
≤
20
µA
V
OUT
=0.1 V or V
CC
-0.1 V
I
OUT
≤
20
µA
V
IN
=V
IH
or V
IL
I
OUT
≤
20
µA
V
IN
=V
IH
or V
IL
I
OUT
≤
6.0 mA
I
OUT
≤
7.8 mA
2.0
4.5
6.0
2.0
4.5
6.0
2.0
4.5
6.0
4.5
6.0
2.0
4.5
6.0
4.5
6.0
6.0
6.0
V
V
IL
V
V
OH
V
V
OL
Maximum Low-Level
Output Voltage
V
IN
=V
IH
or V
IL
I
OUT
≤
20
µA
V
IN
=V
IH
or V
IL
I
OUT
≤
6.0 mA
I
OUT
≤.7.8
mA
I
IN
I
OZ
Maximum Input
Leakage Current
Maximum Three-State
Leakage Current
V
IN
=V
CC
or GND
Output in High-Impedance
State
V
IN
= V
IL
or V
IH
V
OUT
= V
CC
or GND
V
IN
=V
CC
or GND
I
OUT
=0µA
I
CC
Maximum Quiescent
Supply Current
(per Package)
6.0
8.0
80
160
µA
SLS
System Logic
Semiconductor
SL74HC257
AC ELECTRICAL CHARACTERISTICS
(C
L
=50pF,Input t
r
=t
f
=6.0 ns)
V
CC
Symbol
t
PLH
, t
PHL
Parameter
Maximum Propagation Delay, Nibble A or B to
Output Y (Figures 1and 4)
Maximum Propagation Delay , Select to
Output Y (Figures 2 and 4)
Maximum Propagation Delay , Output Enable to
Output Y (Figures 3 and 5)
Maximum Propagation Delay , Output Enable to
Output Y (Figures 3 and 5)
Maximum Output Transition Time, Any Output
(Figures 1 and 4)
Maximum Input Capacitance
Maximum Three-State Output Capacitance
(Output in High-Impedance State)
Power Dissipation Capacitance (Per Package)
C
PD
Used to determine the no-load dynamic power
consumption:
P
D
=C
PD
V
CC2
f+I
CC
V
CC
V
2.0
4.5
6.0
2.0
4.5
6.0
2.0
4.5
6.0
2.0
4.5
6.0
2.0
4.5
6.0
-
-
Guaranteed Limit
25
°C
to
-55°C
100
20
17
100
20
17
150
30
26
150
30
26
60
12
10
10
15
≤85°C
125
25
21
125
25
21
190
38
33
190
38
33
75
15
13
10
15
≤125°C
150
30
26
150
30
26
225
45
38
225
45
38
90
18
15
10
15
Unit
ns
t
PLH
, t
PHL
ns
t
PLZ
, t
PHZ
ns
t
PZL
, t
PZH
ns
t
TLH
, t
THL
ns
C
IN
C
OUT
pF
pF
Typical @25°C,V
CC
=5.0 V
39
pF

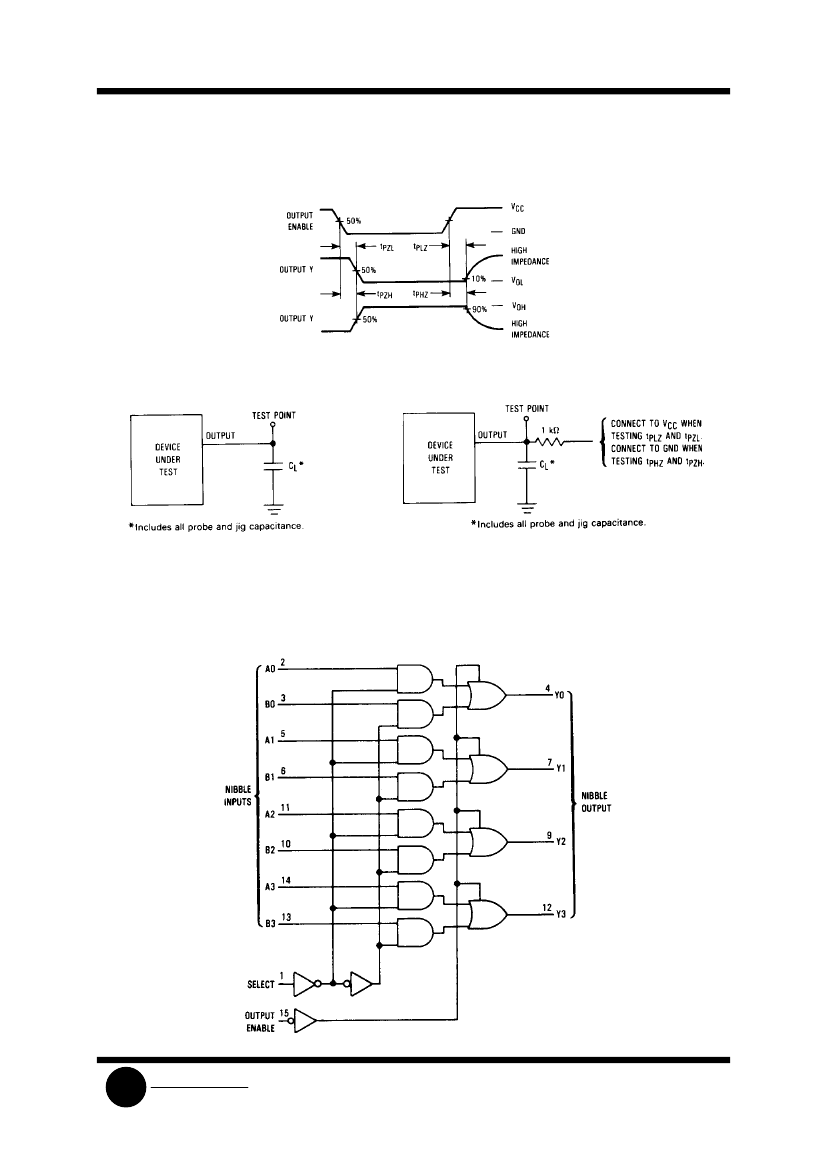

Figure 1. Switching Waveforms
Figure 2. Switching Waveforms
SLS
System Logic
Semiconductor
SL74HC257
Figure 3. Switching Waveforms
Figure 4. Test Circuit
Figure 5. Test Circuit
EXPANDED LOGIC DIAGRAM
SLS
System Logic
Semiconductor
