PanelLink Transmitters
The SiI 1364 and SiI 1362 are the world’s first fully compliant Serial Digital Video
Output (SDVO)-based DVI transmitters that support the full operating range of
Intel’s SDVO input port (1-2 GHz) and the full scalable DVI
output bandwidth (25-165 MHz). Incorporating the latest
PanelLink
®
technology, the SiI 1362 and SiI 1364 support display
resolutions ranging from VGA to UXGA (1600x1200) in a single
link interface. Both chips are designed explicitly to accommodate
the 1-2 Gbps ultra-high speeds required for SDVO signaling.
With the Integrated Graphics Chipset (IGC) market shifting to PCI Express, a new DVI
transmitter solution is required to support Intel’s new SDVO interface.The SiI 1364 and
SiI 1362 address this new market need for DVI transmitters compatible with PCI
Express chipsets implementing SDVO.
The SiI 1364 is available in a low-cost 64-pin TQFP package, and the SiI 1362 is
available in a low-cost 48-pin LQFP package. The SiI 1362 is targeted for desktop and
notebook motherboard applications and requires configuration content to be pro-
grammed into the system BIOS ROM. Targeted for ADD2 card applications, the
SiI 1364 requires a dedicated external EEPROM to store its configuration data. By
incorporating the most advanced PanelLink DVI technology available today, the SiI 1364
and SiI 1362 transmitters bring the highest performance to your DVI applications.
DVI-compliant Quality
The DVI 1.0 specification defines the precise system-level signaling at the output of a DVI
transmitter system and at the input of a DVI receiver system. As a result, any DVI-compliant host
will always interoperate with any DVI-compliant display.The most comprehensive method to deter-
mine the quality and compliance of a DVI transmitter is to measure the TMDS “eye” diagram as
defined by the DVI 1.0 specification and the DVI Test & Measurement Guide. Only high-
performance PanelLink DVI transmitters, such as the SiI 1364 and 1362, yield consistently robust
differential signal “eyes” that exceed the minimum “eye” width & height requirements of the DVI
specification at the full DVI bandwidth of 25-165 MHz.
400 kHz 3.3V
Applications
•
PC Motherboards
•
Notebook PCs
•
Add-In-Boards

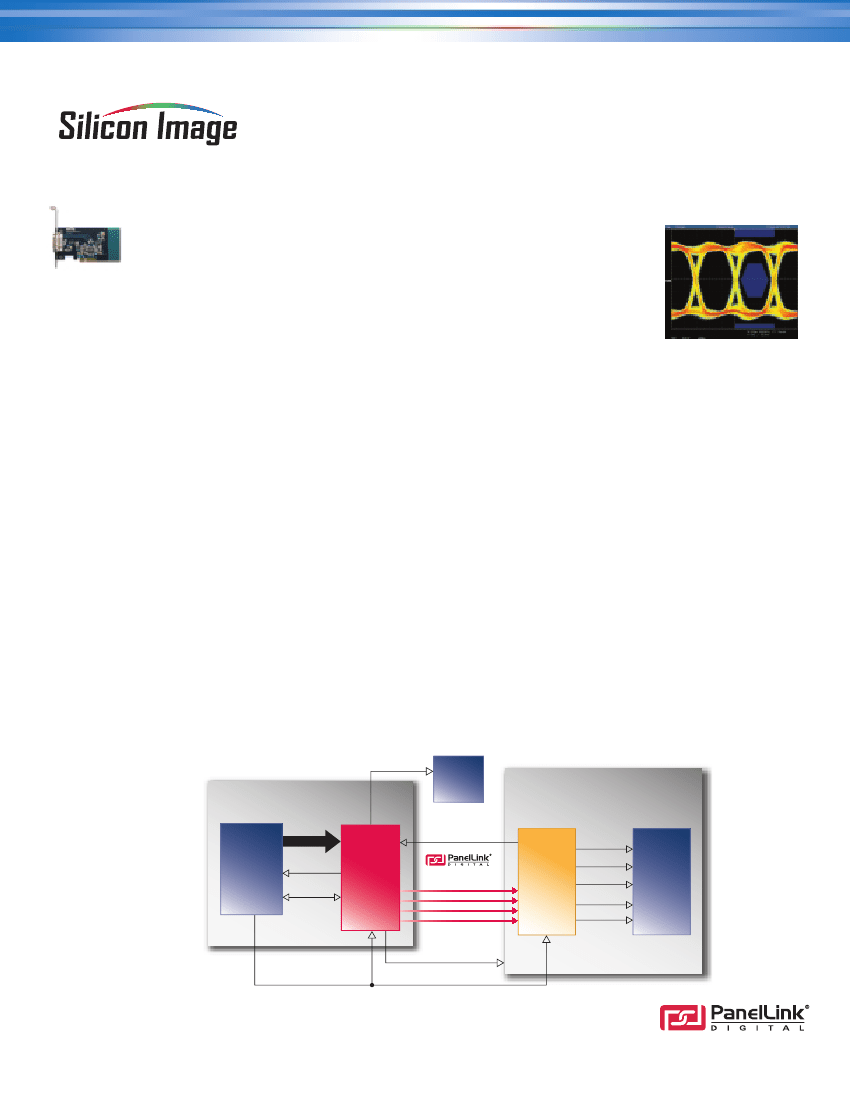

Host
(PC, Graphics Board)
UAIM
BIOS
EEPROM
Display
(LCD Monitor, Projector, Plasma Display)
HotPlug
SDVO
DE
Video
Source
Si
I
1364
INT#
I
2
C
I MHz 2.5V
PanelLink
Transmitter
Channels 0, 1, 2
Si
I
DVI
PanelLink
Receiver
Pixel data
Clock
HSYNC
VSYNC
Digital
Display
Clock Channel
100 kHz DDC 5V
DDC (I
2
C)
A L L
D I G I T A L
—
N O
L I M I T S
SCLDDC
SDADDC
TEST
HTPLG
Si
I
1364/1362
SDAROM
SCLROM
I
2
C
Pass-Through
Buffer
PanelLink
TMDS
Core
Registers
and
Configuration
Logic
EXT SWING
Tx0±
Tx1±
Tx2±
TxC±
I
2
C
Slave

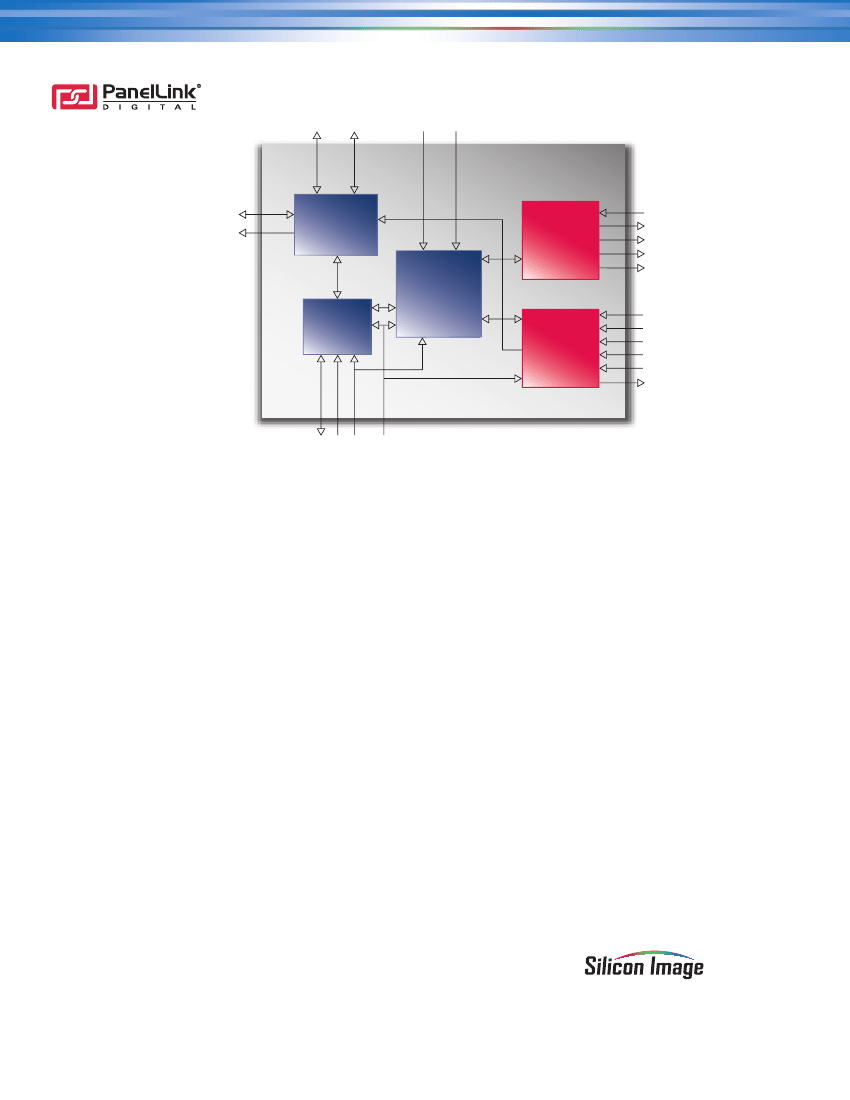

SDVO
Receiver
Core
EXT RES
SDR±
SDG±
SDB±
SDC±
SDI±
SDA
SDSDA
A1
SCI
A1
SDSCL
RESET#
Si
I
1364 and Si
I
1362
Features
PanelLink Transmitters
General
• Scalable output bandwidth from 25 to
165 MHz
• Supports Intel SDVO technology
• I
2
C slave interface for access to internal
registers
• Dual I
2
C pass-through interfaces for
host I
2
C access of EDID (via DDC) and
configuration EEPROM (on ADD2 Card)
• Low-voltage input signaling interface:
175mV to 1.2V
• Monitor detection supported through
Hot Plug or Receiver Sense
• Cable distance support greater than
10 meters
• DVI 1.0 compliant, with significantly
greater margin than competitive solutions
• SiI 1362: 48-pin LQFP package without
EEPROM interface
(motherboard applications)
• SiI 1364: 64-pin TQFP package with
EEPROM interface
(ADD2 card applications)
Silicon Image ’s
SiI 1364 Starter Kit
SiI 1364 starter kit is available for
evaluation from Silicon Image. For details
of this starter kit, please see
StarterKits/Reference Designs on the
Silicon Image website at
www.siliconimage.com
Power Management
• Low-power 1.8V core operation
• Built-in ACPI power management
• Power Down mode
Part Number -
SiI 1364CTU: 64-pin TQFP package
SiI 1362CLU: 48-pin LQFP package
Silicon Image, Inc.
1060 E. Arques, Sunnyvale, CA 94085
T 408.616.4000 F 408.830.9530
www.siliconimage.com
©2004 Silicon Image, Inc. All rights reserved. Silicon Image, the Silicon Image logo, SiI, SiI 1364, SiI 1362, PanelLink, the
PanelLink logo and TMDS are trademarks or registered trademarks of Silicon Image, Inc. in the United States and other
countries. Other trademarks are the property of their respective holders. Product specifications are subject to change
without notice. Printed in the U.S.A. 6/04 SiI PB-0048
