GN0 Series
• Three-phase Motor Reversing solid-state relay
• Ratings from 25A and 50A per phase @ 48-530 VAC
• SCR output for heavy industrial loads
• DC control
• LED input status indicator
• UL508 Endurance Rating
• UL/CSA/ TUV Approved, CE Compliant to EN60950-1
PRODUCT SELECTION
Control Voltage
4-32 VDC
25A
GN025DSR
50A
GN050DSR
AVAILABLE OPTIONS
OUTPUT SPECIFICATIONS (1)
Description
Operating Voltage (47-63Hz) [Vrms]
Maximum Load Current [Arms] (2)
Transient Overvoltage [Vpk]
Maximum Off-State Leakage Current @ Rated Voltage [mArms] (3)
Minimum Load Current [Arms]
Maximum Surge Current 50/60 Hz (1 cycle) [Apk]
1 Second Surge Current 50/60 Hz [Apk]
Maximum On-State Voltage Drop @ Rated Current [Vpk]
Maximum I²T for Fusing (50/60 Hz, 1/2 cycle) [A² sec]
Thermal Resistance Junction to Case (Rjc) [°C/W]
Minimum Off-State dv/dt @ Maximum Rated Voltage [V/µsec] (4)
HP Ratings at 120V / FLC
HP Ratings at 240V / FLC
HP Ratings at 480V / FLC
HP Ratings at 600V / FLC
25A
48-530
25
1100
6
0.1
475/500
100
1.35
1130/1030
0.26
500
0.75 / 6.4A
1 / 4.2A
3 / 4.8A
5 / 6.1A
50A
48-530
50
1100
6
0.1
710/750
150
1.35
2520/2320
0.25
500
1.5 / 12A
3 / 9.6A
7.5 / 11A
10 / 11A
INPUT SPECIFICATIONS (1)
Description
Control Voltage Range
Minimum Turn-On Voltage
Minimum Turn-Off Voltage
Minimum Input Current (for on-state)
Maximum Input Current
Input Resistance
Maximum Turn-On Time [msec]
Maximum Turn-Off Time [msec]
Interlocking Time [msec]
Parameters
4-32 VDC
4.0 VDC
1.0 VDC
23mA
35mA
Current Regulated
150
1/2 Cycle
100
GENERAL SPECIFICATIONS
Description
Input to Output Isolation
Input/ Output to Ground Isolation
Maximum Capacitance, Input/Output
Ambient Operating Temperature Range
Ambient Storage Temperature Range
Weight (typical)
Housing Material
Input Terminal Screw Torque Range:[in lbs/Nm]
Output Terminal Screw Torque Range:[in lbs/Nm]
Parameters
4000 Vrms
2500 Vrms
8 pF
-40 to 80°C
-40 to 100 °C
13.1 oz (370g)
UL 94V0 (self extinguishing
16.8/1.9
21.2/2.4
GENERAL NOTES
1) All parameters at 25°C unless otherwise specified.
2) When mounted to the proper size heat sink (see derating curves)
3) Measured between 1/L1 and 2/T1 or 3/L2 and 4/T2
4) Off-State dv/dt test method per EIA/NARM standard RS-443, paragraph 13.11.1

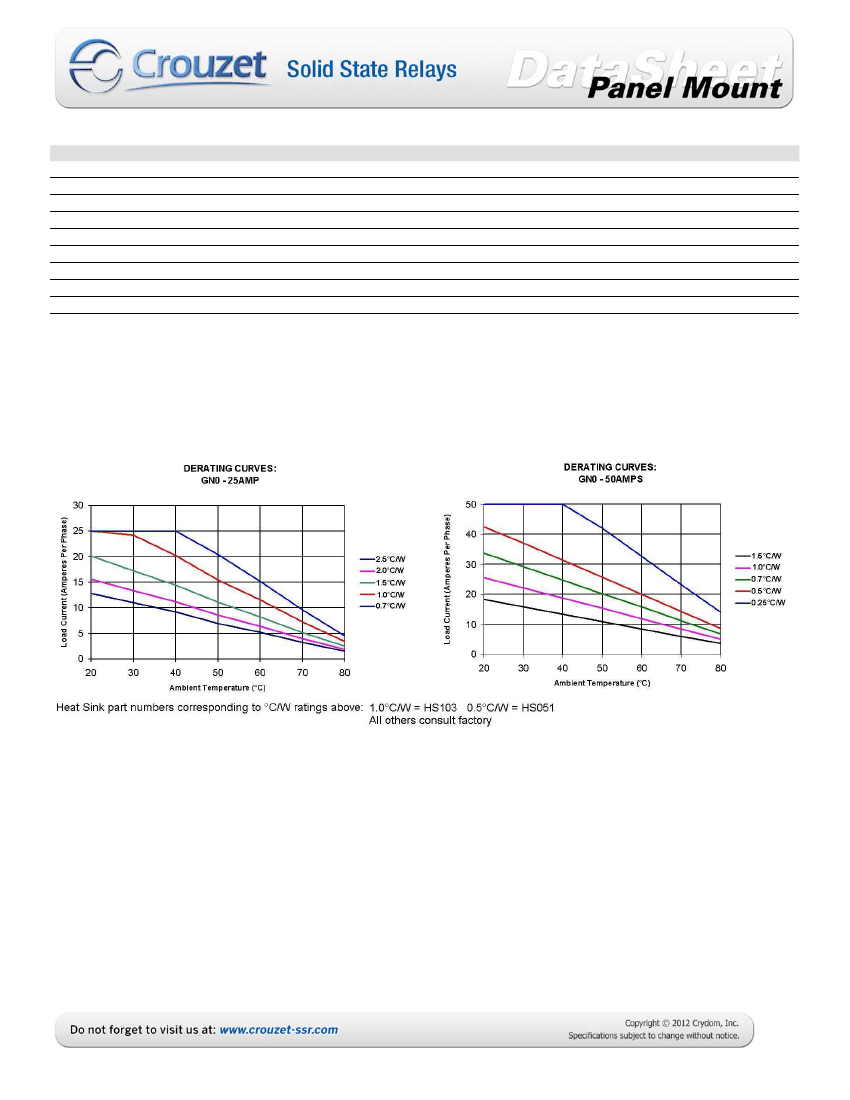

THERMAL DERATE INFORMATION
MECHANICAL SPECIFICATIONS

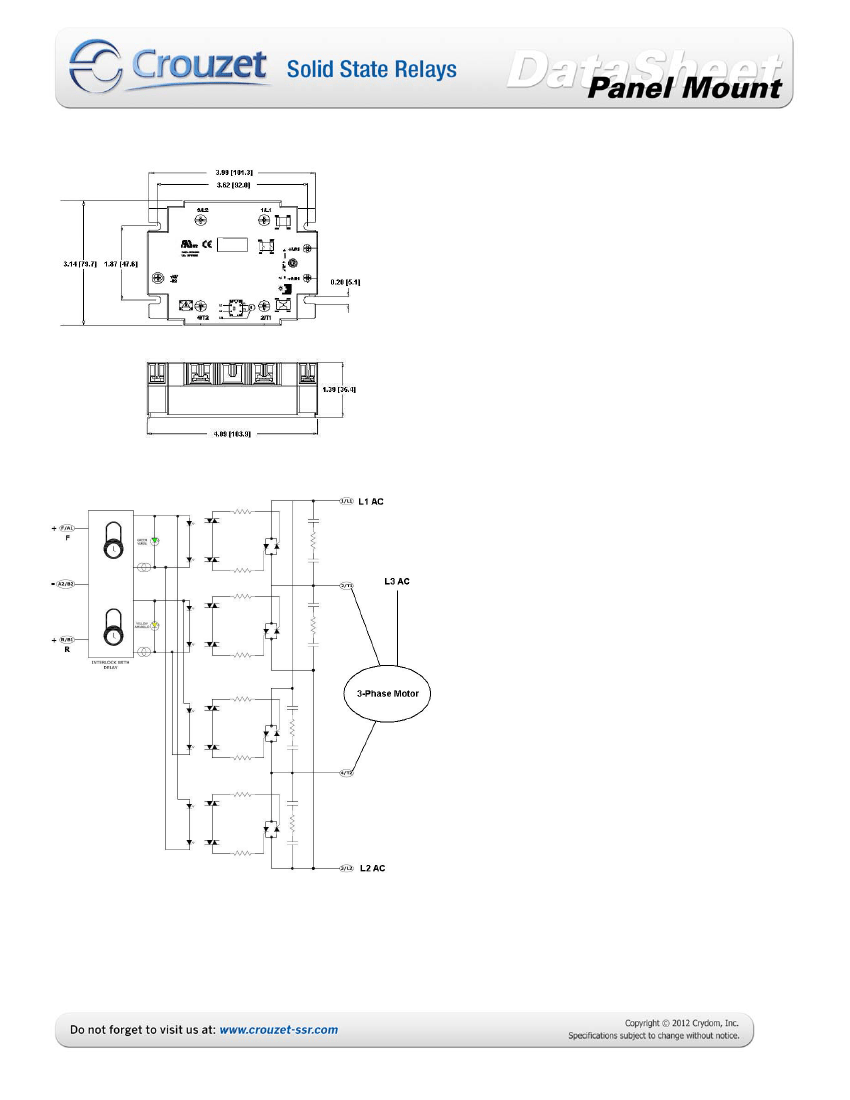

WIRING DIAGRAM
AGENCY APPROVALS
Designed in accordance with the requirements of IEC 62314
EN60950 : Meets the requirements of sections1.5: 1,7: 2.9: 2.10.5.3: 4.2: 4.5: 4.7:
IEC 60068-2-6 35mm / 10-55Hz
IEC 60068-2-27 15G / 11ms
IEC 1000-4-2 : Electrostatic Discharge – Level 3
IEC 1000-4-3 : Radiated Electromagnetic Noise – Level 3
IEC 1000-4-4 : Electrically Fast Transients – Level 3
IEC 1000-4-5 : Electrical Surges – Level 3
IEC 1000-4-6 : Conducted Electromagnetic Noise – Level 3
CISPIR 11 –
Class A: Allowable Levels of Conducted and Radiated Noise for Industrial Environments
E79183,
LR38595

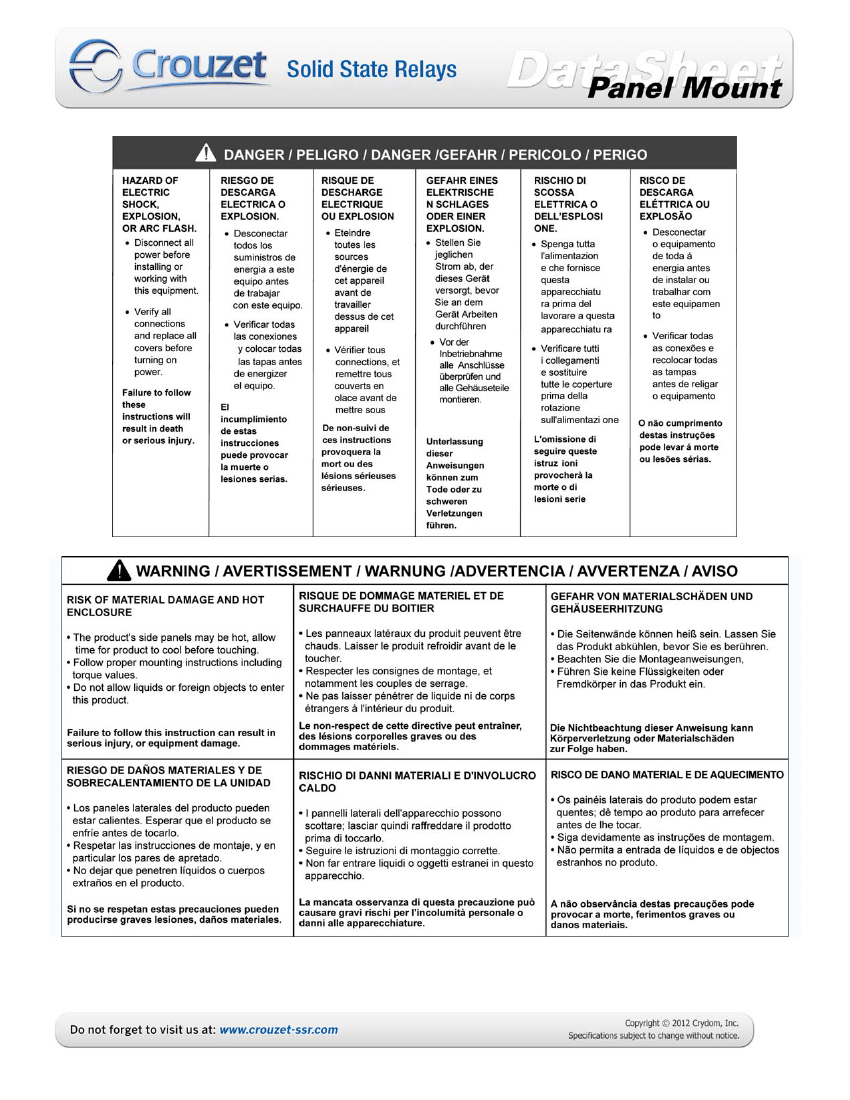

Rev. 101311
