1.4 mm Height Subminiature , Axial Flat Top View LED
28-21SURC/S530-XX/TR8
Features
․Package
in 8mm tape on 7〞diameter reel.
․Compatible
with automatic placement equipment.
․Compatible
with infrared and vapor phase reflow
solder process.
․Mono-color
type.
․Pb-free.
․The
product itself will remain within RoHS complaint versio
Descriptions
․The
28-21 SMD taping is much smaller
than leaded components .Thus enable
smaller board size. Higher packing density.
Reduced storage space and finally smaller
equipment to be obtained.
․Besides,
light weight makes them
ideal for miniature applications.
Applications
․Backlighting
in dashboard and switch.
․Telecommunication:
indicator and backlighting in
telephone and fax.
․Flat
backlight for LCD, switch and symbol.
․General
use.
Device Selection Guide
Part No.
28-21SURC/S530-XX/TR8
Chip
Material
AlGaInP
Emitted Color
Brilliant Red
Lens Color
Water Clear
Everlight Electronics Co., Ltd.
Device No. : SZDLE-281-005
http://www.everlight.com
Prepared date:24-May-2005
Rev. 1
Prepared by:
Page: 1 of 9
Aihua hong
EVERLIGHT ELECTRONICS CO.,LTD
28-21SURC/S530-XX/TR8
Package Outline Dimensions
Note:
Tolerances Unless Dimension is
±0.1mm
, Unit = mm
Everlight Electronics Co., Ltd.
Device No. : SZDLE-281-005
http://www.everlight.com
Prepared date:24-May-2005
Rev. 1
Prepared by:
Page: 2 of 9
Aihua hong
EVERLIGHT ELECTRONICS CO.,LTD
28-21SURC/S530-XX/TR8
Absolute Maximum Ratings (Ta=25℃)
Parameter
Reverse Voltage
Forward Current
Peak Forward Current
I
FP
(Duty 1/10 @1KHz)
Power Dissipation
Electrostatic Discharge
Operating Temperature
Storage Temperature
Soldering Temperature
Pd
ESD
Topr
Tstg
Tsol
60
2000
-40 ~ +85
-40 ~ +100
mW
V
℃
℃
60
mA
Symbol
V
R
I
F
Rating
5
25
Unit
V
mA
Reflow Soldering : 260
℃
for 10 sec
Hand Soldering : 350
℃
for 3 sec.
Electro-Optical Characteristics (Ta=25℃)
Parameter
Symbol Chip Rank
A2
A3
Luminous Intensity
I
V
A4
A5
A6
Viewing Angle
Peak Wavelength
Dominant Wavelength
Spectrum Radiation
Bandwidth
Forward Voltage
Reverse Current
2θ1/2
λ
p
λ
d
△λ
V
F
I
R
----
----
----
----
----
----
MIN.
11
25
35
42
50
----
----
----
----
----
----
TYP.
26
38
51
64
77
150
632
624
20
2.0
----
MAX.
----
----
----
----
----
----
----
----
----
2.4
10
deg
nm
nm
nm
V
μA
I
F
=20mA
mcd
Unit Condition
V
R
=5V
Notes:
1.Tolerance of Luminous Intensity
±10%
2.Tolerance of Dominant Wavelength
±1nm
Everlight Electronics Co., Ltd.
Device No. : SZDLE-281-005
http://www.everlight.com
Prepared date:24-May-2005
Rev. 1
Prepared by:
Page: 3 of 9
Aihua hong
EVERLIGHT ELECTRONICS CO.,LTD
28-21SURC/S530-XX/TR8

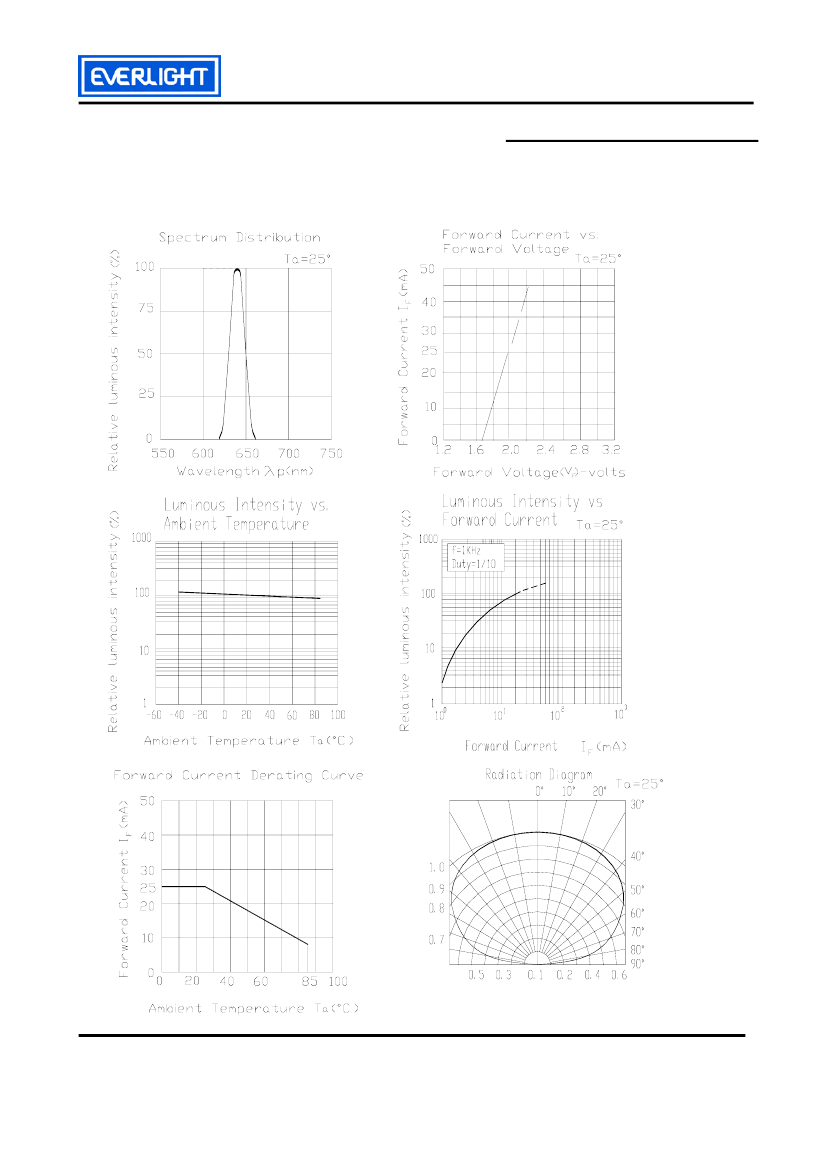

Typical Electro-Optical Characteristics Curves
Everlight Electronics Co., Ltd.
Device No. : SZDLE-281-005
http://www.everlight.com
Prepared date:24-May-2005
Rev. 1
Prepared by:
Page: 4 of 9
Aihua hong
EVERLIGHT ELECTRONICS CO.,LTD
28-21SURC/S530-XX/TR8
Label explanation
CAT: Luminous Intensity Rank
HUE: Dom. Wavelength Rank
REF: Forward Voltage Rank
xxxxxx
xxxxxx
RoHS
xxxxxxxxxxxx
xxxx
xxxxxxxx

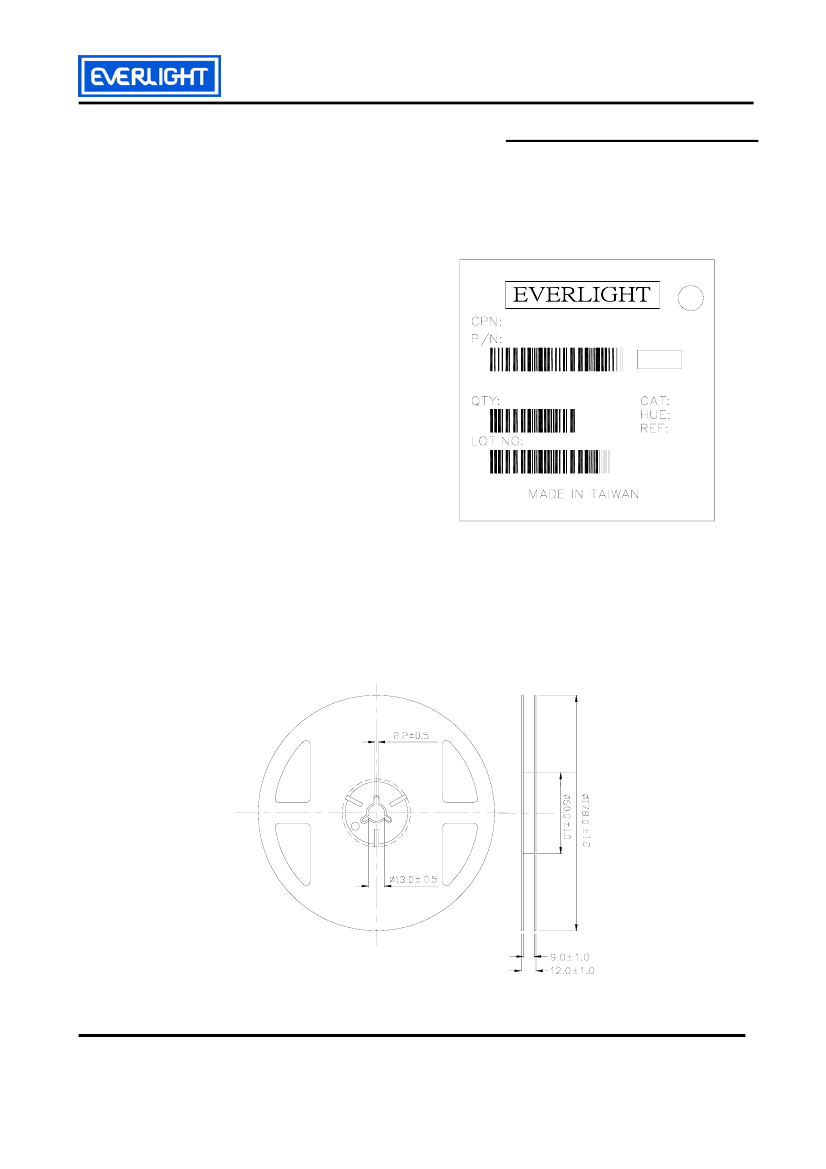

Reel & Carrier Tape Dimensions
Everlight Electronics Co., Ltd.
Device No. : SZDLE-281-005
http://www.everlight.com
Prepared date:24-May-2005
Rev. 1
Prepared by:
Page: 5 of 9
Aihua hong
