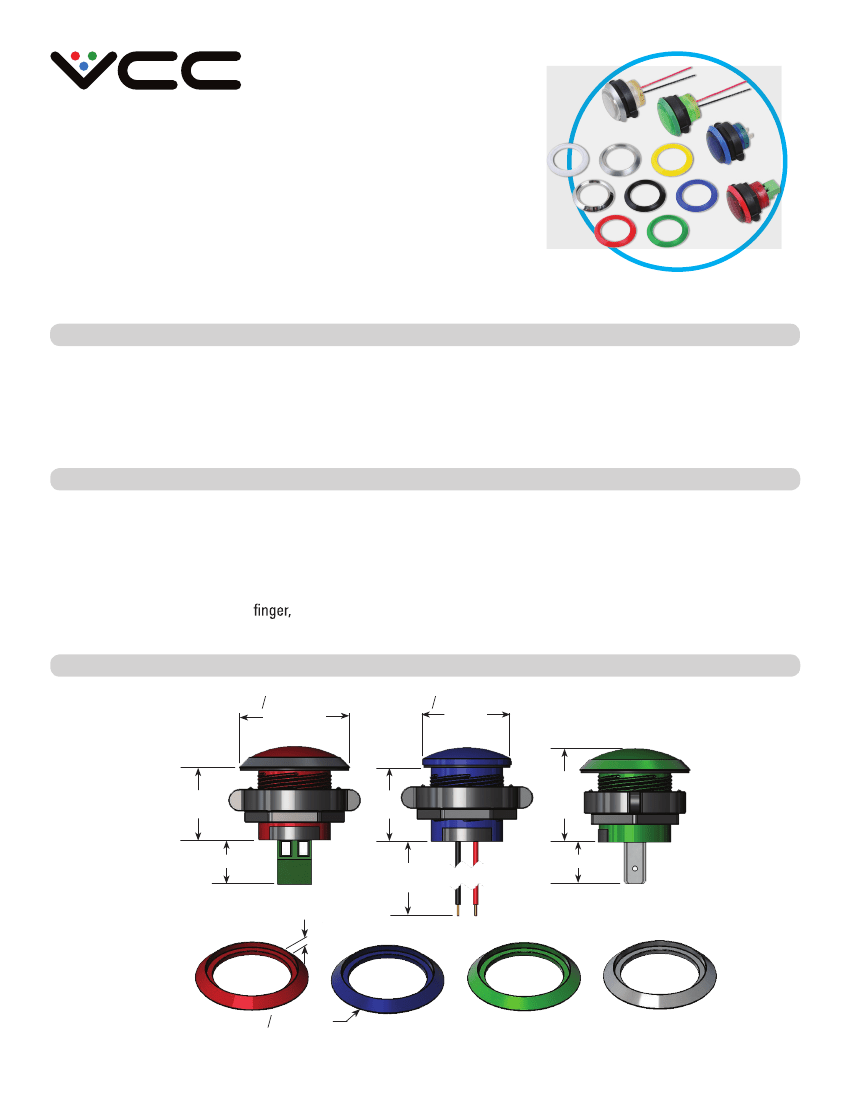

22mm TuffLED™

Panel Mount Indicator

Ruggedized CNX 722 Series with built-in LED offers fast, easy

installation in harsh environments

Applications

•

control cabinets

instrument panels

disinfection and sterilization environments

transportation dashboards

switch stations

•

safety applications

outdoor signage

aircraft and military

industrial machinery

vending and gaming machines

Key features

• designed for extreme harsh and outdoor environments

• variety of connection options for fast, easy installation

• built-in LED can be used with 5, 12 or 24 volt D/C

circuits

• fast pitch threads ease assembly, requiring only1 turn

or with 1” hextool

• special nut assembles by

• direct sunlight visibility

•

wide angle viewable

resistant to shock and vibration

custom LEDs and lens colors available

optional bezel available in many colors

moisture sealed, IP 67/NEMA 6P rated

RoHS compliant

Product dimensions

o

1.26 in[32mm]

o

1.01 in[25.6mm]

.81 in[20.6mm]

Indicator

Assemblies

.50 in[12.8mm]

6 in[152.4mm]

.86 in[21.9mm]

.12 in[3mm]

Bezels

o

1.26 in[32mm]

engineered to light up your design

www.vcclite.com

1.800.522.5546

1.06 in[26.9mm]

.47 in[11.8mm]

CNX722C40024W Related Products

	CNX722C40024W	CNX722C50005B
Description
Product Category	LED Panel Mount Indicators	LED Panel Mount Indicators
Manufacturer	Visual Communications Company, LLC	Visual Communications Company, LLC
RoHS	Details	Details
Illumination Color	Yellow	Green
Mounting Hole Size	22 mm	22 mm
Mounting Style	Nut and Washer	Nut and Washer
Termination Style	Wire	Screw Terminal
Lens Color/Style	Yellow Diffused	Green Diffused
If - Forward Current	20 mA	20 mA
Vf - Forward Voltage	24 V	5 V
Lens Shape	Round Convex	Round Convex
Luminous Intensity	80 mcd	700 mcd
Operating Temperature Range	- 40 C to + 80 C	- 40 C to + 80 C
Product	LED Panel Mount Indicators	LED Panel Mount Indicators
Factory Pack Quantity	1	1
