Data Sheet No. 1.042
Series PVT322
HEXFET POWER MOSFET PHOTOVOLTAIC RELAY
®
Microelectronic
Power IC Relay
Dual Pole, Normally Open
0-250V, 170mA AC/DC
General Description
The PVT322 Series Photovoltaic Relay is a dual-
pole, normally open solid-state relay that can
replace electromechanical relays in many applica-
tions. It utilizes International Rectifier’s HEXFET
power MOSFET as the output switch, driven by an
integrated circuit photovoltaic generator of novel
construction. The output switch is controlled by
radiation from a GaAlAs light emitting diode (LED)
which is optically isolated from the photovoltaic
generator.
Series PVT322 Relays are packaged in an 8-pin,
molded DIP package with either through-hole or
surface mount (gull-wing) terminals. It is available
in standard plastic shipping tubes or on tape-and-
reel. Please refer to Part Identification information
opposite.
PVT322 Features
HEXFET Power MOSFET output
n
Bounce-free operation
n
4,000 V
RMS
I/O isolation
n
Linear AC/DC operation
n
Solid-State reliability
n
UL recognition pending
n
Applications
On/Off Hook switch
n
Tip and Ring Line switching
n
General switching
n
Part Identification
PVT322
PVT322S
PVT322S-T
thru-hole
SMT
SMT, T&R
(HEXFET is the registered trademark for International Rectifier Power MOSFETs)
Series PVT322
Electrical Specifications
(-40°C
≤
T
A
≤
+85°C unless otherwise specified)
INPUT CHARACTERISTICS
Minimum Control Current (See figure1)
Maximum Control Current for Off-State Resistance @TA=+25°C
Control Current Range (Caution: current limit input LED, see figure 5)
Maximum Reverse Voltage
Limits
2.0
0.4
2.0 to 25
7.0
Units
mA
mA
mA
V
OUTPUT CHARACTERISTICS
Operating Voltage Range
Maximum Load Current @ T
A
=+40°C
5mA Control (See figure 1) (single and dual channel operation)
Maximum Peak Load Current (10ms maximum duration)
(single and dual channel operation)
Maximum On-State Resistance @T
A
=+25°C
For 50mA Pulsed load, 5mA Control (see figure 3)
Maximum Off-State Leakage @T
A
=+25°C, ±250V (see figure 4)
Maximum Turn-On Time @T
A
=+25°C (see figure 6)
For 50mA, 100 V
DC
load, 5mA Control
Maximum Turn-Off Time @T
A
=+25°C (see figure 6)
For 50mA, 100 V
DC
load, 5mA Control
Maximum Output Capacitance @ 50V
DC
Limits
0 to ±250
170
500
10
1.0
3.0
0.5
50
Units
V
(DC or AC peak)
mA
mA
Ω
µA
ms
ms
pF
GENERAL CHARACTERISTICS
Minimum Dielectric Strength, Input-Output
Minimum Dielectric Strength, Pole-to-Pole
Minimum Insulation Resistance, Input-Output, @T
A
=+25°C, 50%RH, 100V
DC
Maximum Capacitance, Input-Output
Maximum Pin Soldering Temperature (10 seconds maximum)
Ambient Temperature Range:
Operating
Storage
Limits
4000
1000
10
12
1.0
+260
-40 to +85
-40 to +100
Units
V
RMS
V
DC
Ω
pF
°C
Connection Diagram
200
250
200
ILED = 5 mA
150
100
50
-3.0 -2 .5 -2.0 -1.5 -1.0 -0.5
0.5
-50
1.0
1.5
2.0
2.5
3.0
150
100
50
2 mA
-100
-150
0
0
20
40
60
80
100
-200
-250

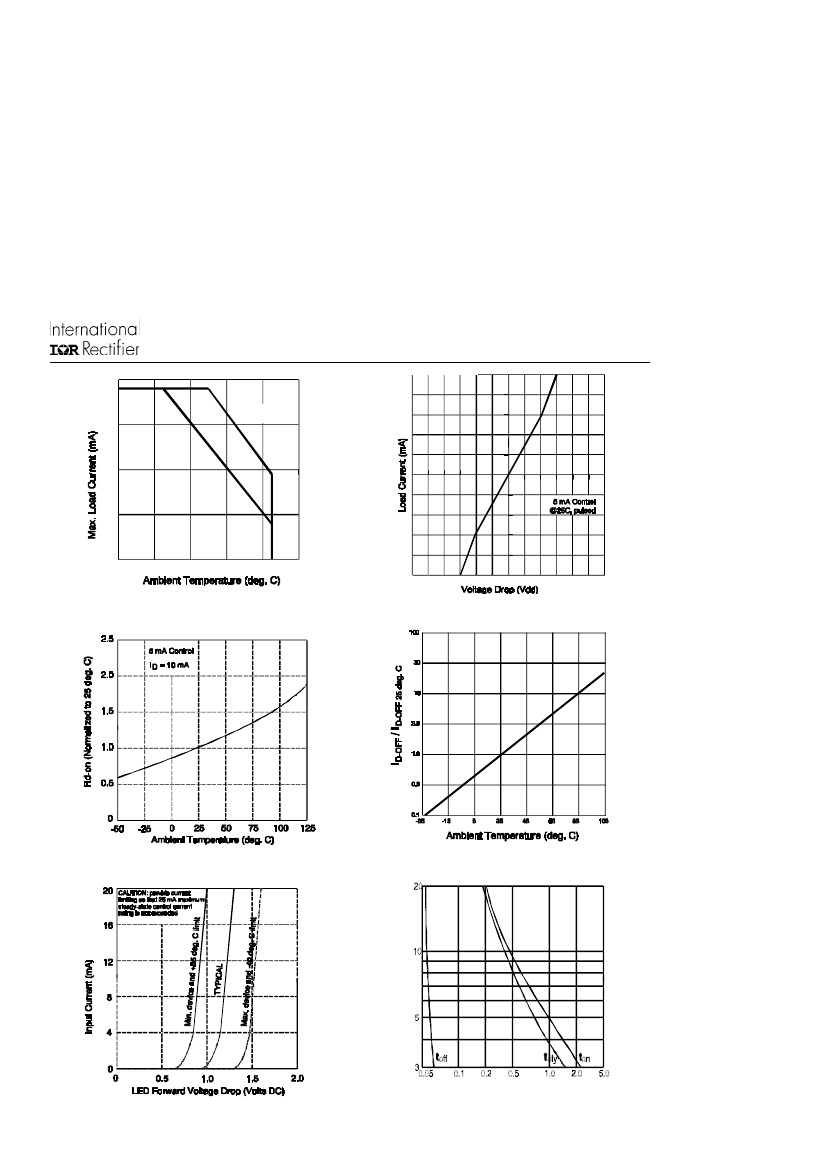

Figure 1. Typical Current Derating Curve
Figure 2. Linearity Characteristics
Figure 3. Typical Normalized On-Resistance
Figure 4. Typical Normalized Off-State Leakage
LED Current (mA)
Delay Time (milliseconds)
Figure 5. Input Characteristics (Current Controlled)
Figure 6. Typical Delay Times
Series PVT322

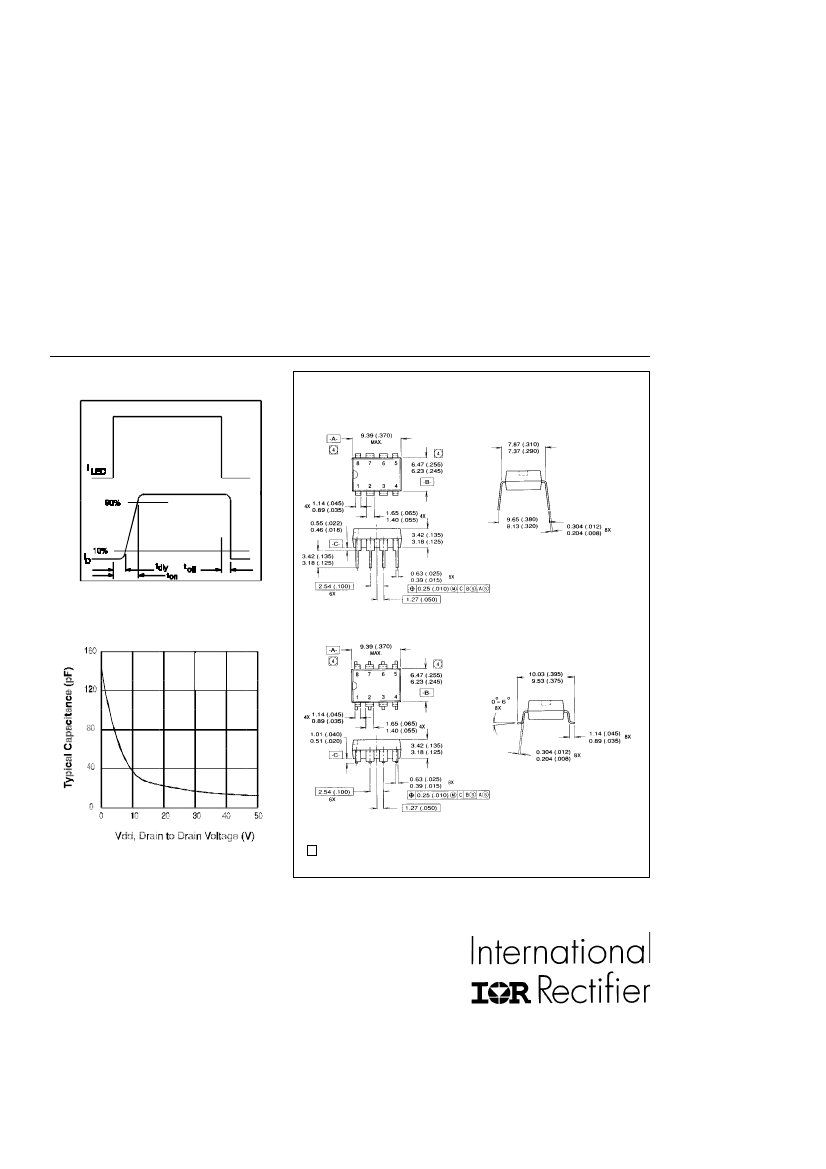

Mechanical Specifications
Dimensions in millimeters (inches)
Figure 7. Delay Time Definitions
Figure 8. Typical Output Capacitance
1. Dimensioning and tolerancing per ANSI Y14.5M-1982
2. Controlling dimension: INCH
Dimension does not include mold protrusions.
Mold protrusions shall not exceed 0.25 (.010).
WORLD HEADQUARTERS:
233 Kansas St., El Segundo, California 90245, Tel: (310) 322 3331
EUROPEAN HEADQUARTERS:
Hurst Green, Oxted, Surrey RH8 9BB, UK Tel: ++ 44 1883 732020
IR CANADA:
7321 Victoria Park Ave., Suite 201, Markham, Ontario L3R 2Z8, Tel: (905) 475 1897
IR GERMANY:
Saalburgstrasse 157, 61350 Bad Homburg Tel: ++ 49 6172 96590
IR ITALY:
Via Liguria 49, 10071 Borgaro, Torino Tel: ++ 39 11 451 0111
IR FAR EAST:
K&H Bldg., 2F, 3-30-4 Nishi-Ikeburo 3-Chome, Toshima-Ki, Tokyo Japan 171 Tel: 81 3 3983 0086
IR SOUTHEAST ASIA:
315 Outram Road, #10-02 Tan Boon Liat Building, Singapore 0316 Tel: 65 221 8371
http://www.irf.com/
Data and specifications subject to change without notice.
10/96
