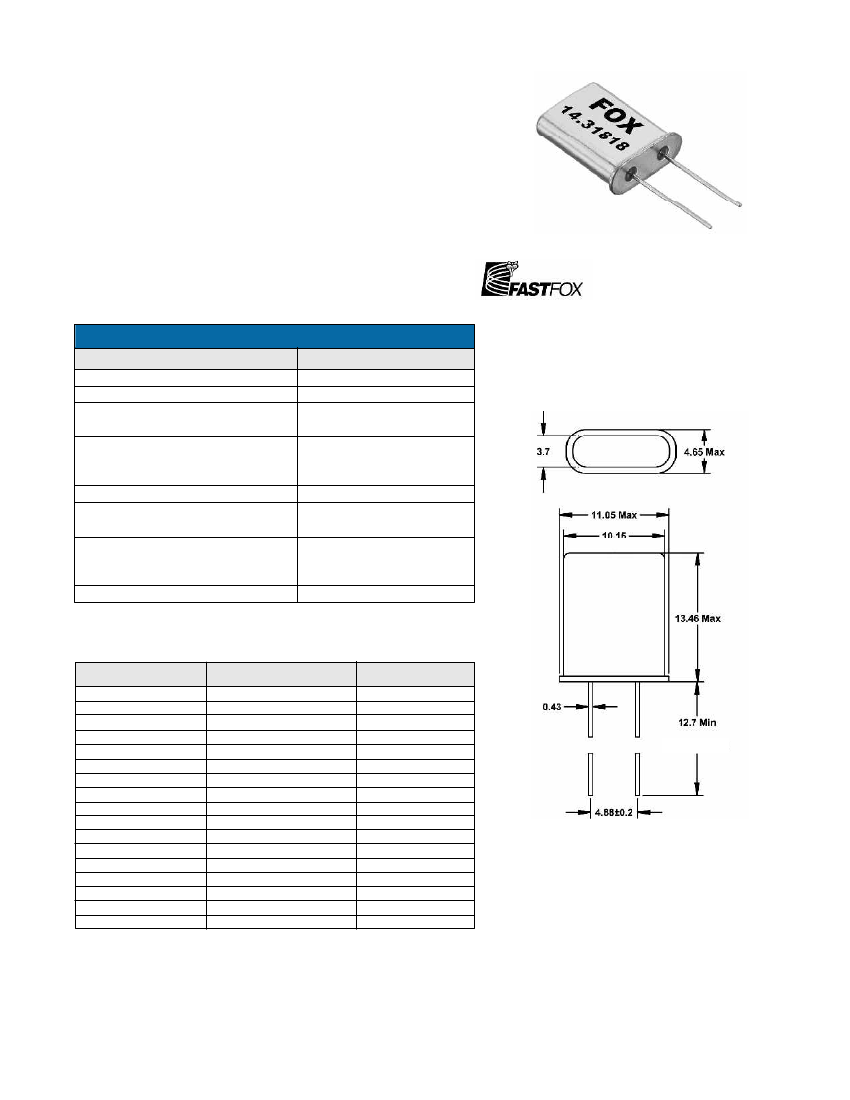

RESISTANCE WELD THRU-HOLE CRYSTAL
HC49U
FEATURES
•
•
•
•
•
Low Cost
Stocking Standard
High Frequency Range
Fundamental to 40 MHz
Resistance Weld
OPTIONS
•
•
•
•
•
•
•
Tolerances to < 5 PPM
Stabilities to < 3 PPM
Temperatures to -40ºC ~ -85ºC
Mylar Spacer
Vinyl Sleeve
Third Lead
SMD Gullwing (HC49UW)
DISCONTINUED
• STANDARD SPECIFICATIONS
1
PARAMETERS
Frequency Range
Frequency Tolerance @ 25ºC
Frequency Stability, ref @ 25ºC
Over Operating Temp Range
Temperature Range
Operating (T
OPR
)
Storage
(T
STG
)
Shunt Capacitance (Co)
Load Capacitance
(C
L
)
Drive Level
1.8432 ~ 3.000 MHz
3.000+ ~ 180.000 MHz
Aging per year
1
MAX
(unless otherwise noted)
1.8432 ~ 180.000 MHz
±30 PPM
±50 PPM
-20ºC ~ +70ºC
-40ºC ~ +85ºC
7.0 pF
10 pF ~ Series
(Customer Specified)
2.0 mW
1.0 mW
±5 PPM
Other tolerances, stabilities & operating temperature ranges available. Consult Fox Customer
Service for specific requirements.
All specifications subject to change without notice.
Rev.
02/10/03
Frequency Range
(MHz)
1.8432 ~ 2.000
2.000+ ~ 2.400
2.400+ ~ 3.000
3.000+ ~ 3.200
3.200+ ~ 3.700
3.700+ ~ 4.200
4.200+ ~ 4.900
4.900+ ~ 5.000
5.000+ ~ 6.000
6.000+ ~ 8.000
8.000+ ~ 10.000
10.000+ ~ 12.500
12.500+ ~ 16.000
16.000+ ~ 40.000
23.000+ ~ 75.000
60.000 ~ 110.000
110.000 ~ 180.000
Operating Mode
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
3rd OT
5th OT
7th OT
Max ESR
Ω
750
500
300
200
120
100
70
55
50
40
35
30
25
20
40
80
120
All dimensions are in millimeters.
FOXElectronics
5570 Enterprise Parkway Fort Myers, Florida 33905 USA +001(239)693-0099 FAX +001(239)693-1554
http://www.foxonline.com
© 2003 FOX ELECTRONICS
