Tantalum Surface Mount Capacitors – Automotive Grade
T495 Series Automotive Grade
Surge Robust Low ESR MnO
2
Overview
The low ESR, surge-robust T495 Automotive Series is
designed for demanding applications that require high surge
current and high ripple current capability. This series builds
upon the proven capabilities of our industrial grade tantalum
chip capacitors to offer several advantages such as low
ESR, high ripple current capability, excellent capacitance
stability, and improved resistance to high in-rush currents.
These benefits are achieved through a combination of
proprietary design, materials and process parameters as
well as high-stress, low impedance electrical conditioning
performed prior to screening. This series is classified as MSL
(Moisture Sensitivity Level) 1 under J STD 020: unlimited
floor life time at ≤30°C/85% RH
Benefits
• Comply with the automotive AEC–Q200 certification
• Meets or exceeds EIA standard 535BAAC
• Taped and reeled per EIA 481
• High surge current capability
• Optional gold-plated terminations
• High ripple current capability
• 100% surge current test on C, D, E, U, V, X sizes
• 100% steady-state accelerated aging
• Capacitance values of 0.1 μF to 680 μF
• Tolerances of ±10% and ±20%
• Voltage rating of 6.3 – 50 VDC
• Extended range values
• RoHS Compliant and lead-free terminations
• Operating temperature range of −55˚C to +125˚C

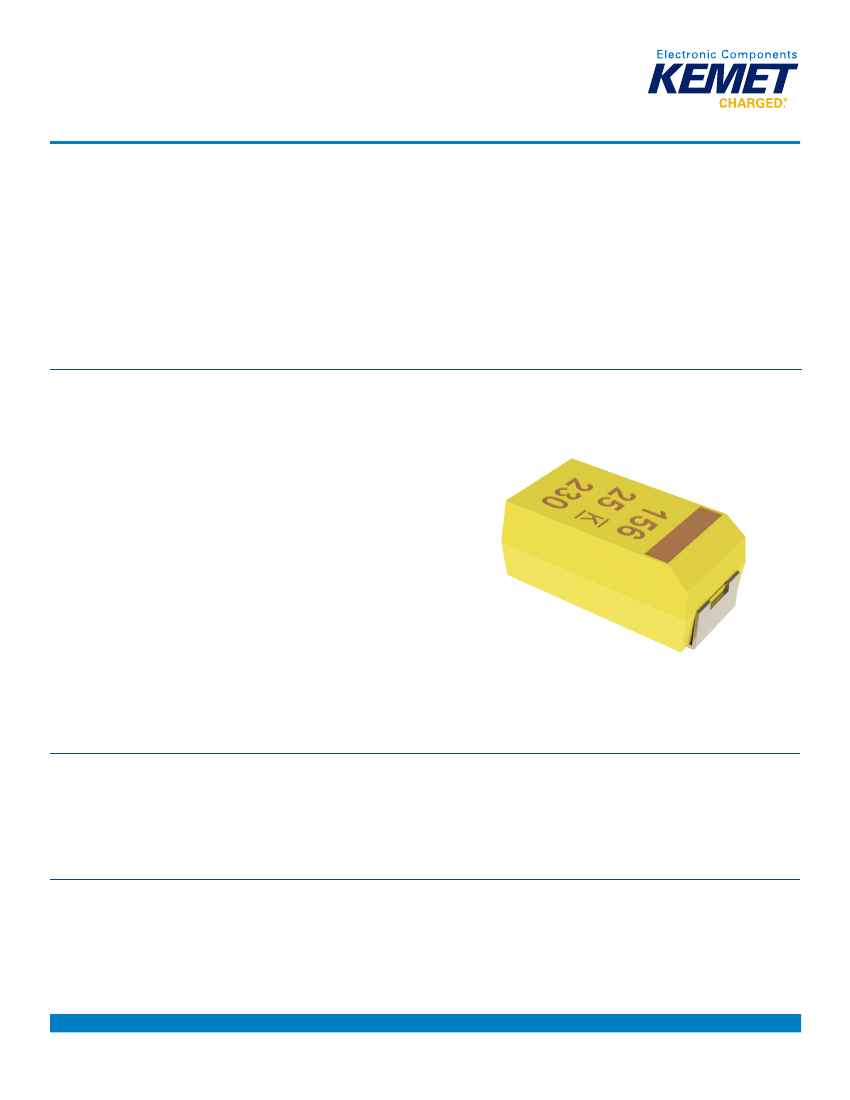

Click image above for interactive 3D content
Open PDF in Adobe Reader for full functionality
Applications
Typical applications include decoupling and filtering in automotive end applications, such as DC/DC converters, portable
electronics, telecommunications, and control units requiring high ripple current capability.
Environmental Compliance
RoHS Compliant (6/6) according to Directive 2002/95/EC when ordered with 100% Sn solder,
Gold plated or Non-magnetic 100% Sn solder.
One world. One KEMET
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
T2052_T495_AUTO • 5/1/2017
1
Tantalum Surface Mount Capacitors – Automotive Grade
T495 Series Automotive Grade Surge Robust Low ESR MnO
2
K-SIM
For a detailed analysis of specific part numbers, please visit ksim.kemet.com to access KEMET’s K-SIM software. KEMET
K-SIM is designed to simulate behavior of components with respect to frequency, ambient temperature, and DC bias levels.
Ordering Information
T
Capacitor
Class
T=
Tantalum
495
Series
Surge
Robust
Low
ESR
X
Case
Size
A
B
C
D
E
T
V
X
107
Capacitance
Code (pF)
First two
digits
represent
significant
figures. Third
digit specifies
number of
zeros.
M
010
A
Failure
Rate/
Design
A=
N/A
T
Termination Finish
T = 100% Matte Tin (Sn) plated
H = Standard solder coated (SnPb
5% Pb minimum)
G = Gold plated (A, B, C, D, X only)
N = Non-magnetic 100% Tin (Sn)
M = Non-magnetic (SnPb)
A080
ESR
Packaging
(C-Spec)
Capacitance Rated
Voltage
Tolerance
(VDC)
K = ±10%
M = ±20%
2R5 = 2.5
004 = 4
006 = 6.3
010 = 10
016 = 16
020 = 20
025 = 25
035 = 35
050 = 50
A = AUTO grade
Blank = 7"
product
Reel
080 = Maximum
7280 = 13"
ESR in mΩ at room
Reel
temperature
(80 mΩ)
Performance Characteristics
Item
Operating Temperature
Rated Capacitance Range
Capacitance Tolerance
Rated Voltage Range
DF (120 Hz)
ESR (100 kHz)
Leakage Current
−55°C to 125°C
0.47 – 680 µF at 120 Hz/25°C
K Tolerance (10%), M Tolerance (20%)
6.3 – 50 V
Refer to Part Number Electrical Specification Table
Refer to Part Number Electrical Specification Table
≤ 0.01 CV (µA) at rated voltage after 5 minutes
Performance Characteristics
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
T2052_T495_AUTO • 5/1/2017
2
Tantalum Surface Mount Capacitors – Automotive Grade
T495 Series Automotive Grade Surge Robust Low ESR MnO
2
Qualification
Test
Endurance
Condition
Δ C/C
85°C at rated voltage, 2,000 hours
125°C at 2/3 rated voltage, 2,000 hours
DF
DCL
ESR
Δ C/C
DF
DCL
ESR
Δ C/C
MIL–STD–202, Method 107, Condition B, mounted,
−55°C to 125° C, 1000 cycles
DF
DCL
ESR
+25°C
Extreme temperature exposure at a
succession of continuous steps at +25ºC,
−55ºC, +25ºC, +85ºC, +125ºC, +25ºC.
Δ C/C
DF
DCL
85°C, 1.32 x rated voltage 1,000 cycles
(125°C, 1.2 x rated voltage).
IL*
IL
IL
Δ C/C
DF
DCL
ESR
Δ C/C
DF
DCL
Characteristics
Within ±10% of initial value
Within initial limits
Within 1.25 x initial limit
Within initial limits
Within ±10% of initial value
Within initial limits
Within 1.25 x initial limit
Within initial limits
Within ±5% of initial value
Within initial limits
Within 1.25 x initial limit
Within initial limits
−55°C
±10%
IL
N/A
+85°C
±10%
1.5 x IL
10 x IL
+125°C
±20%
1.5 x IL
12 x IL
Storage Life
125°C at 0 volts, 2,000 hours
Thermal Shock
Temperature Stability
Within ±5% of initial value
Within initial limits
Within initial limits
Within initial limits
Within ±10% of initial value
Within initial limits
Within initial limits
Surge Voltage
Mechanical Shock/
Vibration
*IL = Initial limit
MIL–STD–202, Method 213, Condition I, 100 G peak
MIL–STD–202, Method 204, Condition D, 10 Hz to
2,000 Hz, 20 G peak
Certification
KEMET’s Internal Qualification Plan for this Tantalum series of capacitors follows AEC–Q200 guidelines. Standard catalog
part types ordered without a specific automotive designator, i.e., suffix AUTO or four digit customer specific designator (C
Spec), are not considered KEMET Automotive Grade tantalum capacitors.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
T2052_T495_AUTO • 5/1/2017
3
Tantalum Surface Mount Capacitors – Automotive Grade
T495 Series Automotive Grade Surge Robust Low ESR MnO
2
Electrical Characteristics
ESR vs. Frequency
100
T495C476M016ATE350_IMP
Capacitance vs. Frequency
1,000
T495C476M016ATE350
T495D157M016ATE085
T495X227M016ATE100
Impedance, ESR (Ohms)
10
T495D157M016ATE085_IMP
T495X227M016ATE100_IMP
T495D157M016ATE085_ESR
T495X227M016ATE100_ESR
1
Capacitance (μF)
1,000,000
10,000,000
T495C476M016ATE350_ESR
100
10
0.1
0.01
100
1,000
10,000
Frequency (Hz)
100,000
1
100
1,000
10,000
Frequency (Hz)
100,000
1,000,000
10,000,000
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
T2052_T495_AUTO • 5/1/2017
4
Tantalum Surface Mount Capacitors – Automotive Grade
T495 Series Automotive Grade Surge Robust Low ESR MnO
2
Dimensions – Millimeters (Inches)
Metric will govern
CATHODE (-) END VIEW
W
H
X
T
S
G
S
Termination cutout
at KEMET's option,
either end
SIDE VIEW
B
B
ANODE (+) END VIEW
BOTTOM VIEW
A
Glue pad
shape/design at
KEMET's option
E
P
R
F
L
Case Size
KEMET
A
B
M
C
U
D
W
X
E
T
V
EIA
L
W
H
F ±0.1
±(0.004)
S
Component
B ±0.15
(Ref)
±0.006
0.4
(0.016)
0.4
(0.016)
N/A
0.5
(0.020)
N/A
0.5
(0.020)
N/A
0.5
(0.020)
0.5
(0.020)
N/A
N/A
Total
Weight
X (Ref)
P
R
T
A
G
E
(Ref) (Ref) (Ref) (Min) (Ref) (Ref)
(mg)
58.60
107.45
97.99
224.48
70.00
446.84
248.27
652.04
803.76
63.89
286.40
3.2±0.2
1.6±0.2
1.6±0.2
1.2
0.80 (0.032) +0.2
3216–18
(0.126±0.008) (0.063±0.008) (0.063±0.008) (0.047) (0.008)/−0.3(0.011)
3.5±0.2
2.8±0.2
1.9±0.2
2.2
0.80 (0.032) +0.1
3528–21
(0.138±0.008) (0.110±0.008) (0.075±0.008) (0.087) (0.004)/−0.3(0.011)
3.5±0.2
2.8±0.2
3528-15
(0.138±0.008) (0.110±0.008)
1.5
(0.059)
2.2
(0.087)
0.8 (0.031)
±0.3 (0.012)
1.3 (0.051)
±0.3 (0.012)
1.3 (0.051)
±0.3 (0.012)
1.3 (0.051)
±0.3 (0.012)
1.3 (0.051)
±0.3 (0.012)
1.3 (0.051)
±0.3 (0.012)
1.3 (0.051)
±0.3 (0.012)
0.10±0.10
0.4
0.4
0.13
1.2
1.1
1.3
(0.004±0.004) (0.016) (0.016) (0.005) (0.047) (0.043) (0.051)
0.10±0.10
0.5
1.0
0.13
1.9
(0.004±0.004) (0.020) (0.039) (0.005) (0.075)
1.9
0.05
0.13
N/A
N/A
(0.005)
(0.002)
(0.075)
0.10±0.10
0.9
1.0
0.13
2.9
(0.004±0.004) (0.035) (0.039) (0.005) (0.114)
2.9
0.05
0.13
N/A
N/A
(0.005)
(0.002)
(0.114)
0.10±0.10
0.9
1.0
0.13
3.6
(0.004±0.004) (0.035) (0.039) (0.005) (0.142)
0.05
(0.002)
N/A
N/A
1.8
2.2
(0.071) (0.087)
1.8
2.2
(0.071) (0.087)
2.8
2.4
(0.110) (0.094)
2.8
2.4
(0.110) (0.094)
3.5
3.5
(0.138) (0.138)
6.0±0.3
3.2±0.3
2.5±0.3
2.2
6032–28
(0.236±0.012) (0.126±0.012) (0.098±0.012) (0.087)
6.0±0.3
3.2±0.2
6032-15
(0.236±0.012) (0.110±0.008)
1.5
(0.059)
2.2
(0.087)
7.3±0.3
4.3±0.3
2.8±0.3
2.4
7343–31
(0.287±0.012) (0.169±0.012) (0.110±0.012) (0.094)
7.3±0.3
4.3±0.3
7343-15
(0.287±0.012) (0.169±0.012)
1.5
(0.059)
2.4
(0.094)
0.13
3.6
3.5
3.5
(0.005) (0.142) (0.138) (0.138)
7.3±0.3
4.3±0.3
4.0±0.3
2.4
7343-43
(0.287±0.012) (0.169±0.012) (0.157±0.012) (0.094)
7.3±0.3
6.0±0.3
3.6±0.2
7360-38
(0.287±0.012) (0.236±0.012) (0.142±0.008)
3.5±0.2
2.8±0.2
3528-12
(0.138±0.008) (0.110±0.008)
7.3±0.3
4.3±0.3
7343-20
(0.287±0.012) (0.169±0.012)
1.2
(0.047)
2.0
(0.079)
4.1
(0.161)
0.10±0.10
1.7
1.0
0.13
3.6
3.5
3.5
(0.004±0.004) (0.067) (0.039) (0.005) (0.142) (0.138) (0.138)
0.10±0.10
(0.004±0.004)
N/A
0.05
(0.002)
0.05
(0.002)
N/A
N/A
N/A
N/A
N/A
0.13
3.6
3.5
3.5
(0.005) (0.142) (0.138) (0.138)
0.13
1.9
1.8
2.2
(0.005) (0.075) (0.071) (0.087)
3.6
0.13
3.5
3.5
(0.005) (0.142) (0.138) (0.138)
2.2
0.80 (0.032) +0.1
(0.087) (0.004)/−0.3(0.011)
1.3 (0.051)
2.4
(0.094)
±0.3 (0.012)
Notes: (Ref) – Dimensions provided for reference only. For low profile cases, no dimensions are provided for B, P or R because these cases do not have a
bevel or a notch.
These weights are provided as reference. If exact weights are needed, please contact your KEMET Sales Representative.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
T2052_T495_AUTO • 5/1/2017
5
Programming Basics
