FMW4-65

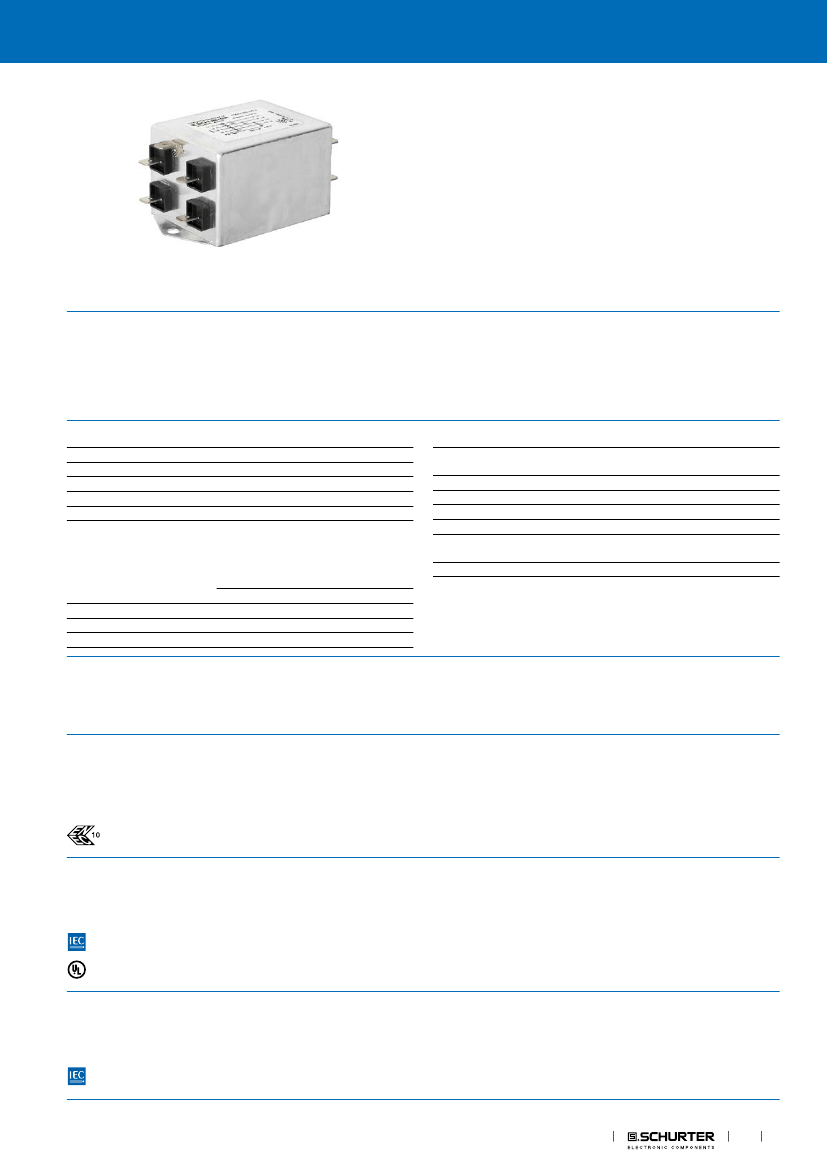

Compact 1-stage filter for 3-phase systems with neutral conductor
Approvals and Compliances
Description
- Quick-connect terminals 6.3 x 0.8 for three phases, neutral conductor
and ground
Applications
- Especially designed for industrial applications such as: Frequency Con-
verters, Stepper Motor Drives, UPS-Systems, Inverters
- Suitable for use in equipment according to IEC/UL 60950
Weblinks
pdf datasheet, html-datasheet, General Product Information, Distributor-
Stock-Check, Detailed request for product, Microsite
Technical Data
Rated Current
Rated voltage
Approval for
Overload Current
Leakage Current
Dielectric Strength
3 - 20 A @ Ta 40 °C
275/480 VAC, 50/60 Hz
3 - 20 A / 250/440 VAC; 50 Hz
1.5 x Ir
industrial < 3 mA (440 V / 50 Hz)
2.25 kVDC between L-L
1.7 kVDC between L-N
3 kVDC between L-PE
2.7 kVDC between N-PE
Test voltage (2 sec)
1-stage
0.2 - 0.35 kg
Metal
UL 94V-0
Mounting
Terminal
Operating Temperature
Climatic Category
Degree of Protection
Protection Class
MTBF
Screw-on mounting on chassis, from
top
Quick connect terminals 6.3 x 0.8 mm
-25 °C to 100 °C
25/100/21 acc. to IEC 60068-1
IP 20 acc. to IEC 60529
Suitable for appliances with protection
class I acc. to IEC 61140
> 200'000 h acc. to MIL-HB-217 F
Number of Filter Stages
Weight
Material: Housing
Sealing Compound
Approvals and Compliances
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about
Approvals
Approvals
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: FMW4
Approval Logo
Certificates
VDE Approvals
Certification Body
VDE
Description
Certificate Number: 40004673
Product standards
Product standards that are referenced
Organization
Design
Designed according to
Designed according to
Standard
IEC 60939
UL 1283
Description
Passive filters for suppressing electromagnetic interference
Electromagnetic interference filters
Application standards
Application standards where the product can be used
Organization
Design
Designed for applications acc.
Standard
IEC/UL 60950
Description
IEC 60950-1 includes the basic requirements for the safety of information
technologyequipment.
EMC Products
1
FMW4-65
Compliances
The product complies with following Guide Lines
Identification
Details
CE declaration of conformity
Initiator
SCHURTER AG
Description
3-Phase AC Filters / DC Filters
https://www.schurter.com /PG80
The CE marking declares that the product complies with the applicable
requirements laid down in the harmonisation of Community legislation on
its affixing in accordance with EU Regulation 765/2008.
EU Directive RoHS 2011/65/EU
The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March
2007. It is similar to the EU directive RoHS.
On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,
Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as
"REACH") entered into force.
RoHS
China RoHS
REACH
SCHURTER AG
SCHURTER AG
SCHURTER AG

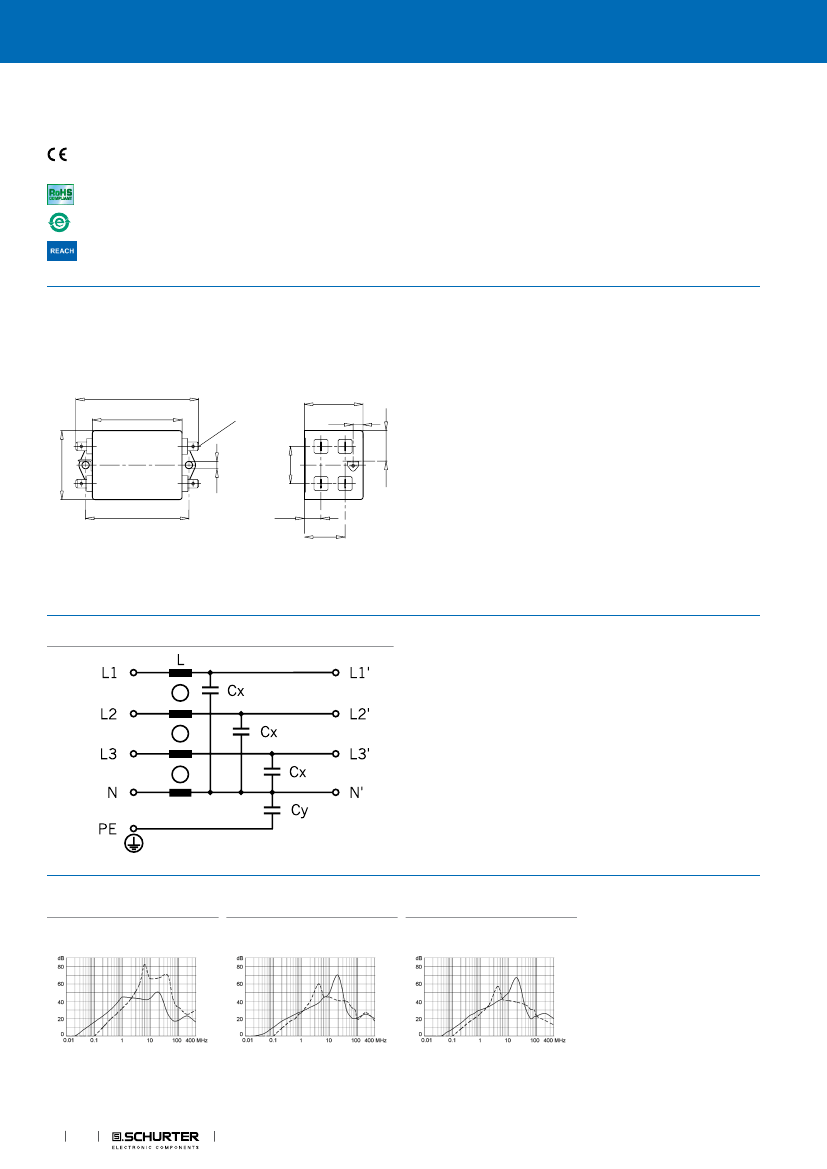

Dimension [mm]
Case 47
91 max.
66 max.
51 max.
6.3x0.8
(27)
2)
5.3
43 max.
(7)
(22)
(29.5)
1)
75
±0.3
(12)
1) Line
2) Load
Diagrams
1)
1) Line
Attenuation Loss
Standard version
- - - - 50Ω differential mode _____ 50Ω common mode
3A (FMW-65-0001)
6A (FMW-65-0002)
10A (FMW-65-0003)
2
EMC Products
3-Phase AC Filters / DC Filters
https://www.schurter.com /PG80
FMW4-65
Industrial version
10A (FMW-65-0004)
20A (FMW-65-0005)
All Variants
Rated Current [A]
3
6
10
10
20
█
Most Popular.
Availability for all products can be searched real-time:https://www.schurter.com/en/Stock-Check/Stock-Check-SCHURTER
1) Nominal leakage current acc. to IEC60950 - 5.2.5. under normal operating conditions. Note: worst case leakage current acc. to IEC60950 - Annex
G4 (situation with two interrupted lines) can be much higher.
Rated Voltage [VAC]
275/480
275/480
275/480
275/480
275/480
Leakage Cur-
rent [mA] @ 440V,
0.5
0.5
0.5
3
3
L [mH]
1
0.5
0.4
0.4
0.15
Cx [µF]
0.1
0.1
0.1
0.1
0.1
Cy
[nF]
4.7
4.7
4.7
22
22
Weight
[kg]
0.2 kg
0.2 kg
0.23 kg
0.35 kg
0.25 kg
Housings
47
47
47
47
47
Order Number
FMW-65-0001
FMW-65-0002
FMW-65-0003
FMW-65-0004
FMW-65-0005
█
Packaging unit
10 Pcs
The specifications, descriptions and illustrations indicated in this document are based on current
information. All content is subject to modifications and amendments. Information furnished is believed
to be accurate and reliable. However, users should independently evaluate the suitability and test each
product selected for their own applications.
EMC Products
3
30.11.2017
