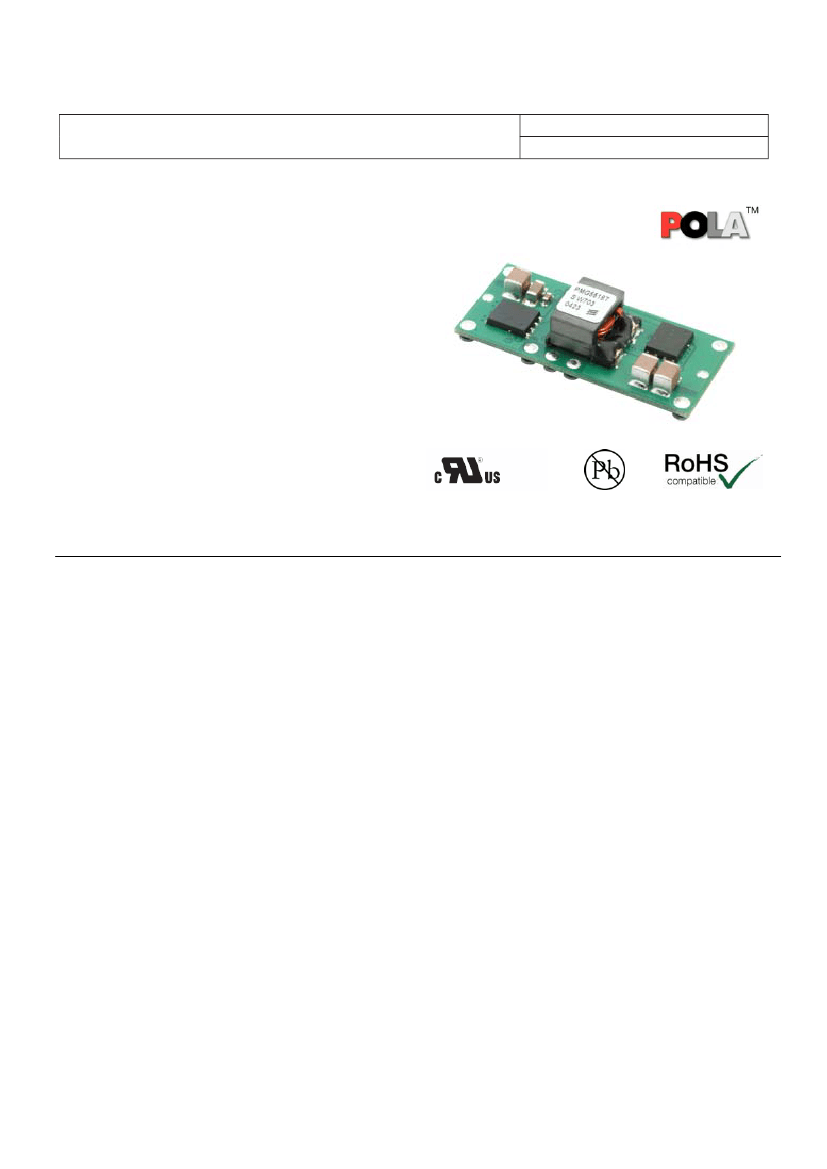

Key Features
•
•
•
•
•
•
•
•
POL regulator,
Input
10.8-13.2
V, Output
12
A/66 W
12A output current
10.8-13.2V input voltage range
Output voltages from 0.8V up to 5.5V
Industry standard POLA™ compatible
34.8 x 15.75 x 9.00 mm (1.37 x 0.62 x 0.354 in.)
High efficiency, up to. 95%
Auto Track™ sequencing pin
More than 4.2 million hours MTBF
B
© Ericsson Power Modules AB
General Characteristics
•
•
•
•
•
•
•
•
•
Operating temperature: -40ºC to 85ºC
Input under voltage protection
Start up into a pre-biased output safe
Output short-circuit protection
On/Off inhibit control
Margin up/down control
Wide output voltage adjust function
Highly automated manufacturing ensures quality
ISO 9001/14001 certified supplier
Safety Approvals
Design for Environment
Meets requirements in high-
temperature lead-free soldering
processes.
Contents
General Information
Safety Specification
Absolute Maximum Ratings
Product Program
0.8-1.8 V/12 A
0.8 V/12 A Electrical Specification
1.0 V/12 A Electrical Specification
1.2 V/12 A Electrical Specification
1.5 V/12 A Electrical Specification
1.8 V/12 A Electrical Specification
1.2-5.5 V/12 A
1.2 V/12 A Electrical Specification
1.5 V/12 A Electrical Specification
1.8 V/12 A Electrical Specification
2.5 V/12 A Electrical Specification
3.3 V/12 A Electrical Specification
5.0 V/12 A Electrical Specification
EMC Specification
Operating Information
Thermal Consideration
Connections
Mechanical Information
Soldering Information
Delivery Information
Product Qualification Specification
............................................................. 2
............................................................. 3
............................................................. 4
Ordering No.
PMG 8218T ...........................................
............................................................. 5
............................................................. 8
........................................................... 11
........................................................... 14
........................................................... 17
PMG 8618L ...........................................
........................................................... 20
........................................................... 23
........................................................... 26
........................................................... 29
........................................................... 32
........................................................... 35
........................................................... 38
........................................................... 38
........................................................... 40
........................................................... 41
........................................................... 42
........................................................... 44
........................................................... 46
........................................................... 47
E
Approved
Ericsson Internal
PRODUCT SPECIFICATION
No.
Checked
Date
2 (3)
Prepared (also subject responsible if other)
Henrik Sundh (MPM/BY/P)
1/1301 BMR 644
Technical Specification
5 Uen
2006-4-10
EN/LZT 146
321
R1B
April
2006
Rev
Reference
2
PMG
8000
series
MPM/BY/M [Krister Lundberg]
POL regulator,
Input
10.8-13.2
V, Output
12
A/66 W
General Information
Ordering Information
See Contents for individual product ordering numbers.
Option
Through hole pin
SMD pin
SMD pin, leadfree reflow
temperature capable
Suffix
P
S
R
PMG8618LP
PMG8618LS
PMG8618LSR
B
© Ericsson Power Modules AB
Compatibility with RoHS requirements)
The products are compatible with the relevant clauses and
requirements of the RoHS directive 2002/95/EC and have a
maximum concentration value of 0.1% by weight in
homogeneous materials for lead in other applications other
than lead in solder, lead in high melting temperature type
solder, lead in glass of electronics components, lead in
electronic ceramic parts and lead as an alloying element in
copper containing up to 4% lead by weight, mercury,
hexavalent chromium, PBB and PBDE and of 0.01% by
weight in homogeneous materials for cadmium.
Exemptions in the RoHS directive utilized in the products:
-
Lead as an alloying element in copper alloy containing
up to 4% lead by weight (used in connection pins
made of Brass)
-
Lead in high melting temperature type solder (used to
solder the die in semiconductor packages)
-
Lead in glass of electronics components and in
electronic ceramic parts (e.g. fill material in chip
resistors)
-
Lead in solder for servers, storage and storage array
systems, network infrastructure equipment for
switching, signalling, transmission as well as network
management for telecommunication
(Note: the products are manufactured in lead-free
soldering processes and the lead present is only
located in the terminal plating finishes on some
components)
Quality Statement
The products are designed and manufactured in an
industrial environment where quality systems and methods
like ISO 9000, 6σ (sigma), and SPC are intensively in use to
boost the continuous improvements strategy. Infant
mortality or early failures in the products are screened out
and they are subjected to an ATE-based final test.
Conservative design rules, design reviews and product
qualifications, plus the high competence of an engaged
work force, contribute to the high quality of our products.
Warranty
Warranty period and conditions are defined in Ericsson
Power Modules General Terms and Conditions of Sale.
Limitation of Liability
Ericsson power Modules does not make any other
warranties, expressed or implied including any warranty of
merchantability or fitness for a particular purpose
(including, but not limited to, use in life support
applications, where malfunctions of product can cause
injury to a person’s health or life).
Reliability
The Mean Time Between Failure (MTBF) is calculated at full
output power and an operating ambient temperature (T
A
) of
+40°C. Different methods could be used to calculate the
predicted MTBF and failure rate which may give different
results. Ericsson Power Modules currently uses Telcordia
SR332.
Predicted MTBF for the series is:
-
4.26 million hours according to Telcordia SR332, issue
1, Black box technique.
Telcordia SR332 is a commonly used standard method
intended for reliability calculations in IT&T equipment. The
parts count procedure used in this method was originally
modelled on the methods from
MIL-HDBK-217F, Reliability Predictions of Electronic
Equipment.
It assumes that no reliability data is available on the actual
units and devices for which the predictions are to be made,
i.e. all predictions are based on generic reliability
parameters.
E
Approved
Ericsson Internal
PRODUCT SPECIFICATION
No.
Checked
Date
3 (3)
Prepared (also subject responsible if other)
Henrik Sundh (MPM/BY/P)
1/1301 BMR 644
Technical Specification
5 Uen
2006-4-10
EN/LZT 146
321
R1B
April
2006
Rev
Reference
3
PMG
8000
series
MPM/BY/M [Krister Lundberg]
Safety Specification
POL regulator,
Input
10.8-13.2
V, Output
12
A/66 W
B
© Ericsson Power Modules AB
General information
Ericsson Power Modules DC/DC converters and DC/DC
regulators are designed in accordance with safety
standards IEC/EN/UL60950,
Safety of Information
Technology Equipment.
IEC/EN/UL60950 contains requirements to prevent injury
or damage due to the following hazards:
•
•
•
•
•
•
Electrical shock
Energy hazards
Fire
Mechanical and heat hazards
Radiation hazards
Chemical hazards
Isolated DC/DC converters
It is recommended that a slow blow fuse with a rating
twice the maximum input current per selected product be
used at the input of each DC/DC converter. If an input filter
is used in the circuit the fuse should be placed in front of
the input filter.
In the rare event of a component problem in the input filter
or in the DC/DC converter that imposes a short circuit on
the input source, this fuse will provide the following
functions:
•
•
Isolate the faulty DC/DC converter from the input
power source so as not to affect the operation of
other parts of the system.
Protect the distribution wiring from excessive
current and power loss thus preventing
hazardous overheating.
On-board DC-DC converters are defined as component
power supplies. As components they cannot fully comply
with the provisions of any Safety requirements without
“Conditions of Acceptability”. It is the responsibility of the
installer to ensure that the final product housing these
components complies with the requirements of all
applicable Safety standards and Directives for the final
product.
Component power supplies for general use should comply
with the requirements in IEC60950, EN60950 and
UL60950
“Safety of information technology equipment”.
There are other more product related standards, e.g.
IEEE802.3af “Ethernet LAN/MAN Data terminal equipment
power”, and ETS300132-2 “Power supply interface at the
input to telecommunications equipment; part 2: DC”, but
all of these standards are based on IEC/EN/UL60950 with
regards to safety.
Ericsson Power Modules DC/DC converters and DC/DC
regulators are UL60950 recognized and certified in
accordance with EN60950.
The flammability rating for all construction parts of the
products meets requirements for V-0 class material
according to IEC 60695-11-10.
The products should be installed in the end-use
equipment, in accordance with the requirements of the
ultimate application. Normally the output of the DC/DC
converter is considered as SELV (Safety Extra Low
Voltage) and the input source must be isolated by
minimum Double or Reinforced Insulation from the primary
circuit (AC mains) in accordance with IEC/EN/UL60950.
The galvanic isolation is verified in an electric strength test.
The test voltage (V
iso
) between input and output is
1500 Vdc or 2250 Vdc for 60 seconds (refer to product
specification).
Leakage current is less than 1
μA
at nominal input voltage.
24 V DC systems
The input voltage to the DC/DC converter is SELV (Safety
Extra Low Voltage) and the output remains SELV under
normal and abnormal operating conditions.
48 and 60 V DC systems
If the input voltage to Ericsson Power Modules DC/DC
converter is 75 Vdc or less, then the output remains SELV
(Safety Extra Low Voltage) under normal and abnormal
operating conditions.
Single fault testing in the input power supply circuit should
be performed with the DC/DC converter connected to
demonstrate that the input voltage does not exceed
75 Vdc.
If the input power source circuit is a DC power system, the
source may be treated as a TNV2 circuit and testing has
demonstrated compliance with SELV limits and isolation
requirements equivalent to Basic Insulation in accordance
with IEC/EN/UL60950.
Non-isolated DC/DC regulators
The input voltage to the DC/DC regulator is SELV (Safety
Extra Low Voltage) and the output remains SELV under
normal and abnormal operating conditions.
E
SEC/D KEVIN YAN
Approved
Limited Internal
PRODUCT SPEC.
No.
Checked
Date
1 (37)
Reference
Prepared (also subject responsible if other)
2/1301-BMR 644
Technical Specification
8 Uen
EN/LZT 146
321
R1B
April
2006
Rev
4
PMG
Wei Zhang A
SEC/D
8000
series
POL regulator,
Input
10.8-13.2
V, Output
12
A/66 W
2006-2-7
A
© Ericsson Power Modules AB
Absolute Maximum Ratings
Characteristics
T
ref
T
S
V
I
V
inh
V
adj
Operating Temperature (see Thermal Consideration section)
Storage temperature
Input voltage
Inhibit On/Off pin voltage
(see Operating Information section)
Adjust pin voltage (see Operating Information section)
Positive logic option
Negative logic option
min
–40
–40
10.8
V
in
-0.5
N/A
N/A
typ
max
85
125
Unit
°C
°C
V
V
V
V
12.0
13.2
Open
N/A
N/A
Stress in excess of Absolute Maximum Ratings may cause permanent damage. Absolute Maximum Ratings, sometimes referred to as no destruction limits, are
normally tested with one parameter at a time exceeding the limits of Output data or Electrical Characteristics. If exposed to stress above these limits, function and
performance may degrade in an unspecified manner.
Fundamental Circuit Diagram
VIN
3
2
1
2
VOUT
1
VSEN
3
1
2
GND
Auto Track
TRK
ADJ
PWM Controller
Error Amplifier
Ref
INH
RC Block
GND
GND
GND
MARDN
MARUP
E
SEC/D KEVIN YAN
Approved
Limited Internal
PRODUCT SPEC.
No.
Checked
Date
2 (37)
Reference
Prepared (also subject responsible if other)
2/1301-BMR 644
Technical Specification
8 Uen
EN/LZT 146
321
R1B
April
2006
Rev
5
PMG
Wei Zhang A
SEC/D
8000
series
POL regulator,
Input
10.8-13.2
V, Output
12
A/66 W
2006-2-7
A
© Ericsson Power Modules AB
0.8 V/12 A Electrical Specification
T
ref
= -40 to +85ºC, V
I
= 10.8 to 13.2 V, R
adj
= open, unless otherwise specified under Conditions.
Typical values given at: T
ref
= +25°C, V
I
= 12.0 V, max I
O
, unless otherwise specified under Conditions.
Additional C
in
=560uF and C
out
=330uF. See Operating Information section for selection of capacitor types.
Connect the sense pin, where available, to the output pin.
Characteristics
Conditions
min
typ
max
V
I
V
Ioff
V
Ion
C
I
P
O
η
P
d
P
li
P
RC
I
S
f
s
Input voltage range
Turn-off input voltage
Turn-on input voltage
Internal input capacitance
Output power
Efficiency
Power Dissipation
Input idling power
Input standby power
Static Input current
Switching frequency
50 % of max I
O
max I
O
max I
O
I
O
= 0, V
I
= 12.0 V
V
I
= 12.0 V (turned off with INHIBIT)
V
I
= 12.0 V, max I
O
0-100% of max I
O
200
0
81.3
77.1
2.8
300
120
1.0
250
300
3.3
Decreasing input voltage
Increasing input voltage
10.8
8.8
9.0
9.5
35
9.6
10.4
13.2
PMG 8218T
Unit
V
V
V
µ
F
W
%
W
mW
mW
A
kHz
V
Oi
Output voltage initial setting and
T
ref
= +25°C, V
I
= 12.0 V, max I
O
accuracy
Output voltage tolerance band
10-100% of max I
O
I
O
= 0
max I
O
V
I
= 12.0 V, 0-100% of max I
O
V
I
= 12.0 V, Load step 50-100-50 %
of max I
O
, di/dt = 1 A/
µ
s,
see Note 1
max I
O
0.784
0.776
0.800
0.816
0.824
V
V
V
mV
mV
mV
µ
s
V
O
Idling voltage
Line regulation
Load regulation
Load transient
voltage deviation
Load transient recovery time
Ramp-up time
(from 10−90 % of V
Oi
)
0.797
±10
±12
±90
20
1.1
13.9
V
tr
t
tr
t
r
t
s
t
f
ms
ms
µ
s
µ
s
Start-up time
(from V
I
connection to 90% of V
Oi
)
Vin shutdown fall time.
(From V
I
off to 10% of V
O
)
INHIBIT start-up time
Max I
o
I
o
= 1A
Max I
o
Max I
o
I
o
= 0.1 A
0
T
ref
< max T
ref,
See ripple & noise section,
max I
O
, V
Oi
40
310
11.8
920
2.6
12
20
V
O
≤1.0;
25
V
O
>1.0;
1
ms
µ
s
t
Inh
I
O
I
lim
V
Oac
INHIBIT shutdown fall time
(From INHIBIT off to 10% of V
O
)
Output current
Current limit threshold
Output ripple & noise
ms
A
A
mVp-p
% V
O
Note 1: Output filter according to Ripple & Noise section
PCB Design
京公网安备 11010802033920号
EEWORLD
