Ultra high-attenuation type(2-Stage filter)(Single Phase)
Difference from old single phase 250V noise filters:
(1) Can select leakage current
(2) Withstand voltage 4,000VAC(Line to ground capacitor code -000 to -471)
(3) Push-down style terminal block prevents screw drop-out and cover loss
Can be used for many purposes.
Product Lineup
| NBH |
CATALOG DATA DOWN LOAD
Specifications, circuit diagram and derating curve
Characteristic data • Instruction manual • About noise filters
Technical Data

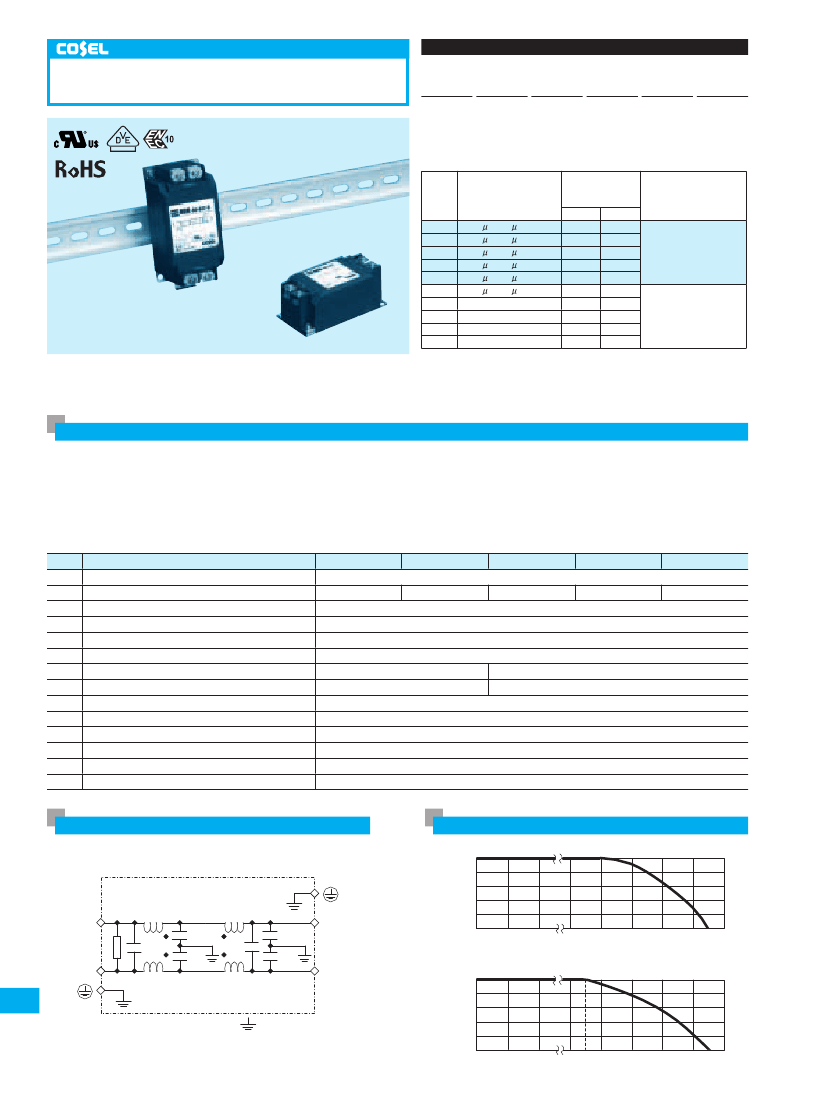

NBH Series : Ultra high-attenuation type of common mode noise from 10KHz to 10MHz(2-
Stage filter)(Single Phase)
• Features
• Ultra high-attenuation type of common mode noise from 10kHz to 10MHz
• Single Phase 250 VAC
• Selectable leakage current
• Withstand voltage 4,000VAC(Line to ground capacitor code -000 to -471)
• Quick and easy push-down terminal
Just connect the wires, push down and tighten the screws with a screwdriver
• DIN rail installation type(Option)
• Safety agency approvals
• UL1283
• CSA C22.2 No.8 (C-UL)
• DIN EN60939 VDE0565 Teil 3-1
• ENEC
• Environment
• RoHS directive
• 5-year warranty
Ultra high-attenuation type of common mode noise from 10kHz to 10MHz (2-stage filter)
Ordering information
NBH series
NBH -10 -432
1
2
3
4
-O
1Model
Name
2Rated
Current
3Line
to ground capacitor code:See table 1.1.
table1.1 Line to ground capacitor code
Line to ground
capacitor
Leakage Current
Test voltage
(Terminal- Mounting Plate)
(Input 125/250V 60Hz) (nominal value)
CY1
CY2
A/ 10 A max
Not Provided Not Provided
5
12.5 A/ 25 A max
100pF Not Provided
25
A/ 50 A max
220pF Not Provided
4,000VAC
37.5 A/ 75 A max
330pF Not Provided
50
A/100 A max
470pF Not Provided
75.5 A/150 A max
680pF Not Provided
0.13mA/0.25mA max
1000pF Not Provided
0.25mA/0.5 mA max
1000pF 1000pF
2,500VAC
0.38mA/0.75mA max
2200pF 1000pF
0.5 mA/1.0 mA max
3300pF 1000pF
Code
DIN rail installation type is option
The terminal cover is retracted inside the unit
000
101
221
331
471
681
102
202
322
432
*
When the line to ground capacitor code is different, the attenuation
characteristic is different.
4Options
D :DIN rail installation type
*
The dimensions change when the option is set.
Refer to External view.
Features of NBH series
Ultra high-attenuation type of common mode noise from 10kHz to 10MHz (2-stage filter)
-
Single Phase 250 VAC
-
Withstand voltage 4,000 VAC
(Line to ground capacitor code -000 to -471)
-
Quick and easy push-down terminal
Just connect the wires, push down and tighten
the screws with a screwdriver
NBH-10-432
10
NBH-16-432
16
NBH-20-432
20
NBH-30-432
30
Specifications
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Items
Rated Voltage[V]
Rated Current[A]
Test Voltage (Terminal-Mounting Plate)
Leakage current 125/250V 60Hz
Voltage drop
Safety agency approval temperatures
Operating temperature
Operating humidity
Storage temperature/humidity
Vibration
Impact
Safety agency approvals
Case size (without projection) /Mass
*
1
NBH-06-432
6
AC 1f 250 / DC250
2,500 VAC (Cutoff Current = 20mA), 1minute at room temperature and humidity
500 VDC 100MW min at room temperature and humidity
0.5mA/1.0mA max
1.0V max
-25 to +85C (Refer to Derating Curve A)
-40 to +85C (Refer to Derating Curve A)
20 to 95%RH (Non condensing)
-40 to +85C/20 to 95%RH (Non condensing)
10 to 55Hz, 19.6m/s
2
(2G), 3min. Period, 1hour each X, Y and Z axis
196.1m/s
2
(20G), 11ms Once each X, Y and Z axis
UL1283, CSA C22.2 No.8 (C-UL), DIN EN60939 VDE0565 Teil3-1, ENEC (At only AC input)
53X43X104 mm (WXHXD) /320g max (Option : -D refer to external view)
-25 to +85C (Refer to Derating Curve B)
-40 to +85C (Refer to Derating Curve B)
Isolation Resistance (Terminal-Mounting Plate)
*
1
When the line to ground capacitor code is different, the test voltage characteristic is different. (See table 1.1)
Circuit Diagram
Case
Derating Curve
Derating Curve (A) 6,10A
100
80
60
40
20
0
-40
Load Factor [%]
1
CY1
CY2
CY2
3
LOAD
4
LINE
CY1
-30
-20
40
50
60
70
Ambient Temperature [C]
80 85 90
2
Derating Curve (B) 16 to 30A
100
80
60
40
20
0
-40
Load Factor [%]
Noise
Filter
CY1,CY2 : Line to ground capacitor
: Mounting Plate
-30
-20
I-2
40 45 50
60
70
Ambient Temperature [C]
80 85 90
NBH series

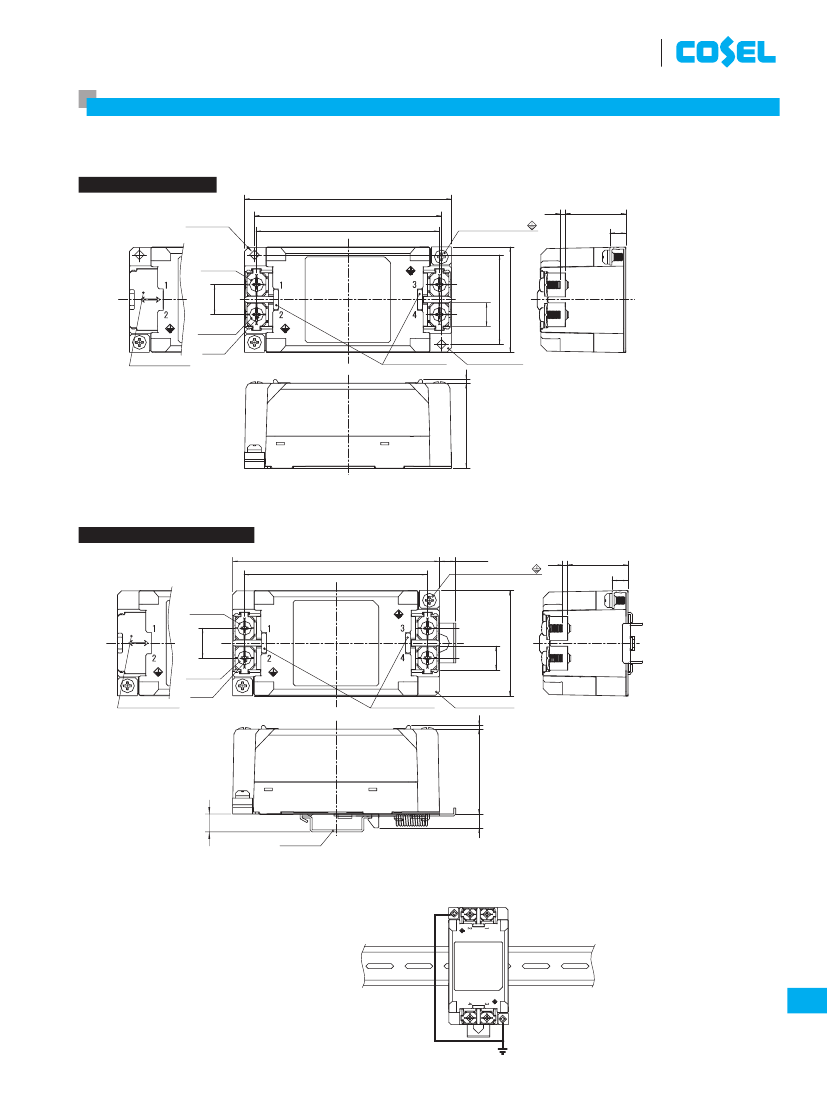

External view
This product is shipped in the following condition, because it is equipped with push-down terminals.
1The
terminal cover is retracted inside the unit.
2The
screws for connecting the terminals are held in the up right position.
Standard Type
104
2-f4.8
Mounting Hole
94
±
0.5
92
2-Protection Earth
2.5
30.5
8
Input
Terminal
45
±
0.5
53
¶
Tolerance :
±1
¶
Mass : 320g or less
43
¶
Mounting Plate : Iron (surface finishing:nickel plating) t=1.0
¶
Case : PBT
¶
Dimensions in mm
¶
Terminal block screw tightening torque M4:1.6N-m (16.9kgf-cm) max
Name Plate
15
Output
Terminal
Output
Terminal
12
Input
Terminal
6-M4
Terminal cover
¶
Closed the terminal cover
Terminal cover
Mounting Plate
2
DIN rail installation Type
104
92
8.2
±
1.5
2-Protection Earth
2.5
30.5
8
Input
Terminal
Name Plate
15
Output
Terminal
Output
Terminal
12
¶
Tolerance :
±1
43
¶
Mass : 320g or less
¶
Mounting Plate : Iron (surface finishing:nickel plating) t=1.0
¶
Case : PBT
(9)
¶
Dimensions in mm
DIN rail
¶
Terminal block screw tightening torque M4:1.6N-m (16.9kgf-cm) max
7
53
Terminal cover
Mounting Plate
2
¶
Closed the terminal cover
Input
Terminal
6-M4
Terminal cover
¡
Note when installing the noise
filter on a DIN rail.
When the noise filter is grounded through the
DIN rail, the proper noise attenuation may not be
achieved.
Be sure to connect the protection earth (PE) of
the noise filter body to the earth.
Name Plate
DIN rail
Noise
Filter
I-3
ADI Reference Circuit
