311-001

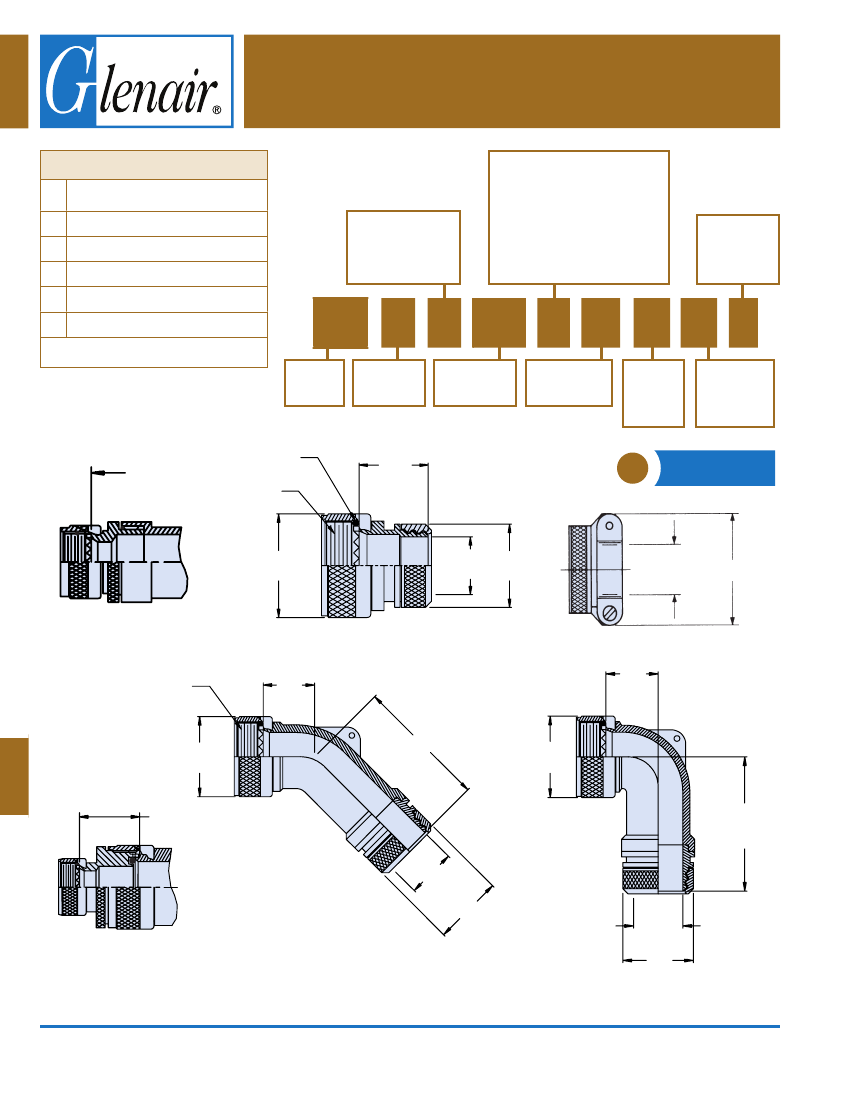

Lamp-Base Thread EMI/RFI Shrink Boot Adapter
with Strain Relief and Optional Shrink Boot
Rotatable Coupling - Low Profile
Finish
B
= Cadmium Plate, Olive Drab
C
= Anodize, Black
G
= Hard Coat, Anodic
M
= Electroless Nickel
NF
= Cadmium Plate, Olive Drab
over Electroless Nickel
(See Page H-3)
NDA
STA
R
H
Adapters
CONNECTOR DESIGNATOR:
A
F
H
J
L
S
MIL-DTL-5015, -26482, Series II
and -83723 Series I and III
MIL-DTL-38999 Series I, II
MIL-DTL-38999 Series III and IV
MIL-DTL-81511 Series I, II, III & IV
LN29729
PATT 105, PATT 603, PATT 608
Angle and Profile*
H
= 45°
J
= 90°
S
= Straight
Shrink
Boot
See Table IV
(Omit for None)
311
Product
Series
F
Connector
Designator
H
001
M
16
03
Cable
Entry
See Table
IV
D
BOOT
K
E
T
ROTATABLE COUPLING
Basic
Part Number
Shell
Size
See Table III
Strain
Relief
(Omit for Nut)
1.75
(44.5)
Max
O-Ring
A Thread
(Table I)
1.25
(31.8)
Max
T
Add "T" to Part Number
for Standard Boot
IT
C (Table I)
Cable
(Table
Entry
J
IV)
Cable
Entry
K
(Table
IV)
STYLE 2
(STRAIGHT
A Thread
(Table I)
C
(Table I)
E
(Table III)
Straight - S
(Table III)
STYLE E
STRAIN RELIEF
G
F (Table III)
C
(Table I)
.88 (22.4)
Max
45° - H
Cable
Entry
90° - J
H
(Table III)
J (Table IV)
STYLE 2
(45° & 90°
Dimensions in inches (millimeters) and are subject to change without notice.
CAGE Code 06324
Cable
Entry
J
(Table IV)
Printed in U.S.A.
E-Mail: sales@glenair.com
© 2011 Glenair, Inc.
www.glenair.com
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
H-10
with Strain Relief and Optional Shrink Boot
Rotatable Coupling - Low Profile
See Pages H-2 and H-3 for unabridged Tables I and II, and Pages H-4 and H-5 for MIL-DTL-5015
TABLE III: Connector Designators and Dimensions
Shell Size - Conn. Desig.
A-F-J-L-S
H
08
10
12
14
16
18
20
22
24
28
32
36
09
11
13
15
17
19
21
23
25
E
Max
.457 (11.6)
.520 (13.2)
.582 (14.8)
.645 (16.4)
.738 (18.7)
.926 (23.5)
.926 (23.5)
1.020 (25.9)
1.020 (25.9)
1.145 (29.1)
1.207 (30.7)
1.238 (31.4)
F
Max
1.630 (41.4)
1.690 (42.9)
1.750 (44.5)
1.840 (46.7)
1.950 (49.5)
2.140 (54.4)
2.140 (54.4)
2.290 (58.2)
2.290 (58.2)
2.340 (59.4)
2.440 (62.0)
2.530 (64.3)
G
Max
.500 (12.7)
.595 (15.1)
.610 (15.5)
.700 (17.8)
.885 (22.5)
.975 (24.8)
.975 (24.8)
1.125 (28.6)
1.125 (28.6)
1.225 (31.1)
1.575 (40.0)
1.775 (45.1)
H
Max
1.640 (41.7)
1.760 (44.7)
1.780 (45.2)
1.850 (47.0)
1.940 (49.3)
2.110 (53.6)
2.110 (53.6)
2.220 (56.4)
2.220 (56.4)
2.390 (60.7)
2.640 (67.1)
2.640 (67.1)
TABLE IV: Cable Entry, Dimensions and Shrink Boot
Dash
No.
01
02
03
04
05
06
07
08
09
10
11
12
13
J
Max
.448 (11.4)
.515 (13.1)
.640 (16.3)
.765 (19.4)
.920 (23.4)
1.015 (25.8)
1.140 (29.0)
1.265 (32.1)
1.432 (36.4)
1.515 (38.5)
1.640 (41.7)
1.765 (44.8)
2.015 (51.2)
K
Max
.781 (19.8)
.968 (24.6)
1.046 (26.6)
1.156 (29.4)
1.219 (31.0)
1.343 (34.1)
1.469 (37.3)
1.594 (40.5)
1.719 (43.7)
1.844 (46.8)
n/a
n/a
n/a
Cable Entry
Max
.125
.250
.375
(3.2)
(6.4)
(9.5)
Shrink Boot
Part Number
n/a
770-001S103
770-001S103
770-001S104
770-001S104
770-001S105
770-001S106
770-001S106
770-001S107
770-001S107
770-001S108
770-001S108
770-001S108
.500 (12.7)
.625 (15.9)
.750 (19.1)
.875 (22.2)
1.000 (25.4)
1.125 (28.6)
1.250 (31.8)
1.375 (34.9)
1.500 (38.1)
1.750 (44.5)
APPLICATION NOTES
1. Cable Entry is defined as the accomodation range for the wire bundle or cable. Dimensions shown are not intended for inspection criteria.
2. See Backshell Interface Dimensions and Standards on Pages H-4 and H-5.
3. When maximum entry is exceeded, Style 2 will be supplied and dimensions E, F, G and H will not apply. Please consult factory.
© 2011 Glenair, Inc.
www.glenair.com
Dimensions in inches (millimeters) and are subject to change without notice.
CAGE Code 06324
Printed in U.S.A.
E-Mail: sales@glenair.com
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
H-11
Adapters
311-001
Lamp-Base Thread EMI/RFI Shrink Boot Adapter
H
