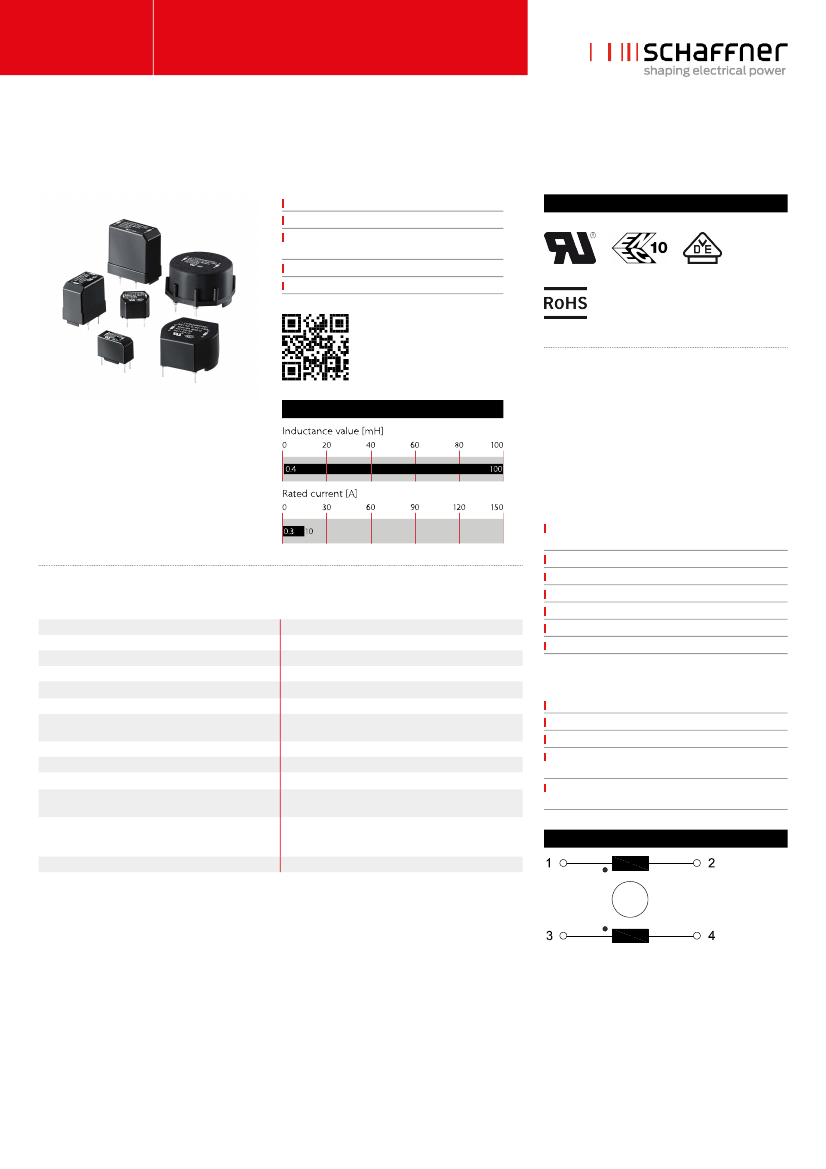

DATASHEET
Common-mode Chokes RN series
Current-compensated Chokes
Rated currents from 0.3 to 10 A
DC to 400 Hz frequency
100 kHz to 3 MHz common-mode resonance
frequency
Dual-choke configurations
Multiple PCB-mounting options
Approvals

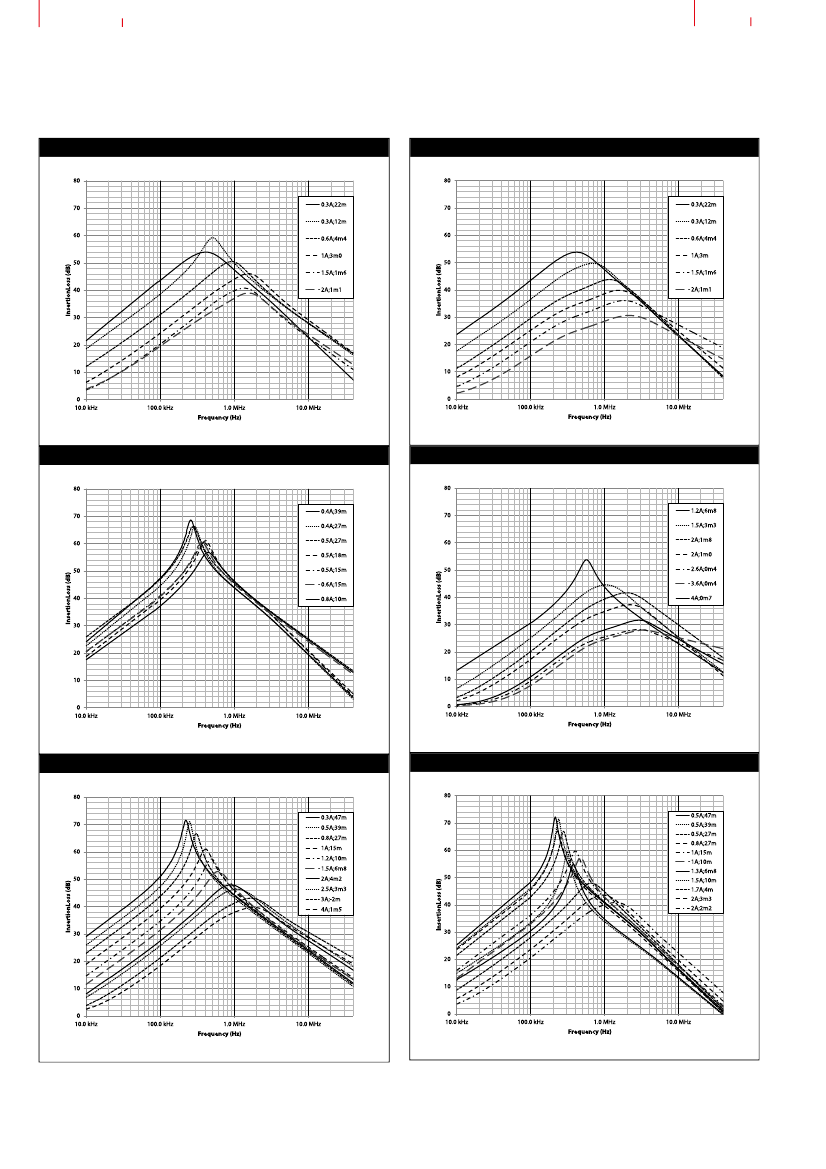

Performance indicators
RN chokes are attenuating common-mode or
asymmetric (P/N –> E) interference signals, by being
connected in series with the phase and neutral lines
of an AC powerline input. Symmetrical components
of the noise are also attenuated by the leakage
inductance (stray inductance) of the windings. These
chokes are typically used in conjunction with
suppression capacitors.
Features and benefits
High saturation resistance and excellent thermal
behavior
Through hole pin connections
Dual-choke configuration
Technical specifications
Operating voltage
Operating frequency
Rated currents
Rated inductance
Stray inductance
Inductance reduction (DC bias with IN)
High potential test voltage winding-to-
winding @ 25°C
winding-to-housing @ 25°C
MTBF @ 40°C/230 V (Mil-HB-217F)
Surge current @ 10 msec
Temperature range (operation and storage)
Flammability corresponding to
300 VAC
DC to 400 Hz
0.3 to 10 A @ rated ambient temperature
0.4 to 100 mH
Typically 1% of L
N
Less than 10% (25°C)
1500 VAC, 60 sec, guaranteed
1500 VAC, 2 sec, factory test
4000 VAC, 60 sec, guaranteed
>5,000,000 hours
20 x I
N
@ 25°C
-40°C to 100°C (40/100/56)
acc. IEC 60068-1
Potting compound UL 94V-0
Housing UL 94V-0
Ringcore coating UL 94V-0
UL 1283, IEC/EN 60938-1
Small compact design
Multiple housing options
Custom-specific versions are available on request
Higher temperature versions
Typical applications
Switch-mode power applications
Suppressing common-mode interference levels
EMI input filters
For suppression-equipment with no earth
connection
Phase-angle control circuits in combination with
saturating chokes
Typical electrical schematic
Design corresponding to
4
EMC/EMI Products
Schaffner Group
Datasheets
2017
Filter
Current
(l
N
)
[A]
@ ambient
temperature
[°C]
40
40
40
40
60
60
60
60
60
60
60
60
60
60
60
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
Inductance
(L
N
)
[mH]
2.2
3.3
2.0
1.5
47.0
39.0
27.0
27.0
15.0
10.0
6.8
10.0
4.0
3.3
2.2
56.0
47.0
39.0
33.0
18.0
10.0
6.8
5.6
4.5
3.3
47.0
18.0
10.0
5.6
3.3
82.0
33.0
27.0
6.8
3.3
1.8
Resistance
(R
DC
)
[mOhm]
67
63
52
34
960
920
790
370
260
210
140
148
87
70
66
1800
1300
1000
1300
630
250
156
110
80
46
1300
390
170
86
54
2700
810
500
192
67
20
A
B
H
Weight
[mm]
12.5
12.5
12.5
12.5
12.5
12.5
12.5
12.5
12.5
12.5
12.5
12.5
12.5
12.5
12.5
15.0
15.0
15.0
15.0
15.0
15.0
15.0
15.0
15.0
15.0
15.0
15.0
15.0
15.0
15.0
15.0
15.0
15.0
15.0
15.0
15.0
[mm]
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
12.5
12.5
12.5
12.5
12.5
12.5
12.5
12.5
12.5
12.5
12.5
12.5
12.5
12.5
12.5
12.5
12.5
12.5
12.5
12.5
12.5
[mm]
25.0
25.0
25.0
25.0
25.0
25.0
25.0
25.0
25.0
25.0
25.0
25.0
25.0
25.0
25.0
29.3
29.3
29.3
29.3
29.3
29.3
29.3
29.3
29.3
29.3
29.3
29.3
29.3
29.3
29.3
34.3
34.3
34.3
34.3
34.3
34.3
(g)
14
15
14
15
15
15
15
16
16
15
16
16
16
16
15
27
26
27
29
26
26
28
27
28
28
37
38
38
38
38
37
38
38
37
38
41
RN 214-2-02-2M2
RN 214-2.5-02-3M3
RN 214-3-02-2M0
RN 214-4-02-1M5
RN 216-0.5-02-47M
RN 216-0.5-02-39M
RN 216-0.5-02-27M
RN 216-0.8-02-27M
RN 216-1-02-15M
RN 216-1-02-10M
RN 216-1.3-02-6M8
RN 216-1.5-02-10M
RN 216-1.7-02-4M0
RN 216-2-02-3M3
RN 216-2-02-2M2
RN 222-0.5-02-56M
RN 222-0.6-02-47M
RN 222-0.8-02-39M
RN 222-1-02-33M
RN 222-1-02-18M
RN 222-1.5-02-10M
RN 222-2-02-6M8
RN 222-2.5-02-5M6
RN 222-3-02-4M5
RN 222-4-02-3M3
RN 232-0.6-02-47M
RN 232-1-02-18M
RN 232-1.6-02-10M
RN 232-2.5-02-5M6
RN 232-4-02-3M3
RN 242-0.5-02-82M
RN 242-1-02-33M
RN 242-1.4-02-27M
RN 242-2-02-6M8
RN 242-4-02-3M3
RN 242-6-02-1M8
2.0
2.5
3.0
4.0
0.5
0.5
0.5
0.8
1.0
1.0
1.3
1.5
1.7
2.0
2.0
0.5
0.6
0.8
1.0
1.0
1.5
2.0
2.5
3.0
4.0
0.6
1.0
1.6
2.5
4.0
0.5
1.0
1.4
2.0
4.0
6.0
Test conditions:
Measuring frequency: 10 kHz; 50 mV
Inductance tolerance: +50%, -30%
Resistance tolerance: ±15% @ 25°C
Electrical characteristics @ 25°C: ±2°C
Stray Inductance measurement method
(one phase shorted):
Thermal Derating:
If higher ambient temperatures than the specified
apply, the nominal current needs to be reduced
according to the graph below.
Product selector
For mechanical tolerances refer to
mechanical data section.
