SB020 thru SB060
Vishay General Semiconductor
Miniature Schottky Barrier Rectifier
FEATURES
• Guardring for overvoltage protection
• Very small conduction losses
• Extremely fast switching
• Low forward voltage drop
• High frequency operation
• Solder dip 275 °C max. 10 s, per JESD 22-B106
MPG06
• Compliant to RoHS directive 2002/95/EC and in
accordance to WEEE 2002/96/EC
TYPICAL APPLICATIONS
PRIMARY CHARACTERISTICS
I
F(AV)
V
RRM
I
FSM
V
F
T
J
max.
0.6 A
20 V to 60 V
20 A
0.55 V, 0.70 V
125 °C, 150 °C
For use in low voltage high frequency inverters,
freewheeling, dc-to-dc converters, and polarity protection
applications.
MECHANICAL DATA
Case:
MPG06
Molding compound meets UL 94 V-0 flammability rating
Base P/N-E3 - RoHS compliant, commercial grade
Terminals:
Matte tin plated leads, solderable
J-STD-002 and JESD 22-B102
E3 suffix meets JESD 201 class 1A whisker test
Polarity:
Color band denotes the cathode end
per
MAXIMUM RATINGS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
at 0.375" (9.5 mm) lead length (fig. 1)
Peak forward surge current 8.3 ms single half
sine-wave superimposed on rated load
Operating junction temperature range
Storage temperature range
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
T
J
T
STG
- 65 to + 125
- 65 to + 150
SB020
20
14
20
SB030
30
21
30
SB040
40
28
40
0.6
20
- 65 to + 150
SB050
50
35
50
SB060
60
42
60
UNIT
V
V
V
A
A
°C
°C
ELECTRICAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Maximum instantaneous
forward voltage
Maximum instantaneous
reverse current at rated DC
blocking voltage
TEST CONDITIONS
0.6 A
T
A
= 25 °C
T
A
= 100 °C
SYMBOL
V
F (1)
SB020
SB030
0.55
0.5
I
R (1)
10
5.0
mA
SB040
SB050
0.70
SB060
UNIT
V
Note
(1)
Pulse test: 300 μs pulse width, 1 % duty cycle
Document Number: 88714
Revision: 16-Oct-09
For technical questions within your region, please contact one of the following:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
www.vishay.com
1
SB020 thru SB060
Vishay General Semiconductor
THERMAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Typical thermal resistance
SYMBOL
R
θJA
(1)
R
θJL
(1)
SB020
SB030
SB040
80
°C/W
20
SB050
SB060
UNIT
Note
(1)
Thermal resistance junction to lead P.C.B. mounted 0.375" (9.5 mm) lead length
ORDERING INFORMATION
(Example)
PREFERRED P/N
SB040-E3/54
SB040-E3/73
UNIT WEIGHT (G)
0.203
0.203
PREFERRED PACKAGE CODE
54
73
BASE QUANTITY
5500
3000
DELIVERY MODE
13" diameter paper tape and reel
Ammo pack packaging

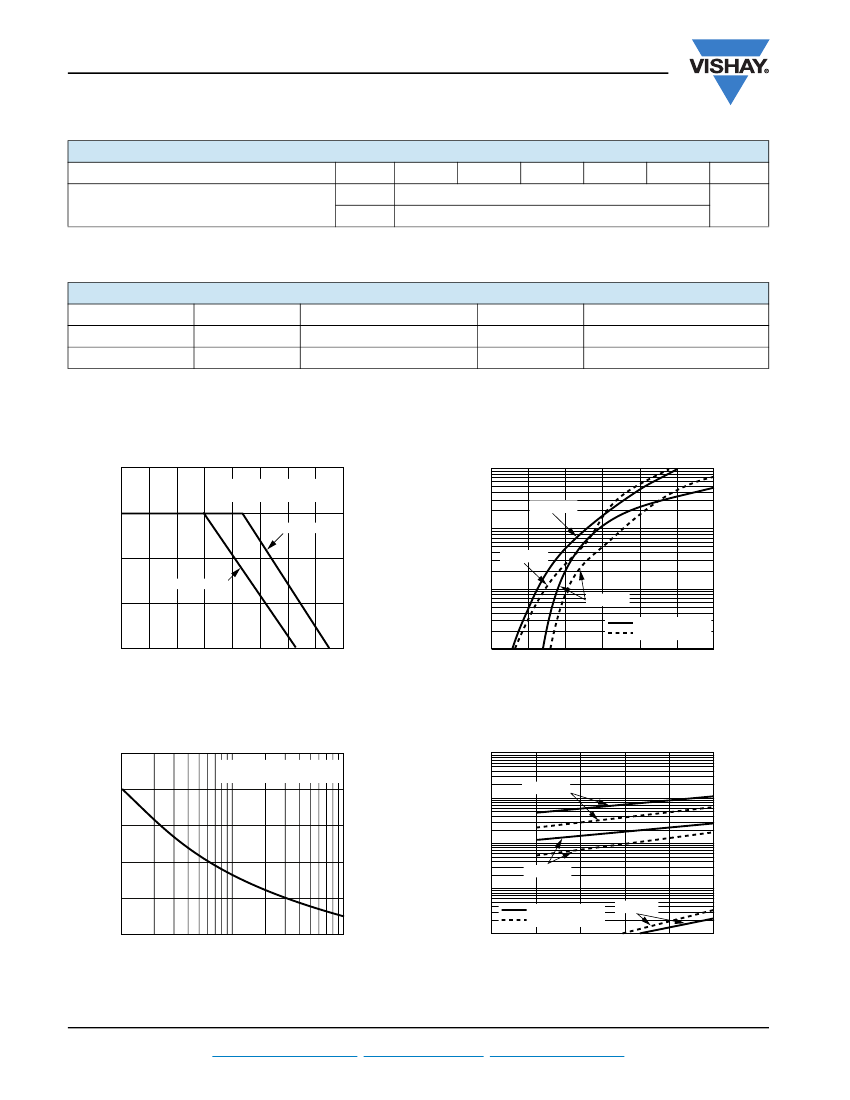

RATINGS AND CHARACTERISTICS CURVES
(T
A
= 25 °C unless otherwise noted)
0.8
10
Instantaneous Forward Current (A)
Average Forward Current (A)
Resistive or Inductive Load
0.375" (9.5 mm) Lead Length
0.6
SB050
and
SB060
T
J
= 125 °C
1
T
J
= 100 °C
0.4
SB020
thru
SB040
0.2
0.1
T
J
= 25 °C
SB020
thru
SB040
SB050
and
SB060
0.01
0
0.2
0.4
0.6
0.8
1.0
1.2
0
0
20
40
60
80
100
120
140
160
Lead Temperature (°C)
Instantaneous Forward Voltage (V)
Fig. 1 - Forward Current Derating Curve
Fig. 3 - Typical Instantaneous Forward Characteristics
25
10
Instantaneous Reverse Leakage
Current (mA)
Peak Forward
Surge
Current (A)
T
J
= T
J
Max.
8.3 ms
Single
Half
Sine-Wave
20
T
J
= 125 °C
1
15
0.1
T
J
= 100 °C
0.01
SB020
thru
SB040
SB050
and
SB060
0.001
0
20
40
T
J
= 25 °C
10
5
0
1
10
100
60
80
100
Number of Cycles at 60 Hz
Percent of Rated Peak Reverse Voltage (%)
Fig. 2 - Maximum Non-Repetitive Peak Forward Surge Current
Fig. 4 - Typical Reverse Leakage Characteristics
www.vishay.com
2
For technical questions within your region, please contact one of the following:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
Document Number: 88714
Revision: 16-Oct-09
SB020 thru SB060
Vishay General Semiconductor
1000
100
Transient Thermal Impedance (°C/W)
Junction Capacitance (pF)
T
J
= 25 °C
f = 1.0 MHz
V
sig
= 50 mV
p-p
10
100
1
10
0.1
1
10
100
0.1
0.01
0.1
1
10
100
Reverse Voltage (V)
t - Pulse Duration (s)
Fig. 5 - Typical Junction Capacitance
Fig. 6 - Transient Thermal Impedance
PACKAGE OUTLINE DIMENSIONS
in inches (millimeters)
MPG06
0.100 (2.54)
0.090 (2.29)
DIA.
1.0 (25.4)
MIN.
0.125 (3.18)
0.115 (2.92)
1.0 (25.4)
MIN.
0.025 (0.635)
0.023 (0.584)
DIA.
Document Number: 88714
Revision: 16-Oct-09
For technical questions within your region, please contact one of the following:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
www.vishay.com
3
