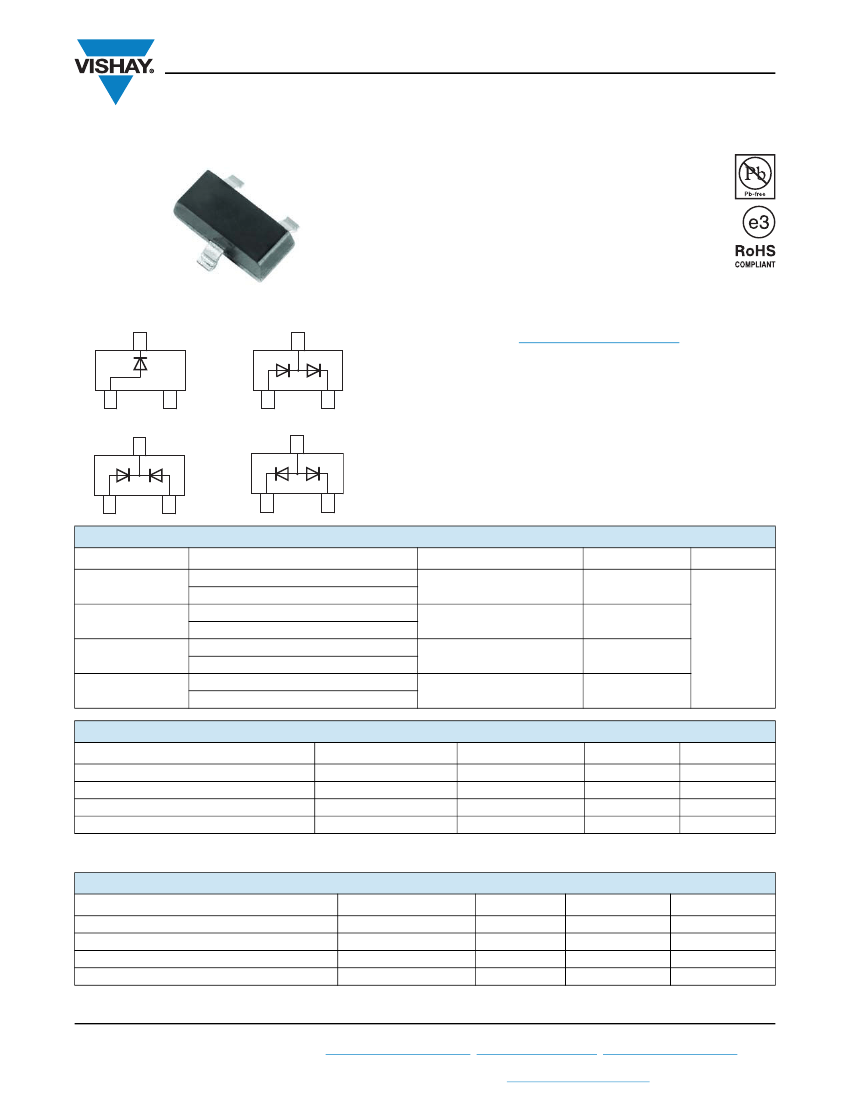

BAS40-00 to BAS40-06
www.vishay.com
Vishay Semiconductors
Small Signal Schottky Diodes, Single and Dual
FEATURES
• These diodes feature very low turn-on voltage
and fast switching
• These devices are protected by a PN junction
guardring against excessive voltage, such as
electrostatic discharges
• AEC-Q101 qualified
• Base P/N-E3 - RoHS-compliant, commercial grade
• Base P/N-HE3 - RoHS-compliant, AEC-Q101 qualified
BAS40-00
3
BAS40-04
3
• Material categorization: For definitions of compliance
please see
www.vishay.com/doc?99912
Top View
1
2
1
2
MECHANICAL DATA
Case:
SOT-23
Weight:
approx. 8.8 mg
Packaging codes/options:
18/10K per 13" reel (8 mm tape), 10K/box
08/3K per 7" reel (8 mm tape), 15K/box
BAS40-05
3
BAS40-06
3
Top View
1
2
1
2
PARTS TABLE
PART
BAS40-00
BAS40-04
BAS40-05
BAS40-06
ORDERING CODE
BAS40-00-E3-08 or BAS40-00-E3-18
BAS40-00-HE3-08 or BAS40-00-HE3-18
BAS40-04-E3-08 or BAS40-04-E3-18
BAS40-04-HE3-08 or BAS40-04-HE3-18
BAS40-05-E3-08 or BAS40-05-E3-18
BAS40-05-HE3-08 or BAS40-05-HE3-18
BAS40-06-E3-08 or BAS40-06-E3-18
BAS40-06-HE3-08 or BAS40-06-HE3-18
INTERNAL CONSTRUCTION
Single diode
Dual diodes serial
Dual diodes common cathode
Dual diodes common anode
TYPE MARKING
43
44
Tape and reel
45
46
REMARKS
ABSOLUTE MAXIMUM RATINGS
(T
amb
= 25 °C, unless otherwise specified)
PARAMETER
Repetitive peak reverse voltage
Forward continuous current
Surge forward current
Power dissipation
(1)
Note
(1)
Device on fiberglass substrate, see layout on next page.
(1)
(1)
TEST CONDITION
SYMBOL
V
RRM
= V
RWM
= V
R
I
F
VALUE
40
200
600
200
UNIT
V
mA
mA
mW
t
p
< 1 s
I
FSM
P
tot
THERMAL CHARACTERISTICS
(T
amb
= 25 °C, unless otherwise specified)
PARAMETER
Thermal resistance junction to ambient air
(1)
Junction temperature
Storage temperature range
Operating temperature range
Note
(1)
Device on fiberglass substrate, see layout on next page.
Rev. 2.0, 25-Feb-13
Document Number: 85701
1
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
TEST CONDITION
SYMBOL
R
thJA
T
j
T
stg
T
op
VALUE
500
125
- 65 to + 150
- 55 to + 125
UNIT
K/W
°C
°C
°C
BAS40-00 to BAS40-06
www.vishay.com
Vishay Semiconductors
ELECTRICAL CHARACTERISTICS
(T
amb
= 25 °C, unless otherwise specified)
PARAMETER
Reverse breakdown voltage
Leakage current
Forward voltage
Forward voltage
(1)
Diode capacitance
Reverse recovery time
Note
(1)
Pulse test t < 300 μs
p
TEST CONDITION
I
R
= 10 μA (pulsed)
V
R
= 30 V
I
F
= 1 mA
I
F
= 40 mA
V
R
= 0 V, f = 1 MHz
I
F
= I
R
= 10 mA, i
R
= 1 mA, R
L
= 100
SYMBOL
V
(BR)
I
R
V
F
V
F
C
D
t
rr
4
MIN.
40
20
100
380
1000
5
5
TYP.
MAX.
UNIT
V
nA
mV
mV
pF
ns
LAYOUT FOR R
thJA
TEST
Thickness:
Fiberglass 1.5 mm (0.059 inches)
Copper leads 0.3 mm (0.012 inches)
7.5 (0.3)
3 (0.12)
1 (0.4)
12 (0.47)
15 (0.59)
0.8 (0.03)
2 (0.8)
1 (0.4)
2 (0.8)
5 (0.2)
1.5 (0.06)
5.1 (0.2)
17451
PACKAGE DIMENSIONS
in millimeters (inches):
SOT-23
1.15 (0.045)
2.6 (0.102)
2.35 (0.093)
0.45 (0.018)
1.43 (0.056)
1.20 (0.047)
0.35 (0.014)
0.7 (0.028)
0.95 (0.037)
0.1 (0.004) max.
0.9 (0.035)
0.9 (0.035)
3.1 (0.122)
2.8 (0.110)
0.550 ref. (0.022 ref.)
0.175 (0.007)
0.098 (0.004)
0.2 (0.008)
0.45 (0.018)
0.35 (0.014)
0.45 (0.018)
0.35 (0.014)
0.3 (0.012)
Foot print recommendation:
1 (0.039)
0.9 (0.035)
1 (0.039)
0.9 (0.035)
Document no.: 6.541-5014.01-4
Rev. 8 - Date: 23.Sept.2009
17418
Rev. 2.0, 25-Feb-13
Document Number: 85701
2
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
2 (0.079)
0.95 (0.037)
0° t
o
0.5 (0.020)
8°
