TDA16833G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> TDA16833G

TDA16833G: Description2.7 A SWITCHING REGULATOR, 110 kHz SWITCHING FREQ-MAX, PDIP8; CategoryPower/power management The power supply circuit; File Size274KB，21 Pages; ManufacturerInfineon; Websitehttp://www.infineon.com/

Download Datasheet Parametric Compare View All

TDA16833G Overview

2.7 A SWITCHING REGULATOR, 110 kHz SWITCHING FREQ-MAX, PDIP8

TDA16833G Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Infineon
Parts packaging code	SOIC
package instruction	SOP, SOP14,.25
Contacts	14
Reach Compliance Code	_compli
ECCN code	EAR99
Analog Integrated Circuits - Other Types	SWITCHING REGULATOR
control mode	CURRENT-MODE
Control Technology	PULSE WIDTH MODULATION
Maximum input voltage	16 V
Minimum input voltage	12 V
Nominal input voltage	15 V
JESD-30 code	R-PDSO-G14
JESD-609 code	e0
length	8.75 mm
Humidity sensitivity level	3
Number of functions	1
Number of terminals	14
Maximum output current	4.8 A
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP14,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum seat height	1.75 mm
surface mount	YES
Switch configuration	SINGLE
Maximum switching frequency	110 kHz
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	4 mm

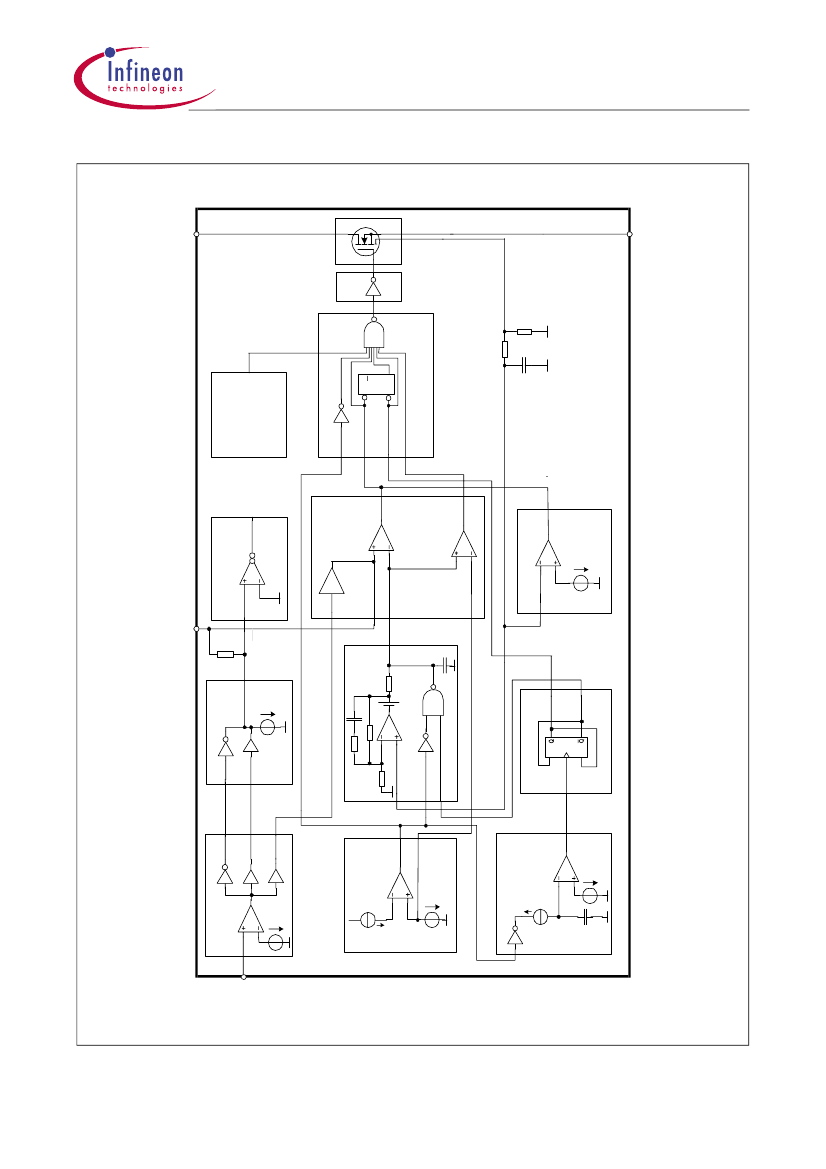

Preview

Download Datasheet

View All

Off-line SMPS Controller with

600 V Sense CoolMOS on Board

Preliminary Data

Overview

Features

• PWM controller + sense CoolMOS

attached in one compact package

• 600 V avalanche rugged CoolMOS

• Typical

DSon

= 0.5 ... 3.5

Ω

= 25 °C

• Only 4 active Pins

• Standard DIP-8 Package for

Output Power

≤

40 W

• Only few external components required

• Low start up current

• Current mode control

• Input Undervoltage Lockout

• Max. Duty Cycle limitation

• Thermal Shutdown

• Modulated Gate Drive for low EMI

TDA16831-4

CoolSET

P-DIP-8-6

P-DSO-14-11

Type

TDA 16831

TDA 16832

TDA 16833

TDA 16834

TDA 16831G

TDA 16832G

TDA 16833G

Data Sheet

Ordering Code

Q67000-A9420

Q67000-A9422

Q67000-A9389

samples

Q67000-A9421

Q67000-A9423

Q67000-A9419

Package

P-DIP-8-6

P-DSO-14-11

1999-12-10

TDA16833G Related Products

	TDA16833G	TDA16831	TDA16831-4	TDA16831G	TDA16832	TDA16832G	TDA16833	TDA16834
Description	2.7 A SWITCHING REGULATOR, 110 kHz SWITCHING FREQ-MAX, PDIP8	2.7 A SWITCHING REGULATOR, 110 kHz SWITCHING FREQ-MAX, PDIP8	2.7 A SWITCHING REGULATOR, 110 kHz SWITCHING FREQ-MAX, PDIP8	2.7 A SWITCHING REGULATOR, 110 kHz SWITCHING FREQ-MAX, PDIP8	2.7 A SWITCHING REGULATOR, 110 kHz SWITCHING FREQ-MAX, PDIP8	2.7 A SWITCHING REGULATOR, 110 kHz SWITCHING FREQ-MAX, PDIP8	2.7 A SWITCHING REGULATOR, 110 kHz SWITCHING FREQ-MAX, PDIP8	4.8 A SWITCHING REGULATOR, 110 kHz SWITCHING FREQ-MAX, PDIP8
Is it Rohs certified?	incompatible	conform to	-	incompatible	incompatible	incompatible	conform to	incompatible
Maker	Infineon	-	-	-	Infineon	Infineon	Infineon	Infineon
Parts packaging code	SOIC	DIP	-	SOIC	DIP	SOIC	DIP	DIP
package instruction	SOP, SOP14,.25	DIP, DIP8,.3	-	SOP, SOP14,.25	DIP, DIP8,.3	SOP, SOP14,.25	DIP, DIP8,.3	DIP, DIP8,.3
Contacts	14	8	-	14	8	14	8	8
Reach Compliance Code	_compli	unknow	-	unknow	_compli	_compli	unknow	_compli
ECCN code	EAR99	EAR99	-	EAR99	EAR99	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	SWITCHING REGULATOR	SWITCHING REGULATOR	-	SWITCHING REGULATOR	SWITCHING REGULATOR	SWITCHING REGULATOR	SWITCHING REGULATOR	SWITCHING REGULATOR
control mode	CURRENT-MODE	CURRENT-MODE	-	CURRENT-MODE	CURRENT-MODE	CURRENT-MODE	CURRENT-MODE	CURRENT-MODE
Control Technology	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	-	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION
Maximum input voltage	16 V	16 V	-	16 V	16 V	16 V	16 V	16 V
Minimum input voltage	12 V	12 V	-	12 V	12 V	12 V	12 V	12 V
Nominal input voltage	15 V	15 V	-	15 V	15 V	15 V	15 V	15 V
JESD-30 code	R-PDSO-G14	R-PDIP-T8	-	R-PDSO-G14	R-PDIP-T8	R-PDSO-G14	R-PDIP-T8	R-PDIP-T8
JESD-609 code	e0	-	-	e0	e0	e0	-	e0
length	8.75 mm	9.52 mm	-	8.75 mm	9.52 mm	8.75 mm	9.52 mm	9.52 mm
Number of functions	1	1	-	1	1	1	1	1
Number of terminals	14	8	-	14	8	14	8	8
Maximum output current	4.8 A	1.4 A	-	1.4 A	2.7 A	2.7 A	4.8 A	4.8 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP	-	SOP	DIP	SOP	DIP	DIP
Encapsulate equivalent code	SOP14,.25	DIP8,.3	-	SOP14,.25	DIP8,.3	SOP14,.25	DIP8,.3	DIP8,.3
Package shape	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	-	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.75 mm	4.37 mm	-	1.75 mm	4.37 mm	1.75 mm	4.37 mm	4.37 mm
surface mount	YES	NO	-	YES	NO	YES	NO	NO
Switch configuration	SINGLE	SINGLE	-	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum switching frequency	110 kHz	110 kHz	-	110 kHz	110 kHz	110 kHz	110 kHz	110 kHz
Terminal surface	Tin/Lead (Sn/Pb)	-	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	THROUGH-HOLE	-	GULL WING	THROUGH-HOLE	GULL WING	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm	-	1.27 mm	2.54 mm	1.27 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	-	DUAL	DUAL	DUAL	DUAL	DUAL
width	4 mm	7.62 mm	-	4 mm	7.62 mm	4 mm	7.62 mm	7.62 mm
