3448-89150 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> Connector bracket> 3448-89150

Preview

3448-89150: DescriptionHeavy Duty Power Connectors HAN D MALE AWG 18 SILVER PLATED CRIMP; CategoryThe connector Connector bracket; File Size549KB，3 Pages; Manufacturer3M; Websitehttp://3M.com/esd; Environmental Compliance

Download Datasheet Parametric Compare View All

3448-89150 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3448-89150	-	-	View	Buy Now

3448-89150 Overview

Heavy Duty Power Connectors HAN D MALE AWG 18 SILVER PLATED CRIMP

3448-89150 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
Certification	UL
Assembly name	STRAIN RELIEF
Connector bracket type	CONNECTOR ACCESSORY
DIN compliance	NO
IEC compliance	NO
insulator material	GLASS FILLED POLYESTER
MIL compliance	NO
Manufacturer's serial number	891
Material	PHOSPHOR BRONZE
Installation option 1	CABLE
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Terminal type	IDC
Maximum wire diameter	26 AWG
Minimum wire diameter	28 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

3M

™

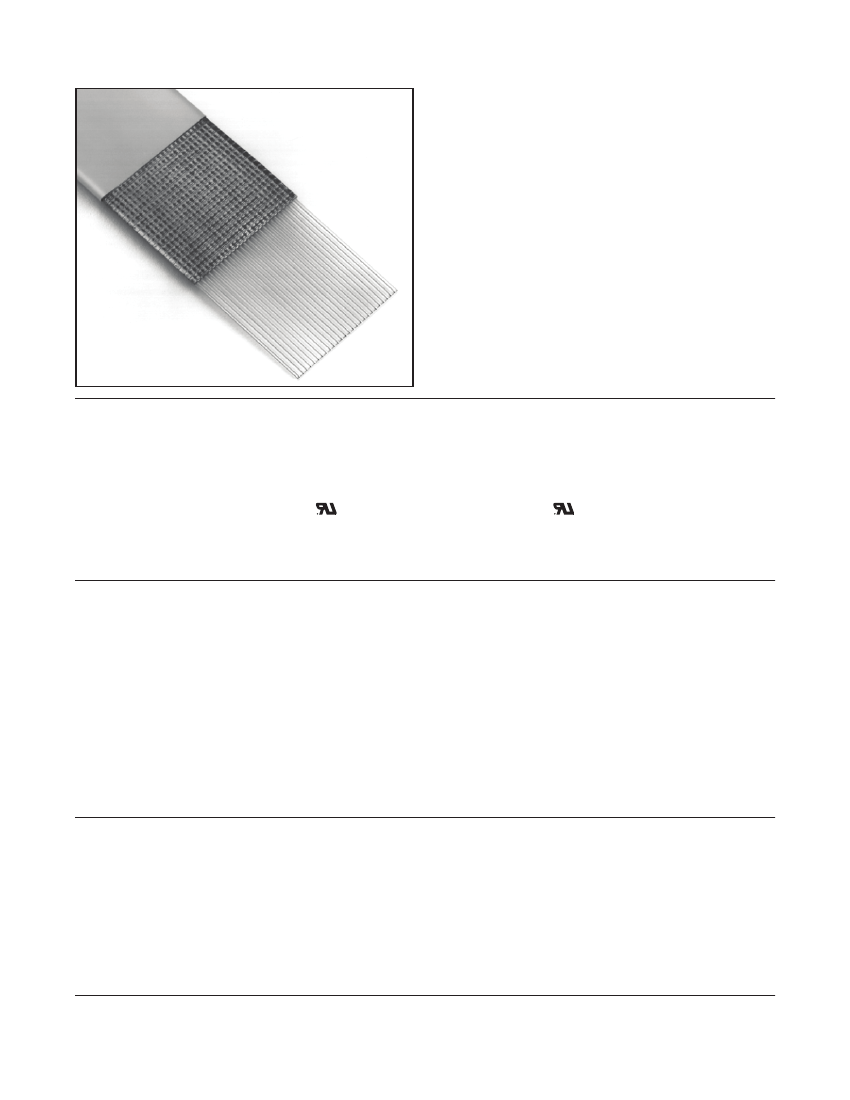

Pleated Foil Shielded Cable

.050" 28 AWG Stranded, TPE Primary, Thin TPE Cover

• Can be used with IDC mass termination connectors

• Can be used in applications requiring standard

impedance of 100Ω balanced (differential)

• Perfect for board-to-board applications within

electronic equipment, TPE covering prevents pleated

copper foil from accidental shorting

• Solid pleated copper foil provides flexibility and 35

db average shielding effectiveness

• See Regulatory Information Appendix (RIA) for

chemical compliance information

(RIA E1 & C1 apply)

90204 Series

Date Modified: September 3, 2013

TS-0403-D

Sheet 1 of 2

Physical

Cover Material:

Primary Material:

Marking Standard:

Canadian Option:

Thermoplastic Elastomer (TPE)

Color:

Gray

Thermoplastic Elastomer (TPE)

Color:

Natural

None

Conductors:

AWM 20674 105C 300V VW1 3M NU C

AWM IA 105C 150V FT1 EU <50V

Shielding:

Solid, Pleated, Copper Foil

28 AWG, 7 × 36 AWG [ 7 × Ø 0.127 ] Tinned Stranded Copper

Electrical

Voltage Rating:

Insulation Resistance:

Characteristic Impedance:

Capacitance:

Inductance:

Propagation Delay:

Velocity of Propagation:

USA: 300V

Unbalanced

53

Ω

Canada: 150V

Balanced

110

Ω

EU: <50V

(Primary Cable) > 1 × 10

10

Ω/10

ft. [ 3 m ]

28.1 pF/ft [ 92.2 pF/m ]

0.08 μH/ft [ 0.26 μH/m ]

1.49 ns/ft [ 4.89 ns/m ]

68%

13.4 pF/ft [ 44.0 pF/m ]

0.16 μH/ft [ 0.54 μH/m ]

1.48 ns/ft [ 4.86 ns/m ]

69%

Note: Unbalanced is measured between ground-signal-ground conductors, with shield grounded. Balanced is measured between signal conductors within a pair, with the shield floating.

Environmental

Temperature Rating:

-20°C to +105°C

Canada: FT1

Flammability Rating:

USA: VW-1

UL File No.: E42769, Style No.: 20674

3

Interconnect Solutions

http://www.3Mconnectors.com

3M is a trademark of 3M Company.

For technical, sales or ordering information call

800-225-5373
