507-178

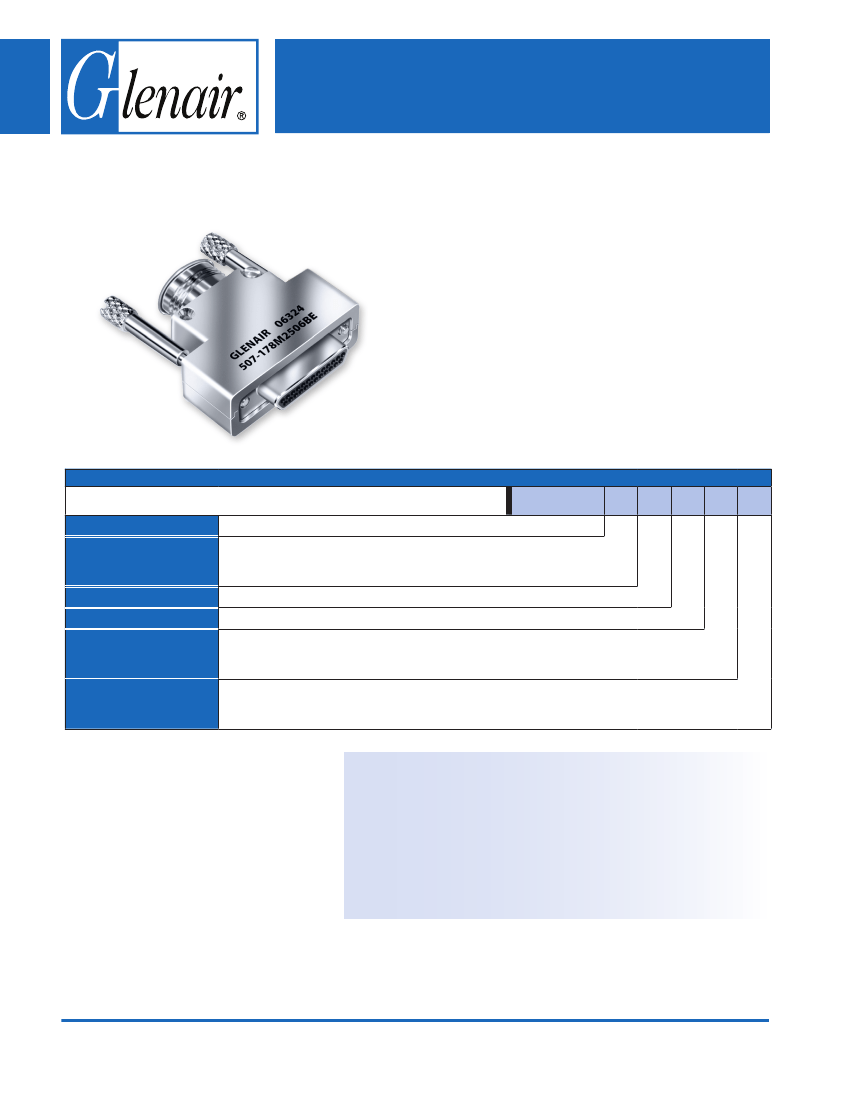

EMI/RFI Micro-D Split Banding Backshell
with Eliptical Banding Porch
MIL-DTL-83513
Micro-D
Split Backshell With Elliptical Cable Entry
provides added room
for larger wire bundles. Terminate cable shields with BandMaster™
ATS microbands. This backshell features floating male screwlocks
which allow full mating of the connector before the screws are
fastened.
Rugged Aluminum
housing with stainless steel hardware,
available in standard nickel plating, or choose optional finishes.
How To Order EMI/RFI Split Shell Backshells
Sample Part Number
Series
Shell Finish
Connector Size
Cable Entry Code
EMI Band Strap Option
507-178
E
– Chem Film (Alodyne)
M
– Electroless Nickel
Z2
– Gold
J
– Cadmium, Yellow Chromate
NF
– Cadmium, Olive Drab
507-178
M
25
06
K
F
09, 15, 21, 25, 31, 37, 51, 51-2, 67, 69, 100
(See Table I)
04, 05, 06, 07, 08, 09, 10, 11, 12, 13, 14, 15, 16
(See Table II)
OMIT
(Leave Blank) - Band Strap Not Supplied
B
- Microband Supplied (600-057)
K
- Coiled Microband Supplied (600-057-1)
E
- Extended Screwlock
FE
- Extended Female Jackpost
HJ
- Hex Head Jackscrew
F
- Jackpost, Female
FF
- Fixed Female Jackpost
EJ
- Extended Jackscrew
H
- Hex Head Screwlock
J
- Fillister Head Jackscrew
OMIT for standard knurl head screwlock
Hardware Option
Notes
1. Assembly Identified with manufacturer's name and P/N space permitting.
2. Use Glenair 600-057 band and 600-01 tool.
3. Screwlocks: screws float to allow connctor to engage completely before tightening.
Jackscrews: screws must be tightened simultaneous with connector engagement
4. Shell size 09 may be supplied with optional configuration J dimension of 1.140 max.
Materials/Finish
•
Shell: Aluminum Alloy
•
Jackscrews, Washers, Jackposts: 300 Series Stainless Steel, Passivated
•
See Ordering Info For Finish Options
© 2011 Glenair, Inc.
CAGE Code 06324
Rev. 04.21.17
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
C-40
EMI/RFI Micro-D Split Banding Backshell
with Eliptical Banding Porch

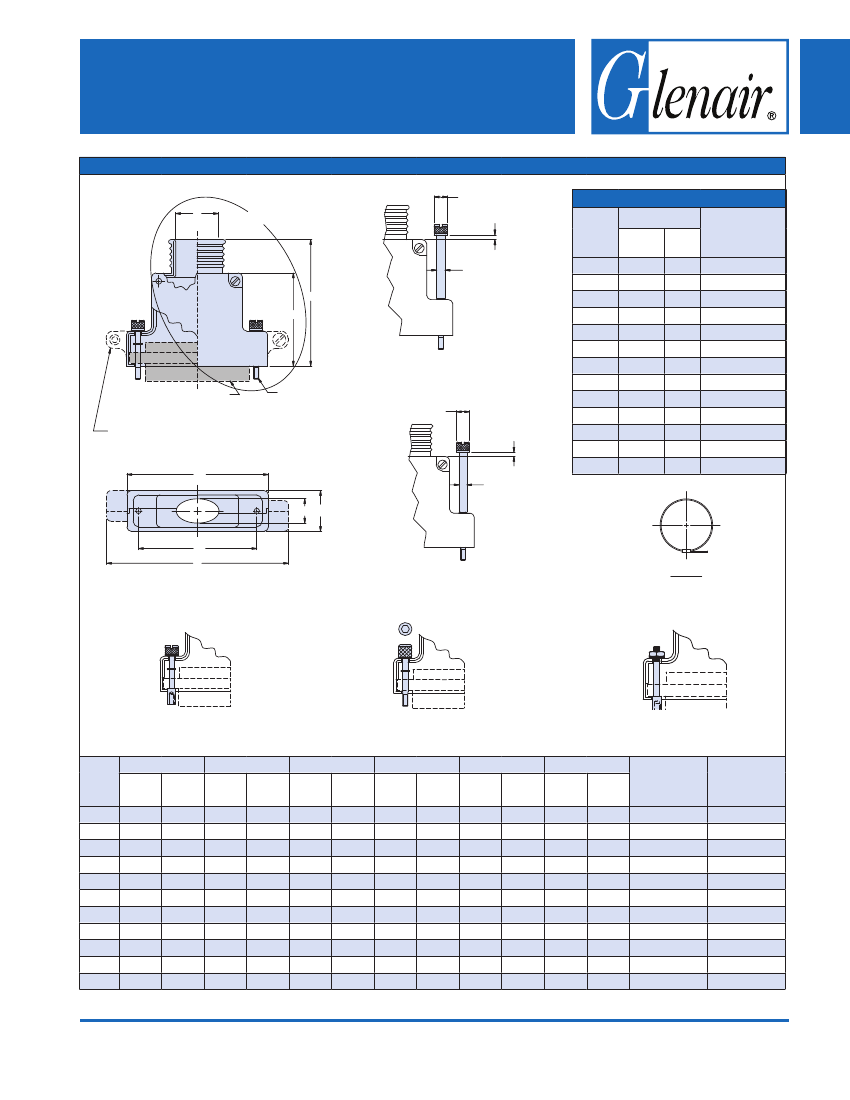

Table I: Dimensions
.187 (4.75) REF
H
A
Table II: Cable Entry Code
H
Code
In.
± .010
.250
.312
.375
.437
.500
.562
.625
.688
.750
.812
.875
.938
1.000
mm.
± 0.25
6.35
7.92
9.53
11.10
12.70
14.27
15.88
Available on
Shell Size
09, 15, 21
15 Thru 31
21 Thru 51
25 Thru 51
25 Thru 51
31 Thru 100
31 Thru 100
.06 (1.5) MIN
.130 (3.30)
E
D
04
05
06
07
08
09
10
11
12
13
Typical Jackscrew
Connector Shown For
Reference Only
G Thread
Typ
Optional Configuration Shell Size 09
See Note 4
A
F C
B
J
See Note 4
.187(4.75) Ref
.06(1.52) Min
17.48
37 Thru 100
19.05
37 Thru 100
20.62 37,51-2,67,69,100
22.23
23.83
25.40
51-2, 67, 69, 100
51-2, 67, 69, 100
51-2, 67, 69, 100
14
15
16
.130(3.30)
Detail A
- Extended Jackscrew detail
for shell size 09
Code K
EMI Band Strap
See Note 2
Code F
Female Jackpost
A Max.
Size
09
15
21
25
31
37
51
51-2
67
69
100
In.
.915
1.065
1.215
1.315
1.465
1.615
1.565
1.965
2.365
1.865
2.305
mm.
23.24
27.05
30.86
33.40
37.21
41.02
39.75
49.91
60.07
47.37
58.55
In.
.565
.715
.865
.965
1.115
1.265
1.215
1.615
2.015
1.515
1.800
B
mm.
14.35
18.16
21.97
24.51
28.32
32.13
30.86
41.02
51.18
38.48
45.72
C Max.
In.
.450
.450
.450
.450
mm.
11.43
11.43
11.43
11.43
Code H
Hex Socket Head Jackscrew
D
In.
±
.010
.701
.763
.795
.857
mm.
±
0.25
17.81
19.38
20.19
21.77
In.
± .020
1.013
1.076
1.107
1.170
E
mm.
±.022
25.73
27.33
28.12
29.72
In.
± .005
.160
.190
.220
.260
F
mm.
± .127
4.06
4.83
5.59
6.60
6.99
7.24
8.89
8.89
8.89
8.89
12.45
Code FF
Fixed Female Jackpost
Available
Dash No.
Table III
04
04-05
04-06
05-08
05-10
06-13
06-12
13-16
13-16
13-16
09-16
Printed in U.S.A.
G Thread
2-56 UNC-2A
2-56 UNC-2A
2-56 UNC-2A
2-56 UNC-2A
2-56 UNC-2A
2-56 UNC-2A
2-56 UNC-2A
2-56 UNC-2A
2-56 UNC-2A
2-56 UNC-2A
4-40 UNC-2A
.450
11.43
.888
22.56
1.201
30.51
.275
.450
11.43
.951
24.16
1.263
32.08
.285
.495
12.57
1.013
25.73
1.326
33.68
.350
.450
11.43
1.013
25.73
1.326
33.68
.350
.450
11.43
1.013
25.73
1.326
33.68
.350
Metric dimensions (mm) are indicated in parentheses
.495
12.57
1.013
25.73
1.326
33.68
.350
.540
13.72
1.076
27.33
1.388
35.26
.490
CAGE Code 06324
© 2011 Glenair, Inc.
Rev. 04.21.17
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
C-41
MIL-DTL-83513
Micro-D
507-178
