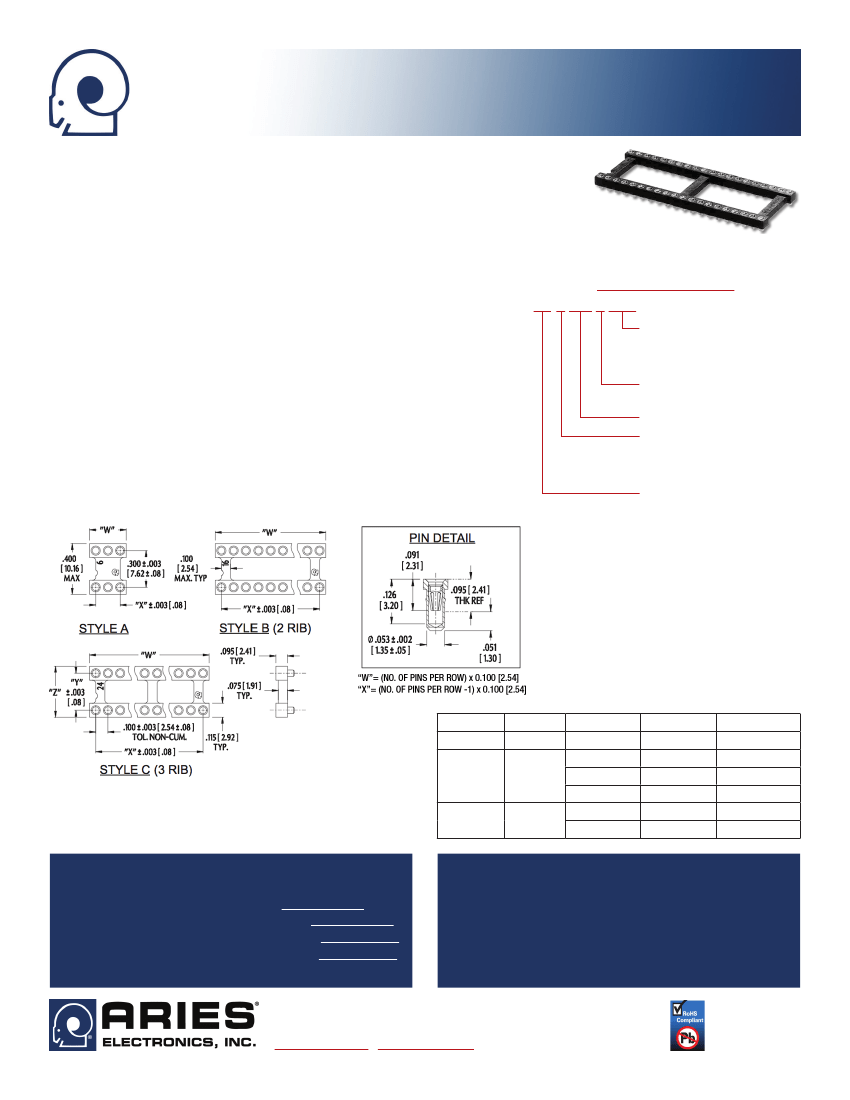

Series 518 Open Frame Socket
w/Collet Contacts & Surface Mount Pins
FEATURES
• Open Frame allows for more efficient utilization of Board Space and Better Cooling
• Compatible with Automatic Insertion Equipment
• Side-to-side and End-to-end Stackable
GENERAL SPECIFICATIONS
•
BODY MATERIAL: Black UL 94V-0 Glass-filled 4/6 Nylon
•
PIN BODY: Brass 360 1/2-hard per UNS C36000 ASTM B16/B16M-05
•
PIN BODY PLATING: 200µ [5.08µ] min. 93/7 Sn/Pb per ASTM B545 –OR–
200µ
[5.08µ] min. Sn per ASTM B545 Type 1 over 100µ [2.54µ] min. Ni per SAE AMS-QQ-
N-290B
•
4-FINGER COLLET CONTACT: BeCu per UNS C17200 ASTM B194-08
•
CONTACT PLATING: 10µ [0.25µ] Au per MIL-G-45204 over 50µ min. [1.27µ] Ni per
SAE AMS-QQ-N-290B
•
CONTACT CURRENT RATING: 3 amps
•
OPERATING TEMPERATURE:
-67°F to 221°F [-55°C to 105°C]
•
INSERTION FORCE: 180g/pin, based on 0.018 [0.46] dia. test lead
•
WITHDRAWAL FORCE: 90g/pin, based on 0.018 [0.46] dia. test lead
•
NORMAL FORCE: 140g/pin, based on 0.018 [0.46] dia. test lead
•
ACCEPTS LEADS: 0.015-0.025 [0.38-0.64] dia., 0.100-0.125 [2.54-3.18] long
ORDERING INFORMATION
XX-X 518 X XXX
Plating
0 = Au Collet, Sn Shell
0TL = Au Collet, Sn/Pb Shell
1 = Au Collet & Shell
Termination
0 = Surface Mount
Series
Row-to-Row Spacing,
“Y” Dim.
3 = 0.300 [7.62]
4 = 0.400 [10.16]
6 = 0.600 [15.24]
No. of Pins
(See Table)
MOUNTING CONSIDERATIONS
•
SUGGESTED PCB HOLE SIZE:
0.045 ±0.002 [1.14 ±0.05] dia.
Frame Style No. of Ribs Centers “Y”
A
1
0.300 [7.62]
0.300 [7.62]
B
2
0.400 [10.16]
0.300 [7.62]
C
3
0.400 [10.16]
0.600 [15.24]
ALL DIMENSIONS: INCHES [MILLIMETERS]
ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED
OPEN FRAME COLLET SOCKET w/WIRE WRAP, SEE DATA SHEET 12016
OPEN FRAME COLLET SOCKET w/SOLDER PIN TAILS, SEE DATA SHEET 12017
OPEN FRAME COLLET CAPACITOR SOCKET w/SOLDER PIN, SEE DATA SHEET 12026
OPEN FRAME COLLET CAPACITOR SOCKET w/WIRE WRAP, SEE DATA SHEET 12027
CONSULT FACTORY FOR OTHER SIZES AND CONFIGURATIONS
2609 Bartram Road
•
Bristol, PA 19007-6810 USA
TEL 215-781-9956
•
FAX 215-781-9845
WWW.ARIESELEC.COM
•
INFO@ARIESELEC.COM
Dim. “Z”
No. of Pins
0.400 [10.16]
6
0.400 [10.16] 8, 14, 16, 18, 20
0.500 [12.70]
20, 22
0.400 [10.16]
24, 28
0.500 [12.70]
24
0.700 [17.78]
24, 28, 32
CUSTOMIZATION: ARIES SPECIALIZES IN CUSTOM DESIGN AND PRODUCTION.
SPECIAL MATERIALS, PLATINGS, SIZES, AND CONFIGURATIONS CAN BE
FURNISHED, DEPENDING ON QUANTITY.
ARIES RESERVES THE RIGHT TO CHANGE PRODUCT GENERAL SPECIFICATIONS
WITHOUT NOTICE
PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE
CONSIDERED UNCONTROLLED
12018
Rev. 6.1
1 of 1
