MS25043-8D: CategoryThe connector Connector bracket; File Size75KB，1 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

MS25043-8D Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MS25043-8D	-	-	View	Buy Now

MS25043-8D Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Factory Lead Time	8 weeks
Connector bracket type	CONNECTOR ACCESSORY
Manufacturer's serial number	MS25043
Base Number Matches	1

Preview

Download Datasheet

View All

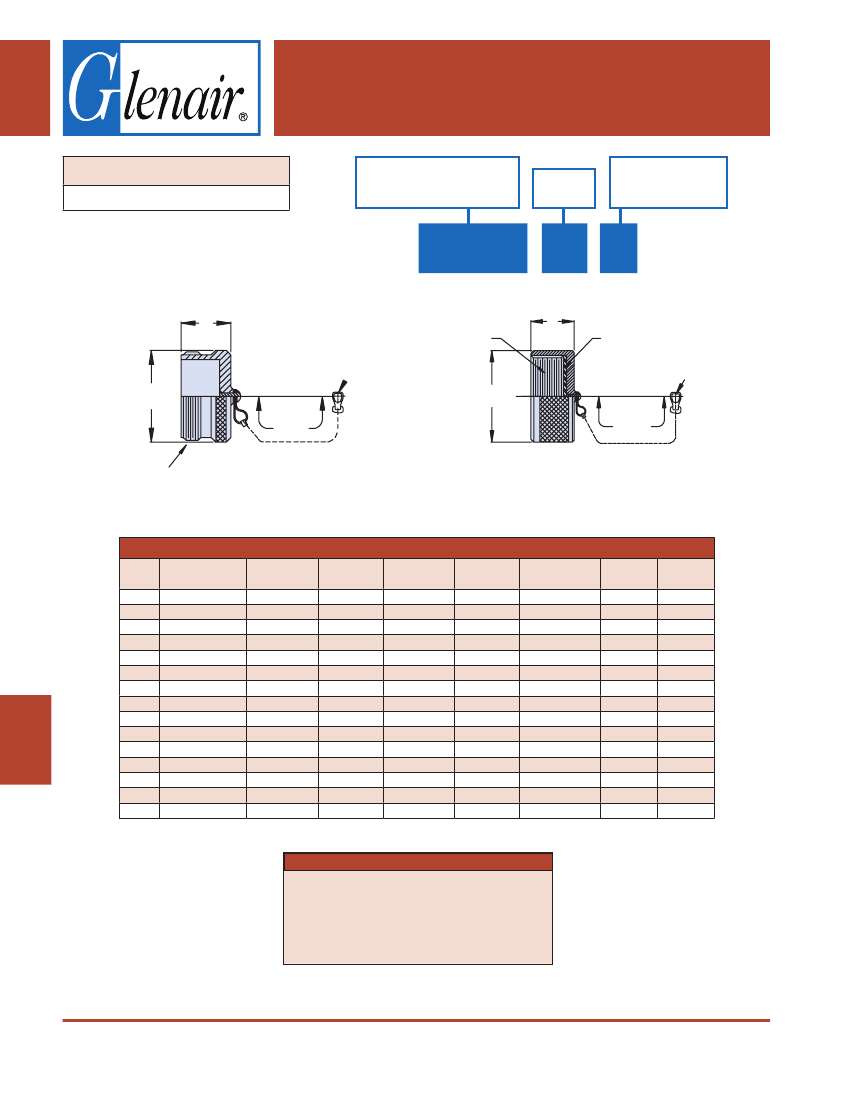

G

Misc. Backshells

and Accessories

MATING CONNECTOR

AS50151

AS25042 and AS25043

Protective Plug and ReceptacleCovers

Basic Part Number

MS25042

= Plug Cover

MS25043

= Receptacle Cover

Finish

D

= Cadmium, O.D.

DA

= Black Anodize

Shell Size

(Table I)

MS25042

-

20

G

Attachment

L Dia

F

K

E Thread

J

E Thread

D

Gasket

Attachment

M Dia

H

K

MS25042 Plug Cover

MS25043 Receptacle Cover

TABLE I: Shell Size, Thread, Attachment and Dimensions

Shell

Size

8

10

12

14

16

18

20

22

24

28

32

36

40

44

48

E

Thread

1/2- 28 UNEF

5/8- 24 UNEF

3/4- 20 UNEF

7/8- 20 UNEF

1- 20 UNEF

1 1/8- 18 UNEF

1 1/4- 18 UNEF

1 3/8- 18 UNEF

1 1/2- 18 UNEF

1 3/4- 18 UNS

2- 18 UNS

2 1/4- 16 UN

2 1/2- 16 UN

2 3/4- 16 UN

3- 16 UN

F Dia

Max

.562 (14.3)

.687 (17.4)

.812 (20.6)

.937 (23.8)

1.062 (27.0)

1.187 (30.1)

1.312 (33.3)

1.437 (36.5)

1.562 (39.7)

1.812 (46.0)

2.062 (52.4)

2.312 (58.7)

2.562 (65.1)

2.812 (71.4)

3.062 (77.8)

G

Max

.656 (16.7)

.844 (21.4)

H

Max

.688 (17.5)

.815 (20.7)

1.000 (25.4)

1.125 (28.6)

1.188 (30.2)

1.344 (34.1)

1.469 (37.3)

1.594 (40.5)

1.719 (43.7)

1.969 (50.0)

2.219 (56.4)

2.469 (62.7)

2.719 (69.1)

2.969 (75.4)

3.188 (81.0)

J

K Attachment

Max

Length

(Inches)

.469 (11.9)

4.00 (101.6)

.469 (11.9)

4.00 (101.6)

.469 (11.9)

4.50 (114.3)

.469 (11.9)

4.50 (114.3)

.469 (11.9)

4.50 (114.3)

.469 (11.9)

4.50 (114.3)

.469 (11.9)

5.00 (127.0)

.469 (11.9)

5.00 (127.0)

.469 (11.9)

5.50 (139.7)

.531 (13.5)

7.75 (196.9)

.531 (13.5)

7.75 (196.9)

.531 (13.5)

7.75 (196.9)

.531 (13.5)

7.75 (196.9)

.531 (13.5)

7.75 (196.9)

.531 (13.5)

7.75 (196.9)

L Dia

Min

.151 (3.8)

.182 (4.6)

.213 (5.4)

M Dia

Min

.135 (3.4)

.166 (4.2)

.182 (4.6)

APPLICATION NOTES

1.

2.

3.

Assembly identified with manufacturer’s name

and part number, space permitting.

For complete dimensions, see the applicable

Military Specification.

Metric dimensions (mm) are in parentheses.

Dimensions in inches (millimeters) and are subject to change without notice.

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

G-2

E-Mail: sales@glenair.com
