EL4332C
EL4332C
Triple 2:1 300 MHz Mux-Amp AV =2
Features
•
•
•
•
•
3 ns A-B switching
300 MHz bandwidth
Fixed gain of 2, for cable driving
> 650V/µs slew rate
TTL/CMOS compatible switch
General Description
The EL4332C is a triple very high speed 2:1 Multiplexer-Amplifier. It
is intended primarily for component video multiplexing and is espe-
cially suited for pixel switching. The amplifiers have their gain set to 2
internally, which reduces the need for many external components. The
gain-of-2 facilitates driving back terminated cables. All three amplifi-
ers are switched simultaneously from their A to B inputs by the
TTL/CMOS compatible, common A/B control pin.
A -3 dB bandwidth of 300 MHz together with 3 ns multiplexing time
enable the full performance of the fastest component video systems to
be realized.
The EL4332C runs from standard ±5V supplies, and is available in the
narrow 16-pin small outline package.
Applications
•
•
•
•
•
•
RGB multiplexing
Picture-in-picture
Cable driving
HDTV processing
Switched gain amplifiers
ADC input multiplexer
Ordering Information
Part No.
EL4332CS
Temp. Range
-40°C to 85°C
Package
SO16
Outline #
MDP0027
Connection Diagrams
Demo Board
A demo PCB is available for this prod-
uct. Request “EL4332/1 Demo Board.”
November 12, 1999
© 1995 Elantec, Inc.
EL4332C
EL4332C
Triple 2:1 300 MHz Mux-Amp AV =2
Absolute Maximum Ratings
(T
V
CC
to V
EE
V
CC
to any GND
V
EE
to any GND
Continuous Output Current
Any Input
A
= 25 °C)
14V
12V
12V
45 mA
V
EE
- 0.3V to V
CC
+ 0.3V
Input Current, Any Input
Power Dissipation
Operating Temperature
Junction Temperature
Storage Temperature
5 mA
See Curves
-40°C to 85°C
170°C
-60°C to +150°C
Important Note:
All parameters having Min/Max specifications are guaranteed. The Test Level column indicates the specific device testing actually performed during
production and Quality inspection. Elantec performs most electrical tests using modern high-speed automatic test equipment, specifically the LTX77
Series system. Unless otherwise noted, all tests are pulsed tests, therefor T
J
= T
C
= T
A
.
Test Level
I
II
III
IV
V
Test Procedure
100% production tested and QA sample tested per QA test plan QCX0002.
100% production tested at T
A
= 25°C and QA sample tested at T
A
= 25°C, T
MAX
and T
MIN
per QA test plan QCX0002.
QA sample tested per QA test plan QCX0002.
Parameter is guaranteed (but not tested) by Design and Characterization Data.
Parameter is typical value at T
A
= 25°C for information purposes only.
DC Electrical Characteristics
V
CC
= +5V, V
EE
= -5V, Temperature = 25°C, R
L
= ×
Parameter
V
OS
dV
OS
R
IN
I
B
dI
B
A
V
dA
V
C
IN
PSRR
V
O
I
OUT
Xtalk
AB
Xtalk
CH-CH
V
IH
V
IL
I
IL
I
IH
I
S
Description
Input Referred Offset Voltage
Input Referred Offset Voltage Delta
Input Resistance
Input Bias Current
Input Bias Current Delta
[1]
Gain
Gain Delta
[1]
[1]
Min
Typ
8
2
30
-7
0.5
Max
20
8
-30
4.0
2.06
2.5
Test Level
II
II
V
II
II
II
II
V
II
II
V
II
III
V
II
Units
mV
mV
kΩ
µA
µA
V/V
%
pF
dB
V
V
mA
dB
dB
V
V
µA
µA
mA
1.94
2.00
0.5
3.3
Input Capacitance
Power Supply Rejection Ratio
Output Voltage Swing into 500Ω load
Output Voltage Swing into 150Ω load
Current Output, Measured with 75W Load
Crosstalk from Non-selected Input (at DC)
Crosstalk from one Amplifier to another Amplifier
Input Logic High Level
Input Logic Low Level
Logic Low Input Current (V
IN
= 0V)
Logic High Input Current (V
IN
= 0V)
Total Supply Current
-0.3
-3
38
[2]
50
±2.7
70
±3.6
+3/-2.7
30
-70
-70
2.0
40
-100
-100
0.8
-40
0
48
-80
3
60
II
II
II
II
1. Each channel’s A-input to its B-input.
2. There is no short circuit protection on any output.
2
EL4332C
EL4332C
Triple 2:1 300 MHz Mux-Amp AV =2
AC Electrical Characteristics
V
CC
= +5V, V
EE
= -5V, Temperature = 25°C, R
L
= 150Ω, C
L
= 3 pF.
Parameter
BW
BW 0.1dB
DG
DP
Pkg
SR
t
s
T
SW
OS
I
SO
ab
I
SO
ch-ch
10M
100M
10M
100M
-3 dB Bandwidth
±0.1 dB Bandwidth
Differential Gain at 3.58 MHz
Differential Phase at 3.58 MHz
Peaking with Nominal Load
Slew Rate (4V Square Wave, Measured 25%–75%)
Settling Time to 0.1% of Final Value
Time to Switch Inputs
Overshoot, V
OUT
= 4 V
P-P
Input to Input Isolation at 10 MHz
Input to Input Isolation at 100 MHz
Channel to Channel Isolation at 10 MHz
Channel to Channel Isolation at 100 MHz
Description
Min
Typ
300
105
0.04
0.08
0.2
650
13
3
8
60
40
61
50
Max
Test Level
V
V
V
V
V
V
V
V
V
V
V
V
V
Units
MHz
MHz
%
°
dB
V/µs
ns
ns
%
dB
dB
dB
dB
Pin Descriptions
Pin Name
A1, A2, A3
B1, B2, B3
GND1, GND2, GND3
Out1, Out2, Out3
V
CC
V
EE
A/B
“A” inputs to amplifiers 1, 2 and 3 respectively
“B” inputs to amplifiers 1, 2 and 3 respectively
These are the individual ground pins for each channel.
Amplifier outputs. Note: there is no short circuit protection on any output.
Positive power supply. Typically +5V.
Negative power supply. Typically -5V.
Common input select pin, a logic high selects the “A” inputs, logic low selects the “B” inputs. CMOS/TTL compatible.
Function
3
EL4332C
EL4332C
Triple 2:1 300 MHz Mux-Amp AV =2
Burn In Schematic
4
EL4332C
EL4332C
Triple 2:1 300 MHz Mux-Amp AV =2

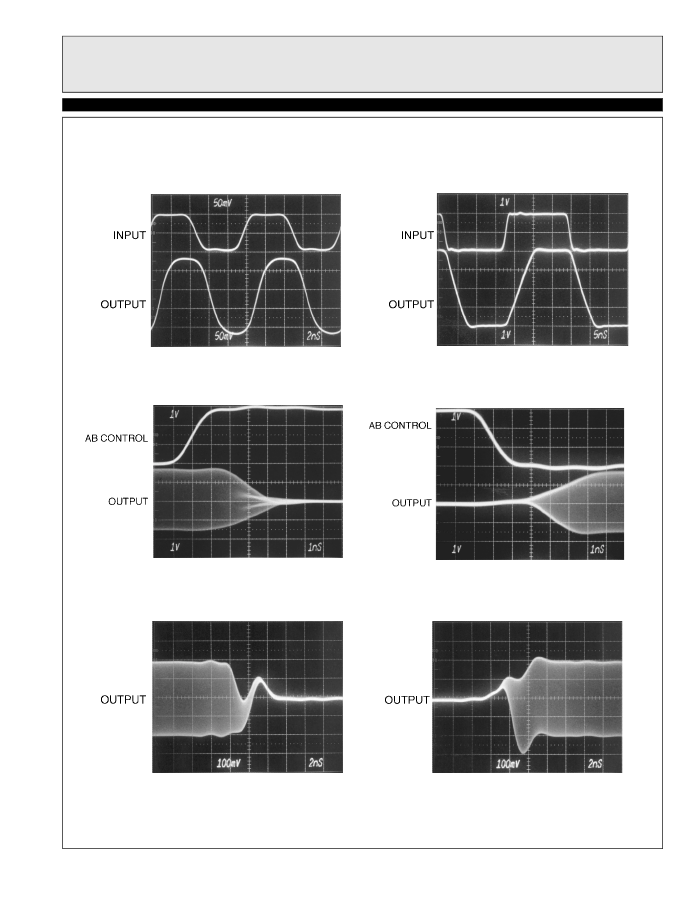

Typical Performance Curves
Small Signal Transient Response
Large Signal Transient Response
Switching to Ground from a Large
Signal Uncorrelated Sine Wave
Switching from Ground to a Large
Signal Uncorrelated Sine Wave
Switching to Ground from a Small
Signal Uncorrelated Sine Wave
Switching from Ground to a Small
Signal Uncorrelated Sine Wave
5
