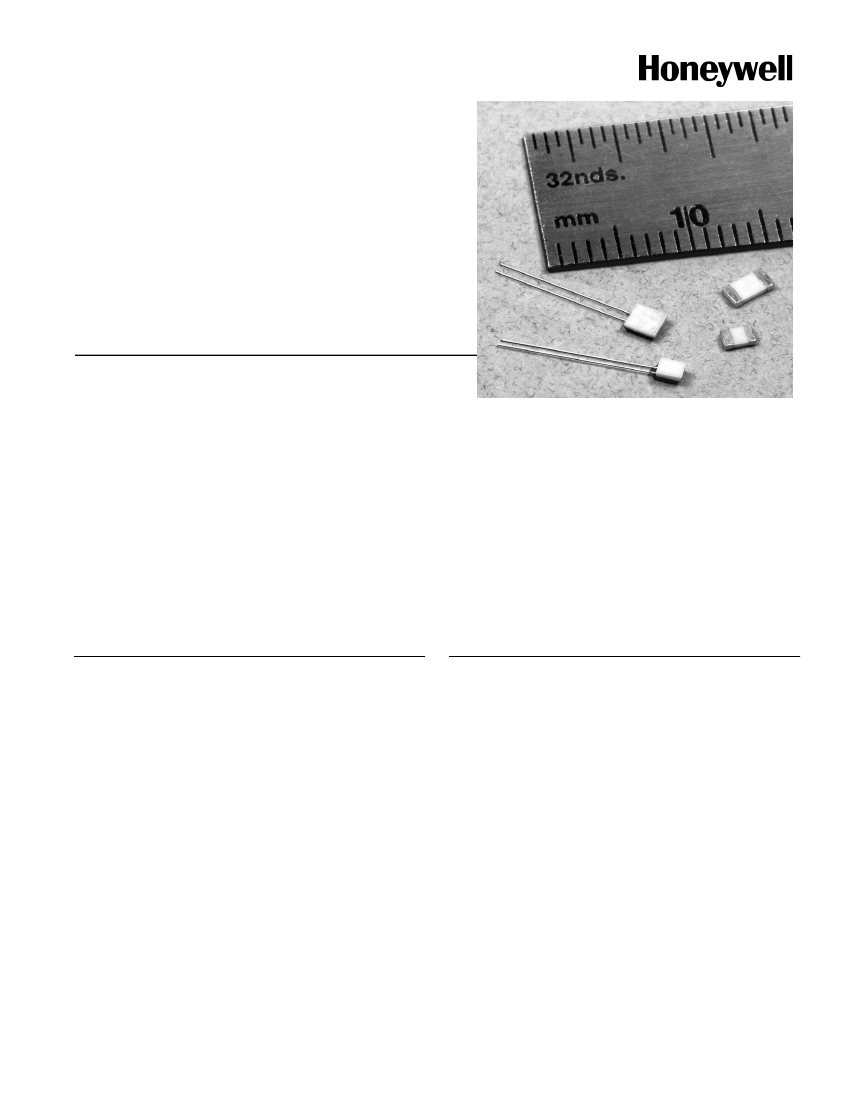

700 Series Platinum RTDs
SPECIFICATIONS
Temperature
range
Leads
Long-term
stability
Vibration
resistance
Shock
resistance
Environmental
conditions
Insulation
resistance
Self heating
Response time
Measuring current
Packaging
700-*
Class B and 2B: -70 °C to 500 °C (continuous
operation)
Class A: -30 °C to 300 °C
Pt-clad Ni wire
max. R
0
drift 0.04% after 1000 h at 500 °C
at least 40 g acceleration at 10 Hz to 2000 Hz,
depends on installation
at least 100 g acceleration with 8 ms half sine
wave, depends on installation
unhoused for dry environments only
>100 MΩ at 20 °C; >2 MΩ at 500 °C
0.4 K/mW at 0 °C
water current (v=0.4 m/s): t
0.5
=0.05 s; t
0.9
=0.15 s
air stream (V=2 m/s): t
0.5
=3.0 s; t
0.9
=10.0 s
100
Ω:
0.3 mA to 1.0 mA
1000
Ω:
0.1 mA to 0.3 mA
anti-static plastic bag
702-*
Class B: -50 °C to 130 °C (continuous operation)
end-termination galvanic tin-plated with Ni barrier
layer
max. R
0
drift 0.06 % after 1000 h at 130 °C
unhoused for dry environments only
>100 MΩ at 20 °C; >2 MΩ at 130 °C (glass
covering)
0.8 K/mW at 0 °C
water current (v=0.4 m/s): t
0.5
=0.10 s; t
0.9
=0.25 s
air stream (V = 2 m/s): t
0.5
=2.5 s; t
0.9
=8.0 s
100
Ω:
0.3 mA to 1.0 mA
1000
Ω:
0.1 mA to 0.3 mA
face up mounting: reflow soldering or wave
soldering, e.g. double wave
≤8
s/235 °C
face-up in blister reel
701-*
Class B and 2B: -70 °C to 500 °C (continuous
operation)
Class A: -30 °C to 300 °C
Pt-clad Ni wire
max. R
0
drift 0.04% after 1000 h at 500 °C
at least 40 g acceleration at 10 Hz to 2000 Hz,
depends on installation
at least 100 g acceleration with 8 ms half sine
wave, depends on installation
unhoused for dry environments only
>100 MΩ at 20 °C; >2 MΩ at 500 °C
0.6 K/mW at 0 °C
water current (v=0.4 m/s): t
0.5
=0.04 s; t
0.9
=0.12 s
air stream (V=2 m/s): t
0.5
=2.2 s; t
0.9
=7.0 s
100
Ω:
0.3 mA to 1.0 mA
1000
Ω:
0.1 mA to 0.3 mA
anti-static plastic bag
703-*
Class B: -50 °C to 130 °C (continuous operation)
end-termination galvanic tin-plated with Ni barrier
layer
max. R
0
drift 0.06 % after 1000 h at 130 °C
unhoused for dry environments only
>100 MΩ at 20 °C; >2 MΩ at 130 °C (glass
covering)
0.4 K/mW at 0 °C
water current (v=0.4 m/s): t
0.5
=0.15 s; t
0.9
=0.30 s
air stream (V = 2 m/s): t
0.5
=3.5 s; t
0.9
=10.0 s
100
Ω:
0.3 mA to 1.0 mA
1000
Ω:
0.1 mA to 0.3 mA
face up mounting: reflow soldering or wave
soldering, e.g. double wave
≤8
s/235 °C
face-up in blister reel
Temperature
range
Soldering
connection
Long-term
stability
Environmental
conditions
Insulation
resistance
Self heating
Response time
Measuring current
Processing
instructions
Packaging
2
www.honeywell.com/sensing
ORDER GUIDE
Catalog Listing
700-101BAA-B00
700-101BAB-B00
700-102AAB-B00
700-102AAC-B00
700-102BAA-B00
700-102BAB-B00
701-101BAA-B00
701-101BAB-B00
701-102AAB-B00
701-102BAB-B00
702-101BBB-A00
702-102BBB-A00
703-101BBB-A00
703-102BBB-A00
Package Style and Size
mm [in]
Chip, 2,1 w x 2,3 l x 0,9 thk
[0.083 w x 0.091 l x 0.035 thk]
Chip, 2,1 w x 2,3 l x 0,9 thk
[0.083 w x 0.091 l x 0.035 thk]
Chip, 2,1 w x 2,3 l x 0,9 thk
[0.083 w x 0.091 l x 0.035 thk]
Chip, 2,1 w x 2,3 l x 0,9 thk
[0.083 w x 0.091 l x 0.035 thk]
Chip, 2,1 w x 2,3 l x 0,9 thk
[0.083 w x 0.091 l x 0.035 thk]
Chip, 2,1 w x 2,3 l x 0,9 thk
[0.083 w x 0.091 l x 0.035 thk]
Chip, 1,2 w x 1,7 l x 0,9 thk
[0.047 w x 0.067 l x 0.035 thk]
Chip, 1,2 w x 1,7 l x 0,9 thk
[0.047 w x 0.067 l x 0.035 thk]
Chip, 1,2 w x 1,7 l x 0,9 thk
[0.047 w x 0.067 l x 0.035 thk]
Chip, 1,2 w x 1,7 l x 0,9 thk
[0.047 w x 0.067 l x 0.035 thk]
SMD 0805, 1,4 w x 2,3 l x 0,52 thk
[0.055 w x 0.091 l x 0.020]
SMD 0805, 1,4 w x 2,3 l x 0,52 thk
[0.055 w x 0.091 l x 0.020]
SMD 1206, 1,65 w x 3,25 l x 0,6 thk
[0.065 w x 0.128 l x 0.024]
SMD 1206, 1,65 w x 3,25 l x 0,6 thk
[0.065 w x 0.128 l x 0.024]
Nominal
Temp.
Temp.
Tolerance
Resistance Coefficient
Range
@ 0 °C
(°C)
3850 ppm/K -70 to 500 DIN EN 60751, class A
100
Ω
(R
0
: ±0.06 %)
3850 ppm/K -70 to 500 DIN EN 60751, class B
100
Ω
(R
0
: ±0.12 %)
3750 ppm/K -70 to 500 DIN EN 60751, class B
1000
Ω
(R
0
: ±0.12 %)
3750 ppm/K -70 to 500 DIN EN 60751, class 2B
1000
Ω
(R
0
: ±0.24 %)
3850 ppm/K -70 to 500 DIN EN 60751, class A
1000
Ω
(R
0
: ±0.06 %)
3850 ppm/K -70 to 500 DIN EN 60751, class B
1000
Ω
(R
0
: ±0.12 %)
3850 ppm/K -70 to 500 DIN EN 60751, class A
100
Ω
(R
0
: ±0.06 %)
3850 ppm/K -70 to 500 DIN EN 60751, class B
100
Ω
(R
0
: ±0.12 %)
3750 ppm/K -70 to 500 DIN EN 60751, class B
1000
Ω
(R
0
: ±0.12 %)
3850 ppm/K -70 to 500 DIN EN 60751, class B
1000
Ω
(R
0
: ±0.12 %)
3850 ppm/K -50 to 130 DIN EN 60751, class B
100
Ω
(R
0
: ±0.12 %)
3850 ppm/K -50 to 130 DIN EN 60751, class B
1000
Ω
(R
0
: ±0.12 %)
3850 ppm/K -50 to 130 DIN EN 60751, class B
100
Ω
(R
0
: ±0.12 %)
3850 ppm/K -50 to 130 DIN EN 60751, class B
1000
Ω
(R
0
: ±0.12 %)
Termination
Bare Pt-clad Ni wire, adjacent
leads
Bare Pt-clad Ni wire, adjacent
leads
Bare Pt-clad Ni wire, adjacent
leads
Bare Pt-clad Ni wire, adjacent
leads
Bare Pt-clad Ni wire, adjacent
leads
Bare Pt-clad Ni wire, adjacent
leads
Bare Pt-clad Ni wire, adjacent
leads
Bare Pt-clad Ni wire, adjacent
leads
Bare Pt-clad Ni wire, adjacent
leads
Bare Pt-clad Ni wire, adjacent
leads
End termination, galvanic Sn-
plated with Ni barrier layer
End termination, galvanic Sn-
plated with Ni barrier layer
End termination, galvanic Sn-
plated with Ni barrier layer
End termination, galvanic Sn-
plated with Ni barrier layer
WARNING
PERSONAL INJURY
DO NOT USE these products as safety or emergency stop devices
or in any other application where failure of the product could result in
personal injury.
