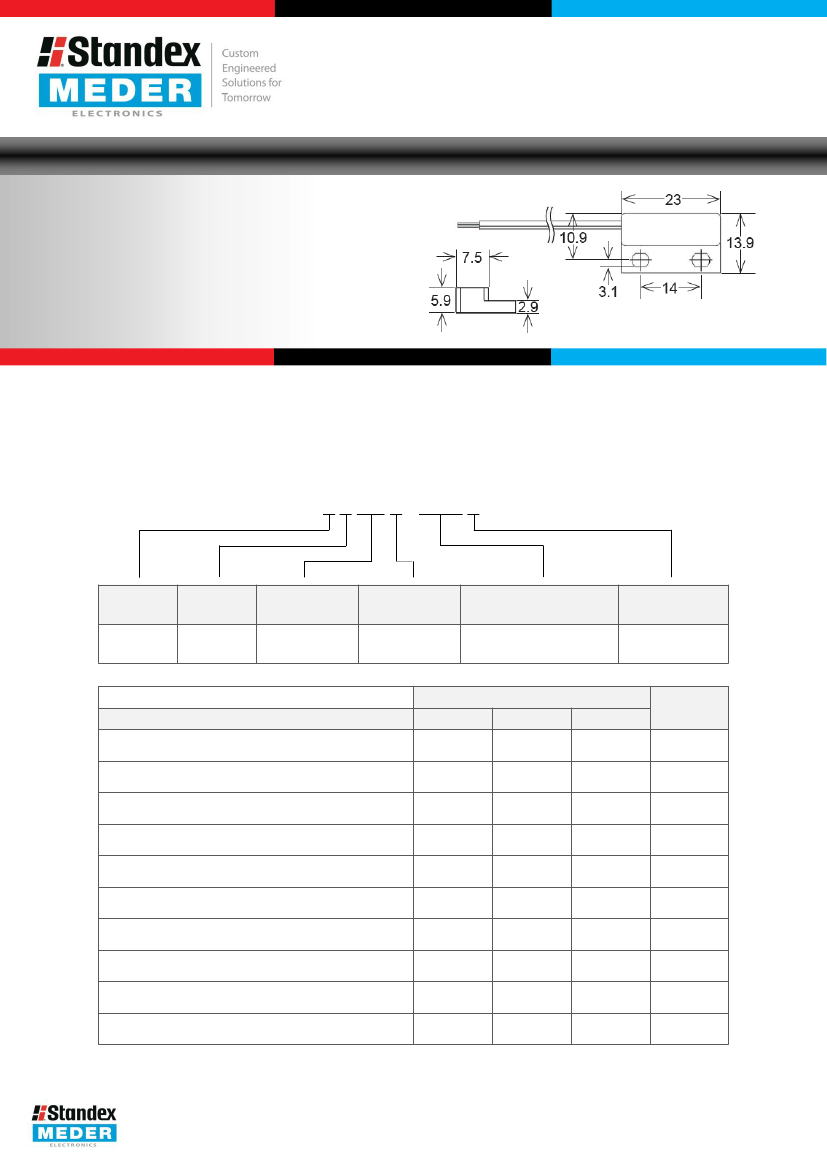

Series Datasheet – MK04 Reed Sensors
www.standexmeder.com
MK04 Series
Reed Sensors
Features: Standard Screw Fastening Reed Sensor with Cable Termination, Five Operation Sensitivities
Applications: Door & Window Contacts, Pneumatic or Hydraulic Actuator Position Indication & Others
Markets: Appliance, Industrial, Security & Others
Part Description:
MK 04-0X00X-000X
Contact
QTY
01
Contact
Form
A, B, C
Switch Model
66, 75, 90
Magnetic
Sensitivity
B, C, D, E, F, G
Cable Length
(mm)
Termination
W
200, 300, 500, 1,000,
1,500, 2,000, 3,000, 5,000
Switch Model
Customer Options
Contact Data
Rated Power (max.)
Any DC combination of V&A not to exceed their individual max.’s
66
10
200
0.5
1.0
150
0.25
0.7
0.05
10
10
0.3
75
10
500
0.5
1.0
200
1.5
90
10
175
0.5
1.0
150
0.2
0.7
1.5
10
9
1.5
Unit
W
V
A
A
mOhm
kVDC
ms
ms
GOhm
pF
Switching Voltage (max.)
DC or peak AC
Switching Current (max.)
DC or peak AC
Carry Current (max.)
DC or peak AC
Contact Resistance (max.)
@ 0.5V & 50mA
Breakdown Voltage (min.)
According to EN60255-5
Operating Time (max.)
Incl. Bounce; Measured with w/ Nominal Voltage
0.5
0.1
10
10
0.4
Release Time (max.)
Measured with no Coil Excitation
Insulation Resistance (typ.)
Rh<45%, 100V Test Voltage
Capacitance (typ.)
@ 10kHz across open Switch
USA:
Europe:
Asia:
+1.866.782.6339
+49.7731.8399.0
+86.21.37820625
│
salesusa@standexmeder.com
│ info@standexmeder.com
│ salesasia@standexmeder.com
Version 01
27.01.2015
Modifications in the sense of technical progress are reserved.
A Global Leader in the Design, Development, and
Manufacture of Sensor and Magnetic Components

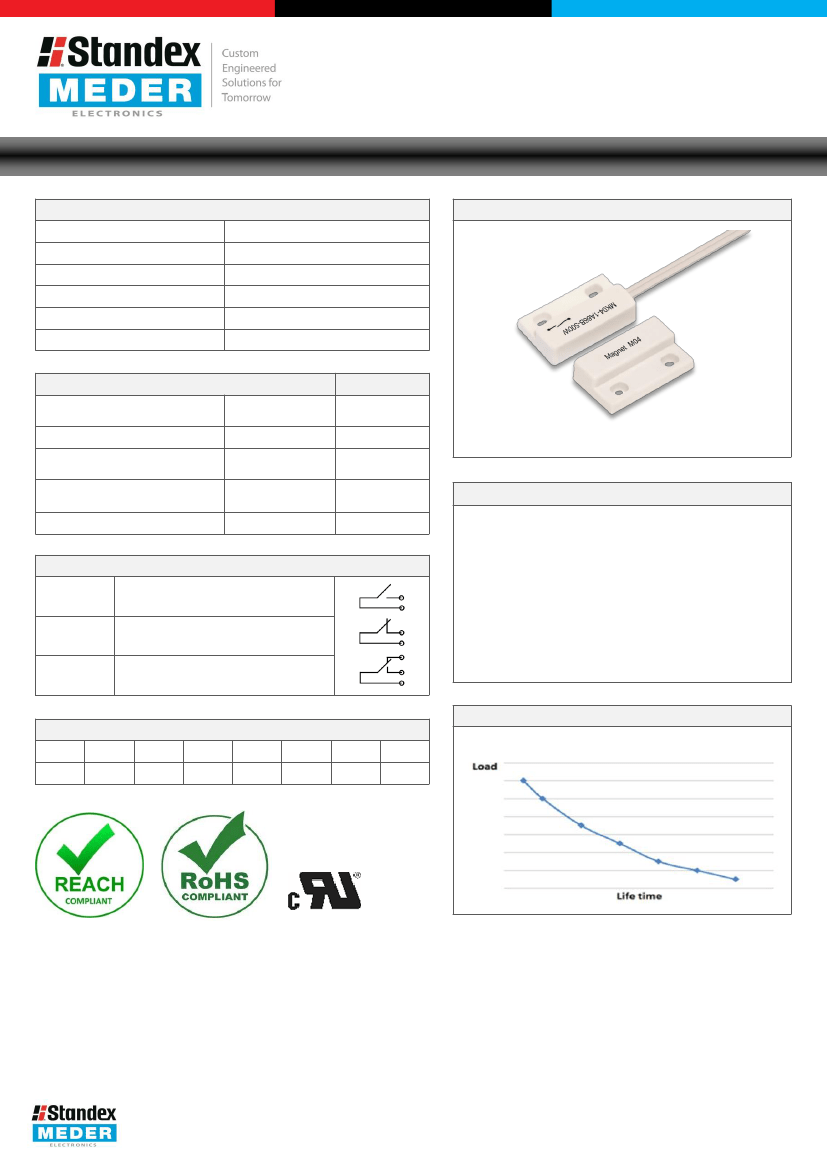

Series Datasheet – MK04 Reed Sensors
Housing and Cable Specifications
Housing Material
Case Color
Sealing Compound
Cable Typ
Cable Material
Cross Section (mm²)
PBT Glass Fibre Reinforced
White
Polyurethan
Flat Cable
PVC
2 x 0.14 / 3x0,14
www.standexmeder.com
MK04 Reed Sensor
Environmental Data
Shock Resistance (max.)
1/2 sine wave duration 11ms
Unit
50
20
-05 to 70
-30 to 70
-30 to 70
g
g
°C
°C
°C
Vibration Resistance (max.)
Operating Temperature
Cable not moved
Operating Temperature
Cable moved
Handling & Assembly Instructions
Max torque of screw is 1Nm
Cable bending-radius is diameter x 15
Min. bending distance to housing is 5mm
Drag mark out of the mounting area forbidden
Decrease switching distance by mounting on iron
Do not use magnetically inductive screws
Series resistor recommended for > 5m cable length
Storage Temperature
Glossary Contact Form
Form A
Form B
Form C
NO = Normally Open Contacts
SPST = Single Pole Single Throw
NC = Normally Closed Contacts
SPST = Single Pole Single Throw
Changeover
SPDT = Single Pole Double Throw
Glossary Magnetic Sensitivity
Sens.
AT
A
05-10
B
10-15
C
15-20
D
20-25
E
25-30
F
30-35
G
35-40
Life Test Data
*Load increase reduces life expectancy of Reed Switches
