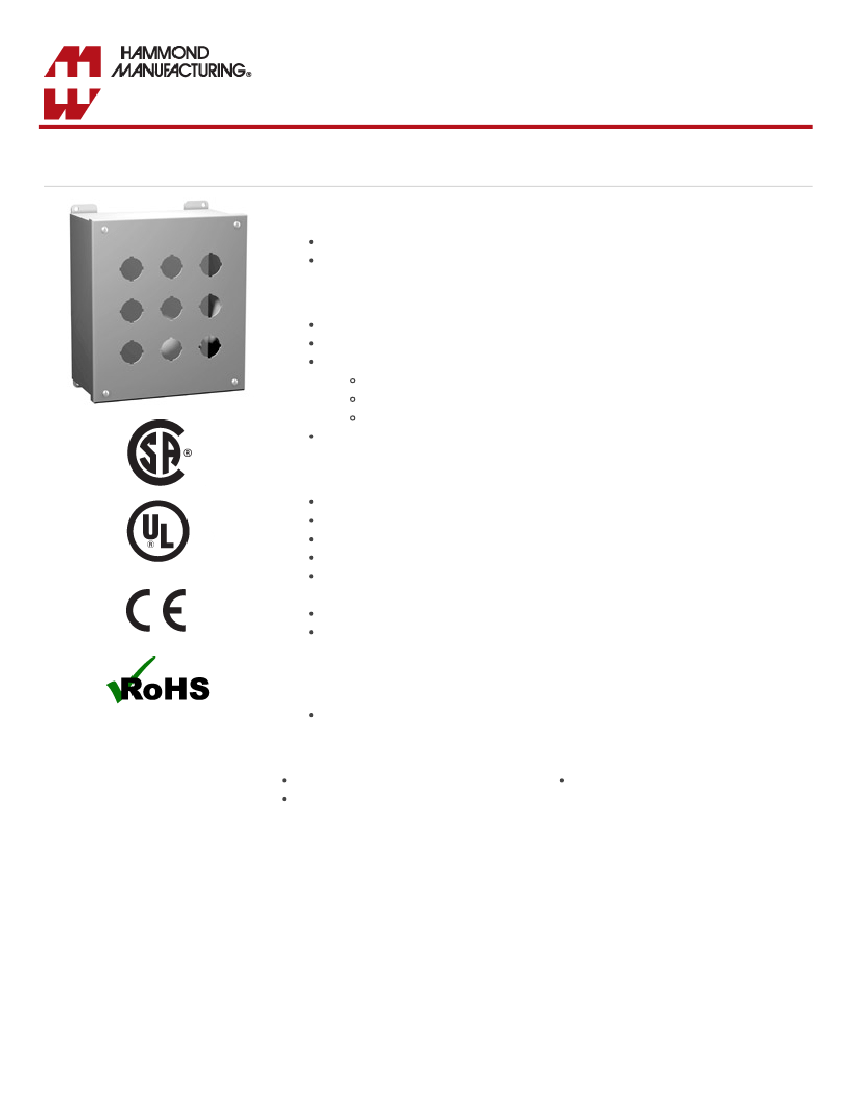

Type 12 Mild Steel Pushbutton Enclosures
1437 Series
Extra Deep
Application
Designed to accept standard heavy duty oil tight pushbuttons, switches and pilot lights.
Provides protection from dirt, dust, oil and water.
Standards
UL 508A Type 12 and 13
CSA Enclosure 12 and 13
Complies with
NEMA Type 12 and 13
IEC 60529, IP54
JIC STD EGP-1-1967
Appropriate components are required to maintain these standards.
Construction
Formed from 14 gauge steel except A which is 16 gauge.
Smooth continuously welded seams.
Welded brackets provide for enclosure mounting.
Captive cover screws fasten into threaded, sealed wells.
Larger enclosures provide internally hinged removable covers, designed to hold the cover
open during wiring (see table).
Oil resistant gasket and adhesive.
A bonding stud is provided on the door and a grounding stud is provided on the
enclosure.
Finish
Cover and enclosure are phosphatized and finished in ANSI 61 gray powder coating.
Accessories
Hole Plugs
Ground Wire Kits
Pedestal and Base
https://www.hammfg.com/electrical/products/operator/1437
1/3
11/26/2017
Type 12 Mild Steel Pushbutton Enclosures (1437 Series) - Hammond Mfg.
https://www.hammfg.com/electrical/products/operator/1437
2/3
11/26/2017
Part No.
30.5mm
1437A¹
1437B
1437C
1437D
1437F
1437H
1437K
1437O
1437S
1437V
1437X
¹ Not hinged
22.5mm
1437MA¹
1437MB
1437MC
1437MD
1437MF
1437MH
1437MK
1437MO
1437MS
1437MV
1437MX
No. Of
Holes
1
2
3
4
4
6
9
12
16
20
25
Type 12 Mild Steel Pushbutton Enclosures (1437 Series) - Hammond Mfg.

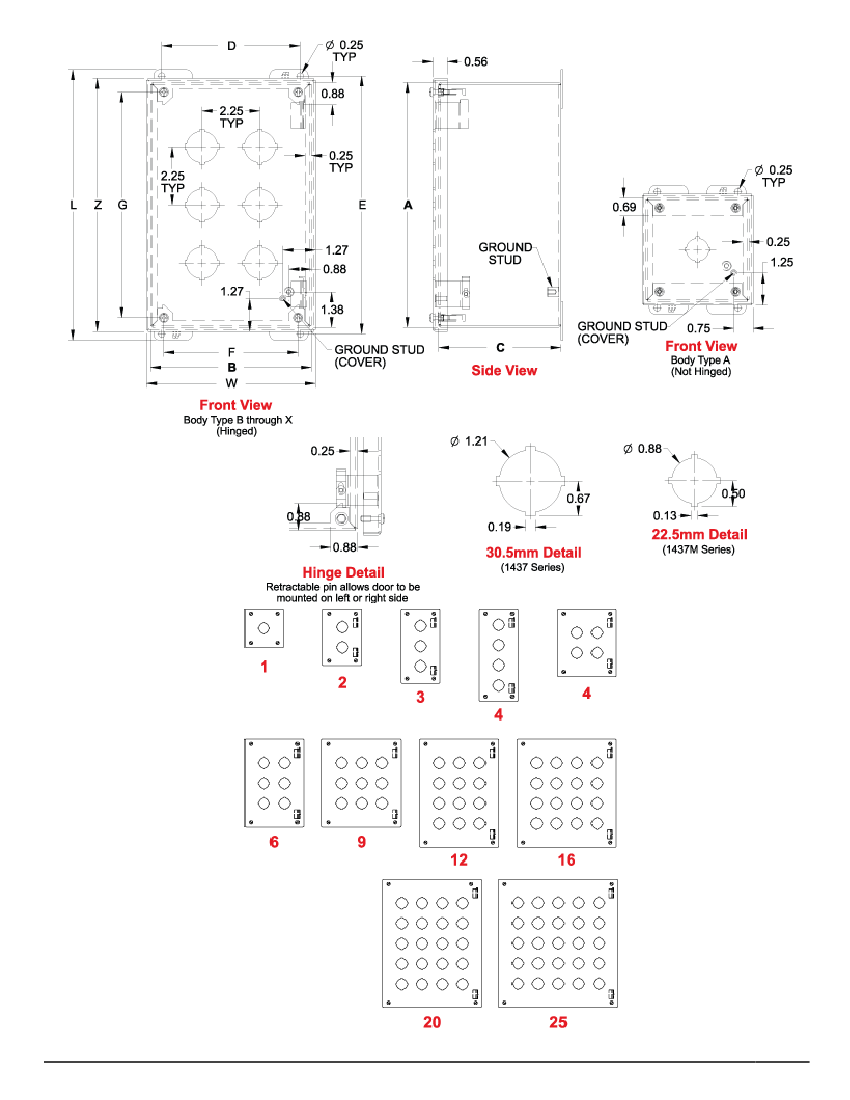

Overall Dimensions
A
4.00
6.00
8.00
10.00
7.25
9.50
9.50
11.75
11.75
14.00
14.00
B
4.00
4.00
4.00
4.00
6.25
6.25
8.50
8.50
10.75
10.75
13.00
C
4.75
4.75
4.75
4.75
4.75
4.75
4.75
4.75
4.75
4.75
4.75
D
3.13
3.13
3.13
3.13
5.38
5.38
7.63
7.63
9.88
9.88
12.13
E
4.50
6.50
8.50
10.50
7.75
10.00
10.00
12.25
12.25
14.50
14.50
F
2.96
2.96
2.96
2.96
5.21
5.21
7.46
7.46
9.71
9.71
11.96
G
3.25
5.25
7.25
9.25
6.50
8.75
8.75
11.00
11.00
13.25
13.25
L
5.00
7.00
9.00
11.00
8.25
10.50
10.50
12.75
12.75
15.00
15.00
W
4.31
4.31
4.31
4.31
6.56
6.56
8.81
8.81
11.06
11.06
13.31
Z
4.31
6.31
8.31
10.31
7.56
9.81
9.81
12.06
12.06
14.31
14.31
