7512F Series Bright
★
Pipes™ Flexpipe™ Fiber-Optic
Lightpipe
DESCRIPTION
AND
FEATURES

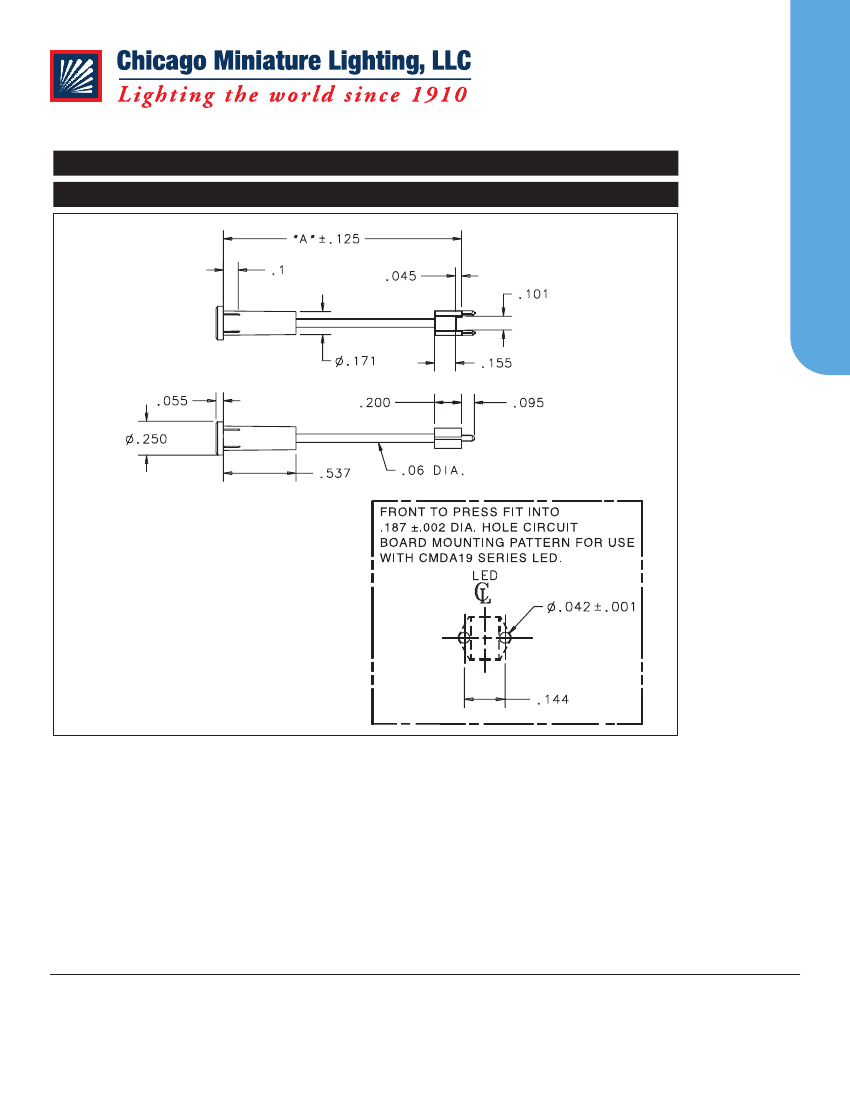

Series Number Dim A length (in mm)
7512FPR- 305 (standard model)
7512FPR- XXX*
*Note: • Standard model length is 305 mm.
Product is available in lengths of 100 - 1800 mm
in increments of 25 mm. Replace the XXX with
the length of your choice.
Minimum order quantities may apply,
• Flexible
optical lightpipe with precision fiberoptics for long distance
SMT LED to lens.
•
Eliminates need for precision mechanical alignment of components
to panel.
•
7512F is designed for use with CMDA19 series Bright Chip LEDs.
•
Precision engineered with ray tracingfor bright, optically precise
even indication and attractive appearance.
•
ESD protection from circuitry for exceptional reliability.
•
High contrast and wide viewing angle for greater visibility.
•
Parts inserted after reflow to permit LED pad inspection before
assembly.
•
Large lens provides high visibility.
•
Water clear optics for variety of LED colors.
147 Central Avenue
Hackensack, NJ 07601
Phone: (201) 489-8989
Fax: (201) 489-6911
18703 Dix Toledo Road
Brownstown, MI 48193
E-mail:sales@chml.com • Web Site: www.chml.com
Saret Zone Franca, Edifico B
Alajuela Costa Rica
Chicago Miniature Lighting, LLC reserves the right to make specification revisions that enhance the design and/or performance of the product
