767163820JPSP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> 767163820JPSP

767163820JPSP: DescriptionArray/Network Resistor, Isolated, 2.3W, 82ohm, 50V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 2244, DSOP, ROHS COMPLIANT; CategoryPassive components The resistor; File Size142KB，5 Pages; ManufacturerCTS; Environmental Compliance

Download Datasheet Parametric View All

767163820JPSP Overview

Array/Network Resistor, Isolated, 2.3W, 82ohm, 50V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 2244, DSOP, ROHS COMPLIANT

767163820JPSP Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	SMT, 2244
Reach Compliance Code	compli
ECCN code	EAR99
structure	Solid
Component power consumption	0.3 W
The first element resistor	82 Ω
lead spacing	1.27 mm
Installation features	SURFACE MOUNT
Network Type	ISOLATED
Number of components	1
Number of functions	8
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	2.16 mm
Package length	11.18 mm
Package shape	RECTANGULAR PACKAGE
Package form	SMT
Package width	5.59 mm
method of packing	TUBE
Rated power dissipation(P)	2.3 W
Rated temperature	25 °C
resistance	82 Ω
Resistor type	ARRAY/NETWORK RESISTOR
size code	2244
surface mount	YES
Temperature Coefficient	200 ppm/°C
Terminal surface	Tin/Silver/Copper - with Nickel barrie
Terminal shape	GULL WING
Tolerance	5%
Operating Voltage	50 V
Base Number Matches	1

Preview

Download Datasheet

View All

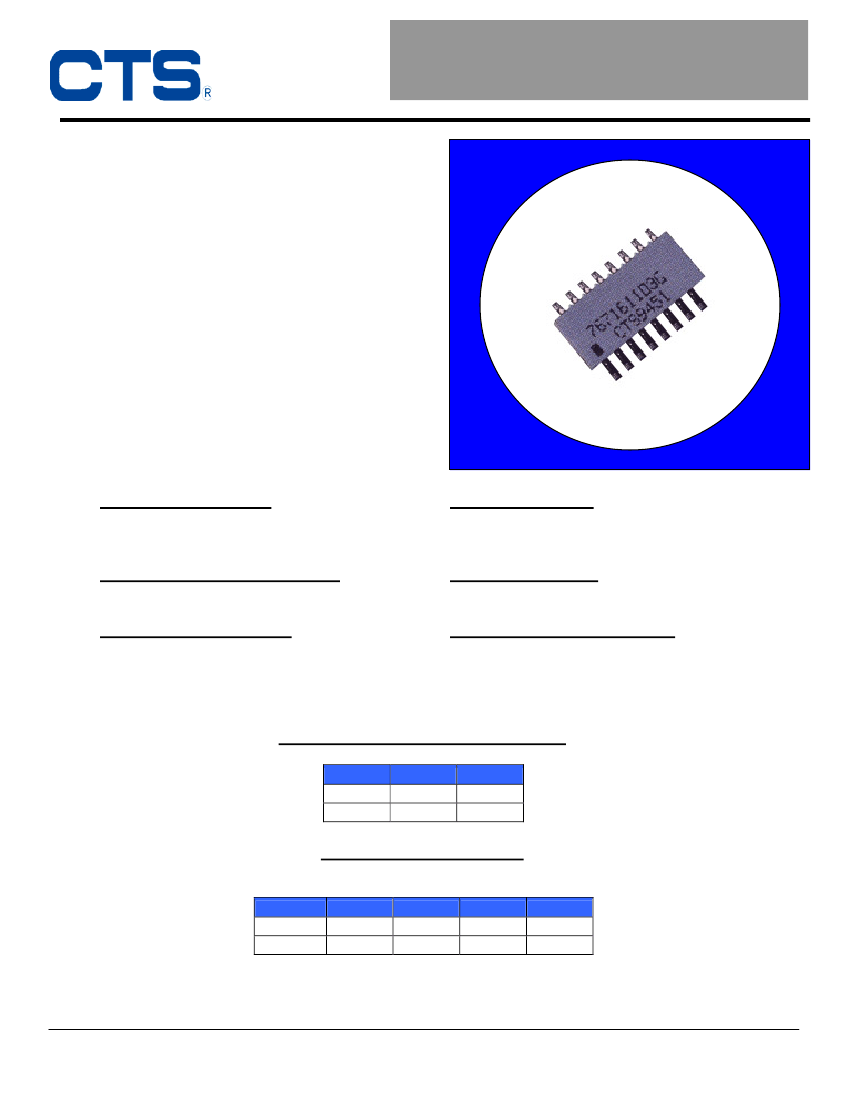

Leaded Surface Mount Series 767

Technical

Data

Features

•

Medium Body Design

Solid Ceramic Construction

No Internal Dendrite Growth

Meets EIA PDP SOGN-0001 Outline

Packaged in Tape & Reel or Slide Packs

Application Specific Circuits Are Available

Compatible With Reflow Solder Process

RoHS Compliant

Resistance Tolerance:

Standard: ±2% or 0.5Ω (whichever is greater)

Special: ±0.25% or 0.3Ω (whichever is greater)

Resistance Range:

Standard: 10Ω to 1 MegΩ

Operating Temperature Range:

-55°C to +125°C

Temperature Coefficient:

Standard: 100Ω to 1 MegΩ

100PPM/°C typical

10Ω to 99Ω

±200PPM/°C typical

Dielectric Strength:

00 VAC

Maximum Operating Voltage:

50V not to exceed rated power

Power Rating (Total Network Power):

14 Pin

2.0w

1.3w

16 Pin

2.3w

1.5w

@25°C

@70°C

Maximum Resistor Power:

(Not to Exceed Total Network Power)

Schematic

@25°C

@70°C

0.15w

0.10w

0.30w

0.20w

0.15w

0.10w

0.15w

0.10w

1 of 5

July 2008

CTS Electronic Components

Leaded Surface Mount 767 Series

www.ctscorp.com
