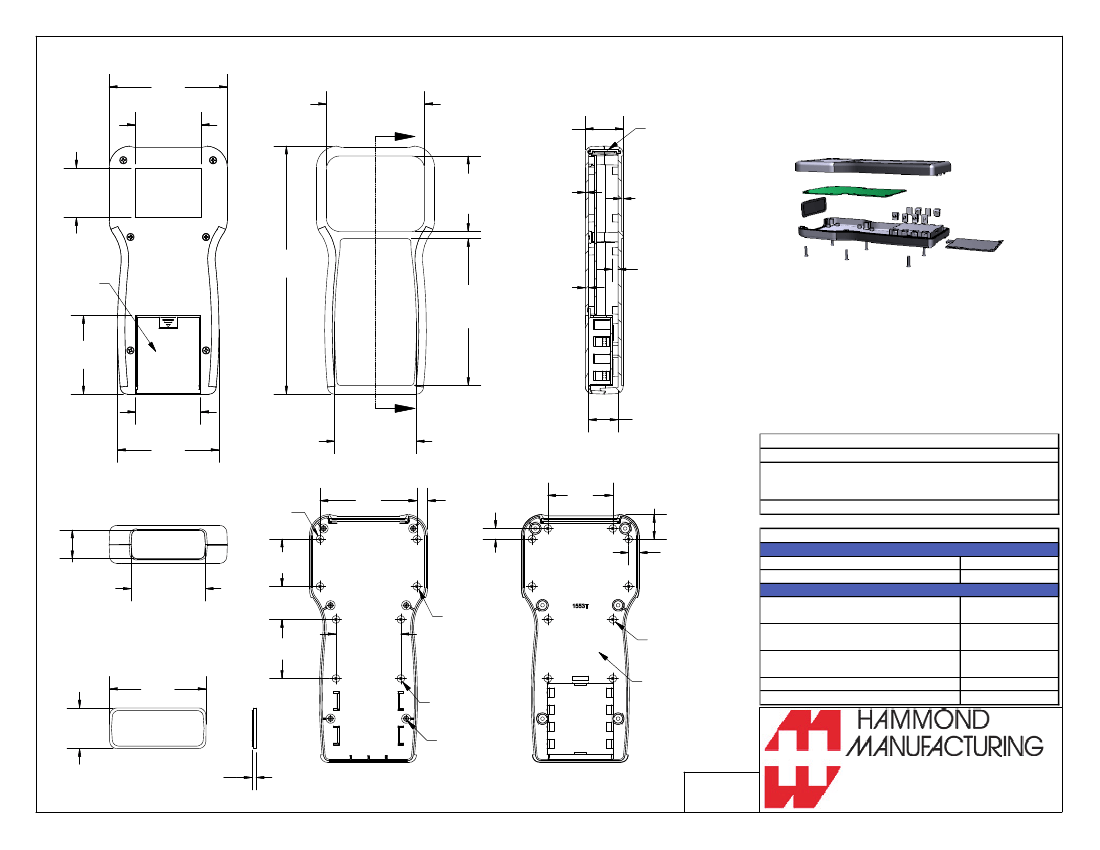

Rear View of Assembly
100.0
[3.94]
56.00
[2.20]
(Inlay Width)
Top View of Assembly
83.24
[3.28]
(Inlay Width)
SECTION A-A
(Side View of Assembly)
32.00
[1.26]
.50
[.02]
(Rear Inlay
Depth)
Removable Panel
A
63.95
[2.52]
(Inlay Length)
42.00
[1.65]
(Inlay Length)
1.50
[.06]
(Top Inlay Depth)
Battery
Holder
210.0
[8.27]
124.24
[4.89]
(Inlay length)
2.75
[.11]
(Wall
Thickness)
5.00
[.20]
66.62
[2.62]
Enclosures can be Factory Modified ( Milling, Drilling, Printing etc.)
Contact Factory
mjm@hammondmfg.com for quotes
Solid models of this enclosure available in STEP or IGES.
(Part number and text placement/orientation on our products are subject to change,
we do not recommend using them as a locating reference for modification purposes)
55.00
[2.17]
85.9
[3.38]
A
69.05
[2.72]
(Inlay Width)
25.00
[.98]
(Inner Box Height)
NOTE
Enclosure made from FR ABS (UL 94‐V0) plastic.
Purchased assembly includes Top, Bottom, front plastic panel, Battery
Door, battery spring clips (4 pcs), 9V adapter (1pcs) and 6Cover Screws.
M3 Brass Inserts are Pre-Installed.
Top End View of Assembly
6.30
82.00
[3.23]
9.0
[.35]
55.00
[2.17]
20.95
[.82]
Recommended Cover screw torque -- 2.5 lbf-in (30 cN-m)
[.25]
PART NUMBER
9.0
[.35]
24.25
[.95]
(Viewing Area)
62.70
[2.47]
(Viewing Area)
40.00
[1.57]
1553T Battery Enclosure
9.0
[.35]
Black Enclosure/Grey Over‐mold
Grey Enclosure/Grey Over‐mold
ACCESSORIES
Cover screw (Pkg 100)
[M3-0.5 X 18mm]
1553TBKBAT
1553TGYBAT
1594MS100 (silver)
1594MS100BK (Black)
1593ATS50 (Pkg 50)
1593ATS100 (Pkg 100)
1599CLIP (Black)
1599CLIPGY (Grey)
BS61
1553HDR‐BKIT
28.00
[1.10]
Front Panel
65.28
[2.57]
27.50
[1.08]
2.75
[.11]
50.00
[1.97]
55.00
[2.17]
8 PCB Posts
on Top
10 PCB Posts
on Bottom
P.C. Board Self Tapping Screw
[#4 X 1/4" (6.4mm) Plated]
PCB post accepts
#4 X 1/4" self
tap screw
M3 Insert for
Cover Screws
Drawings available
for maximum P.C
Board size.
Belt or Pocket Clip
9V Battery Kit
AA Battery Clip Kit (4 positive and 4 Negative)
Inside View of Top
Inside View of Bottom
Dimensions:
mm
[inches]
1553TBAT
