Fuseholders
https://www.schurter.com /PG02
FIO

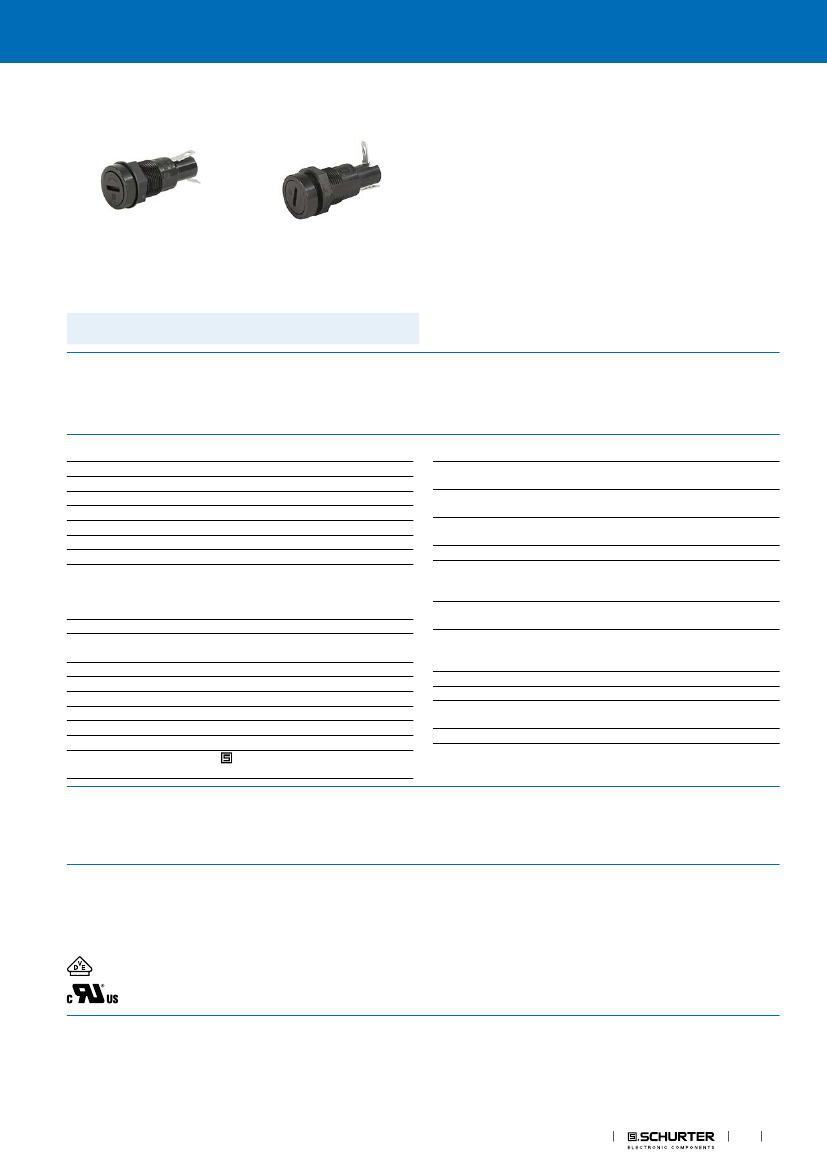

Shock-Safe Fuseholder, 5 x 20 mm, Slotted Cap, IP 40 / IP 65
Variant 2
250 VAC · 2.5 W / 10 A (VDE) · 250 VAC/DC · 10 A (UL/CSA)
Description
Approvals and Compliances
- Screw type fuse carrier
Weblinks
Unique Selling Proposition
- Protection against water jets
- Compact design
pdf datasheet, html-datasheet, General Product Information, Packaging
details, Distributor-Stock-Check, Detailed request for product, Microsite
Technical Data
PC2
5 x 20 mm
Panel Mount, Front Side
Fixing Nut
Solder or Quick-Connect 2.8 x 0.5 mm
250 VAC (VDE), 250 VAC/DC (UL/CSA)
10 A (VDE), 10 A (UL/CSA)
2.5 W / 10 A @ Ta 23 °C
Admissible power acceptance at higher
ambient temperature see derating cur-
ves
Degree of Protection
IP 40 / IP 65
Protection Class
Suitable for appliances with protection
class I or II acc. to IEC 61140
Admissible Ambient Air Temp. -40 °C to 85 °C
Climatic Category
40/085/21 acc. to IEC 60068-1
Material: Socket
Thermoset, black, UL 94V-0
Material: Terminals
Tin-Plated Copper Alloy
Unit Weight
5.95 g
Storage Conditions
0 °C to 60 °C, max. 70% r.h.
Product Marking
, Type, Rated Voltage, Rated current,
Approvals
Shock-Safe Category
Fuse-Link
Mounting
Attachment
Terminal
Rated Voltage
Rated current
Rated Power Acceptance IEC
Soldering Methods
Solderability
Resistance to Soldering Heat
Contact Resistance
Dielectric Strength
Iron
Soldering Profile
350 °C / 2 sec acc. to IEC 60068-2-20,
Test Ta, method 2
350 °C / 10 sec acc. to IEC 60068-2-20,
Test Tb, method 2
< 5 mΩ at 20 mV
> 3 kV
> 4 kV between L/N-PE
(50 Hz; 1 min)
> 4 kV between L-N
> 6 kV between L/N-PE
> 10 MΩ between L-N
> 100 MΩ between L/N-PE
(500 VDC; 1 min)
I - III acc. to IEC 60664-1
1 - 3 acc. to IEC 60664-1
max 1.2 Nm
max 6 mm
Impulse Withstand Voltage
Insulation Resistance
Overvoltage Category
Pollution Degree
Admissible Torque on Fixing
Nut
Panel Thickness
Approvals and Compliances
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about
Approvals
Approvals
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: FIO
Approval Logo
Certificates
VDE Approvals
UL Approvals
Certification Body
VDE
UL
Description
VDE Certificate Number: 133472
UL File Number: E39328
Fuses
1
FIO
Product standards
Product standards that are referenced
Organization
Design
Designed according to
Designed according to
Designed according to
Standard
IEC 60127-6
UL 4248-1
CSA C22.2 no. 4248.1
Description
https://www.schurter.com /PG02
Fuseholders
Miniature fuses. Part 6. Fuse-holders for miniature fuse-links
Fuseholder general requirements
Fuseholder general requirements
Application standards
Application standards where the product can be used
Organization
Design
Designed for applications acc.
Designed for applications acc.
Standard
IEC/UL 60950
IEC 60335-1
Description
IEC 60950-1 includes the basic requirements for the safety of information
technologyequipment.
Safety of electrical appliances for household and similar purposes. Meets
the requirements for appliances in unattended use. This includes the en-
hanced requirements of glow wire tests acc. to IEC 60695-2-12 and -13.
Compliances
The product complies with following Guide Lines
Identification
Details
CE declaration of conformity
Initiator
SCHURTER AG
Description
The CE marking declares that the product complies with the applicable
requirements laid down in the harmonisation of Community legislation on
its affixing in accordance with EU Regulation 765/2008.
EU Directive RoHS 2011/65/EU
The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March
2007. It is similar to the EU directive RoHS.
On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,
Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as
"REACH") entered into force.
RoHS
China RoHS
REACH
SCHURTER AG
SCHURTER AG
SCHURTER AG

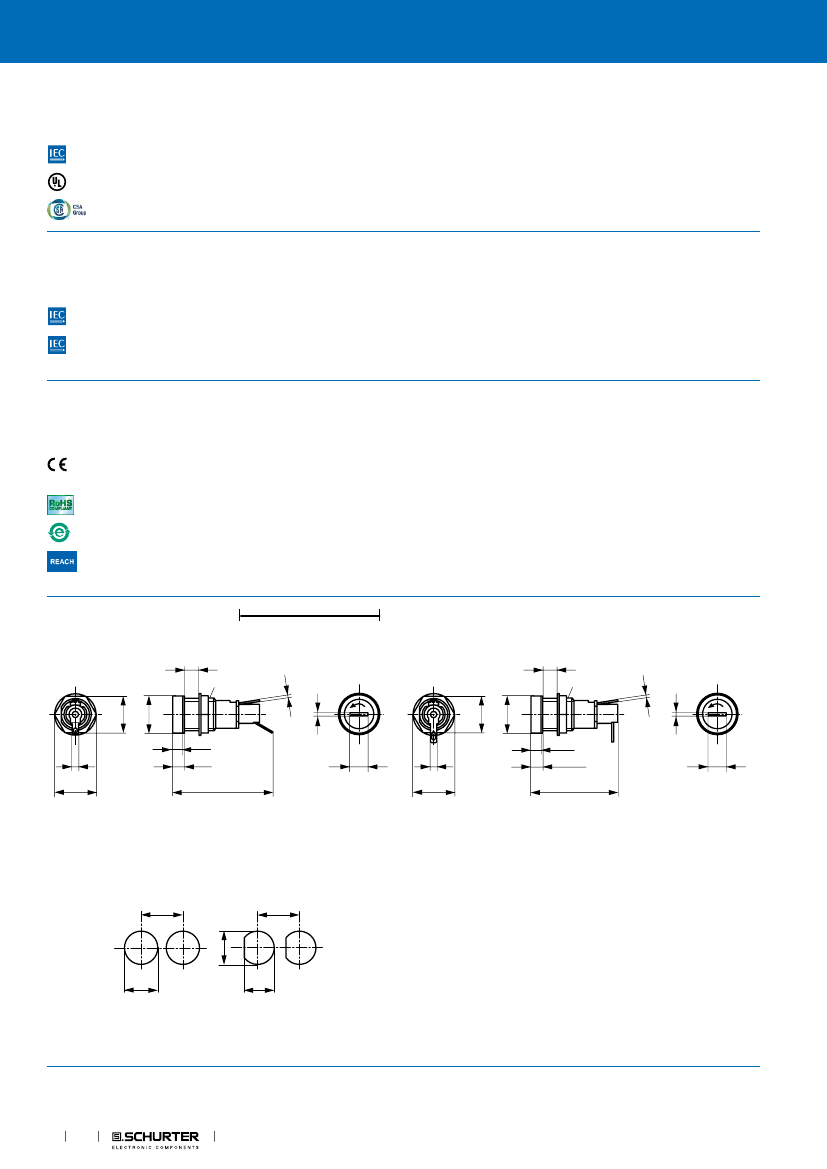

Dimension [mm]
35.5 mm
max. 6
M12.7x1.5 / 2
SW 14
SW 14
0.5
max. 6
M12.7x1.5 / 2
ø 15
1.2
0.5
ø 15
4
2.8
16.2
4.6 (IP65)
35.5
7
2.8
16.2
4
4.6 (IP6x)
33
7
Variants 0031.1361 and 0031.1381
Variants 0031.1363 and 0031.1383
min. 16.3
12.7
-0.1
0
min. 16.3
13
-0.3
0
12
-0.1
0
Mounting holes
2
Fuses
1.2
Fuseholders
https://www.schurter.com /PG02
FIO
Derating Curves
2.5
Admissible power acceptance in Watt
2.0
1.5
1.0
0.5
0.0
0
20
40
60
80
100
I = 1.0 I
n
I = 0.7 I
n
I = << I
n
Ambient air temperature T
a
°C
All Variants
Holder
l
l
l
l
█
Most Popular.
Availability for all products can be searched real-time:https://www.schurter.com/en/Stock-Check/Stock-Check-SCHURTER
Quick-Connect Terminals on Request
Cap
slotted
slotted
slotted
slotted
Terminal
Solder
Solder
Solder
Solder
Position End-Terminal
30° to Fuse Axis
90° to Fuse Axis
30° to Fuse Axis
90° to Fuse Axis
Degree of Pro-
tection
IP 65
IP 65
IP 40
IP 40
Order Number
0031.1361
0031.1363
0031.1381
0031.1383
█
█
█
█
Packaging Unit
Bulk (100 pcs.)
The specifications, descriptions and illustrations indicated in this document are based on current
information. All content is subject to modifications and amendments. Information furnished is believed
to be accurate and reliable. However, users should independently evaluate the suitability and test each
product selected for their own applications.
Fuses
3
02.12.2017
