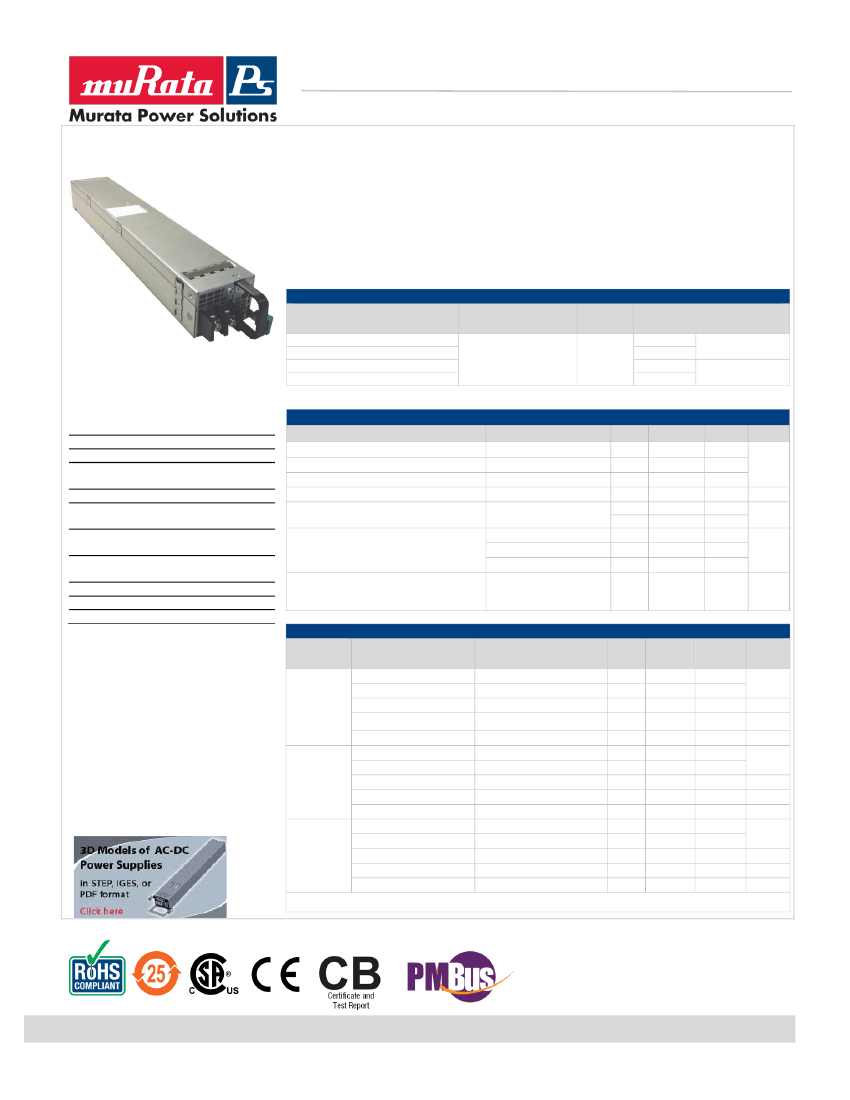

The D1U54-D-1200-12-HxxPC series are highly efficient 1200 watt, DC input front end modules with a 12V main output
and a choice of 3.3V or 5V (20W) standby rails. The power module is able to current share with up to eight (8) other
power modules of the same type operating in parallel or N+1 redundancy. The supplies may be
hot plugged, and include integral isolation devices.
The power modules are fully protected from overload and overvoltage and are able to auto-recover from
overtemperature faults. A Status LED is provided on the front panel and additional control and status reporting is
provided by hardware logic signals and via a PMBus™ digital interface.
A low profile sub 1U height enclosure provides an excellent power density of >28W/in
3
that is ideal for delivering reliable,
efficient power to servers; workstations; storage systems and other 12V distributed power systems, including direct
operation from intermediate bus converters.
ORDERING GUIDE
Model Number
D1U54-D-1200-12-HC4PC
D1U54-D-1200-12-HA4PC
D1U54-D-1200-12-HC3PC
D1U54-D-1200-12-HA3PC
Power Output
Main
Output
12V
Standby
Output
3.3V
5V
3.3V
5V
Airflow
Back to Front
Front to Back
1200W
FEATURES
1200W output power (no derating across
the full DC input voltage range)
1.57″(1U) x 12.65″ x 2.15″
92% efficiency
12VDC Main output
3.3VSB or 5VSB output (20W)
>28W/in
3
power density
N+1 Redundancy Capable; hot plug/swap
(up to 8 modules in parallel)
Active current sharing on 12V main output;
integral MOSFET ORING;
Over-Voltage, Over-Current; Over-
Temperature Protection
Internal variable speed cooling fan
PMBus™ Power Management Bus
RoHS Compliant
INPUT CHARACTERISTICS
Parameter
DC Input Voltage Operating Range
Turn-on Input Voltage
Turn-off Input Voltage
Maximum Current @ VIN = -48Vdc
DC Input Inrush Peak Current
Efficiency (-48Vdc)
Note: to compete with Power One variant
Reverse polarity protection
Conditions
Ramp Up
Ramp Down
1200W
Cold start between
0 to 200ms
20% FL
50% FL
100% FL
Reversed input cables; no
internal/external fuse
failure
Min
-40
-39.5
-35.5
-40
-72
Typ
-48/-60
-40
-36
Max
-72
-40.5
-36.5
40
50
100
Units
Vdc
Adc
Apk
%
90
92
90
+40
+72
Vdc
OUTPUT VOLTAGE CHARATERISTICS
Output
Parameter
Voltage
Main
12V
Voltage Set Point
Line & Load Regulation
Ripple & Noise
1
Output Current
Load Capacitance
Voltage Set Point
Line & Load Regulation
Ripple Voltage & Noise
1
Output Current
Load Capacitance
Voltage Set Point
Line & Load Regulation
Ripple Voltage & Noise
1
Output Current
Load Capacitance
Conditions
Combined regulation
20MHz Bandwidth
-40Vdc to -72Vdc DC input
Min.
11.6
0
Typical
12
Max.
12.4
120
100A
30,000
Units
Vdc
mV
P-P
A
µF
Vdc
mV
P-P
A
µF
Vdc
mV
P-P
A
µF
3.3
Combined regulation
20MHz Bandwidth
3.14
0
5.0
4.76
20MHz Bandwidth
0
5.24
120
4
10,000
3.46
120
6
10,000
3.3VSB
Available now at: www.murata-ps.com/en/3d/acdc.html
5VSB
Ripple and noise are measurements are to be performed with a parallel combination of a 0.1µF ceramic capacitor and 10µF tantalum capacitance on each of
the power module output measurement nodes. A short coaxial cable from measurement point to ‘scope shall be used.
1
www.murata-ps.com/support
D1U54-D-1200-12-HxxxC.A02 Page 1 of 6
D1U54-D-1200-12-HxxPC
54mm Front End DC-DC Power Converter
OUTPUT CHARACTERISTICS
Parameter
Remote Sense (Main Output)
Output Rise (Monotonic)
Startup Time
Transient Response
Current Sharing Accuracy (between sharing
modules; up to 8 in parallel)
Hot Swap Transients
Hold Up Time
1
Conditions
Overall compensation at full load; +VE & -VE connections
10% to 95% rise time
DC Ramp Up
PS_ON activation
12V, 50-100% or 100-50% step load; 1A/µs slew rate
3.3/5VSB 50-100% or 100-50% step load 1A/µs slew rate
At 100% load
FL (Full Load); 48VDC nominal input prior to hold up
1
Min.
Max.
120
No positive voltage excursion
3
200
±600
±165/250
±10
5
Typ.
Units
mV
s
ms
mV
%
%
ms
ENVIRONMENTAL CHARACTERISTICS
Parameter
Storage Temperature Range
Operating Temperature Range
Operating Humidity
Storage Humidity
Altitude (no derating at 40°C)
Shock
Sinusoidal Vibration
MTBF
Safety Approvals (Standards)
Conditions
Non-Condensing
1200W Output Power
Non-Condensing
Min.
-40
0
5
5
3000
Typ.
Max.
70
55
90
95
30
Units
°C
%
m
G
K Hours
Input Fusing
Weight
Non-Operating
Operational, 0.5G; 5-500Hz
Telcordia SR-332 M1C1 @ 40°C
452
CSA/UL C22.2 No.60950-1-07, 2
nd
Ed.
IEC 60950-1:2005, (2
nd
Edition) with Am. 1:2009
EN 60950-1:2006 + A11:2009 + A1:2010
CE Marking per LVD DIRECTIVE 2006/95/EC
Internal 60A/170VDC fast blow fuse on the DC line input (TBC)
3.15/1.43
Lbs/kg
PROTECTION CHARACTERISTICS
Output Voltage
N/A
Parameter
Over-Temperature
Over-Voltage
Conditions
Air inlet temperature; Auto re-start
Latching; toggle PS_ON or recycle DC input to reset
For slow over-current events, a constant current will be
sustained for 1sec followed by a latch off that will reset
after 5secs. For hard (short circuit) events the output
will shutdown within 50ms and autorestart within
200ms. This cycle will be repeated 10 times after which
point the output will permanently latch off. The power
module will require reset by recycling the incoming DC
source or toggling PS_ON.
Latching; toggle PS_ON or recycle DC input to reset
Shutdown followed by auto-recovery
Latching; toggle PS_ON or recycle DC input to reset
Shutdown followed by auto-recovery
Min.
60
13
Typ.
65
Max.
70
14
Units
°C
V
12V (Main)
Over-Current
115
135
A
3.3VSB
5VSB
Over-Voltage
Over-Current
Over-Voltage
Over-Current
3.6
6.5
5.4
4.5
4.0
8.5
6.0
5.5
V
A
V
A
ISOLATION CHARACTERISTICS
Parameter
Insulation Safety Rating/Test Voltage
Isolation
1
Conditions
Input to Output - Basic
Output to Chassis (Ground)
Min.
1000
500
Typ.
Max.
Units
Vrms
Vdc
Assumes deployment within systems utilizing dual redundant “A” and “B” DC input feeds
STATUS INDICATORS
Conditions
No incoming DC supply present; power module completely off.
Standby Rail ON; Main Output OFF; DC input present & correct
Standby Rail ON; Main Output ON
Main Output overcurrent; undervoltage, overvoltage warning
FAN_FAULT; overtemperature; standby rail overcurrent, Main Output overcurrent or
overvoltage
Power Module Warning Event
GREEN (Power) LED Status
LED not illuminated
Blinking
Solid Green
LED not illuminated
LED not illuminated
LED not illuminated
AMBER (Fault) LED Status
LED not illuminated
LED not illuminated
Solid Amber
Solid Amber
Blinking
www.murata-ps.com/support
D1U54-D-1200-12-HxxxC.A02 Page 2 of 6
D1U54-D-1200-12-HxxPC
54mm Front End DC-DC Power Converter
EMISSIONS AND IMMUNITY
Characteristic
Conducted Emissions
ESD Immunity
Radiated Field Immunity
Electrical Fast Transients/Burst
Immunity
Surge Immunity
RF Conducted Immunity
Magnetic Field Immunity
Voltage Dips & Interruptions
Standard
FCC 47 CFR Part 15
CSIPR 22/EN55022
IEC/EN 61000-4-2;
IEC/EN 61000-4-3
IEC/EN 61000-4-4
IEC/EN 61000-4-5
IEC/EN 61000-4-6
IEC/EN 61000-4-8
NEBS GR-1089-CORE Issue
Compliance
Class A with 6dB margin
Level 4; Criteria A
Level 3; Criteria B
Level 3; Criteria A
Level 3; Criteria A
Level 3; Criteria A
3A/m; Criteria B
Relevant sections and compliance levels TBD

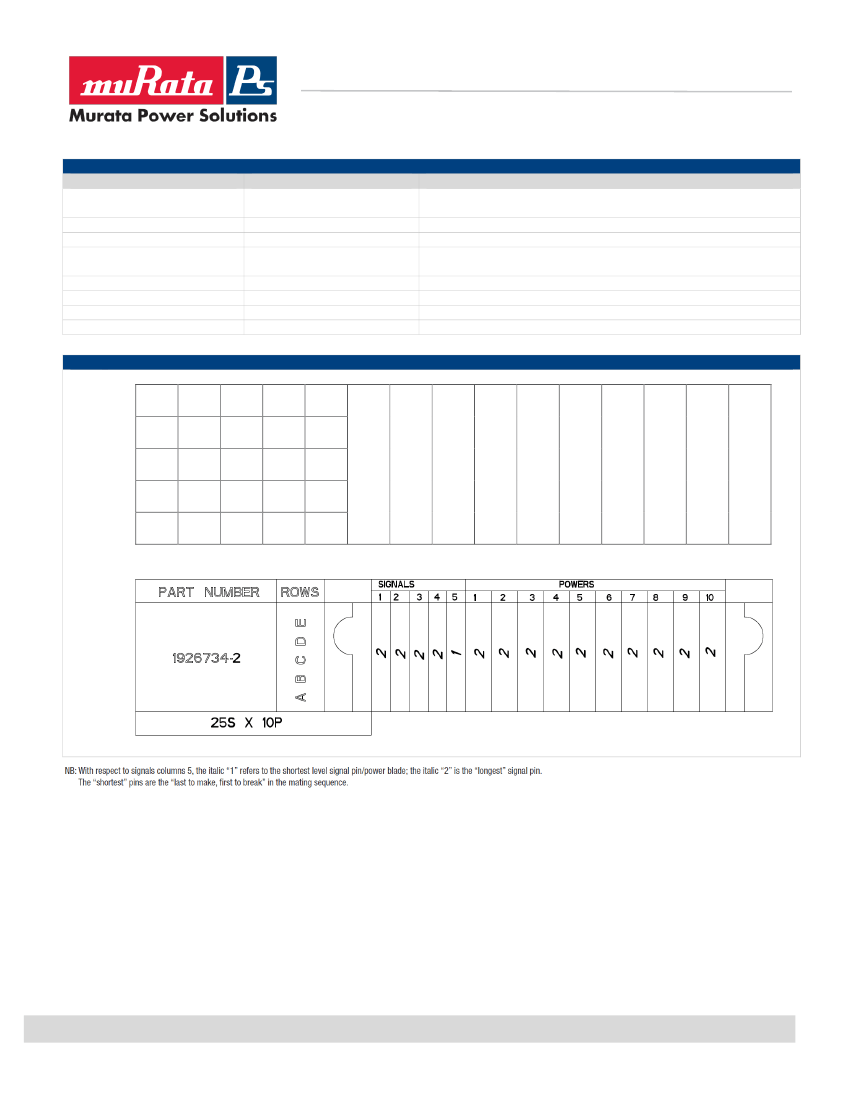

OUTPUT CONNECTOR & SIGNAL INTERFACE
E1
E2
E3
E4
E5
D1
D2
D3
D4
D5
C1
C2
C3
C4
C5
1
2
3
4
5
6
7
8
9
10
B1
B2
B3
B4
B5
A1
A2
A3
A4
A5
www.murata-ps.com/support
D1U54-D-1200-12-HxxxC.A02 Page 3 of 6
D1U54-D-1200-12-HxxPC
54mm Front End DC-DC Power Converter
PIN ASSIGNMENTS; D1U54-D-1200-12-HxxPC
TE Connectivity 1926734-2 (Power Supply)
Pin
Function
Description
6, 7, 8, 9, 10
V1 (+12VOUT)
+12V Main Output
1, 2, 3, 4, 5
+12V RTN/PGND
+12V Main Output Return
A1
+VSB
Standby Output
B1
+VSB
Standby Output
C1
+VSB
Standby Output
D1
+VSB
Standby Output
E1
+VSB
Standby Output
A2
+VSB_Return
Standby Output Return
B2
+VSB_Return
Standby Output Return
C2
Unused
No End User Connection
D2
Unused
No End User Connection
E2
Unused
No End User Connection
I
2
C Address Protocol Selection
A3
APS
(Select by appropriate pull down
resistor
B3
Unused
No End User Connection
C3
SDA
I
2
C Serial Data Line
D3
V1_SENSE_R
Remote Sense Return (-VE)
E3
V1_SENSE
Remote Sense (+VE)
A4
SCL
I
2
C Serial Clock Line
B4
PS_ON_L
Remote On/Off (Enable/Disable)
C4
SMB_ALERT
Alert signal to host system
D4
Unused
No End User Connection
E4
DC_OK
DC Input Source Present & “OK”
A5
PS_KILL
Power Supply “kill”; short pin
B5
ISHARE
Current Share bus; short pin
C5
PW_OK
Power “OK”; short pin
D5
Unused
No End User Connection
E5
PRESENT_L
Power Module Present; short pin
ALTERNATIVE PIN ASSIGNMENTS; D1U54-D-1200-12-HxxC
TE Connectivity 1926734-4 (Power Supply)
Pin
Function
Description
6, 7, 8, 9, 10
V1 (+12VOUT)
+12V Main Output
1, 2, 3, 4, 5
+12V RTN/PGND
+12V Main Output Return
A1
+VSB
Standby Output
B1
+VSB
Standby Output
C1
+VSB
Standby Output
D1
+VSB
Standby Output
E1
+VSB
Standby Output
A2
+VSB_Return
Standby Output Return
B2
+VSB_Return
Standby Output Return
C2
Unused
No End User Connection
D2
Unused
No End User Connection
E2
Unused
No End User Connection
A3
B3
C3
D3
E3
A4
B4
C4
D4
E4
A5
B5
C5
D5
E5
PS_KILL
Unused
SDA
V1_SENSE_R
V1_SENSE
SCL
PS_ON_L
SMB_ALERT
ISHARE
DC_OK
A0
Unused
PW_OK
A1
PRESENT_L
Power Supply “kill”; short pin
No End User Connection
I
2
C Serial Data Line
Remote Sense Return (-VE)
Remote Sense (+VE)
I
2
C Serial Clock Line
Remote On/Off (Enable/Disable)
Alert signal to host system
Current Share bus; short pin
DC Input Source Present & “OK”
I
2
C LSB Address Line
No End User Connection
Power “OK”; short pin
I
2
C Address Line
Power Module Present; short pin
Consult Murata Sales for availability of alternative “HxxC” model variants.
MATING CONNECTOR (OUTPUT & SIGNALS)
Supplier
Press Fit, Straight
---
TE Connectivity (Tyco)
DC INPUT TERMINAL BLOCK
Dinkle Enterprise
Press Fit, Right Angle
---
Solder Straight
---
Solder Right Angle
2-1926739-5
2-1926733-5 (Obsolete)
DT-7C-B14W-02
2 Way Terminal Block; 40A rating; +VE & -VE DC Input cable connections
www.murata-ps.com/support
D1U54-D-1200-12-HxxxC.A02 Page 4 of 6
D1U54-D-1200-12-HxxPC
54mm Front End DC-DC Power Converter

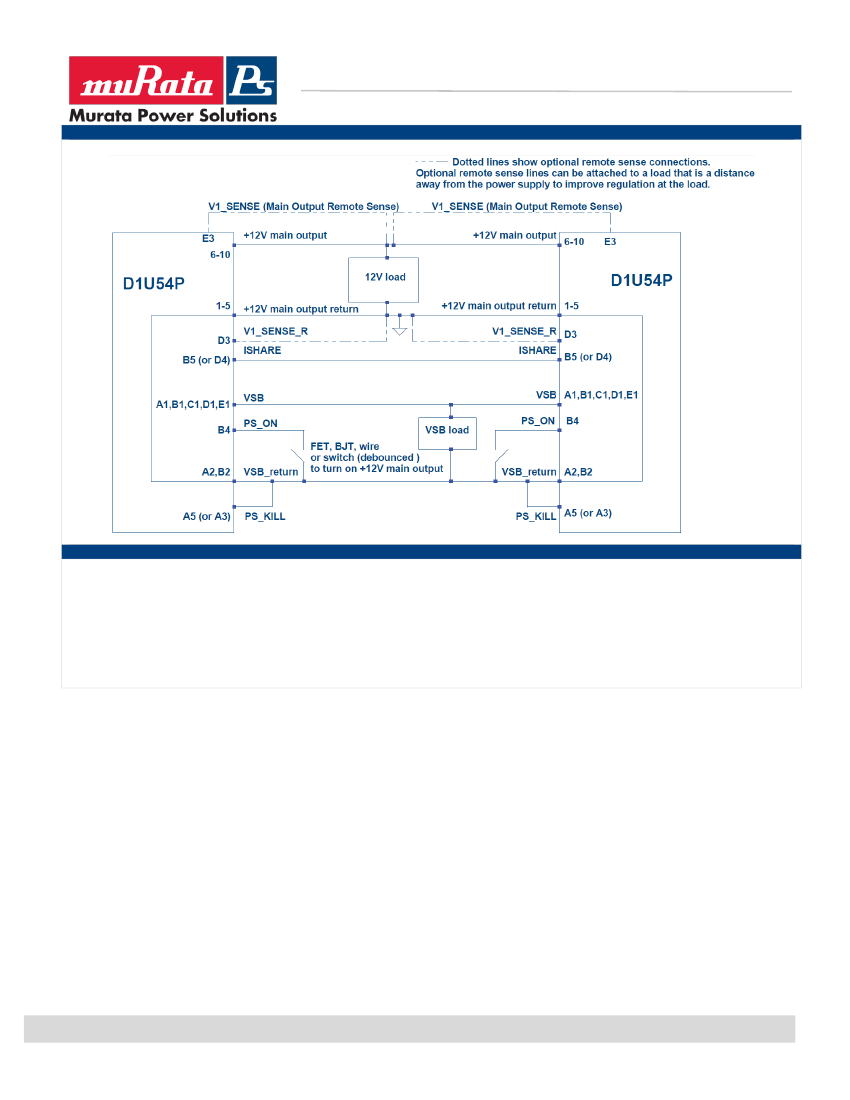

WIRING DIAGRAM
CURRENT SHARING NOTES
1. Main 12VDC Output: Analogue active share bus. The ISHARE bus (Pin B5 or D4) must be connected on all sharing modules.
It is not required that the SENSE signals are connected to the remote load for current share to operate correctly.
2. Up to eight (8) power modules can be connected in parallel (non-redundant) or N+1 configuration. The current share bus is analogue bi-directional (can
source or sink current from the ISHARE bus).
The voltage of the bus would measure approximately 8VDC for a single power module at 100% load; for two (2) modules sharing a common load the
ISHARE bus voltage would be approximately 4V for a perfect 50/50 current share scenario.
3. The VSB (Standby Output) output of the power module can also be connected in parallel; internal output isolation devices are provided however the
combined available power is limited to that available from a single power module (3.3V or 5V; 20W) irrespective of the number of modules connected in
1. Basic Concepts of Echo Cancellation Technology Echo cancellation has replaced the early echo suppression, which was first used in the 1950s in satellite communication environments to control the ec...
[b][color=#000000]1 Interrupt Overview[/color][/b][font=宋体][size=12px][color=#000000]Interrupt definition: A signal driven by hardware or software that causes the DSP to suspend the current program an...
Platform: s3c2440 + wince5 According to the standard stream driver model, a UART test driver Dll was written, and the development board UART was connected to the PC serial port [code] //Because I can'...
After graduation, I have been working in different departments of the same company for many years, but have not achieved anything. I gradually realized that personal achievement is based on a clear pe...
I want to trace and debug the program that has been fixed to DSP, how to operate?C6678 EMIF16, the program is burned into the flash and it can't start, I want to see where the problem is1. First, it i...
The core of a machine vision system is image acquisition and processing. All information comes from images, and image quality is crucial to the entire vision system. A good image can improve the st...[Details]
The intelligent driving community has its own rhythm. Some are busy pushing new versions and focusing on R&D, others are busy with publicity and promotion, and still others are immersed in mass pro...[Details]
New energy vehicles are increasingly popular with consumers due to policies and energy conservation. Once you've purchased your vehicle, maintenance is essential. However, due to the different powe...[Details]
The structure of an LCD TV primarily consists of the LCD display module, power module, driver module (primarily including the main driver board and tuner board), and keypad module. LCD display modu...[Details]
The digital TV set-top box consists of a tuner, QAM demodulator, TS demultiplexer, MPEG-2 decoder, PAUNTSC video encoder, embedded CPU system and peripheral interfaces, CA module, and uplink data m...[Details]
Have you ever heard stories about "crazy appliances"? Think of microwaves that turn on automatically or ovens that preheat without any human input? With radios and electromagnetic interfaces ubiqui...[Details]
Smartphones have become essential digital devices, and the growing number of smartphone-centric applications is enriching people's lives. As users, they desire a better app experience and a wider r...[Details]
Coal mines typically contain gas and coal dust. When gas and coal dust reach a certain concentration, they can cause explosions. Electrical equipment generates arcs during normal operation or durin...[Details]
Bosch has released a new SoC series to support L2+ advanced driver assistance functions. The chip integrates high resolution and long-range detection capabilities, and has built-in support for neur...[Details]
Inverter power supplies on the market can generally be divided into two categories: sine wave inverters and square wave inverters. Some engineers also like to categorize pure sine wave inverters as...[Details]
1. Introduction
In 2015, Apple's new MacBook and Apple Watch both featured force-sensing technology, which Apple calls Force Touch. Each time a user presses the touchpad, the device not only p...[Details]
On August 20, Huawei Device announced that the all-new M7 is the first to feature an in-cabin laser vision solution. This solution offers enhanced active safety capabilities compared to primary vis...[Details]
Most cameras on the market use chips manufactured by Japanese companies like Sony, Sharp, Panasonic, and LG. South Korea now has the capability to produce chips, but the quality is somewhat inferio...[Details]
With the rapid development of the automotive industry, automotive requirements for control, communication, and network management are becoming increasingly stringent. Hardware platforms based on 32...[Details]
August 18, 2025—
Advantech, a global leader in IoT intelligent systems and embedded platforms, today announced a collaboration with LitePoint, a global provider of wireless test solutions, to d...[Details]
Analogue and Mixed Signal
京公网安备 11010802033920号
EEWORLD
