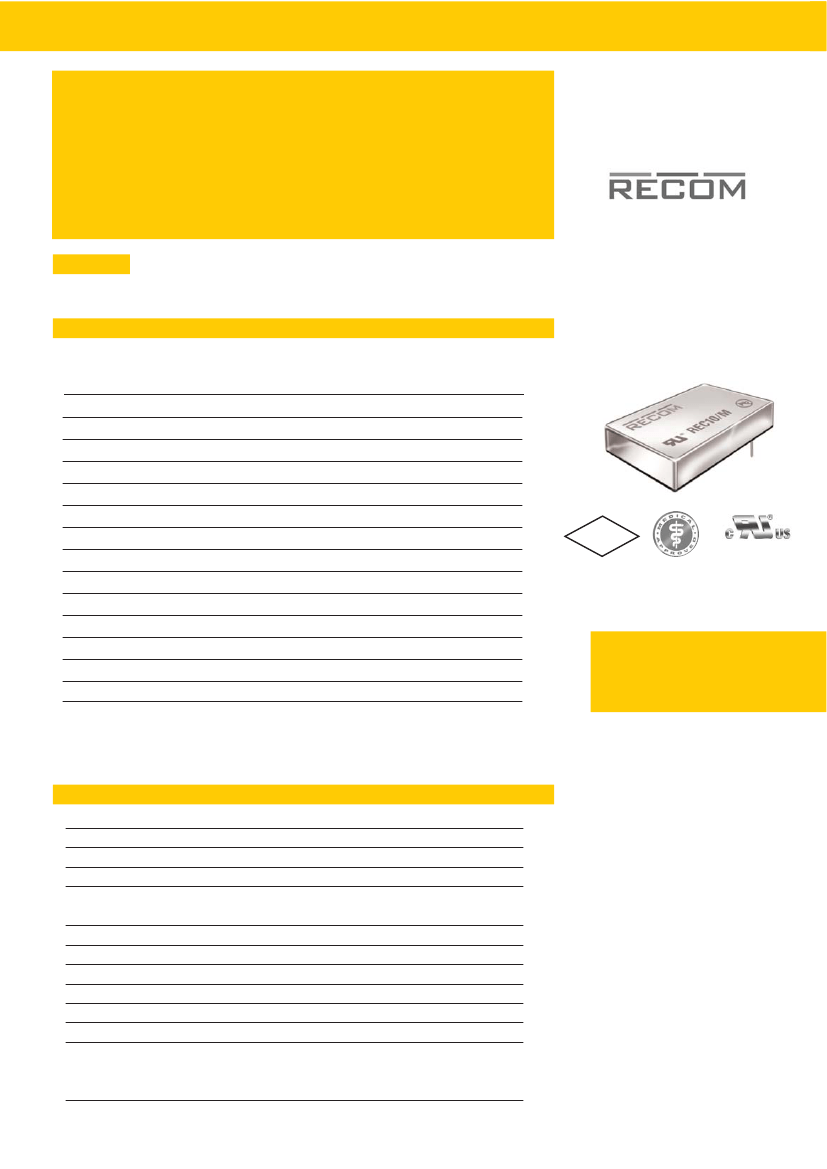

Features
Regulated
Converters
●
●
●
●
●
●
●
●
10W in 2” x 1” Package
2kVDC and 3kVDC Isolation Options
2:1 or 4:1 Input Voltage Range
Continuous Short Circuit Protection
(power limiting)
Synchronous Rectification on all Del outputs
Full SMD internal design
Remote Control Pin
Efficiency to 87%
ECONOLINE
DC/DC-Converter
with 3 year Warranty
Description
The REC10-xxxxS_D/M -series offer single and dual regulated outputs in a 2”x1” package with
2kVDC or 3kVDC isolation options and are suitable for higher power industrial applications. Re-
mote on/off control is standard. The converters can deliver 150% rated power for short periods
of time to cope with applications with large capacitive loads or high start up currents.
Selection Guide
Part
Number
REC10-xx3.3S/H*/M
REC10-xx05S/H*/M
REC10-xx12S/H*/M
REC10-xx15S/H*/M
REC10-xx05D/H*/M
REC10-xx12D/H*/M
REC10-xx15D/H*/M
REC10-xx3.3SZ/H*/M
REC10-xx05SZ/H*/M
REC10-xx12SZ/H*/M
REC10-xx15SZ/H*/M
REC10-xx05DZ/H*/M
REC10-xx12DZ/H*/M
REC10-xx15DZ/H*/M
Input
Voltage
(VDC)
9-18, 18-36, 36-75
9-18, 18-36, 36-75
9-18, 18-36, 36-75
9-18, 18-36, 36-75
9-18, 18-36, 36-75
9-18, 18-36, 36-75
9-18, 18-36, 36-75
9-36, 18-75
9-36, 18-75
9-36, 18-75
9-36, 18-75
9-36, 18-75
9-36, 18-75
9-36, 18-75
Output
Voltage
(VDC)
3.3
5
12
15
±5
±12
±15
3.3
5
12
15
±5
±12
±15
Output
Current
(mA)
2000
2000
833
667
±1000
±416
±333
2000
2000
833
667
±1000
±416
±333
Efficiency Max. Cap.
(typ.)
Load
(%)
83-84
86-87
85-86
85-86
82-83
85-86
85-86
82
86
85
86
82
85
86
2200µF
2200µF
2200µF
2200µF
±1000µF
±1000µF
±1000µF
2200µF
2200µF
2200µF
2200µF
±1000µF
±1000µF
±1000µF
10 Watt
2” x 1”
Single
&
Dual
Output
2011/65/EU
6/6
RoHS
E-224736
EN-60950-1 Certified
EN-60601-1 Certified
UL-60950-1 Certified
REC10/M
* Standard is /H2 for 2kVDC isolation,
use /H3 for 3kVDC Isolation
2:1
xx = 9-18Vin = 12,
xx = 18-36Vin = 24,
xx = 36-75Vin = 48
4:1
xx = 9-36Vin = 24,
xx = 18-75Vin = 48
Specifications
(
measured at TA = 25°C, nominal input voltage, full load and after warm-up)
Input Voltage Range
Input Filter
Output Voltage Accuracy (the Output 3.3V is ±1.2% max.)
Line Voltage Regulation
Load Voltage Regulation
(25% to 100% full load )
Single
Dual
2:1 or 4:1
PI Network
±1.0% max.
±0.3% max.
±0.5% max.
±1.2% max.
±5% max.
100mVp-p max.
25ms typ.
300kHz typ.
see Selection Guide
0%
12V Input
24V Input
48V Input
36VDC
50VDC
100VDC
continued on next page
E-166
REV: 0/2015
Refer to Application Notes
www.recom-power.com
**Any data referred to in this datasheet are of indicative nature
and based on our practical experience only. For further details,
please refer to our Application Notes.
Cross Regulation (100%: 25% to 100% full load )
Output Ripple and Noise (with 100n output capacitor and 20MHz BW)
Start-up time (Nom. Vin at 100% Load)
Operating Frequency (Full Load)
Efficiency (Nom. Vin at 100% Load)
Minimum Load
Input Surge Voltage (100ms max.)
ECONOLINE
DC/DC-Converter
Isolation Voltage
H2-Suffix
REC10-S_D/H*/M
Series
Derating-Graph
(Ambient Temperature)
2:1 Converters
100
80
Specifications cont.
(
measured at TA = 25°C, nominal input voltage, full load and after warm-up)
(tested for 1 second)
2000VDC
(rated for 1 minute)
1000VAC / 60Hz
H3-Suffix
(tested for 1 second)
3000VDC
(rated for 1 minute)
1500VAC / 60Hz
Under Voltage Lockout (2:1)
12V Input
DC-DC on 8.3VDC, DC-DC off 7.9VDC
24V Input
DC-DC on 17.4VDC, DC-DC off 16.7VDC
48V Input
DC-DC on 35.7VDC, DC-DC off 34.3VDC
Under Voltage Lockout (4:1)
24V Input
DC-DC on 8.3VDC, DC-DC off 7.9VDC
48V Input
DC-DC on 17.4VDC, DC-DC off 16.7VDC
Isolation Capacitance
1200pF typ.
Isolation Resistance
1 GΩ min.
Overload Protection
150% typ.
Short Circuit Protection
Continuous, Auto Restart
Operating Temperature Range
4:1
-40°C to +71°C (see Graph)
(free air convection)
2:1
-40°C to +81°C (see Graph)
Storage Temperature Range
-55°C to +105°C
Remote On/Off
DC/DC ON
Open or 3.5V<Vr<12V
DC/DC OFF
Short or 0V<Vr<1.2V
Temperature Coefficient
±0.05% max.
Relative Humidity
95% RH
Case Material
Nickel Plated Metal with Non-Conductive Base
Thermal Impedance
Natural convection
12°C/W
Maximum Case Temperature
100°C
Vibration
10-55Hz, 2G, 30mins along X,Y & Z
Package Weight
27g
Packing Quantity
10 pcs per Tube
MTBF (+25°C)
Detailed Information see
using MIL-HDBK 217F
>1000 x 10
3
hours
(+71°C)
Application Notes chapter "MTBF"
using MIL-HDBK 217F
>250 x 10
3
hours
Certifications
EN General Safety
Report: SPCLVD1211033-2
EN60950-1:2006 + A12:2011
UL General Safety
Report: E224736
UL 60950-1 1st Ed.
C22.2 No. 60950-1-03
EN Medical Safety
Report: MDD12060585 + RM1206085
IEC/EN 60601-1 3rd Edition; Medical Report + ISO14971 Risk Assessment
Safe Operating Area
Output Power (%)
60
40
20
0
-40
0
50
100
150
81
Operating Temperature °C
4:1 Converters
100
Safe Operating Area
4:1
Output Power (%)
80
60
40
20
0
REC10/M
}
-40
0
50 71 90
150
Operating Temperature °C
Note: Refer to Application Notes for EMC Class B Filter suggestion
Package Style and Pinning (mm)
50.8
25.4
10.2
dia.
0.8
15.24
20.32
5.6
2.50
5.08
Pin Connections
Pin #
1
2
3
4
5
6
Single
+Vin
–Vin
+Vout
No Pin
–Vout
CTRL
Dual
+Vin
–Vin
+Vout
Com
–Vout
CTRL
2” x 1” Package
3
1
Bottom View
10.16
4
XX.X ± 0.5 mm
XX.XX ± 0.35 mm
5.08
2.54
15.2
2
6
10.16
5
12.70
20.32
The product information and specifications are subject to change without prior notice. RECOM products are not authorized for use in safety-critical applications (such as life support) without RECOM’s explicit
written consent. A safety-critical application is defined as an application where a failure of a RECOM product may reasonably be expected to endanger or cause loss of life, inflict bodily harm or damage property. The buyer
shall indemnify and hold harmless RECOM, its affiliated companies and its representatives against any damage claims in connection with the unauthorized use of RECOM products in such safety-critical applications.
www.recom-power.com
REV: 0/2015
E-167
