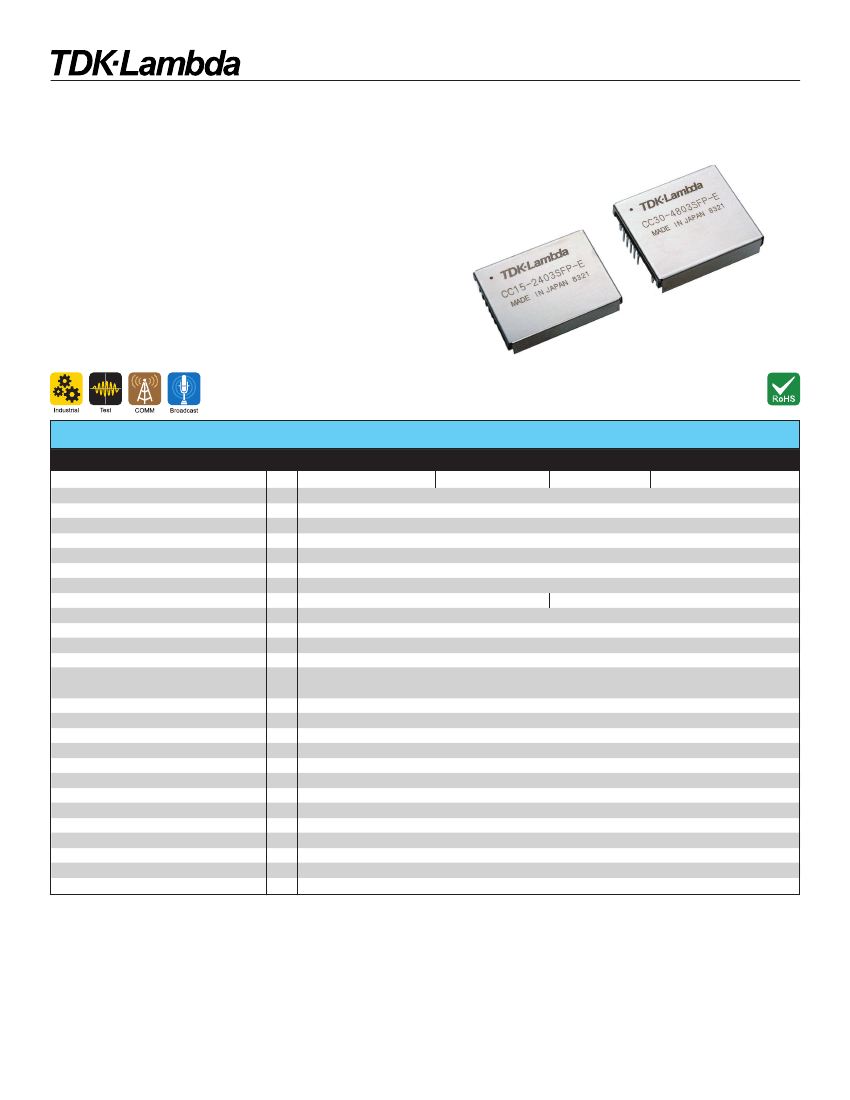

CC-P-E Series
Ultra Compact, 15W to 30W Single Output DC-DC Converters
Features
u
Compact Footprint / Low Profile
u
24V & 48V Inputs
u
3.3V to 15V Outputs
u
Five Sided Shielding (Cased Version)
u
Input - Output Isolation
u
Parallel Operation
u
Through Hole or SMT Versions
u
DC OK signal
u
Sequencing pin
Key Market Segments & Applications
Specifications
Model
Nominal Output Voltage
DC Input
Efficiency
Initial set accuracy
Total Regulation limits
Output Adjustment
Temperature Coefficient
Preload
Output Ripple
Overcurrent Protection
Overvoltage protection
Remote On/Off (RC)
Alarm (ALM)
Sequencing (PO)
Cooling
Operating Temp. Range
Storage Temperature
Humidity (Non condensing)
Isolation Voltage (Cased version)
Isolation Voltage (Uncased version)
Isolation Resistance
Shock (Non operating)
Vibration (non operating)
Safety Certifications
Weight
Size (LxWxH) (Thru hole ver., w/ case)
Warranty
V
VDC
%
%
%
-
%/°C
A
mV
-
-
-
-
-
-
°C
°C
%RH
VDC
VDC
-
-
-
-
g
mm
yrs
5V
12V
15V
24V Nominal: 18-36V, 48V Nominal: 36-76V
89 to 92% model dependant
±1%
+5%, -3%
None
<0.02%/°C
None
50mV
150mV
> 103% of nominal rating
Operates at 115 - 145% of nominal voltage
Logic high (pull high to shutdown), referenced to -Vin
Low On Fail, referenced to -Vin. 20 units maximum
Connecting PO terminals on multiple power supplies ensures all simultaneously
start up (20 units maximum)
Convection
-40 to 85°C, see derating curves on website
-40 to 85°C
5 - 95%RH
1000VDC 1 min. Input-Output, Input-Chassis, Output-Chassis
1500VDC 1 min. Input-Output
>50M at 25°C and 70%RH, 500 VDC Input-Output, Input-Case, Output-Case
980m/s
2
(100G), 6ms, 6 directions, 3 times
10-55-10 Hz (sweep for 15 min.) 1.52mm amplitude, 2 hour X, Y, Z
UL60950-1, CSA C22.2 No.60950-1 (c-UL), EN60950-1
With case: CC15 15g, CC30 20g. Without case: CC15 10g, CC30 15g
CC15: 38.4 x 6.8 x 29.6mm, CC30: 38.4 x 8.3 x 33.5mm
5 years
3.3V
Note: See Installation Manual for full specifications, test methods of parameters and application notes
1-800-526-2324 • www.us.tdk-lambda.com/lp/
15
CCP-E Series
Model Selector
Output Output Max O/P
Volt.(V) Curr.(A) Pwr (W)
3.3
3.3
5
5
12
12
15
15
4.5
9
3
6
1.25
2.5
1
2
15
30
15
30
15
30
15
30
24V Input
CC15-2403SFP-E
CC30-2403SFP-E
CC15-2405SFP-E
CC30-2405SFP-E
CC15-2412SFP-E
CC30-2412SFP-E
CC15-2415SFP-E
CC30-2415SFP-E
48V Input
CC15-4803SFP-E
CC30-4803SFP-E
CC15-4805SFP-E
CC30-4805SFP-E
CC15-4812SFP-E
CC30-4812SFP-E
CC15-4815SFP-E
CC30-4815SFP-E
Options
Version
CCxx-yyyySFP-E
CCxx-yyyySFH-E
CCxx-yyyySRP-E
CCxx-yyyySRH-E
PIN
Through hole
Through hole
SMT
SMT
Case
Yes
No
Yes
No
Where xx is output power & yyyy is input and output voltage
combination. Shaded line is Preferred model

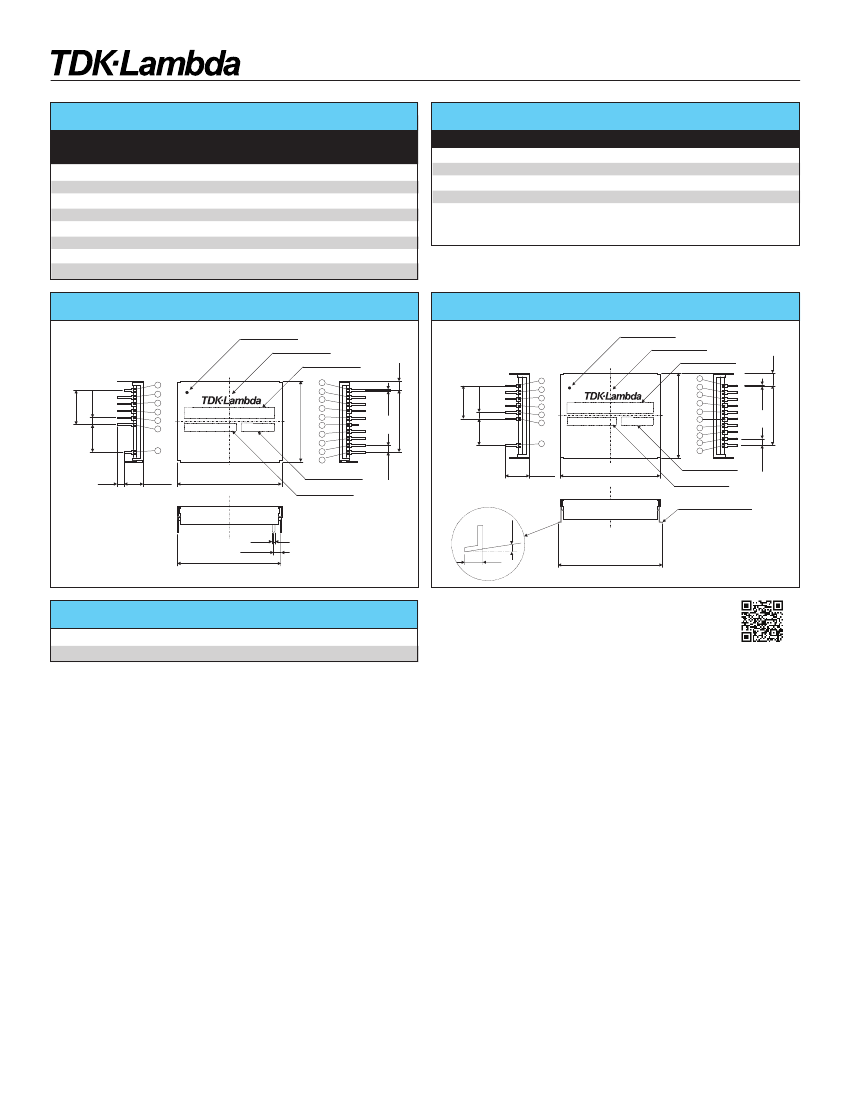

Outline Drawing CC15-xxxxSFP-E
1 pin mark
Logo mark
3.22
Outline Drawing CC30-xxxxSRP-E
1 pin mark
Logo mark
Model name
P=2.54±0.3 X 5
17
16
Model name
P=2.54±0.3 X 5
17
16
1
1
2.54±0.3
2.54±0.3
3
4
P=2.54±0.3 X 9
15
14
3
33.5
4
5
6
14
13
12
11
10
5
13
12
11
10
10.16
6
10.16
7
9
9
8
2.54±0.3
3.5
6.8MAX
38.4
Lot.No
Production country
8.3MAX
38.4
Lot.No
Production country
Coplanarity within 0.1
1±0.1
2.54±0.3
37.6
1.3±0.3
0~10°
39.9±0.6
Other Industrial Products
CC-E
PX
1.5 - 30W, 1 to 2 outputs, 5 to 48VDC input
10 - 60W, 1 to 3 outputs, 12V, 24V, 48VDC input
For Additional Information, please visit
us.tdk-lambda.com/lp/products/cc-series.htm
1-800-526-2324 • www.us.tdk-lambda.com/lp/
16
Revision A3: Nov 2011
