460FS002NF1003F5 datasheet, PDF

Datasheet> All Categories > The connector> Connector bracket> 460FS002NF1003F5

460FS002NF1003F5: DescriptionCircular MIL Spec Backshells NON ENV G-SPRING DC LOW STRN RLF STRT; CategoryThe connector Connector bracket; File Size132KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

460FS002NF1003F5 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	460FS002NF1003F5	-	-	View	Buy Now

460FS002NF1003F5 Overview

Circular MIL Spec Backshells NON ENV G-SPRING DC LOW STRN RLF STRT

460FS002NF1003F5 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Glenair
Reach Compliance Code	compliant
Factory Lead Time	8 weeks
Connector bracket type	CONNECTOR ACCESSORY
Base Number Matches	1

Preview

Download Datasheet

View All

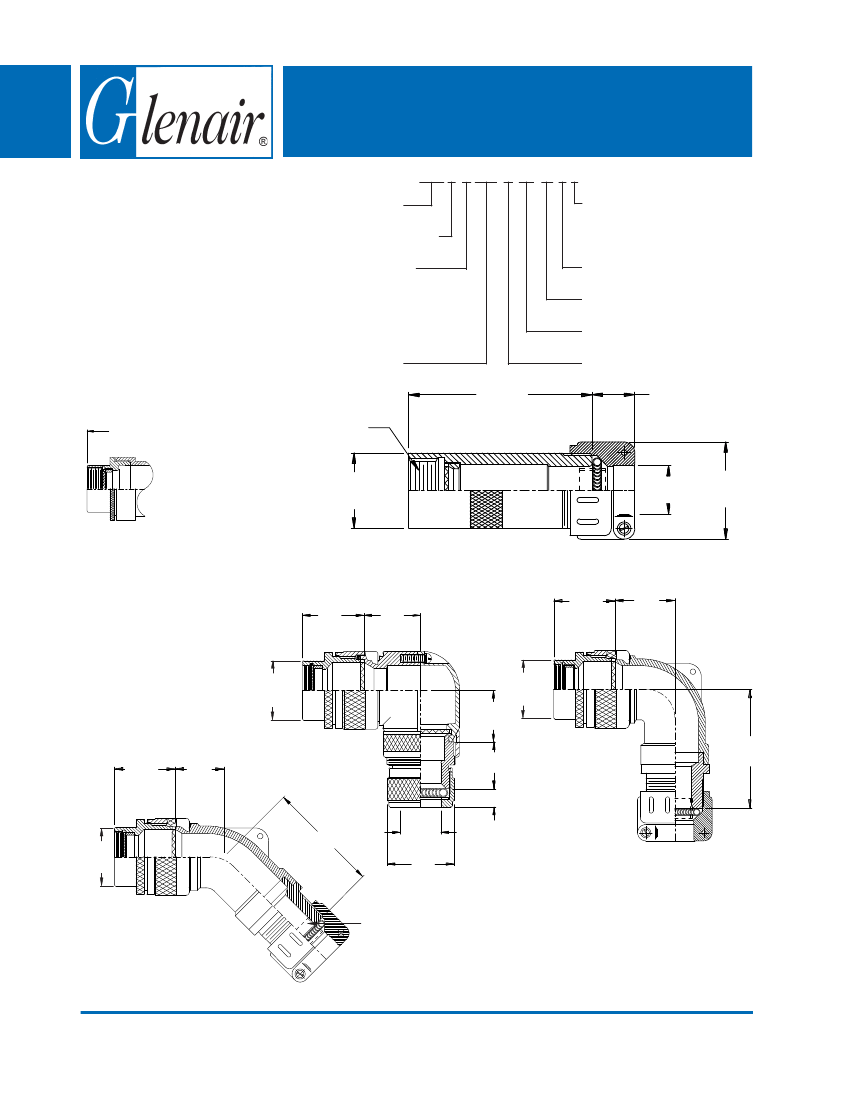

460-002

EMI/RFI Non-Environmental G-Spring Backshell

with Strain Relief

Direct Coupling - Low Profile and Split 90°

460

A-B -C-D-E-F

G-H-J-K-L-S

* Conn. Desig. B See Note 7

CONNECTOR

DESIGNATORS

460 F S 002 M 16 05 F 6

Product Series

Connector Designator

Angle and Profile

A = 90° Solid

B = 45°

D = 90° Split

S = Straight

Basic Part No.

Length *

Length: S only

(1/2 inch increments:

e.g. 6 = 3 inches)

Strain Relief Style (F, G)

Cable Entry (Tables IV, V)

Shell Size (Table I)

Finish (Table II)

.690 (17.5) Max

DIRECT COUPLING

Length ± .060 (1.52)

Min. Order Length 2.0 Inch

(See Note 5)

A Thread

(Table I)

STYLE 2

(STRAIGHT

See Note 1)

* Length ± .060 (1.52)

Minimum Order Length 1.5 Inch

(See Note 5)

(Table III) (Table V)

Cable

Range

(Table IV)

Shown with Style F

Strain Relief

(Table III) (Table V)

(Table I)

(Table V)

90° SPLIT

Shown with

Style G

Strain Relief

Cable

Range

(Note 6)

(Table I)

.880 (22.4) Max

(Table V)

(Table III) (Table V)

(Table I)

L (Table V)

.416 (10.6)

Max

(Table IV)

469-001-XX Shield Support Ring

(order separately) is recommended

for use in all G-Spring backshells

(see page 463-8)

CAGE Code 06324

90° SOLID

Shown with Style F

Strain Relief

Shown with Style F

Strain Relief

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com

Series 460 - Page 6
