The AD592 is a two terminal monolithic integrated circuit tem-
perature transducer that provides an output current propor-
tional to absolute temperature. For a wide range of supply
voltages the transducer acts as a high impedance temperature
dependent current source of 1
µA/K.
Improved design and laser
wafer trimming of the IC’s thin film resistors allows the AD592
to achieve absolute accuracy levels and nonlinearity errors previ-
ously unattainable at a comparable price.
The AD592 can be employed in applications between –25°C
and +105°C where conventional temperature sensors (i.e., ther-
mistor, RTD, thermocouple, diode) are currently being used.
The inherent low cost of a monolithic integrated circuit in a
plastic package, combined with a low total parts count in any
given application, make the AD592 the most cost effective tem-
perature transducer currently available. Expensive linearization
circuitry, precision voltage references, bridge components, resis-
tance measuring circuitry and cold junction compensation are
not required with the AD592.
Typical application areas include: appliance temperature sens-
ing, automotive temperature measurement and control, HVAC
(heating/ventilating/air conditioning) system monitoring, indus-
trial temperature control, thermocouple cold junction compen-
sation, board-level electronics temperature diagnostics,
temperature readout options in instrumentation, and tempera-
ture correction circuitry for precision electronics. Particularly
useful in remote sensing applications, the AD592 is immune to
voltage drops and voltage noise over long lines due to its high
impedance current output. AD592s can easily be multiplexed;
the signal current can be switched by a CMOS multiplexer or
the supply voltage can be enabled with a tri-state logic gate.
The AD592 is available in three performance grades: the
AD592AN, AD592BN and AD592CN. All devices are pack-
aged in a plastic TO-92 case rated from –45°C to +125°C. Per-
formance is specified from –25°C to +105°C. AD592 chips are
also available, contact the factory for details.
1. With a single supply (4 V to 30 V) the AD592 offers
0.5°C temperature measurement accuracy.
2. A wide operating temperature range (–25°C to +105°C)
and highly linear output make the AD592 an ideal sub-
stitute for older, more limited sensor technologies (i.e.,
thermistors, RTDs, diodes, thermocouples).
3. The AD592 is electrically rugged; supply irregularities
and variations or reverse voltages up to 20 V will not
damage the device.
4. Because the AD592 is a temperature dependent current
source, it is immune to voltage noise pickup and IR
drops in the signal leads when used remotely.
5. The high output impedance of the AD592 provides
greater than 0.5°C/V rejection of supply voltage drift and
ripple.
6. Laser wafer trimming and temperature testing insures
that AD592 units are easily interchangeable.
7. Initial system accuracy will not degrade significantly over
time. The AD592 has proven long term performance
and repeatability advantages inherent in integrated cir-
cuit design and construction.
378
343
I
OUT
– µA
1µA/
o
K
273
248
–45
–25
0
+70
+105 +125
TEMPERATURE –
o
C
REV.
B
Information furnished by Analog Devices is believed to be accurate and
reliable. However, no responsibility is assumed by Analog Devices for its
use, nor for any infringements of patents or other rights of third parties
which may result from its use. No license is granted by implication or
otherwise under any patent or patent rights of Analog Devices.
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.
Tel:
781/329-4700
Fax:
781/461-3113
AD592* PRODUCT PAGE QUICK LINKS
Last Content Update: 02/23/2017
COMPARABLE PARTS
View a parametric search of comparable parts.
DISCUSSIONS
View all AD592 EngineerZone Discussions.
DOCUMENTATION
Application Notes
•
AN-892: Temperature Measurement Theory and Practical
Techniques
Data Sheet
•
AD592: Low Cost, Precision IC Temperature Transducer
Data Sheet
SAMPLE AND BUY
Visit the product page to see pricing options.
TECHNICAL SUPPORT
Submit a technical question or find your regional support
number.
DOCUMENT FEEDBACK
DESIGN RESOURCES
•
AD592 Material Declaration
•
PCN-PDN Information
•
Quality And Reliability
•
Symbols and Footprints
Submit feedback for this data sheet.
This page is dynamically generated by Analog Devices, Inc., and inserted into this data sheet. A dynamic change to the content on this page will not
trigger a change to either the revision number or the content of the product data sheet. This dynamic page may be frequently modified.
AD592–SPECIFICATIONS
(typical @ T = +25 C, V = +5 V, unless otherwise noted)
A
S
Model
ACCURACY
Calibration Error @ +25°C
1
T
A
= 0°C to +70°C
Error over Temperature
Nonlinearity
2
T
A
= –25°C to +105°C
Error over Temperature
3
Nonlinearity
2
OUTPUT CHARACTERISTICS
Nominal Current Output
@ +25°C (298.2K)
Temperature Coefficient
Repeatability
4
Long Term Stability
5
ABSOLUTE MAXIMUM RATINGS
Operating Temperature
Package Temperature
6
Forward Voltage (+ to –)
Reverse Voltage (– to +)
Lead Temperature
(Soldering 10 sec)
POWER SUPPLY
Operating Voltage Range
Power Supply Rejection
+4 V < V
S
< +5 V
+5 V < V
S
< +15 V
+15 V < V
S
< +30 V
AD592AN
Min Typ Max
1.5
1.8
0.15
2.0
0.25
2.5
3.0
0.35
3.5
0.5
AD592BN
Min Typ Max
0.7
0.8
0.1
0.9
0.2
1.0
1.5
0.25
2.0
0.4
AD592CN
Min Typ Max
0.3
0.4
0.05
0.5
0.1
0.5
0.8
0.15
1.0
0.35
Units
°C
°C
°C
°C
°C
298.2
1
0.1
0.1
–25
–45
+105
+125
44
20
300
4
30
0.5
0.2
0.1
4
–25
–45
298.2
1
0.1
0.1
+105
+125
44
20
300
30
0.5
0.2
0.1
4
–25
–45
298.2
1
0.1
0.1
+105
+125
44
20
300
30
0.5
0.2
0.1
µA
µA/°C
°C
°C/month
°C
°C
V
V
°C
V
°C/V
°C/V
°C/V
NOTES
1
An external calibration trim can be used to zero the error @ +25°C.
2
Defined as the maximum deviation from a mathematically best fit line.
3
Parameter tested on all production units at +105°C only. C grade at –25°C also.
4
Maximum deviation between +25°C readings after a temperature cycle between –45°C and +125°C. Errors of this type are noncumulative.
5
Operation @ +125°C, error over time is noncumulative.
6
Although performance is not specified beyond the operating temperature range, temperature excursions within the package temperature range will not damage the device.
Specifications subject to change without notice.
Specifications shown in boldface are tested on all production units at final electrical test. Results from those tests are used to calculate outgoing quality levels. All min
and max specifications are guaranteed, although only those shown in boldface are tested on all production units.
METALIZATION DIAGRAM
66MILS
V+
TEMPERATURE SCALE CONVERSION EQUATIONS
42MILS
V–
C =
5
( F –32)
9
K =
°C
+273.15
°R
=
°F
+459.7
F =
9
C +32
5
–2–
REV.
B

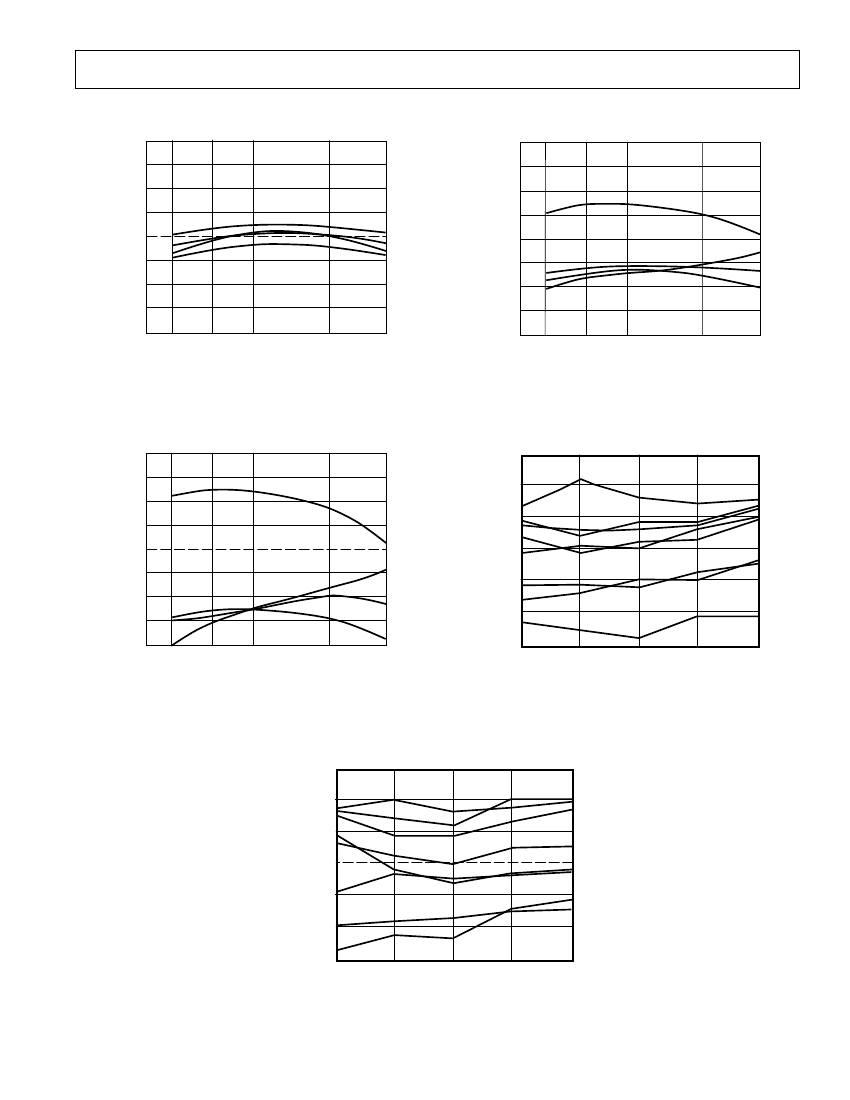

Typical Performance Curves–AD592
