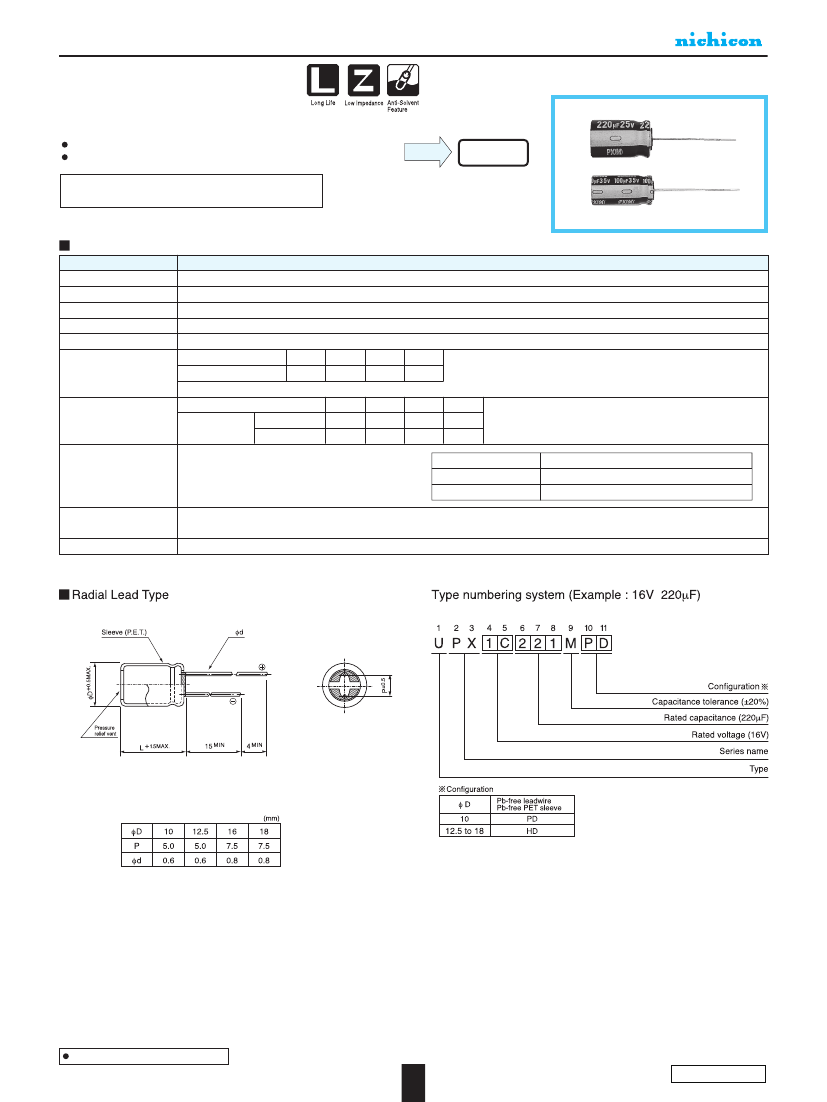

ALUMINUM ELECTROLYTIC CAPACITORS
UPX
Long Life Assurance
Load life of 20000 hours at 105°C.
Compliant to the RoHS directive (2011/65/EU).
UPM
Long Life
UPX
Products which are scheduled to be discontinued.
Not recommended for new designs
Specifications
Item
Category Temperature Range
–55 to +105˚C
Rated Voltage Range
Rated Capacitance Range
Capacitance Tolerance
Leakage Current
Tangent of loss angle (tan
δ)
Performance Characteristitcs
10 to 35V
1 to 4700µF
±20% (120Hz, 20˚C)
After 1 minute's application of rated voltage at 20°C, leakage current is not more than 0.03CV or 4 (µA), whichever is greater.
Rated voltage (V)
tan
δ
(MAX)
10
0.20
16
0.16
25
0.14
35
0.12
Measurement frequency : 120Hz
Temperature : 20˚C
For capacitance of more than 1000µF, add 0.02 for every increase of 1000µF.
Rated voltage (V)
Stability at Low Temperature
Impedance ratio Z–25˚C / Z+20˚C
(MAX.)
Z–40˚C / Z+20˚C
10
3
4
16
2
4
25
2
4
35
2
4
Measurement frequency : 120Hz
Endurance
The specifications listed at right shall be met when the
capacitors are restored to 20˚C after D.C. bias plus
rated ripple current is applied for 20000 hours at 105˚C,
the peak voltage shall not exceed the rated voltage.
Capacitance change
tan
δ
Leakage current
Within ±30% of the initial capacitance value
300% or less than the initial specified value
Less than or equal to the initial specified value
Shelf Life
Marking
After storing the capacitors under no load at 105˚C for 1000 hours and then performing voltage treatment based on JIS C 5101-4
clause 4.1 at 20°C, they shall meet the specified values for the endurance characteristics listed above.
Printed with white color letter on dark brown sleeve.
•
Please refer to page 20 about the end seal configuration.
Please refer to page 20, 21, 22 about the formed or taped product spec.
Please refer to page 4 for the minimum order quantity.
Dimension table in next page.
250
CAT.8100F
