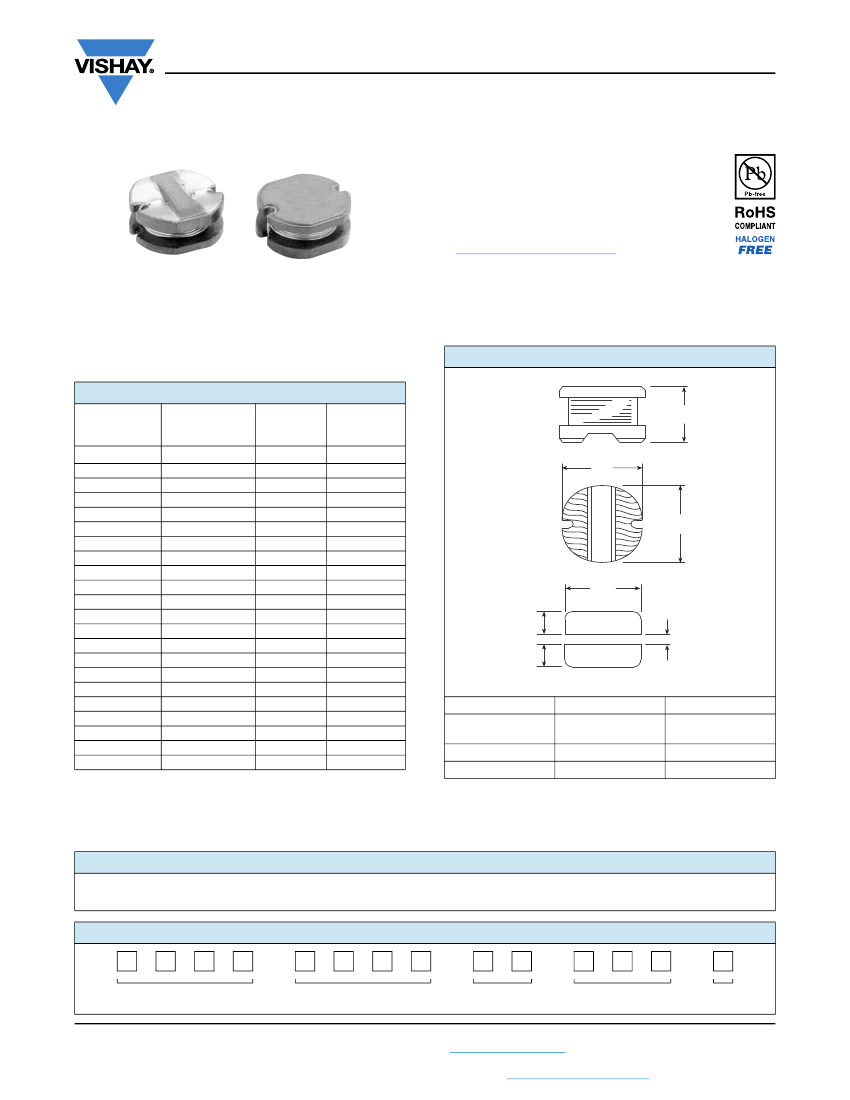

IDCP-1813
www.vishay.com
Vishay Dale
High Current, Surface Mount Inductors - Non-Shielded
FEATURES
•
•
•
•
High energy storage
Low resistance
Tape and reel packaging for automatic handling
Material categorization:
for definitions of compliance please see
www.vishay.com/doc?99912
ELECTRICAL SPECIFICATIONS
Inductance Range:
1.0 μH to 68 μH
Inductance Tolerance:
20 %
Operating Temperature:
-40 °C to +125 °C (temperature
rise included)#
Storage Temperature:
-40 °C to +125 °C
Resistance to Solder Heat:
260 °C for 10 s
MATERIALS
Core:
ferrite
Wire:
enamelled copper wire
Terminals:
Ag and Sn / Ag / Cu
DIMENSIONS
in inches [millimeters]
STANDARD ELECTRICAL SPECIFICATIONS
INDUCTANCE
(μH)
1.0
1.4
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10.0
12.0
15.0
18.0
22.0
27.0
33.0
39.0
47.0
56.0
68.0
TEST
FREQUENCY
L
7.96 MHz
7.96 MHz
7.96 MHz
7.96 MHz
7.96 MHz
7.96 MHz
7.96 MHz
7.96 MHz
7.96 MHz
7.96 MHz
7.96 MHz
2.52 MHz
2.52 MHz
2.52 MHz
2.52 MHz
2.52 MHz
2.52 MHz
2.52 MHz
2.52 MHz
2.52 MHz
2.52 MHz
2.52 MHz
DCR MAX.
(Ω)
0.033
0.038
0.042
0.047
0.052
0.058
0.076
0.094
0.101
0.117
0.132
0.182
0.210
0.235
0.338
0.378
0.522
0.540
0.587
0.844
0.937
1.117
RATED DC
CURRENT
(A)
(1)
3.80
3.30
2.91
2.60
2.43
2.15
1.98
1.70
1.60
1.41
1.26
1.15
1.05
0.92
0.84
0.76
0.71
0.64
0.59
0.54
0.50
0.46
A
B
C
D
E
F
E
TYPICAL PAD LAYOUT
A
0.178 ± 0.01
[4.5 ± 0.3]
D
0.178 [4.5]
B
0.126 ± 0.01
[3.2 ± 0.3]
E
0.069 [1.75]
C
0.158 ± 0.01
[4.0 ± 0.3]
F
0.059 [1.5]
Note
(1)
Rated Current: Value obtained when current flows and the
temperature has risen 40 °C or when DC current flows and the
initial value of inductance has fallen by 10 %, whichever is
smaller
DESCRIPTION
IDCP-1813
MODEL
10 μH
INDUCTANCE VALUE
± 20 %
INDUCTANCE TOLERANCE
ER
PACKAGE CODE
e1
JEDEC
®
LEAD (Pb)-FREE STANDARD
GLOBAL PART NUMBER
I
D
C
P
1
8
SIZE
1
3
E
R
1
0
INDUCTANCE
VALUE
0
M
INDUCTANCE
TOLERANCE
PRODUCT FAMILY
PACKAGE
CODE
Revision: 20-Jun-17
Document Number: 34094
