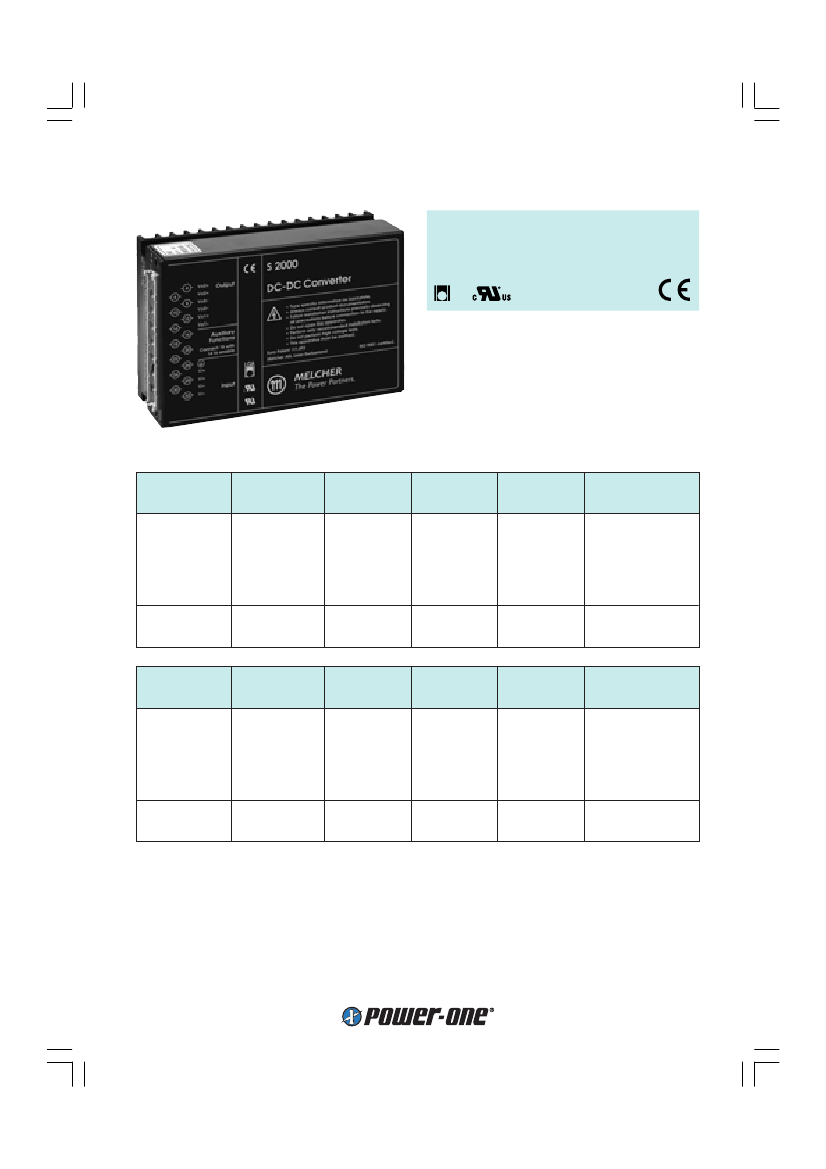

S Series
100 Watt DC-DC Converters
Wide input voltage ranges from 8...385 V DC
1or 2 isolated outputs up to 48 V DC
4 kV AC I/O electric strengh test voltage
LGA
• Rugged electrical and mechanical design
• Fully isolated outputs
• Operating ambient temperature range
–40...71°C with convection cooling
Selection chart
Output 1
U
o nom
I
o nom
[V DC]
[A]
5.1
16
12
8
15
6.5
24
4.2
24
4
30
3.2
48
2
12
4
15
3.2
24
2
Output 1
U
o nom
I
o nom
[V DC]
[A]
5.1
16
12
8
15
6.5
24
4.2
24
4
30
3.2
48
2
12
4
15
3.2
24
2
Output 2
U
o nom
I
o nom
[V DC]
[A]
-
-
-
-
-
-
-
-
-
-
-
-
-
-
12
4
15
3.2
24
2
Output 2
U
o nom
I
o nom
[V DC]
[A]
-
-
-
-
-
-
-
-
-
-
-
-
-
-
12
4
15
3.2
24
2
Type
Input Voltage
8...35 V DC
AS 1001-7R
AS 1301-7R
AS 1501-7R
AS 1601-7R
AS 2320-7R
AS 2540-7R
AS 2660-7R
AS 2320-7R
AS 2540-7R
AS 2660-7R
Type
Input Voltage
28...140 V DC
CS 1001-7R
CS 1301-7R
CS 1501-7R
CS 1601-7R
CS 2320-7R
CS 2540-7R
CS 2660-7R
CS 2320-7R
CS 2540-7R
CS 2660-7R
Type
Input Voltage
14...70 V DC
BS 1001-7R
BS 1301-7R
BS 1501-7R
BS 1601-7R
BS 2320-7R
BS 2540-7R
BS 2660-7R
BS 2320-7R
BS 2540-7R
BS 2660-7R
Type
Input Voltage
44...220 V DC
DS 1001-7R
DS 1301-7R
DS 1501-7R
DS 1601-7R
DS 2320-7R
DS 2540-7R
DS 2660-7R
DS 2320-7R
DS 2540-7R
DS 2660-7R
Type
Input Voltage
20...100 V DC
FS 1001-7R
FS 1301-7R
FS 1501-7R
FS 1601-7R
FS 2320-7R
FS 2540-7R
FS 2660-7R
FS 2320-7R
FS 2540-7R
FS 2660-7R
Type
Input Voltage
67...385 V DC
ES 1001-7R
ES 1301-7R
ES 1501-7R
ES 1601-7R
ES 2320-7R
ES 2540-7R
ES 2660-7R
ES 2320-7R
ES 2540-7R
ES 2660-7R
Options
-9, E, D, V, P, T, B1
-9, E, D, P, T, B1
-9, E, D, P, T, B1
-9, E, D, P, T, B1
-9, E, D, P, T, B1
-9, E, D, P, T, B1
-9, E, D, P, T, B1
-9, E, D, P, T, B1
-9, E, D, P, T, B1
-9, E, D, P, T, B1
Options
-9, E, D, V, P, T, B1
-9, E, D, P, T, B1
-9, E, D, P, T, B1
-9, E, D, P, T, B1
-9, E, D, P, T, B1
-9, E, D, P, T, B1
-9, E, D, P, T, B1
-9, E, D, P, T, B1
-9, E, D, P, T, B1
-9, E, D, P, T, B1
www.power-one.com
1
Cassette Style
Input
Input voltage
Inrush current limitation
6 wide-input ranges (1:5)
FS, CS, DS, ES by thermistor
S Series
refer to selection chart
Output
Efficiency
Output voltage setting accuracy
Output voltage switching noise
Line regulation
Load regulation
Minimum load
Current limitation
Operation in parallel
Hold-up time
U
i nom
,
I
o nom
up to 86%
U
i nom
,
I
o nom
±0.6%
U
o nom
IEC/EN 61204, total
typ. 100 mV
pp
U
i min
…
U
i max
,
I
o nom
typ.
±0.3%
U
o nom
U
i nom
, 10...100%
I
o nom,
symmetrical output load typ. 0.4%
U
o nom
not required
0A
rectangular U/I characteristic
typ. 110%
I
o nom
by current limitation
U
i nom
,
I
o nom
, CS/DS/ES/FS with ext. diode in input line 12...40 ms
U
i nom
,
I
o nom
, AS/BS with ext. diode in input line
typ. 1.8 ms
Control and protection
Input reverse polarity
Input undervoltage lockout
Input overvoltage lockout
Input transient protection
Output
Output overvoltage
Overtemperature
Output voltage adjustment
Inhibit
Status indication
built-in fuse not user accessible
typ. 80%
U
i min
typ. 108%
U
i max
varistor or suppressor diode
no-load, overload and short circuit proof
suppressor diode in each output
switch-off with auto restart
TTL input, output(s) disabled if open circuit
LEDs: OK, inhibit, overload
typ. 130%
U
o nom
T
C
typ. 100°C
0...110%
U
o nom
Safety
Approvals
Class of equipment
Protection degree
Electric strength test voltage
EN 60950, UL 1950, CSA 22.2 No. 950
class I
IP 30
2 kV AC
4 kV AC
1 kV AC
0.1 kV AC
I/case
I/O
O/case
O/O
EMC
Electrostatic discharge
Electromagnetic field
Electr. fast transients/bursts
Surge
Conducted disturbances
Electromagnetic emissions
IEC/EN 61000-4-2, level 4 (8/15 kV)
IEC/EN 61000-4-3, level x (20 V/m)
IEC/EN 61000-4-4, level 4 (2/4 kV)
IEC/EN 61000-4-5, level 3 (2 kV)
IEC/EN 61000-4-6, level 3 (10 V)
CISPR 22/EN 55022, conducted
criterion A
criterion A
criterion A
criterion A
criterion A
class B
www.power-one.com
2
S Series
Environmental
Operating ambient temperature
Operating case temperature
T
C
Storage temperature
Damp heat
Vibration, sinusoidal
Shock
Bump
Random vibration
MTBF
100 Watt DC-DC Converters
U
i nom
,
I
o nom
, convection cooled
U
i nom
,
I
o nom
non operational
IEC/EN 60068-2-3, 93 %, 40
°C
IEC/EN 60068-2-6, 10...60/60...2000 Hz
IEC/EN 60068-2-27, 6 ms
IEC/EN 60068-2-29, 6 ms
IEC/EN 60068-2-64, 20...500 Hz
MIL-HDBK-217F, G
B
, 40°C
–25...71°C
–25...95°C
–40...100°C
56 days
0.35 mm/5 g
n
100 g
n
40 g
n
4.9 g
n rms
500'000 h
Options
Extended temperature range
–40...71°C, ambient, operating
Electronic inrush current limitation
Output voltage adjustment
40...110%
U
o nom
, excludes feature R and vice versa
Input and/or output undervoltage monitoring, excludes option V
Input and/or output undervoltage monitoring (VME), excludes option D
Current sharing
Cooling plate
-9
E
P
D0…D9
V0, V2, V3
T
B1
Pin allocation
Pin
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
Vo1+
Vo1+
Vo1–
Vo1–
S+
S–
R
i
D
V
T
Vi+
Vi+
Vi–
Vi–
AS...ES 1000
Output 1
Output 1
Sense
Sense
Control of
U
o1
Inhibit
Save data
ACFAIL
Current sharing
Protective earth
Input
Input
AS...ES 2000
Vo2+
Output 2
Vo2+
Vo2–
Output 2
Vo2–
Vo1+
Output 1
Vo1–
R
Control of
U
o1
i
Inhibit
D
Save data
T
Vi+
Vi+
Vi–
Vi–
S10002
Current sharing
Protective earth
Input
Input
30 26 22 18 14 10
6
32 28 24 20 16 12
8
4
www.power-one.com
3
Cassette Style
Mechanical data
Tolerances
±0.3
mm (0.012") unless otherwise indicated.
171.93 (DIN 41494) (6.77")
M4
Measuring point of
case temperature
T
C
7 TE
5 TE
S Series
European
Projection
111 (3U) 4.37")
100 (3.93")
Test jacks
Option P (Uo)
Option D (Uto)
Option D (Uti)
LED i
LED OK
LED IoL
152 (5.98")
11.8 (0.46")
60 (2.36")
168.5 (6.63")
09004
Accessories
Front panels 19" (Schroff/Intermas)
Mating H15 connectors with screw, solder, fast-on or press-fit terminals
Connector retention facilities and code key system for connector coding
Chassis or wall mounting plates for frontal access
Universal mounting brackets for chassis or DIN-rail mounting
25.9
(1.02")
www.power-one.com
4
