LLT9-R: DescriptionLED Lighting Modules 9 LED 9W 270 Lumens Red Lin. Array; CategoryLED optoelectronic/LED; File Size143KB，2 Pages; ManufacturerDIALIGHT; Websitehttps://www.dialight.com

Download Datasheet Parametric View All

LLT9-R Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LLT9-R	-	-	View	Buy Now

LLT9-R Overview

LED Lighting Modules 9 LED 9W 270 Lumens Red Lin. Array

LLT9-R Parametric

Parameter Name	Attribute value
Product Category	LED Lighting Modules
Manufacturer	DIALIGHT
RoHS	Details
Product	LED Light Engines
Number of LEDs	9
Illumination Color	Red
Wavelength/Color Temperature	627 mm
Luminous Intensity	105 mcd
Luminous Flux/Radiant Flux	44 lm
If - Forward Current	350 mA
Vf - Forward Voltage	2.95 V
Width	13.5 mm
Length	324 mm
Height	7 mm
Housing Material	Aluminum
Mounting Style	Screw, Glue
Power Rating	9 W
Size	324 mm x 13.5 mm x 7 mm
Factory Pack Quantity	10
Type	Linear Arrays - Rigid
Wavelength	627 mm

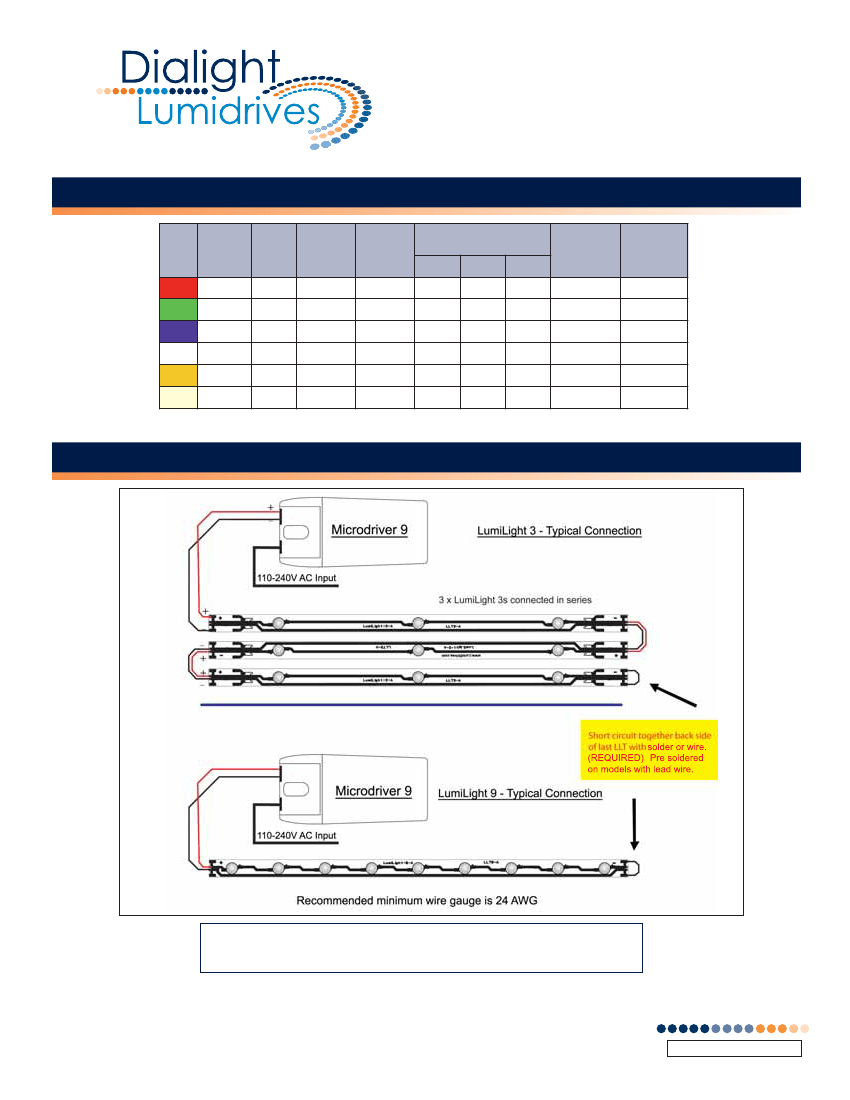

Preview

Download Datasheet

View All

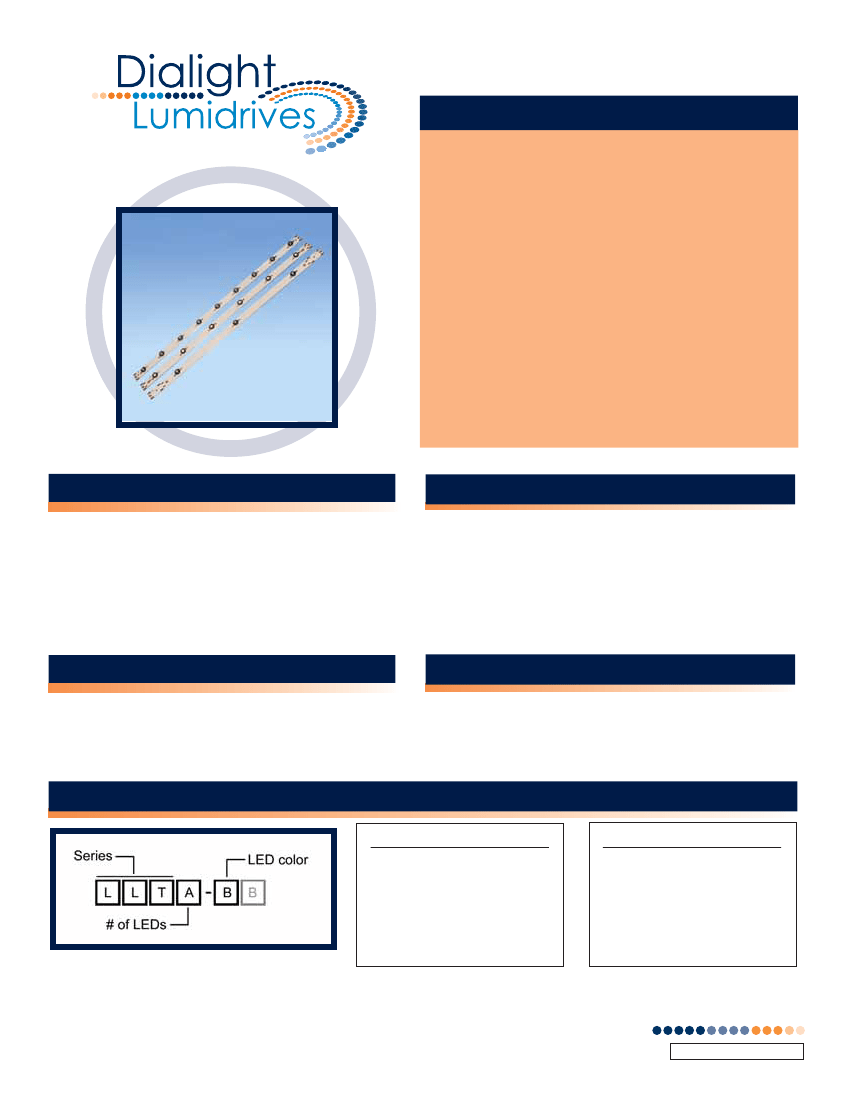

FEATURES / BENEFITS

LUMILIGHT

LED LIGHT ENGINES

SINGLE COLOR

Extremely long life of 50,000 hours at 55ºC PCB

temperature

Extremely narrow construction for mounting in

tight spaces

Aluminium based PCB for easier heat dissipation

and more efficient operation

Available in 6 colors (cool white, warm white, red,

blue, green and amber)

Peel & stick mounting tape for easy installation

Units with production dates of 8/07 or later come

with 22 AWG 12” lead wires pre-attached (red+ / black-)

Patents pending

OPERATING CONDITIONS

Recommended PCB temp=55ºC

Maximum PCB temp = 105º C

LED Life @ 55ºC PCB temp = 50,000 hours

For maximum efficiency, longevity, and performance,

all “LumiLight” LED Light Engines should be screwed

or glued down to an appropriate heat sink

Maximum input current = 350mA

Thermal conductivity = 1.3W/m-k

Breakdown voltage = 2kV

APPLICATIONS

Display case lighting

Cove lighting

Wall washing

Any application requiring efficiency & long life

in a linear light pattern

MECHANICAL DIMENSIONS

Height = 7mm (0.27”)

LumiLight 3: 324mm X 13.5mm (12.76” x 0.53”)

LumiLight 6: 324mm X 13.5mm (12.76” x 0.53”)

LumiLight 9: 324mm X 13.5mm (12.76” x 0.53”)

Lead wire length = 304.8mm (12”) (On equipped models)

MATERIALS/FINISH

LUXEON

I LEDs

1.6mm Aluminium clad PCB substrate

White solder resist finish

PART NUMBERS

# of LEDs (A)

3 = 3 LEDs / LumiLight 3

6 = 6 LEDs / LumiLight 6

9 = 9 LEDs / LumiLight 9

LED Color (BB)

W = Cool White

WW = Warm White

R = Red

G = Green

B = Blue

A = Amber

Dialight Corporation

Dialight reserves the right to make changes at any time

in order to supply the best product possible.

1501 Route 34 South • Farmingdale, NJ 07727 USA

Tel: (1) 732-919-3119 • Fax: (1) 732-751-5778 • www.dialight.com

MDEXLUMLIGHT_D
