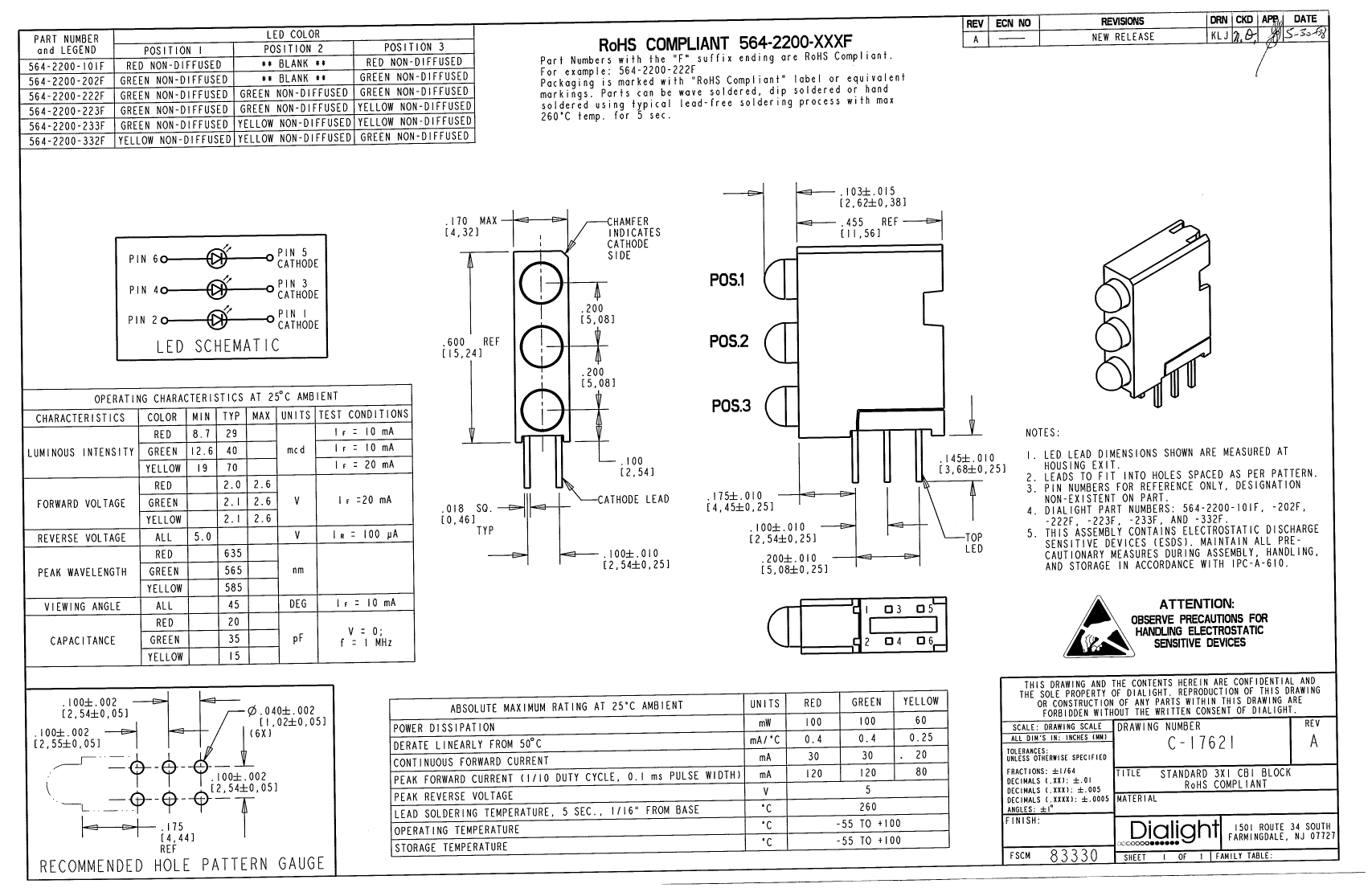

564-2200-233F: DescriptionLED Circuit Board Indicators CBI 3MM TRE LEVEL; CategoryLED optoelectronic/LED photoelectric; File Size101KB，1 Pages; ManufacturerDIALIGHT; Websitehttps://www.dialight.com; Environmental Compliance

Download Datasheet Parametric Compare View All

564-2200-233F Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	564-2200-233F	-	-	View	Buy Now

LED Circuit Board Indicators CBI 3MM TRE LEVEL

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT PACKAGE-6
Reach Compliance Code	compliant
color	YELLOW/GREEN
Configuration	SEPARATE, 3 ELEMENTS
Maximum forward current	0.03 A
Lens type	NONDIFFUSED
Nominal luminous intensity	70.0/40.0 mcd
Installation features	RADIAL MOUNT
Number of functions	3
Number of terminals	6
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
Optoelectronic device types	DUAL COLOR LED ARRAY
total height	15.24 mm
method of packing	BULK
peak wavelength	585/565 nm
shape	ROUND
surface mount	NO
Terminal pitch	2.54 mm
perspective	45 deg
Base Number Matches	1

	564-2200-233F	564-2200-101F	564-2200-222F	564-2200-223F
Description	LED Circuit Board Indicators CBI 3MM TRE LEVEL	LED Circuit Board Indicators CBI 3MM TRE LEVEL		LED Circuit Board Indicators CBI 3MM TRE LEVEL
Is it Rohs certified?	conform to	conform to	conform to	conform to
package instruction	ROHS COMPLIANT PACKAGE-6	ROHS COMPLIANT PACKAGE-4	ROHS COMPLIANT PACKAGE-6	ROHS COMPLIANT PACKAGE-6
Reach Compliance Code	compliant	compliant	compliant	compliant
color	YELLOW/GREEN	RED	GREEN	YELLOW/GREEN
Configuration	SEPARATE, 3 ELEMENTS	SEPARATE, 2 ELEMENTS	SEPARATE, 3 ELEMENTS	SEPARATE, 3 ELEMENTS
Maximum forward current	0.03 A	0.03 A	0.03 A	0.03 A
Lens type	NONDIFFUSED	NONDIFFUSED	NONDIFFUSED	NONDIFFUSED
Nominal luminous intensity	70.0/40.0 mcd	29.0 mcd	40.0 mcd	70.0/40.0 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
Number of functions	3	2	3	3
Number of terminals	6	4	6	6
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Optoelectronic device types	DUAL COLOR LED ARRAY	SINGLE COLOR LED ARRAY	SINGLE COLOR LED ARRAY	DUAL COLOR LED ARRAY
total height	15.24 mm	15.24 mm	15.24 mm	15.24 mm
method of packing	BULK	BULK	BULK	BULK
peak wavelength	585/565 nm	635 nm	565 nm	585/565 nm
shape	ROUND	ROUND	ROUND	ROUND
surface mount	NO	NO	NO	NO
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
perspective	45 deg	45 deg	45 deg	45 deg
Base Number Matches	1	1	1	1
JESD-609 code	-	e4	e4	e4
Terminal surface	-	Copper/Nickel/Silver (Cu/Ni/Ag)	Copper/Nickel/Silver (Cu/Ni/Ag)	Copper/Nickel/Silver (Cu/Ni/Ag)
