Part Number

Search

HCPL-4503-560E

Description
High Speed Optocouplers 1MBd 1Ch 16mA
CategoryLED optoelectronic/LED    photoelectric
File Size320KB,16 Pages
ManufacturerBroadcom
Environmental Compliance
Download Datasheet Parametric View All

HCPL-4503-560E Online Shopping

Suppliers Part Number Price MOQ In stock
HCPL-4503-560E - - View Buy Now

HCPL-4503-560E Overview

High Speed Optocouplers 1MBd 1Ch 16mA

HCPL-4503-560E Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerBroadcom
package instruction0.300 INCH, ROHS COMPLIANT, SURFACE MOUNT, DIP-8
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresTTL COMPATIBLE, UL RECOGNIZED, VDE APPROVED
ConfigurationSINGLE
Current transmission ratio - minimum value19%
Nominal data rate1 MBps
Maximum forward current0.025 A
Maximum forward voltage1.7 V
Maximum insulation voltage3750 V
JESD-609 codee3
Installation featuresSURFACE MOUNT
Number of components1
Maximum on-state current0.008 A
Maximum operating temperature100 °C
Minimum operating temperature-55 °C
Optoelectronic device typesLOGIC IC OUTPUT OPTOCOUPLER
Maximum power dissipation0.1 W
surface mountYES
Terminal surfaceMatte Tin (Sn)
Base Number Matches1
HCNW4502/3
HCPL-0452/0453/4502/4503
Single Channel, High Speed Optocouplers
Data Sheet
Lead (Pb) Free
RoHS 6 fully
compliant
RoHS 6 fully compliant options available;
-xxxE denotes a lead-free product
Description
These diode-transistor optocouplers use an insulating
layer between a LED and an integrated photodetector to
provide electrical insulation between input and output.
Separate connections for the photodiode bias and out-
put-transistor collector increase the speed up to a hun-
dred times that of a conventional phototransistor coupler
by reducing the base-collector capacitance.

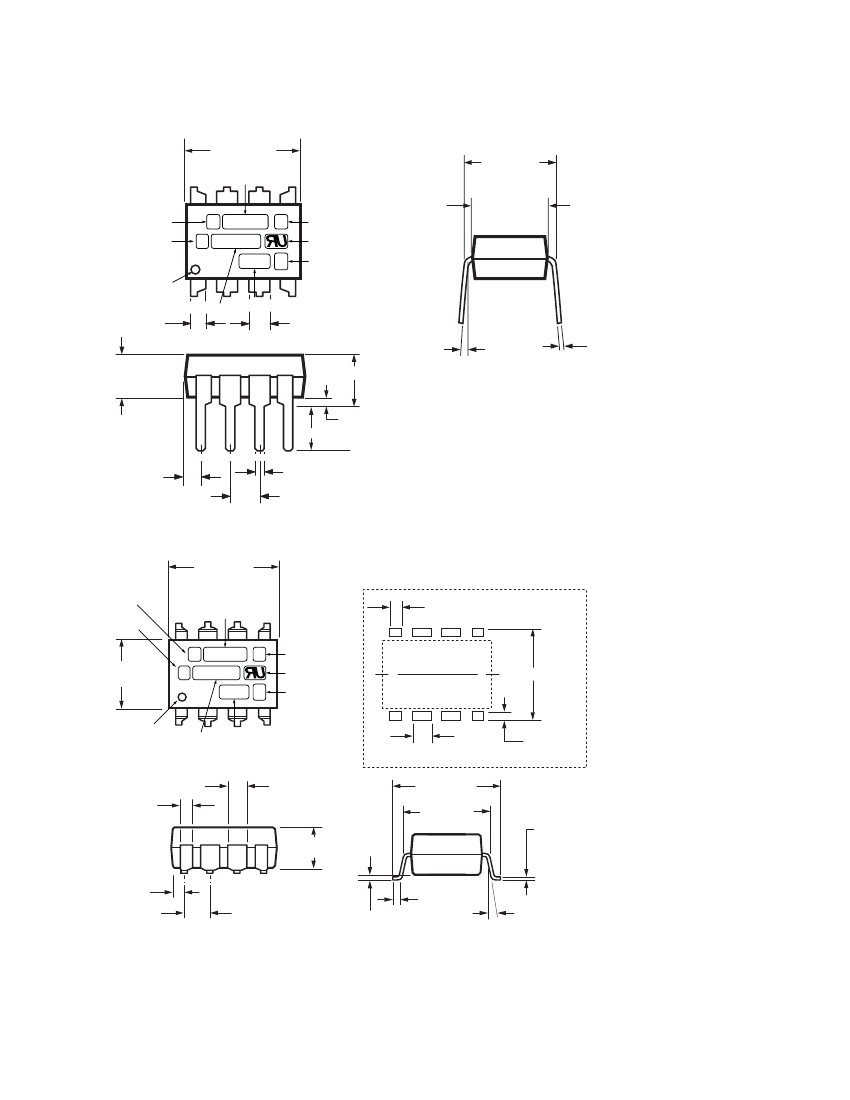

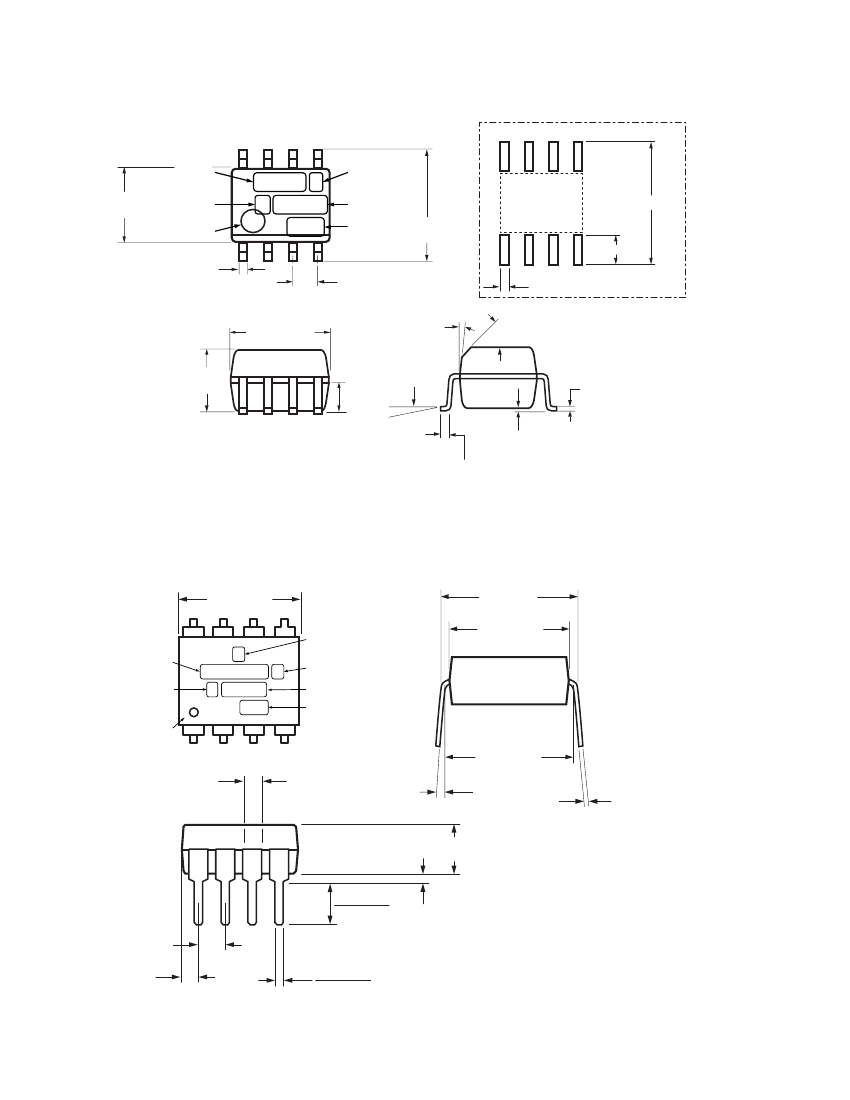

These single channel optocouplers are available in
8-Pin DIP, SO-8 and Widebody package configurations.
The HCPL-4502/4503 and HCNW4502/4503 are designed
for high speed TTL/TTL applications. A standard 16 mA TTL
sink current through the input LED will provide enough
output current for 1 TTL load and a 5.6 kΩ pull-up resistor.
CTR for these devices is 19% minimum at I
F
= 16 mA.
Features
15 kV/µs minimum common mode transient
immunity at V
CM
= 1500 V
High speed: 1 Mb/s
TTL compatible
Available in 8-Pin DIP, SO-8, widebody packages
Open collector output
Guaranteed performance from temperature:
0°C to 70°C
Safety approval
UL Recognized – 3750 V
rms
for 1 minute (5000 V
rms
for 1 minute for HCNW and Option 020 devices)
per UL1577
CSA Approved
IEC/EN/DIN EN 60747-5-5 Approved
– V
IORM
= 630 V peak for HCPL-4503#060
– V
IORM
= 1414 V peak for HCNW devices
Dual channel version available (4534/0534)
MIL-PRF-38534 hermetic version available
(55XX/65XX/4N55)
Functional Diagram
NC 1
ANODE 2
CATHODE 3
NC 4
8 V
CC
7 NC
6 V
o
5 GND
TRUTH TABLE
(POSITIVE LOGIC)
LED
V
o
ON
LOW
OFF
HIGH
Applications
High voltage insulation
Video signal isolation
Power transistor isolation in motor drives
Line receivers
Feedback element in switched mode power supplies
High speed logic ground isolation
– TTL/TTL, TTL/CMOS, TTL/LSTTL
Replaces pulse transformers
Replaces slow phototransistor isolators
Analog signal ground isolation
A 0.1 µF bypass capacitor must be connected between pins 5 and 8.
CAUTION:
It is advised that normal static precautions be taken in handling and assembly
of this component to prevent damage and/or degradation which may be induced by ESD.
