PLPC3-250 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> PLPC3-250

PLPC3-250: DescriptionTerminals 16-14 F.E.P.G. R/TONGUE; CategoryLED optoelectronic/LED; File Size100KB，2 Pages; ManufacturerBivar

Download Datasheet Parametric Compare View All

PLPC3-250 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PLPC3-250	-	-	View	Buy Now

PLPC3-250 Overview

Terminals 16-14 F.E.P.G. R/TONGUE

PLPC3-250 Parametric

Parameter Name	Attribute value
Product Category	LED Light Pipes
Manufacturer	Bivar
RoHS	Details
Product	Rigid Light Pipes
Color	Water Clear
LED Size	3 mm
Body Shape	Cylindrical
Body Length	0.25 in
Material	Polycarbonate (PC)
Packaging	Bulk
Dimensions	0.113 in x 0.25 in
Mounting Hole Size	0.121 in
Mounting Style	Flush
Panel Thickness Dimension	0.047 in to 0.093 in
Factory Pack Quantity	100
Vf - Forward Voltage	-
Water / Moisture Rating	Non Water Resistant

Preview

Download Datasheet

View All

REV.

DESCRIPTION

DATE

APPROVED

Engineering Release

Added Color Options, Sheet #2

07/15/15

01/25/16

J. C.

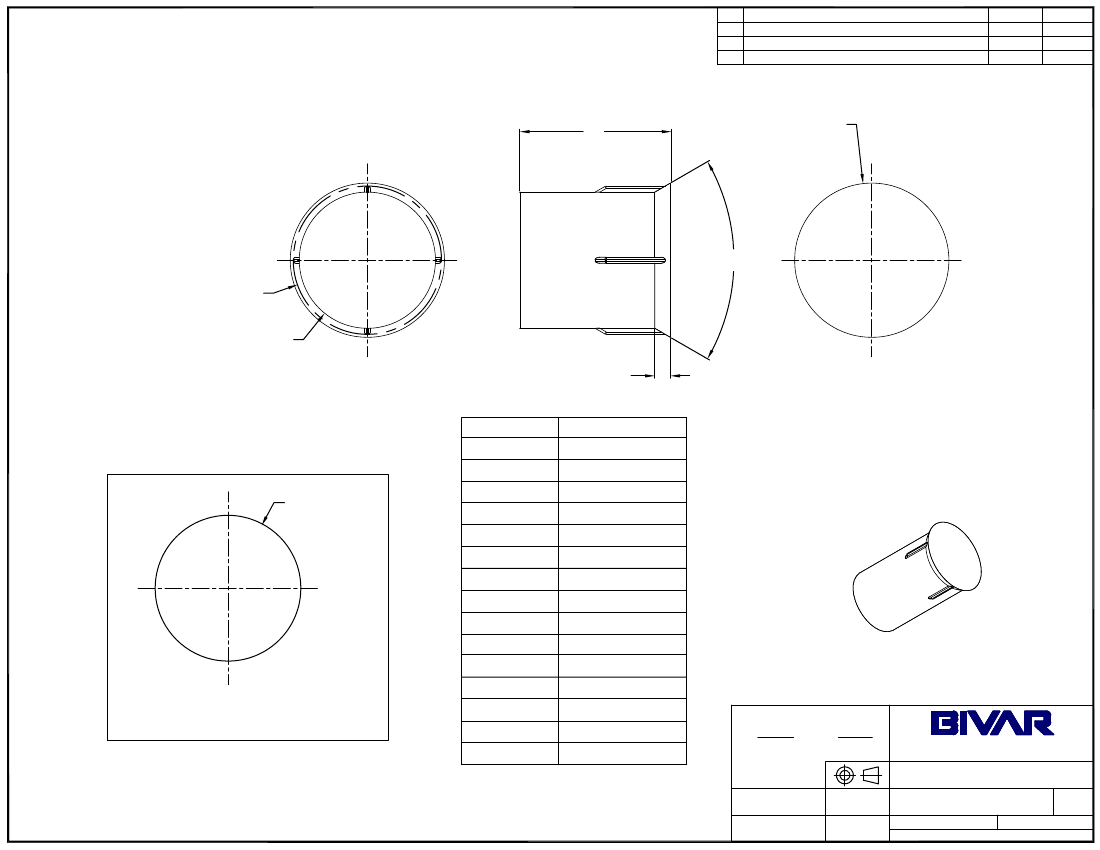

Ø0.128 [Ø3.3mm]

LENS

60.0°

Ø0.123 [Ø3.1mm]

REF.

Ø0.113 [Ø2.9mm]

LIGHT PIPE

0.013 [0.3mm]

REF.

Part No.

PLPC3-100

PLPC3-125

PLPC3-188

PLPC3-250

PLPC3-313

PLPC3-375

PLPC3-500

PLPC3-3MM

PLPC3-4MM

PLPC3-5MM

PLPC3-6MM

PLPC3-7MM

X = Body Length

0.100 ( 2.5mm )

0.125 ( 3.2mm )

0.188 ( 4.8mm )

0.250 ( 6.4mm )

0.313 ( 7.9mm )

0.375 ( 9.5mm )

0.500 ( 12.7mm )

3mm ( 0.118" )

4mm ( 0.157" )

5mm ( 0.197" )

6mm ( 0.236" )

7mm ( 0.276" )

8mm ( 0.315" )

9mm ( 0.354" )

10mm ( 0.394" )

STANDARD TOLERANCE

( UNLESS OTHERWISE SPECIFIED )

DECIMALS

ANGULAR

Ø0.121+.001

-.002

Recommended Mounting Hole

Panel Thickness: 0.047"- 0.093"

PLPC3-8MM

PLPC3-9MM

PLPC3-10MM

2. MATERIAL: POLYCARBONATE, 94V-0, CLEAR.

1. GENERAL SPECIFICATIONS: BIVAR MOLDED COMPONENT SPECIFICATION BV00-E101

and BSMC-1001.

.XX

.XXX

DESIGNED:

± .1

± .01

± .005

X°

± 1°

4 THOMAS, IRVINE, CA. 92618

TEL: (949) 951-8808

FAX: (949) 951-3974

TITLE:

DATE:

PRESS-FIT, PANEL MOUNT

LIGHT PIPE, FLUSH, 3mm

REVISION:

PART NO:

A. Wright

CHECKED:

04/24/15

DATE:

PLPC3-XXX

B. Oliver

04/24/15

CAGE CODE : 32559

SHEET #

CAD GENERATED DOCUMENT, DO NOT MEASURE DRAWING.

PLPC3-250 Related Products

	PLPC3-250	PLPC3-375	PLPC3-100	PLPC3-125	PLPC3-313	PLPC3-5MM	PLPC3-188	PLPC3-500
Description	Terminals 16-14 F.E.P.G. R/TONGUE	EEPROM 2K I2C EE Unique ID	MOSFET SOT-23 N-CH LOGIC	Audio Amplifiers 1.1nV/Hz Noise Low Pwr Prec Op Amp		8-bit Microcontrollers - MCU 4kB Flash 0.256kB EEPROM 23 I/O Pins		Modular Connectors / Ethernet Connectors RJ45 C Size Waterproof Square
Product Category	LED Light Pipes	LED Light Pipes	LED Light Pipes	LED Light Pipes	LED Light Pipes	LED Light Pipes	LED Light Pipes	LED Light Pipes
Manufacturer	Bivar	Bivar	Bivar	Bivar	Bivar	Bivar	Bivar	Bivar
RoHS	Details	Details	Details	Details	Details	Details	Details	Details
Product	Rigid Light Pipes	Rigid Light Pipes	Rigid Light Pipes	Rigid Light Pipes	Rigid Light Pipes	Rigid Light Pipes	Rigid Light Pipes	Rigid Light Pipes
Color	Water Clear	Water Clear	Water Clear	Water Clear	Water Clear	Water Clear	Water Clear	Water Clear
LED Size	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm
Body Shape	Cylindrical	Cylindrical	Cylindrical	Cylindrical	Cylindrical	Cylindrical	Cylindrical	Cylindrical
Body Length	0.25 in	0.375 in	0.1 in	0.125 in	0.313 in	5 mm	0.188 in	0.5 in
Material	Polycarbonate (PC)	Polycarbonate (PC)	Polycarbonate (PC)	Polycarbonate (PC)	Polycarbonate (PC)	Polycarbonate (PC)	Polycarbonate (PC)	Polycarbonate (PC)
Packaging	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk
Dimensions	0.113 in x 0.25 in	0.113 in x 0.375 in	0.113 in x 0.1 in	0.113 in x 0.125 in	0.113 in x 0.313 in	2.9 mm x 5 mm	0.113 in x 0.188 in	0.113 in x 0.5 in
Mounting Hole Size	0.121 in	0.121 in	0.121 in	0.121 in	0.121 in	3.07 mm	0.121 in	0.121 in
Mounting Style	Flush	Flush	Flush	Flush	Flush	Flush	Flush	Flush
Panel Thickness Dimension	0.047 in to 0.093 in	0.047 in to 0.093 in	0.047 in to 0.093 in	0.047 in to 0.093 in	0.047 in to 0.093 in	1.19 mm to 2.36 mm	0.047 in to 0.093 in	0.047 in to 0.093 in
Factory Pack Quantity	100	100	100	100	100	100	100	100
Water / Moisture Rating	Non Water Resistant	Non Water Resistant	Non Water Resistant	Non Water Resistant	Non Water Resistant	Non Water Resistant	Non Water Resistant	Non Water Resistant
