H
G
F
E
D
C
B
1.25
A
4
4
41.61

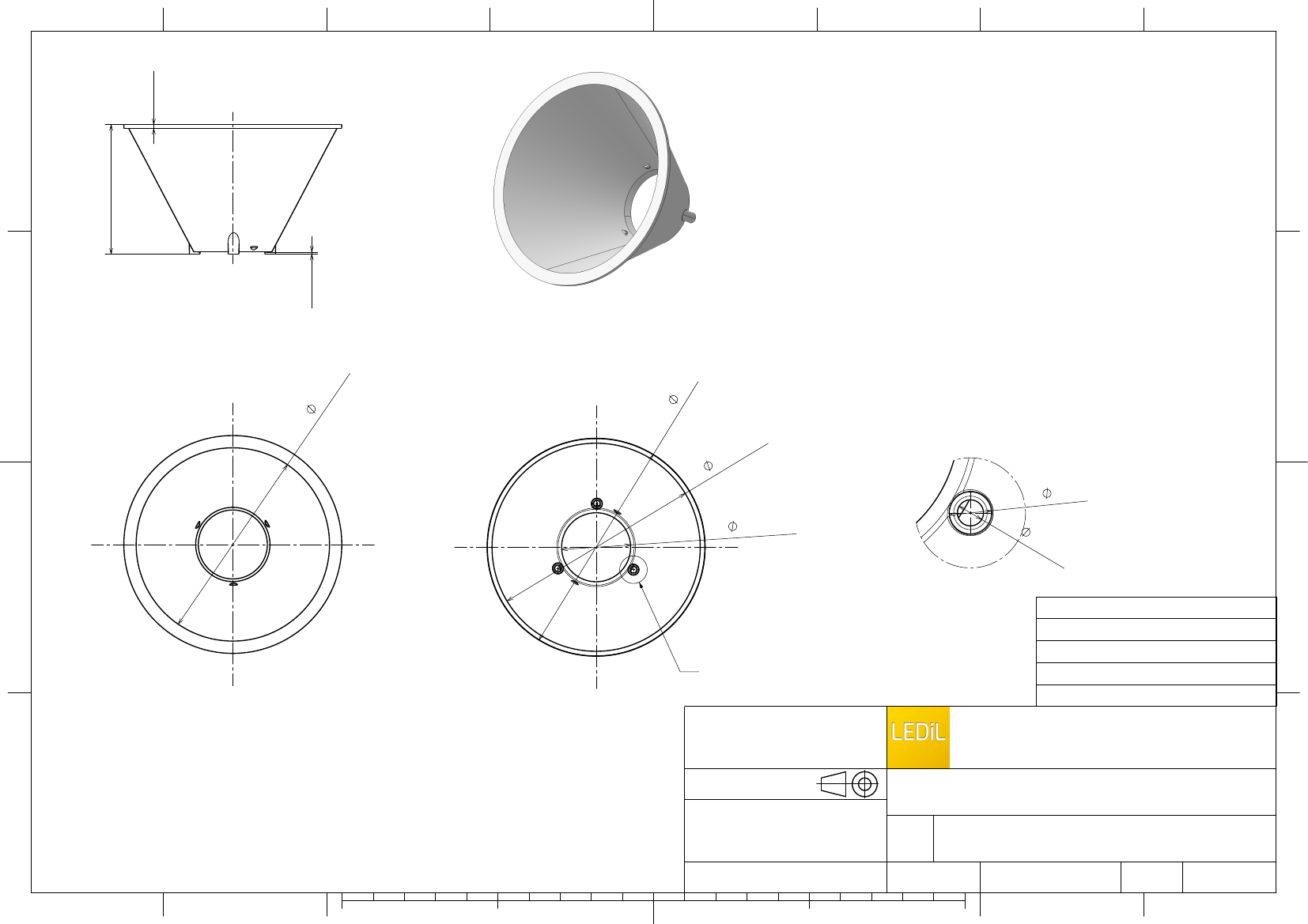

Front view
0.66
Isometric view
3
3
.1
62
70
6
.8
6
7
3.4
22.16
2
2.
09
Detail A
Scale: 4:1
2
A
Top view
Bottom view
Tolerances if not otherwise shown
According to DIN ISO 2768-1
Linear measures:
Up to 30mm class M, otherwise class C.
According to DIN ISO 2768-2
Form and position: class L
This drawing applies to:
C13700_BARBARA-S-PF
C13701_BARBARA-W-PF
C13702_BARBARA-WW-PF
C13703_BARBARA-XW-PF
Ledil Oy
Salorankatu 10
FIN 24240 SALO
Finland
THIRD ANGLE PROJECTION:
DRAWING TITLE
This drawing is the property
of LEDiL Oy. It may not be
reproduced, copied or
communicated without a written
agreement with LEDiL Oy."
1
Datasheet_BARBARA-PF
SIZE
PART NUMBER
1
A3
SCALE
1:1 WEIGHT
-
(g)
SHEET
1/1
