FA10677_CMC-D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> FA10677_CMC-D

FA10677_CMC-D: DescriptionLED Lighting Lenses Square Assembly 22 Degrees FWHM; CategoryLED optoelectronic/LED; File Size188KB，3 Pages; ManufacturerLedil; Websitehttp://www.ledil.com

Download Datasheet Parametric View All

FA10677_CMC-D Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	FA10677_CMC-D	-	-	View	Buy Now

FA10677_CMC-D Overview

LED Lighting Lenses Square Assembly 22 Degrees FWHM

FA10677_CMC-D Parametric

Parameter Name	Attribute value
Product Category	LED Lighting Lenses
Manufacturer	Ledil
RoHS	Details
Packaging	Bulk
Factory Pack Quantity	144
Unit Weight	0.169315 oz

Preview

Download Datasheet

View All

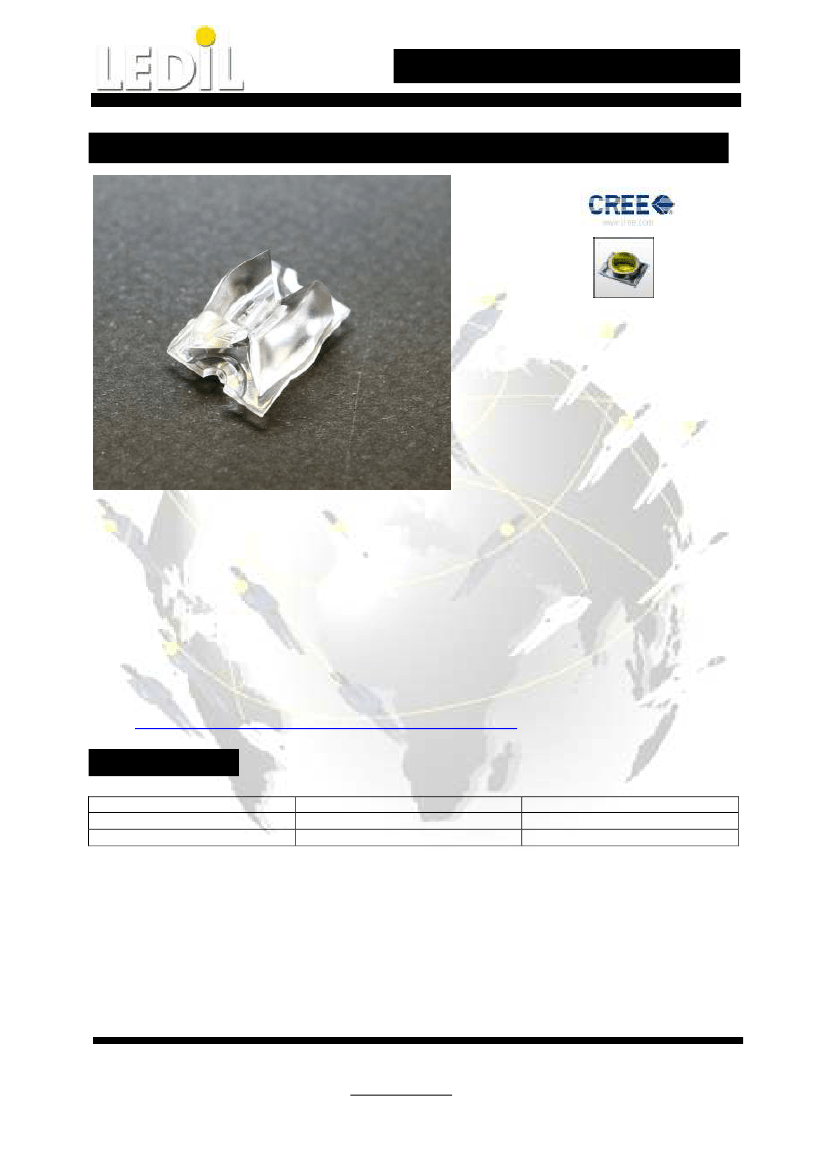

LEDIL F’FORM OPTICS

STRADA-DW-XR LENSES FOR CREE XR-E LEDs

Specially designed for Cree XR-E series of LEDs.

New extremely wide SIDE-EMITTING design with very and uniform light distribution.

Comes with integrated positioning pins.

Lens material optical grade PMMA with high UV and temperature resistance

(105°C/220°F). Allows use of high current and temperature conditions

Best available optical efficiency, approximately 92%.

Fastening to heat sink with or without PU foam adhesive tape of automotive grade,

please select which suits the best for your needs.

We advise customer to ensure the suitability and sufficiency of the bond in the end

product. For example, mechanical stress, vibration and holes on the surface of the

circuit boar weaken the strength of the tape.

Please check fastening details from this link:

(http://www.ledil.com/datasheets/DataSheet_TAPE.pdf)

LENS TYPES

NAME

ORDERING CODE

FWHM Angle

Strada-DW-XR

Strada-DW-XR-TAPE

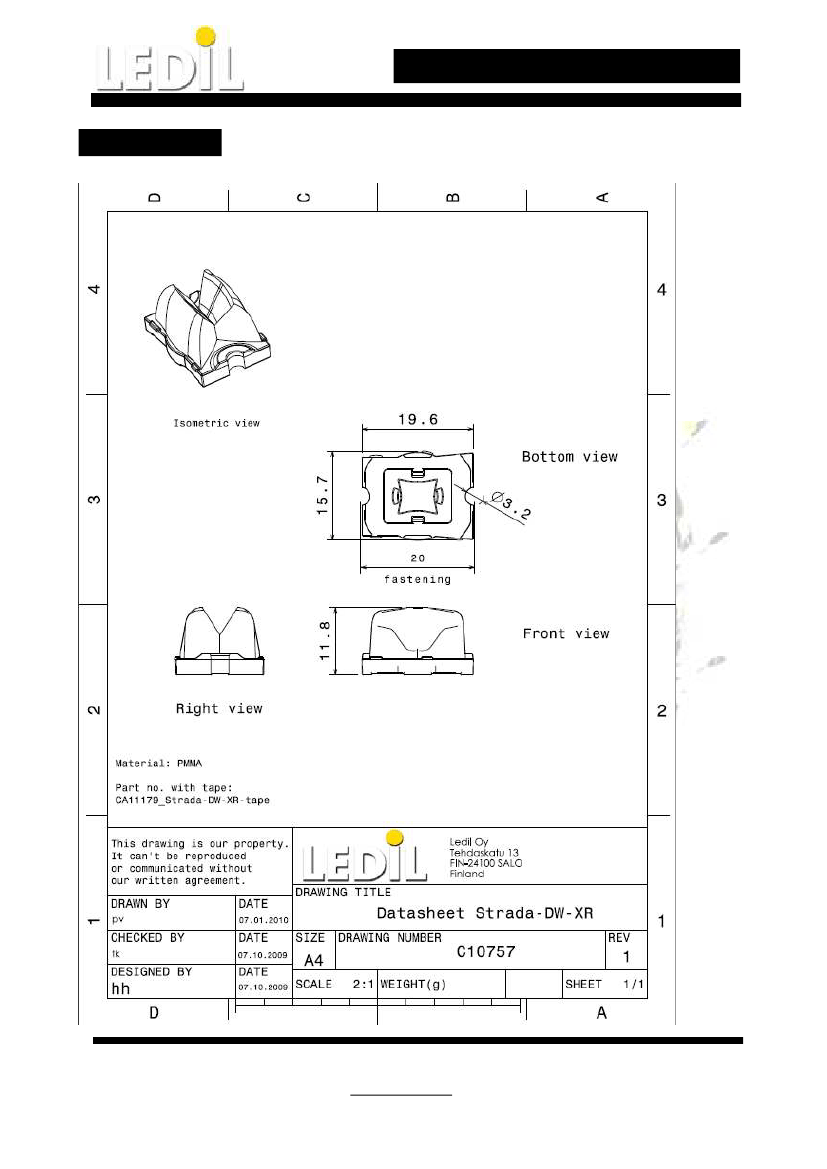

C10757_Strada-DW-XR

CA11179_Strada-DW-XR-tape

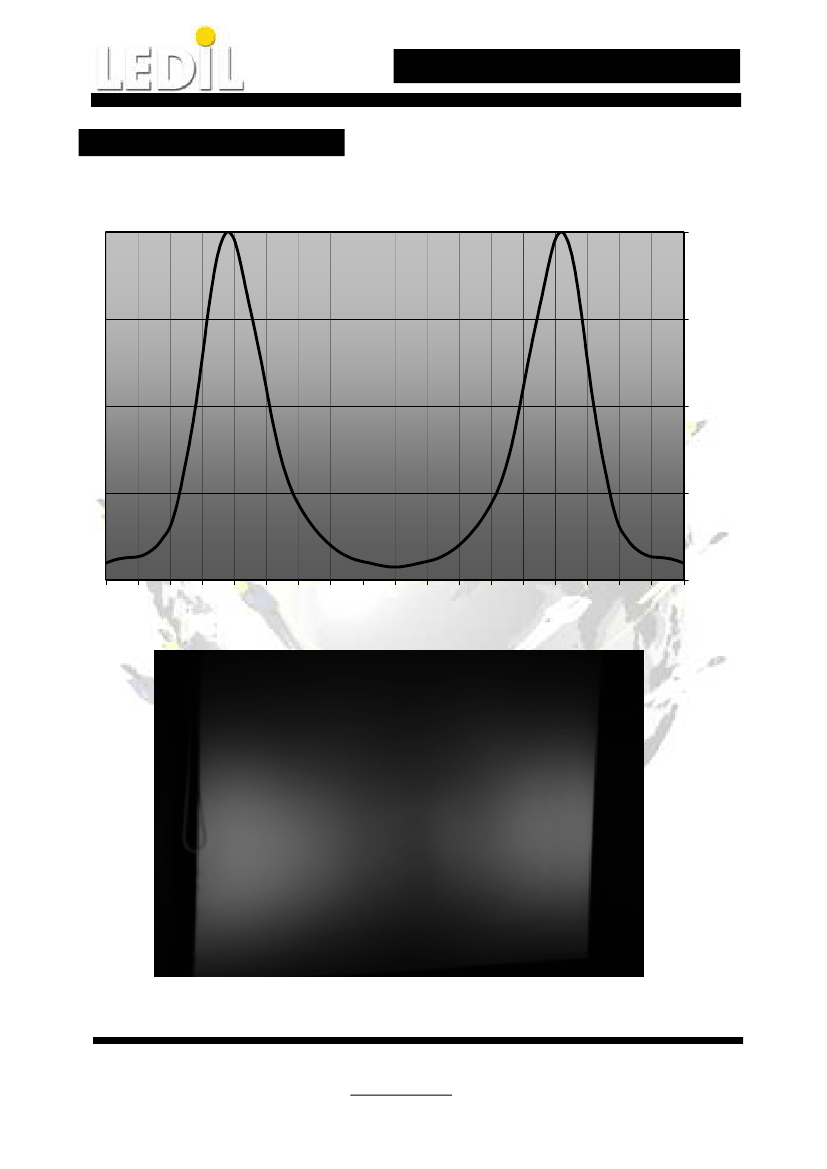

±40° - ±63°

Ledil Oy

Tehdaskatu 13

FIN-24100 SALO, Finland

www.ledil.com

email: ledil@ledil.com

FAX: +358-2-733 8001

2011-03-07
