Z-Power LED X10490
Z-Power LED X10490
Technical Data Sheet
Specification
LY350
SSC
Drawn
Approval
Customer
Approval
Rev. 02
December 2010
www.seoulsemicon.com
서식번호 : SSC-QP-7-07-24 (Rev.00)
Z-Power LED X10490
Z-Power LED X10490
Technical Data Sheet
Contents
1. Features
2. Absolute Maximum Ratings
3. Electric-Optical Characteristics
4. Reliability Tests
5. Characteristic Diagrams
6. Color & Binning
7. Outline Dimensions
8. Standard of Taping Empty Space
9. Packing
10. Soldering
11. Precaution for use
Rev. 02
December 2010
www.seoulsemicon.com
서식번호 : SSC-QP-7-07-24 (Rev.00)
Z-Power LED X10490
Technical Data Sheet
LY350

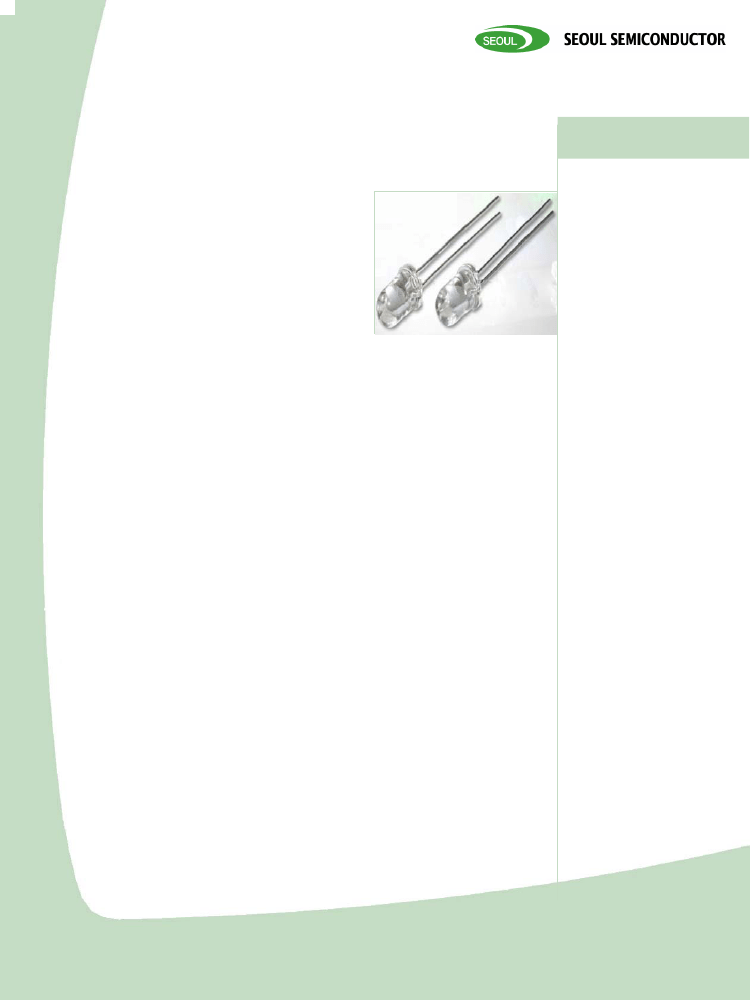

Description
사진
Lamp LEDs are effective in hot thermal
and humid condition. This high brightness
and weather-resistant packaging design
makes these Lamp LEDs
ideal for
LY350
Features
• High luminous
emission
• Non-standoff leads
• 3mm type package
• Transparent
epoxy lens
• Viewing angle : 45 º
• Dominant Wavelength
: 590nm
Outdoor applications such as traffic
signals, variable message signs and
backlighting for transparent sign panels.
Applications
• Electronic signs and
signals
• Specialty lighting
• Small area illumination
• Torches and
head lamps
• Backlighting
• Outdoor displays
Rev. 02
December 2010
www.seoulsemicon.com
서식번호 : SSC-QP-7-07-24 (Rev.00)
Z-Power LED X10490
Z-Power LED X10490
Technical Data Sheet
2. Absolute Maximum Ratings (
T
a
= 25ºC )
Item
DC Forward Current
Forward Peak Pulse Current
Reverse Voltage
Power Dissipation
Operating Temperature
Storage Temperature
Solder Temperature
Symbol
I
F
I
FP
[1]
V
R
P
D
T
opr
T
stg
T
s
Value
30
100
5
78
-40 ~ 100
-50 ~ 105
260ºC for 10seconds
[2]
Unit
mA
mA
V
mW
ºC
ºC
ºC
Notes :
[1]
t
≤
0.1ms,
D
= 1/10
[2] No lower than 3mm from the base of the epoxy bulb.
3. Electro-Optical Characteristics (
T
a
= 25ºC,
I
F
=20mA )
Value
Item
Luminous Intensity
[3]
Luminous Flux
Dominant Wavelength
[5]
Forward Voltage
[6]
View Angle
Optical Efficiency
Reverse Current (at
V
R
=
5V)
Symbol
Min.
I
V
[4]
1250
-
584
-
Typ.
2500
2.0
590
2.2
45
-
-
45
-
-
5
Max.
-
-
596
2.6
mcd
lm
nm
V
deg.
lm/W
Unit
Ф
V
λ
d
V
F
2
θ
½
ŋ
elc
I
R
μ
A
Notes :
[3] SSC maintains a tolerance of
±10%
on intensity and power measurements.
[4]
I
V
is the luminous intensity output as measured with a cylinder.
[5] Dominant wavelength is derived from the CIE 1931 Chromaticity diagram.
A tolerance of
±0.5nm
for dominant wavelength.
[6] A tolerance of
±0.05V
on forward voltage measurements
Rev. 02
December 2010
www.seoulsemicon.com
서식번호 : SSC-QP-7-07-24 (Rev.00)
Z-Power LED X10490
Z-Power LED X10490
Technical Data Sheet
4. Reliability Tests
Item
Life Test
High Temperature Operating
Low Temperature Operating
Thermal Shock
Resistance to soldering Heat
ESD
(Human Body Model)
High Temperature Storage
Low Temperature Storage
Temperature Humidity
Storage
Temperature Humidity
Operating
Condition
T
a
= RT,
I
F
= 30mA
T
a
= 100ºC,
I
F
= 10mA
T
a
= -40ºC,
I
F
= 20mA
T
a
= -50ºC (30min) ~ 105º (30min)
(Transfer time : 10sec, 1Cycle = 1hr)
T
s
= 255
±
5ºC,
t
= 10sec
1kV, 1.5kΩ ; 100pF
T
a
= 105ºC
T
a
= -50ºC
T
a
= 85ºC,
RH
= 85%
T
a
= 85ºC,
RH
= 85%,
I
F
= 15mA
Note
1000hrs
1000hrs
1000hrs
100
cycles
1 time
1 time
1000hrs
1000hrs
1000hrs
100hrs
Failures
0/22
0/22
0/22
0/40
0/22
0/22
0/22
0/22
0/22
0/22
< Judging Criteria For Reliability Tests >
V
F
I
R
USL
[1]
X 1.2
USL X 2.0
LSL
[2]
X 0.7
Ф
V
Notes :
[1] USL : Upper Standard Level
[2] LSL : Lower Standard Level.
Rev. 02
December 2010
www.seoulsemicon.com
서식번호 : SSC-QP-7-07-24 (Rev.00)
